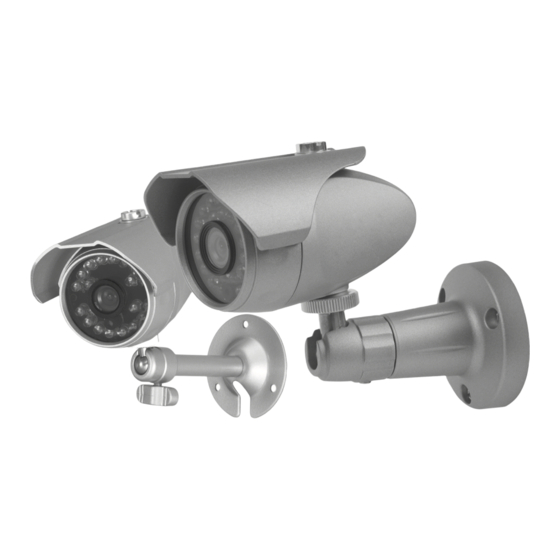

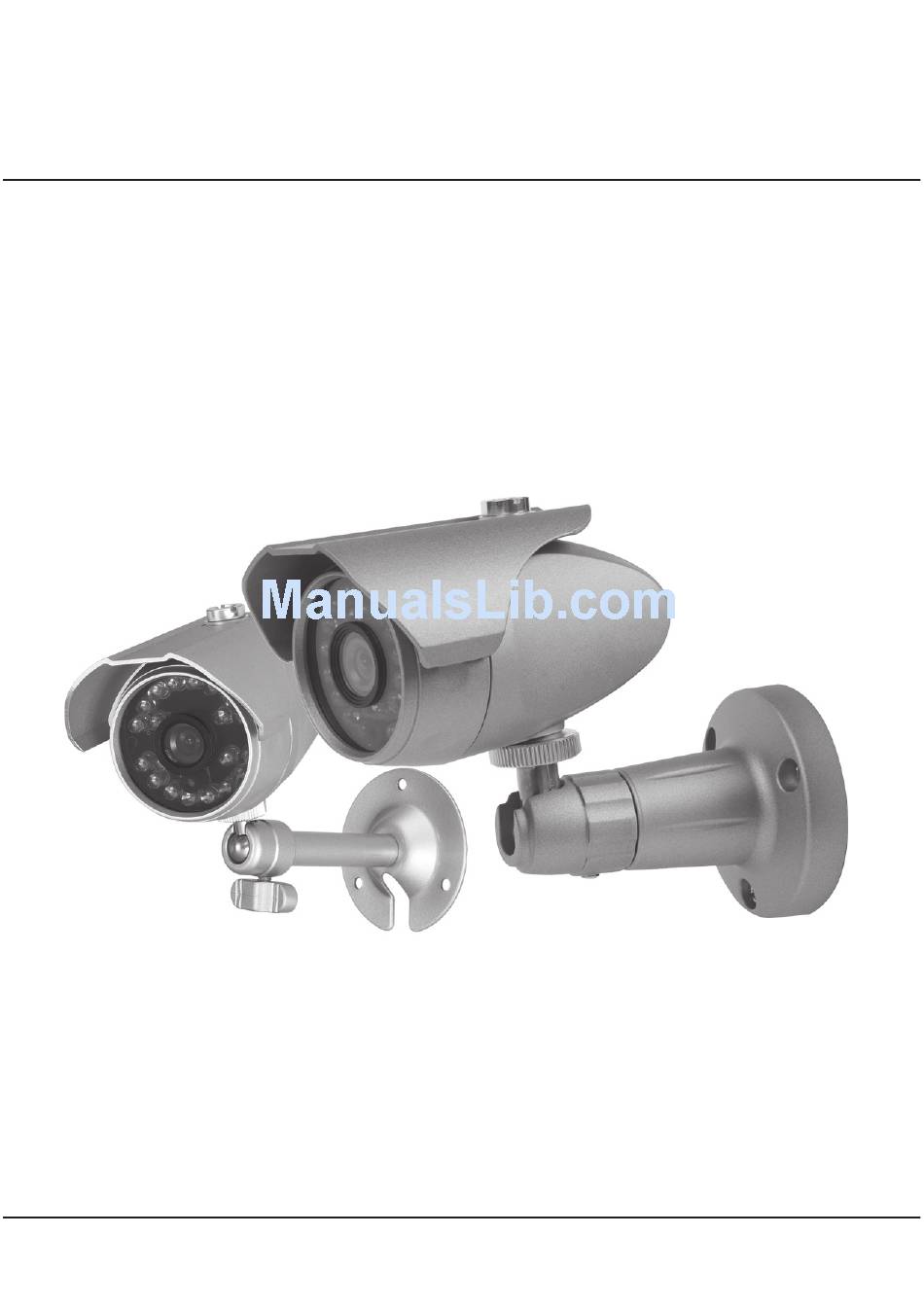

Page 1: Digital Video Camera
M162-HDN300-001 HD CCTV Digital Video Camera OPER ATI ON MA NUAL Thank you for choosing our high quality camera. Before attempting to connect operate this unit, please read and follow these instructions. - Page 2 C O NT E NT S 1. CAUTIONS 2. IMPORTANT SAFETY INSTRUCTION 3. EQUIPMENT AND ACCESSORIES 4. INSTALLATION 5. DIMENSIONS 6. SPECIFICATION 7. OSD MANUAL CAU T ION These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.
- Page 3 1. CAUTIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. Note This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 4 1. CAUTIONS Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.
-
Page 5: Important Safety Instruction
2. IMPORTANT SAFETY INSTRUCTION 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 6: Equipment And Accessories
3. EQUIPMENT AND ACCESSORIES S t a n d a r d T yp e C a b l e Co n ce a l e d T yp e Ca me r a Su n s h ie ld Tapping Screw Tapping Screw Ø4x20 (3ea) -
Page 7: Installation
4. INSTALLATION • CAMERA MOUNTING POSITION Please assemble a coin hole bolt as shown above. Ca ble C o n ce al ed Thr u Br ac ket (O p ti o n ) When using the cable concealed bracket, it is not able to install on the ceiling. -
Page 8: Monitor Connection
4. INSTALLATION • MONITOR CONNECTION * Option: Remote Control RCA Jack (OSD Key) (OSD Key Jack / White) BNC Female DC12V (2'nd Video / Yellow) Adapter DC12V IN (Black) BNC Female HD-SDI IN (HD-SDI Jack) Monitor When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems. - Page 9 5. DIMENSIONS Unit(mm) 20LED Photocell O p t i o n Concealed Bracket...
-
Page 10: Specification
6. SPECIFICATION Image Device 1/3” 2.1 Mega Pixel SONY CMOS Effective Pixels 1984(H) x 1105(V) Unit cell size 2.8um (H) x 2.8um (V) SDI: 1080P 30fps(25fps) / 720P 60fps(50fps) Video output mode TV Out: CVBS NTSC/PAL Minimum 0 Lux (IR-LED ON) Illumination Auto / Manual selectable Shutter speed... -
Page 11: Osd Manual
7. OSD MANUAL 1. EXPOSURE EXPOSURE - BRIGHTNESS: Enable user to control the image brightness > BRIGHRNESS (1~20steps). | | | | | | | | | SHUTTER MODE AUTO SHUTTER SPEED – – – - SHUTTER MODE: Enable user to set up the AGC MAX 18dB INITIAL... -
Page 12: Day&Night
7. OSD MANUAL 3. BLC - MODE: Enable user to set BLC mode. -> OFF, BLC > MODE BLC ZONE - BLC(Backlight compensation mode): BLC X - POSITION | | | | | | | BLC Y - POSITION This function works for subjects in the | | | | | | | | BLC X - SIZE kind of backlight conditions. - Page 13 7. OSD MANUAL 5. IMAGE - SHARPNESS: Enable user to control the image sharpness(0~10steps). - FLIP: Sets the Vertical flip for the display output. IMAGE > SHARPNESS | | | | | | | | | FLIP (OFF) (H-FLIP) DZOOM 1.0X HLMASK D-WDR...
- Page 14 7. OSD MANUAL 6. SPECIAL : Setting up the CAM TITLE, LANGUAGE, SPECIAL PRIVACY, DISPLAY, SYSTEM. > CAM TITLE - CAM TITLE : Enable user to choose any LANGUAGE ENGLISH word in screen. (Maximum 10 letter is available) PRIVACY MOTION 1.
-
Page 15: Factory Default
7. OSD MANUAL - MOTION: Motion detection function. 1. RESOLUTION: Enable user to set up resolution MOTION 2. SENSITIVITY: Enable user to set up sensitivity. > RESOLUTION 3. WINDOW USE: Enable user to select to motion area. | | | | | | | | SENSITIVITY | | | | | | | | |...
