KT&C KPC DH100 Operation Manual

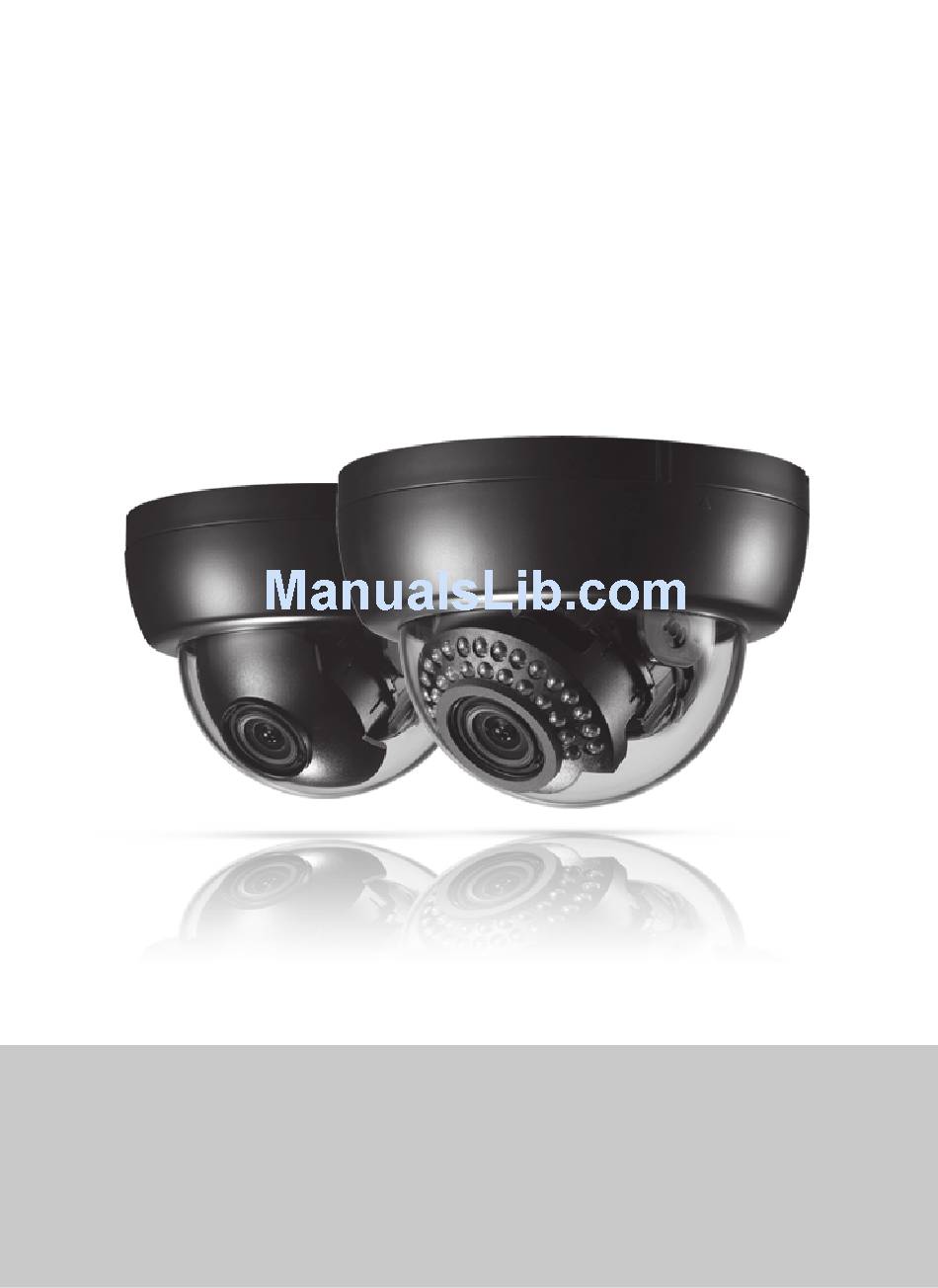

High resolution dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M0 8 8 -D H 1 0 0 -0 0 1
H IG H RES OLUT I O N
D O M E C A MER A
OP ERAT I ON M AN UAL
T han k y ou for choosing our high q ua lity ca m e ra .
Before attempting t o connect or ope ra t e , p le a se re a d a n d fo llo w
th ese ins tructions.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPC DH100 and is the answer not in the manual?

Questions and answers

Related Manuals for KT&C KPC DH100

Summary of Contents for KT&C KPC DH100

  • Page 1 M0 8 8 -D H 1 0 0 -0 0 1 H IG H RES OLUT I O N D O M E C A MER A OP ERAT I ON M AN UAL T han k y ou for choosing our high q ua lity ca m e ra . Before attempting t o connect or ope ra t e , p le a se re a d a n d fo llo w th ese ins tructions.

  • Page 2: Table Of Contents

    CONTENTS 1. CAUT I ONS ..... . 3 2. FEA TU RE S ..... . 5 3.

  • Page 3: Cautions

    1.CAUTIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1 . T his dev ic e may not cause harmf ul in t e rfe re n ce . 2 . T his dev ic e must accept any inte rf ere n ce re ce ive d , in clu d in g in terference that may cause un desire d o p e ra tio n .
  • Page 4 1.CAUTIONS Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

  • Page 5: Features

    2.FEATURES • 1/3" 410K/470K Sony Super-HAD CCDⅡ Minimum illumination - Standard type: 0.00001 Lux(F1.6, 30 IRE, Sense-Up X256, AGC high) - LED type: 0 Lux ( IR LED On) S/N Ratio 50 dB • High Resolution 600TV Lines • 3D DNR (3D Digital Noise Reduction) •...
  • Page 6 2. FEATURES • 3-Axis Gimbal • Service Video connector The Serv ice Video Connector also p ro vid e s the i nstal l er wit h an easy way of co n fig u rin g the c amera.

  • Page 7: Components

    3. COMPONENTS DOME CAMERA VIDEO OUTPUT TEST CABLE OPERATION MANUAL SCREW - 3ea MOUNT GUIDE...

  • Page 8: Name And Function

    4. NAME AND FUNCTION • Name (LED Type) P h o t o C e l l I R L E D 30 e a S e r vi c e V i d e o C o n ne c t o r F u n ct i o n S e t up S w i t c h •...

  • Page 9: Part Name

    5. PART NAME PART NAME STANDARD Type LED Type Mount Guide Housing Bottom Holder Panning Holder Tlit Holder Rotate Cover Sun Shield Cover LED Housing Top Cover, Dome...

  • Page 10: I N Sta L La Tio

    6. INSTALLATION • MONITOR CONNECTION DC 12V POWER SUPPLY • DC12V VIDEO IN BNC FEMALE VI DEO DC 12V / AC 24V DUAL POWER SUPPLY • DUAL(DC12V/AC24V) VIDEO IN BNC FEMALE VI DEO When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.

  • Page 11: Dimensions

    7. DIMENSIONS Unit : mm Ø100 95.3 Ø136.4...

  • Page 12: Specification

    8. SPECIFICATION STANDA R D T Y P E Signal Format NTSC 1/3" Sony Super HAD CCDⅡ Image Device 2:1 Interlace Scanning System H:15.734KHz, V:59.94Hz H:15.625KHz, V:50Hz Scanning Frequency Total Pixels 811(H) x 508(V) 795(H) x 596(V) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) Electronic Shutter Speed 1/60 sec...

  • Page 13: Osd Manual

    9. OSD MANUAL • GENERAL STRUCTURE SETUP MENU L EN S •BRI GHTNES S •R E TU RN E XP OS U RE • SHUTT ER • B R IG H TN E S S • A G C • SENSE-UP •...

  • Page 14: Lens Menu Structure

    9. OSD MANUAL LENS MENU STRUCTURE LENS BRIGHT 1~100 → → → ↕ EXPOSURE ↕ WHITE BAL ↕ DAY NIGHT ↕ IMAGE ↕ 3DNR ↕ SPECIAL ↕ RESET ↕ EXIT EXPOSURE MENU STRUCTURE LENS SHUTTER X256 ~1/100K → ↕ ↕ EXPOSURE LOW, MIDDLE, HIGH →...
  • Page 15 9. OSD MANUAL WHITE BALANCE MENU STRUCTURE LENS ↕ EXPOSURE ↕ WHITE BAL → ↕ ↕ DAY NIGHT PUSH ↕ ↕ IMAGE P-LOCK ↕ ↕ 3DNR MANUAL BLUE 1~ 100 → ↕ ↕ ↕ SPECIAL INDOOR RED 1~ 100 ↕ ↕...
  • Page 16 9. OSD MANUAL IMAGE MENU STRUCTURE LENS FREEZE ON/OFF → ↕ ↕ EXPOSURE MIRROR MIRROR V-FLIP ROATE → ↔ ↔ ↕ ↕ WHITE BAL D-ZOOM x1 ~ x32 ↔ PAN -100~100 ↔ TILT -100~100 → ↕ ↕ DAY NIGHT SHARPNESS 0 ~ 31 →...
  • Page 17 9. OSD MANUAL SPECIAL MENU STRUCTURE LENS ↕ EXPOSURE ↕ WHITE BAL CAM TITLE ON / OFF POSITION CONTROL → ↔ ↕ ↕ DAY NIGHT LANGUAGE → ↔ FRANÇAIS ↔ РУССКИЙ ↔ ESPAÑOL ↔ DEUTSCH ENGLISH ↕ IMAGE ON / AREA AREA LEFT /...

  • Page 18: Osd Function Description

    9. OSD MANUAL • OSD FUNCTION DESCRIPTION 1.LENS - LEVEL DC BRIGHTNESS : Enable user to select the DC level for Brightness of image(1~100). LENS BRIGHT RETURN RET┛ 2. EXPOSURE : Enable user to set up the function of SHUTTER, AGC. EXPOSURE SHUTTER 1/60...

  • Page 19: White Balance

    9. OSD MANUAL 3. WHITE BALANCE : Enable user to represent the accurate white color by controlling the R.G.B level. WHITE BAL MANUAL BLUE RETURN RET┛ • ATW : Enable user to trace the White Balance automatically in the Wide range (2,500K ~ 9,500K).
  • Page 20 9. OSD MANUAL 5. IMAGE :Setting up the FREEZE, MIRROR, D-ZOOM, SHARPNESS, COLOR GAIN, GAMMA, NEGATIVE IMAGE. IMAGE FREEZE MIRROR D-ZOOM ON┛ SHARPNESS COLOR GAIN ┛ GAMMA 0.45 NEG.IMAGE RETURN RET┛ - FREEZE : Setting of moving images in freeze-frame mode. - MIRROR •...
  • Page 21 9. OSD MANUAL 7. SPECIAL : Setting up the CAM TITLE, LANGUAGE, MOTION, PRIVACY, SYNC. SPECIAL CAM TITLE LANGUAGE ENGLISH MOTION ON┛ PRIVACY ON┛ SYNC RETURN RET┛ - CAMERA TITLE : Display the title editing menu. - LANGUAGE : Enable user to set up Language for OSD. •...
  • Page 22 9. OSD MANUAL 8. RESET : Enable user to reset all of the status as the factory default. RESET FACTORY RESET┛ RETURN RET┛...
