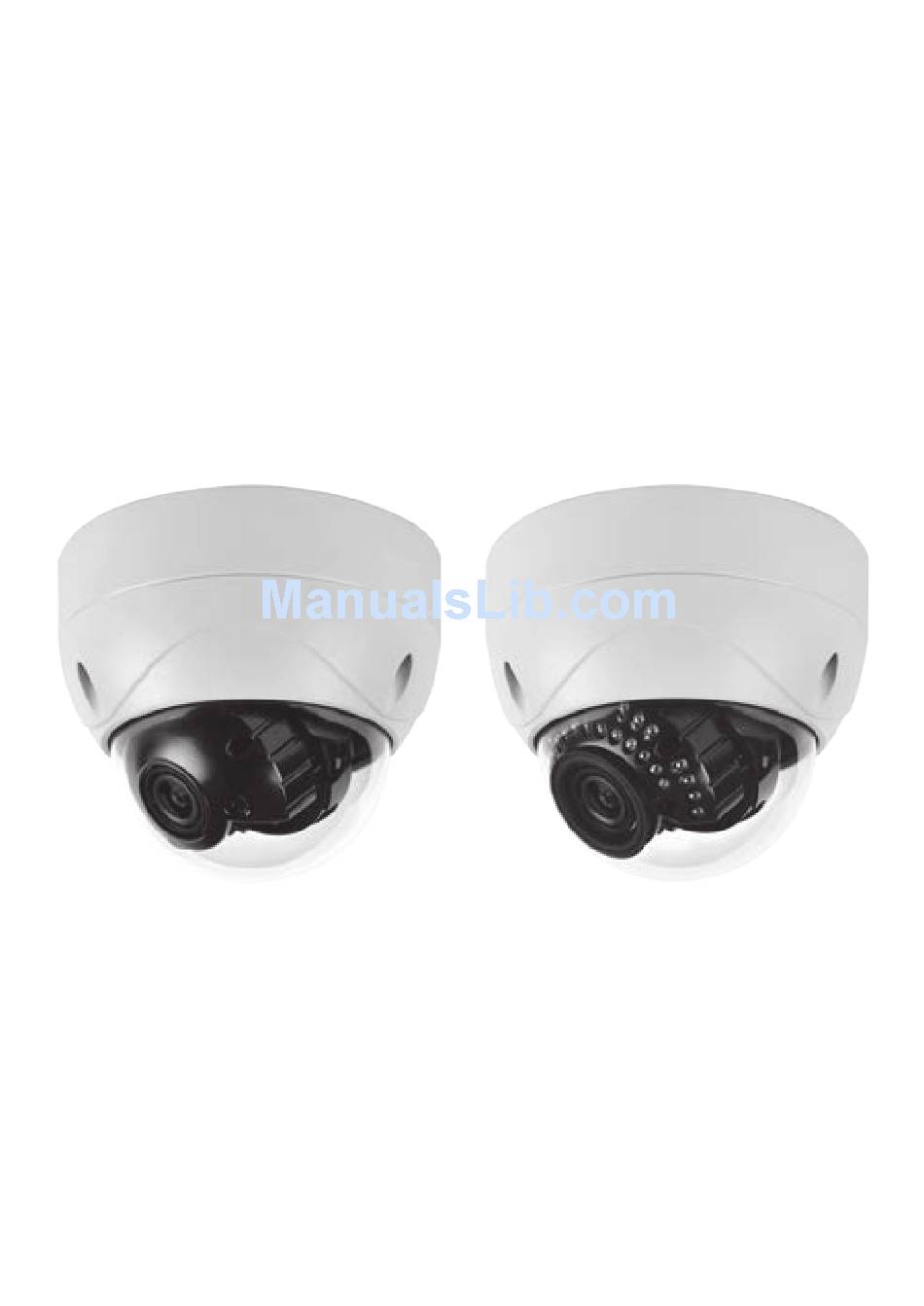

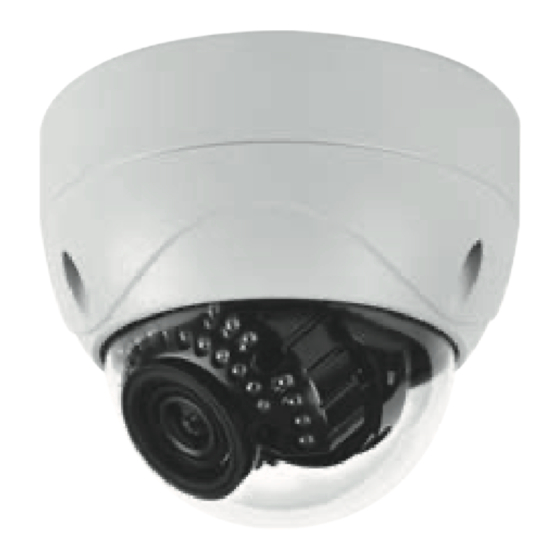

- Page 1 M160-HD(N)V122M-001 HD CCTV Digital Video Vandal Dome Camera OPER ATI ON MA NUAL Thank you for choosing our high quality camera. Before attempting to connect operate this unit, please read and follow these instructions.
- Page 2 CAU T ION These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Use Class 2 Power Supply Only...
- Page 3 C O NT E NT S 1. CAUTIONS 2. IMPORTANT SAFETY INSTRUCTION 3. FEATURES 4. EQUIPMENT AND ACCESSORIES 5. CAMERA COMPONENT DESCRIPTIONS 6. INSTALLATION 7. DIMENSIONS 8. SPECIFICATION 9. OSD MANUAL • Menu structure • Function Description...
- Page 4 1 . C AUT IO N S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
-
Page 5: Correct Disposal Of This Product (Waste Electrical & Electronic Equipment)
1 . C AUT IO N S Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life. -
Page 6: Important Safety Instruction
2 . IMP O R TA NT S A FE T Y I N ST R U C T I O N 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. - Page 7 3 . F E AT U R E S • High Resolution. SONY 1 / 3” 2.1 M Progressive Color CMOS Image Sensor, 1080p(1920x1080)@30fps • Support Various Digital Video Output. 1080p@30fps, 1080p@25fps, 720p@60fps, 720p@50fps • Video Outputs. Primary HD-SDI (BNC) Test/Setup TV Out (Test Point-adapter to BNC included), NTSC/PAL selectable •...
-
Page 8: Equipment And Accessories
4 . EQ UI P ME N T AN D A C CE SS O R I ES Camera Template Manual Screws / Plastic anchors / Wrench Service Video Output Test Cable When using Wall Mount Bracket... -
Page 9: C Ame R A Co M P O N En T D Es C R Ip T I O N S
5 . C AME R A CO M P O N EN T D ES C R IP T I O N S • LED Type IR LED Cooling Fan Service Video Connector OSD Joystick • CONTROL FUNCTION (OSD JOYSTICK) R IGH T LE FT •... -
Page 10: Installation
6 . INS TAL LATI O N Lens Zoom Knob Template Lens Focus Knob Plastic Anchors (3ea) N O T E Screws(3ea) When using the camera without LED take off the rubber. Cover Screws(3ea): are “captive and will normally be retained in cover. -
Page 11: Monitor Connection
6 . INS TAL LATI O N • MONITOR CONNECTION HD SDI IN RECEIVER DISPLAY DEVICE B NC F EM AL E V I D E O MONITOR - DC12V/AC24V DC 12V / AC 24V RS485(+) POWER SUPPLY RS485(-) HD SDI IN RECEIVER DISPLAY DEVICE... - Page 12 7 . D IM EN S I O N S Unit(mm) Ø112.8 Ø107 Ø151 Ø124...
-
Page 13: Specification
8 . SP ECI F I CAT I ON Image Device 2 . 1 M e g a P ix e l , 1 / 3 ” Ex m o r CM O S Effective Pixels 1 9 8 4 (H ) x 1 1 0 5 (V) 3 0 f p s Unit cell size 2 . -
Page 14: Os D M An Ua L
9 . OS D M AN UA L • Menu structure SETUP EXPOSURE WHITE BALANCE WDR / BLC DAY & NIGHT IMAGE SPECIAL SYSTEN Reset Data All Main Sub Menu Sub Menu BRIGHTNESS 0 ~ 20 AE MODE NORMAL AE / INDOOR LENS(IRIS) MANUAL / AUTO 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500,... - Page 15 9 . OS D M AN UA L Main Sub Menu Sub Menu SHARPNESS 0 ~ 20 GAMMA 0 ~ 4 FLIP OFF, H FLIP, V FLIP, HV FLIP IMAGE LENS SHADING OFF, ON DZOOM 1x, 2x, 4x, 6x, 8x, 10x, 12x, 14x, 16x, 18x, 20x RESET DATA BACK / DEF.
-
Page 16: Function Description
9 . OS D M AN UA L • Function Description 0. SETUP - EXPOSURE : Go sub menu for camera exposure control. - WHITE BALANCE : Go sub menu for camera white balance control. - WDR/BLC : Go sub menu for camera WDR or BLC action. - DNR : Control noise reduction setting. - Page 17 9 . OS D M AN UA L 3. WDR / BLC - MODE : Select WDR for BLC mode. • WDR : Act in wdie dynamic rage mode. Controled video frame rate in 1/2. • BLC : Act in Backlight compensation mode. •...
- Page 18 9 . OS D M AN UA L - HLMASK : Mask image high light area. • LEVEL : Select high light level. • COLOR : Select mask color. - PATTERN : Color bar display Select. - DISPLAY INFO. : Camera information OSD on/off. •...
