KT&C KPC-N570 Operation Manual

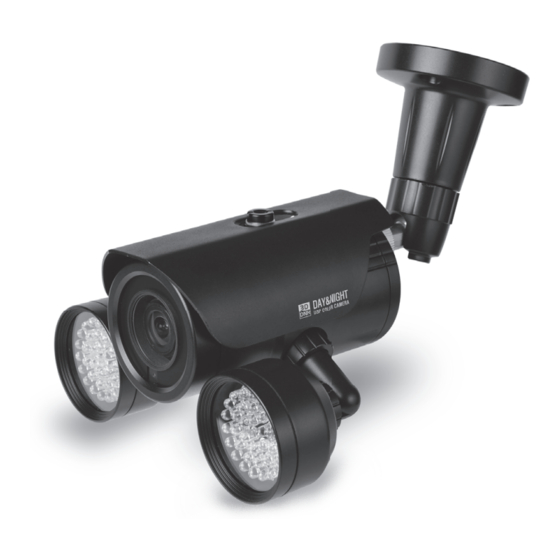

High performance super night vision camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
M0 8 3 -N5 7 0 -0 0 1
HIGH PERFORMANCE
Super Night Vision Camera
O P ERATIO N MANU AL
O P ERATIO N MANU AL
T hank you for choosing our high quality ca me ra .
Be for e at tempti ng t o connect or opera te , p le a se re a d a n d f o llo w
t hese i nstruc ti ons.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KPC-N570 and is the answer not in the manual?

Questions and answers

Related Manuals for KT&C KPC-N570

Summary of Contents for KT&C KPC-N570

  • Page 1 M0 8 3 -N5 7 0 -0 0 1 HIGH PERFORMANCE Super Night Vision Camera O P ERATIO N MANU AL O P ERATIO N MANU AL T hank you for choosing our high quality ca me ra . Be for e at tempti ng t o connect or opera te , p le a se re a d a n d f o llo w t hese i nstruc ti ons.

  • Page 2: Osd M Anua L

    C O NTEN TS 1 . CAUT IO NS 2 . FEATU RES 3 . CO MPO N ENT S 4 . NAM E AND FU NCTIO N 5 . INSTALLATION 6 . DI M EN SI ONS 7 . SPEC I F I CAT IO N 8 .
  • Page 3 1 . C AUT I ON S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. Thi s dev ice may not cause ha rmfu l in te rfe re n ce . 2.
  • Page 4 1 . C AUT I ON S Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.
  • Page 5 2 . F EAT UR E S • 1/3" 410K/470K Sony Super-HAD CCDⅡ Minimum illumination 0.1 Lux (F2.0, 30 IRE, Sense-Up Off) S/N Ratio 50 dB • High Resolution 580TV Lines This camera has realized high resolution of 580TV lines using the top-notch full digital image processing, 10 Bit A/D serial signal processing and special algorithm technologies.
  • Page 6 3 . C OMPO N E NT S SUPER NIGHT VISION CAMERA VIDEO OUTPUT TEST CABLE L-WRENCH, SCREW - 3ea OPERATION MANUAL...

  • Page 7: Nam E A Nd F U Nc T I O N

    4 . NAM E A ND F U NC T I O N ③ ② ① ③ ④ ⑤ ④ ④ ⑥ ⑦ ① S unshield Fixi ng Bolt ② S unshield ③ M ounting Bracket ④ I R Il luminator LE D : Le ft ( 3 5 ea ) , R i g ht ( 3 5e a ) ⑤...

  • Page 8: Installation

    5 . I NS TA L L AT I ON • MOUNTING POSITION 360° 90° * 1st Axis * 2nd Axis 360° 15° * 3rd Axis...

  • Page 9: Monitor Connection

    5 . I NS TA L L AT I ON • MONITOR CONNECTION (1) DC12V DC12V POWER SUPPLY DC12V BNC FEMALE VIDEO IN (2) DUAL(DC12V/AC24V) DC12V /AC24VPOWER SUPPLY DC12V/AC24V BNC FEMALE VIDEO IN When you install the camera, please glue up the end of cable to keep it stable in order to protect the camera from the humidity problems.
  • Page 10 6 . D I M E N S I ON S 7.2 Ø60 175.5 12.4 263.4 M12XP1 Ø80...

  • Page 11: Specification

    7 . S PECI F I C AT I O N Signal Format NTSC Image Device 1/3" Sony Super HAD CCDⅡ Total Pixels 811(H) x 508(V) 75(H) x 56(V) Effective Pixels 768(H) x 44(V) 752(H) x 582(V) Inter. H/V 15,734/KHz(H), 5.4Hz(V) 15,625KHz(H), 50Hz(V) H.Resolution More than 580TV Lines...

  • Page 12: General Structure

    8 . O SD M A NUA L GENERAL STRUCTURE SETUP MENU LE N S •BRI GHTNESS •R E T UR N EX P O SU R E • SHUTTER • BRIG H T NE S S • A G C •...

  • Page 13: Lens Menu Structure

    8 . O SD M A NUA L LENS MENU STRUCTURE LENS BRIGHT 1~100 → → → ↕ EXPOSURE ↕ WHITE BAL ↕ DAY NIGHT ↕ IMAGE ↕ 3DNR ↕ SPECIAL ↕ RESET ↕ EXIT EXPOSURE MENU STRUCTURE LENS SHUTTER X256 ~1/100K →...
  • Page 14 8 . O SD M A NUA L WHITE BALANCE MENU STRUCTURE LENS ↕ EXPOSURE ↕ WHITE BAL → ↕ ↕ DAY NIGHT PUSH ↕ ↕ IMAGE P-LOCK ↕ ↕ 3DNR MANUAL BLUE 1~ 100 → ↕ ↕ ↕ SPECIAL INDOOR RED 1~ 100 ↕...
  • Page 15 8 . O SD M A NUA L IMAGE MENU STRUCTURE LENS FREEZE ON/OFF → ↕ ↕ EXPOSURE MIRROR MIRROR V-FLIP ROATE → ↔ ↔ ↕ ↕ WHITE BAL D-ZOOM x1 ~ x32 ↔ PAN -100~100 ↔ TILT -100~100 → ↕...
  • Page 16 8 . O SD M A NUA L SPECIAL MENU STRUCTURE LENS ↕ EXPOSURE ↕ WHITE BAL CAM TITLE ON / OFF POSITION CONTROL → ↔ ↕ ↕ DAY NIGHT LANGUAGE → ↔ FRANÇAIS ↔ ↔ ↔ ENGLISH РУССКИЙ ESPAÑOL DEUTSCH ↕...

  • Page 17: Osd Function Description

    8 . O SD M A NUA L OSD FUNCTION DESCRIPTION 1.LENS - LEVEL DC BRIGHTNESS : Enable user to select the DC level for Brightness of image(1~100). LENS BRIGHT RETURN RET┛ 2. EXPOSURE : Enable user to set up the function of SHUTTER, AGC. - SHUTTER EXPOSURE •...

  • Page 18: White Balance

    8 . O SD M A NUA L 3. WHITE BALANCE : Enable user to represent the accurate white color by controlling the R.G.B level. • ATW : Enable user to trace the White Balance automatically in the Wide range. WHITE BAL MANUAL (2,500K ~ ,500K) BLUE...
  • Page 19 8 . O SD M A NUA L 5. IMAGE :Setting up the FREEZE, MIRROR, D-ZOOM, SHARPNESS, COLOR GAIN, GAMMA, NEGATIVE IMAGE. - FREEZE : Setting of moving images in IMAGE freeze-frame mode. - MIRROR FREEZE MIRROR • MIRROR : Enable user to set up D-ZOOM ON┛...
  • Page 20 8 . O SD M A NUA L 7. SPECIAL : Setting up the CAM TITLE, LANGUAGE, MOTION, PRIVACY, SYNC. SPECIAL CAM TITLE LANGUAGE ENGLISH MOTION ON┛ PRIVACY ON┛ SYNC RETURN RET┛ - CAMERA TITLE : Display the title editing menu. - LANGUAGE : Enable user to set up Language for OSD.
  • Page 21 8 . O SD M A NUA L 8. RESET : Enable user to reset all of the status as the factory default. RESET FACTORY RESET┛ RETURN RET┛...
