4 Water Proof Connector
Refer to the installation guide included in the package when installing
the Water Proof connector

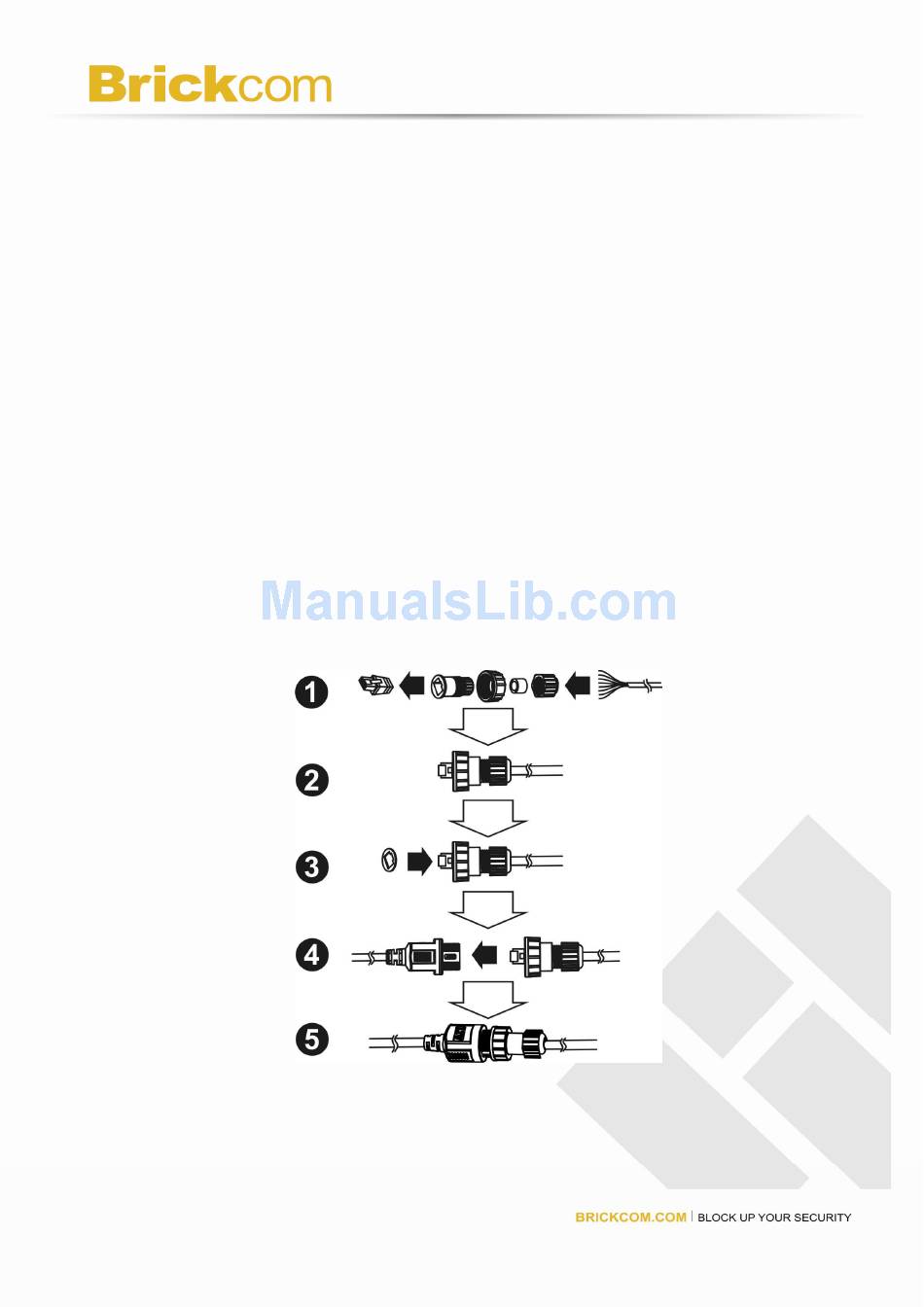

4.1 Insert the stripped cable through the sealing nut and the housing.
Clamp the cable with an RJ45 plug.
4.2 Push the RJ45 plug into the housing and secure the sealing nut
tightly.
4.3 Attach the gasket to the front of the housing.
4.4 Connect the Ethernet cable to the RJ45 cable.
4.5 Secure the connectors tightly.
