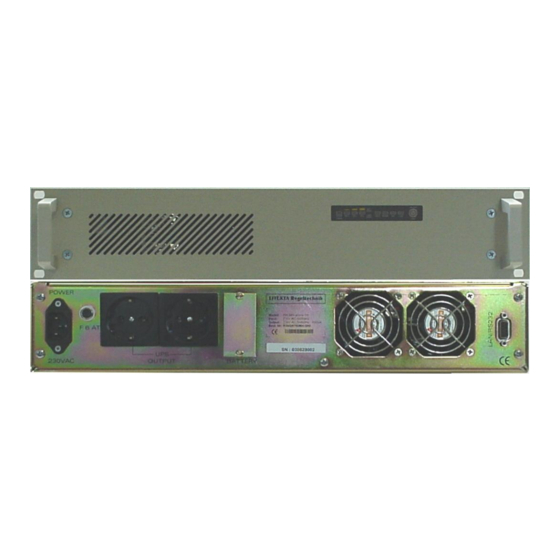

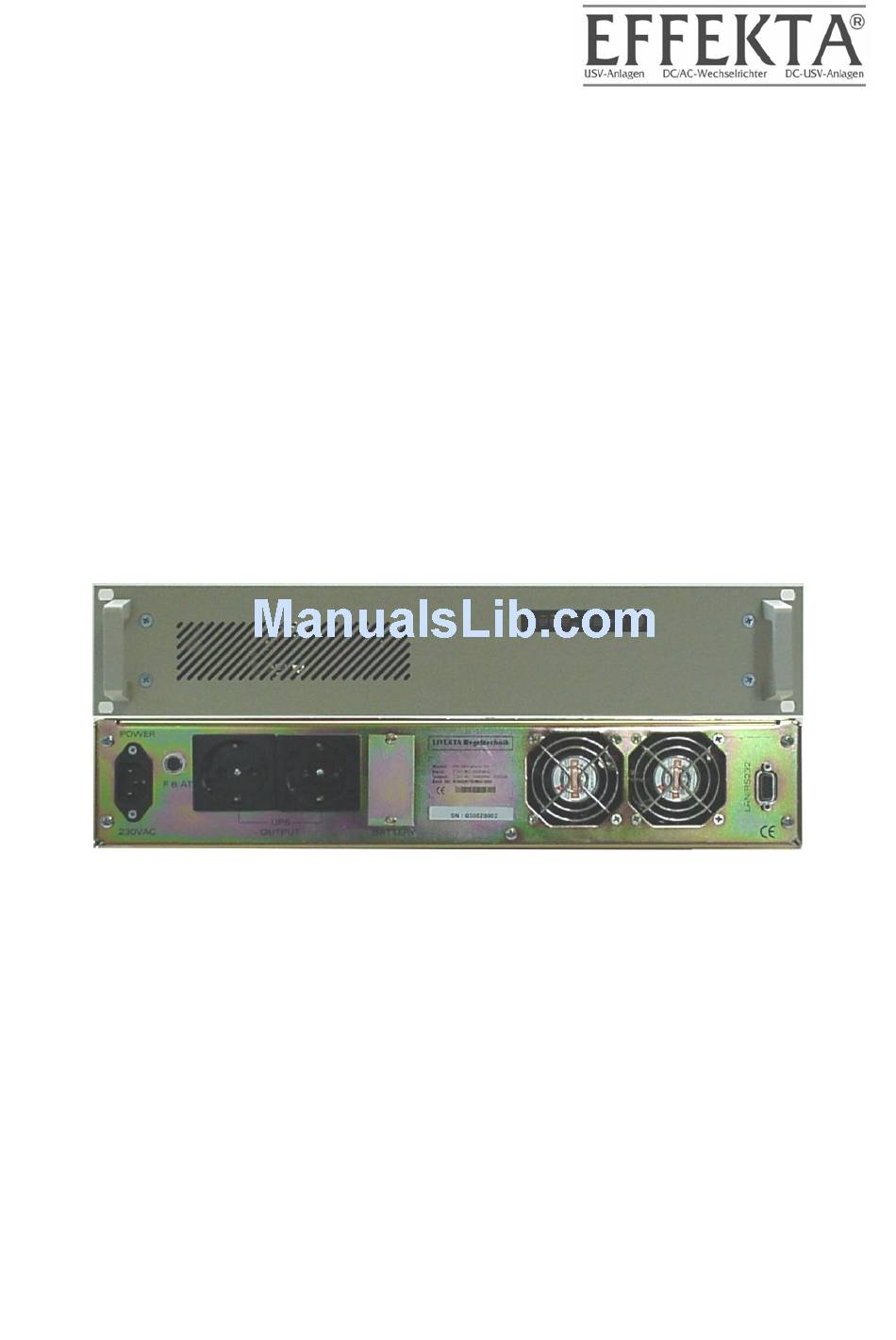

- Page 1 Uninterruptible Power Supply RMH 700/1000/1500 Instruction Manual Item number: R30 / 00700MH-000 R30 / 01000MH-000 R30 / 01500MH-000 Juli 2005...
-
Page 2: Table Of Contents
UPS RMH700/1000/1500 Instruction Manual Contents Presentation Warranty conditions Limitation of liability Safety General safety instructions Transportation and storage Setup Connection Operation Handling batteries Maintenance, servicing and faults Introduction System description RMH700/1000/1500 – description of equipment Display and operator control elements on the front panel 6.1.1 UPS operator control elements 6.1.2... - Page 3 UPS RMH700/1000/1500 Instruction Manual Troubleshooting Software Maintenance and servicing 13.1 Measuring the bridging time (support time) 13.2 Replacing the batteries 13.3 Service log 13.4 Service hotline: 13.5 Maintenance and service contracts Technical Data 14.1 Equipment specifications 14.2 Accessories 14.3 List of wearing parts Requirements for the declaration of conformity Page 3 of 37 RMH Series...
-
Page 4: Presentation
All trademarks used are the property of their respective owners. ® EFFEKTA is a registered trademark of EFFEKTA Regeltechnik GmbH. We reserve the right to make technical and visual changes, and we are not liable for typographical errors. Page 4 of 37... -
Page 5: Warranty Conditions
UPS RMH700/1000/1500 Instruction Manual 2 Warranty conditions The delivery receipt is considered to be the initial proof of purchase and should be stored carefully. It is required for all warranty claims. If the product is transferred to another user, then the latter is entitled to claim under the warranty for the remainder of the warranty period. -
Page 6: Limitation Of Liability
UPS RMH700/1000/1500 Instruction Manual EFFEKTA GmbH does not give any express or implied warranties in relation to this equipment and its quality, performance, merchantability or suitability for a specific purpose. In some countries, the exclusion of implied warranties is not permitted by law. -
Page 7: Safety
UPS RMH700/1000/1500 Instruction Manual 3 Safety 3.1 General safety instructions Read and observe the user manual and safety instructions in this chapter before taking any further action (transportation, storage, connection, startup, etc.). Since the UPS equipment uses mains voltage and incorporates an appropriate energy accumulator (high-capacity batteries) either on the inside or outside of the device, the instructions in this chapter are very important for all users and personnel. -
Page 8: Connection
UPS RMH700/1000/1500 Instruction Manual The UPS must not be set up near heat sources. Ensure that the vents of the equipment are not blocked and that the air circulation is not impeded. 3.4 Connection Only connect the UPS to an earthed shock-proof socket or, where a terminal clamp is used, connect the protective earth conductor without fail. -
Page 9: Handling Batteries
UPS RMH700/1000/1500 Instruction Manual The UPS equipment contains an energy accumulator (batteries). This means that the output of the UPS can be live even if it is not connected on the line side. To completely switch off the UPS, first press and hold the "ON/OFF" button for more than 3 seconds, wait until the UPS switches off and only then disconnect the equipment from the mains (remove input fuse or disconnect mains supply cable from the equipment). - Page 10 UPS RMH700/1000/1500 Instruction Manual Remove wristwatches, rings and other metallic objects Only use electrically-insulated tools The UPS must not be dismantled. Page 10 of 37 RMH Series...
-
Page 11: Introduction
UPS RMH700/1000/1500 Instruction Manual 4 Introduction This manual is intended to provide basic information on single-phase online UPS equipment including their functional principle, application of the various functions and troubleshooting. In addition, this manual contains information on transportation and storage as well as handling and installation of the UPS equipment. -
Page 12: System Description
UPS RMH700/1000/1500 Instruction Manual 5 System description The UPS operates continuously according to the double converter principle. It ensures the preparation of the line current and delivers an uninterrupted and fault-free single-phase voltage to mission-critical consumer loads In addition to supplying consumer loads, the equipment also keeps its internal batteries in a fully charged state. - Page 13 UPS RMH700/1000/1500 Instruction Manual Higher efficiency of inverter >90% DC / AC; High-performance communications interface (RS232 interface); Page 13 of 37 RMH Series...
-
Page 14: Rmh700/1000/1500 - Description Of Equipment
UPS RMH700/1000/1500 Instruction Manual 6 RMH700/1000/1500 – description of equipment In this chapter, you will be introduced to the various elements of the equipment and will be provided with instructions on its operation as well as all information on equipment connections. 6.1 Display and operator control elements on the front panel Fig. -
Page 15: Ups Display Elements
UPS RMH700/1000/1500 Instruction Manual 6.1.2 UPS display elements Most of the display elements only become active when the UPS is powered up (started). Line operation: the UPS is operating using mains power. If the mains voltage tolerances have been exceeded or if the mains fails completely, this indicator goes out immediately. -
Page 16: Equipment Elements On The Rear Panel
UPS RMH700/1000/1500 Instruction Manual the UPS output. If no load exists, the indicator bar goes out completely. As the load increases, the bar lights up from right to left in 20, 50 and 100% increments. If the red indicator light also goes on, then the UPS is overloaded. 6.2 Equipment elements on the rear panel Fig. - Page 17 UPS RMH700/1000/1500 Instruction Manual The protective earth conductor must be connected without fail! Please always observe the max. possible power output of the equipment indicated on the identification label or in the technical data of this manual. d) Communication All relevant UPS data are transmitted to an appropriate (9-pin D-Sub jack) primary control unit (e.g.
-
Page 18: Ups Audible Alarm Signals
UPS RMH700/1000/1500 Instruction Manual 6.3 UPS audible alarm signals Support operation and high battery capacity: The audible warning notification sounds in the following sequence (A) [beep, beep -> long pause (8 s) -> beep, beep -> ..., repeating]. Support operation and low battery capacity: The audible warning notification sounds in the following sequence (B) [beep, beep ->... -
Page 19: Storage And Unpacking
UPS RMH700/1000/1500 Instruction Manual 7 Storage and unpacking 7.1 Storing the UPS If the equipment is not installed immediately, you should observe the following: The equipment and accessories must always be left in the original packaging and stored. The recommended ambient storage temperatures are: +5°C...+30°C. Protect the equipment and its packaging from humidity. -
Page 20: Installing And Connecting The Ups
UPS RMH700/1000/1500 Instruction Manual 8 Installing and connecting the UPS All requirements in the technical data regarding environmental and operating conditions must be observed to ensure trouble-free functioning of the UPS. The following must be observed when setting up / installing the UPS equipment: Avoid extremes of temperature and atmospheric humidity. -
Page 21: Connecting The Ups
UPS RMH700/1000/1500 Instruction Manual 8.1 Connecting the UPS The RMH Series models are equipped with plug connections. The connection diagram (Fig. 6) and the following information must be observed: Fig. 6: Connecting the RMH700/ 1000/1500 10 A 0,75 mm² Warning The UPS equipment contains components with high voltage and amperage. -
Page 22: Ups Communications Connection
UPS RMH700/1000/1500 Instruction Manual 8.2 UPS communications connection To facilitate data exchange with the UPS, a convenient communications interface is available. For the connection, only use the cables specified in the “Accessories” chapter. Pin: Assignment: Fig. 7: Internal wiring of UPS Signal: Mains power communications failure... -
Page 23: Running And Operating The Equipment
UPS RMH700/1000/1500 Instruction Manual 9 Running and operating the equipment 9.1 Operating the UPS equipment The operation of this equipment is characterized by various operating modes and signals. 9.1.1 Operating modes and signals The most important operating modes of the UPS are as follows: Charging operation: if the mains power is available and the line-side fuse is switched on, the UPS charging operation is enabled. - Page 24 UPS RMH700/1000/1500 Instruction Manual Mains power operation: if mains power is available and the UPS has completely finished the startup procedure, it automatically assumes mains power operation. -> The battery pack is also charged as necessary in this operating mode. Display/alarm signal: during mains power operation, the inverter and line indicators as well as the current value of the output load (here 50%) light up.
- Page 25 UPS RMH700/1000/1500 Instruction Manual Test operation: if the UPS is operating using mains power, the test operation can be initiated by briefly pressing the “ON/OFF” button. Display/alarm signal: the display, including alarm signal, is the same as in support operation, although mains power is available. Fault operation: if a fault develops in the equipment, the UPS immediately switches to fault operation.
-
Page 26: Instructions For Using The Ups
UPS RMH700/1000/1500 Instruction Manual 9.2 Instructions for using the UPS The operator of this UPS equipment must always comply with the instructions in this manual. The operator may only carry out the following actions whilst also exercising extreme care: Use of the operator control elements: switching on, starting up and switching off the UPS. -
Page 27: Activating The Test Operation
UPS RMH700/1000/1500 Instruction Manual 9.2.3 Activating the test operation Before activating the test operation, you must observe the following points: Inform all employees involved about your intended action. As a safety precaution, back up all the data of your connected consumer loads. -
Page 28: Starting Up The Ups Equipment
UPS RMH700/1000/1500 Instruction Manual 10 Starting up the UPS equipment To guarantee error-free startup, the following actions must be carried out: 1. Establish the connection between the mains and UPS. Check that a mains fuse has been inserted beforehand. 2. Start the UPS (with the ON/OFF button). 3. - Page 29 UPS RMH700/1000/1500 Instruction Manual Problem Possible cause Remedy: The UPS cannot be Mains power is not Ensure that all connections started and no alarm available to the UPS or have been established and signal is given. is switched off. confirm this by means of appropriate voltage measurements.
-
Page 30: Software
UPS. For more information, you can also visit our Internet home page: http://www.effekta.com/ The following basic functions are supported by all software packages: Detection and display of the UPS mains power status;... -
Page 31: Maintenance And Servicing
UPS RMH700/1000/1500 Instruction Manual 13 Maintenance and servicing You can expect a long service life and trouble-free operation from your UPS equipment as long as you perform the minimum necessary maintenance. However, the reliability of the UPS is significantly affected by environmental conditions. -
Page 32: Replacing The Batteries
UPS RMH700/1000/1500 Instruction Manual 13.2 Replacing the batteries Before you proceed, take the safety information provided into consideration. Carry out the work in the specified sequence. Always use safety tool. Before you start work, make sure that the UPS is switched off and is disconnected from the mains power supply. -
Page 33: Service Log
UPS RMH700/1000/1500 Instruction Manual 13.3 Service log Always enter all maintenance and servicing work performed on the UPS equipment into the service log. Date: Work carried out: Carried out by: Page 33 of 37 RMH Series... -
Page 34: Service Hotline
Internet address: http://www.effekta.com/html/kontakt.html 13.5 Maintenance and service contracts EFFEKTA Regeltechnik GmbH offers you suitable maintenance and customer services that ensure the highest possible reliability and availability of your UPS equipment. In addition, as part of a maintenance contract, our expert technical personnel... -
Page 35: Technical Data
UPS RMH700/1000/1500 Instruction Manual 14 Technical Data 14.1 Equipment specifications Model: RMH700 RMH1000 RMH1500 Power: 700 VA / 1000 VA / 1500 VA / 490 W 700 W 1050 W Mains power Phases 1 phase conductor + neutral conductor input: Input range 160 –... -
Page 36: Accessories
2 HE x 390 mm 390 mm 420 mm 14.2 Accessories Below is a list of components which have been specifically tested and approved for this UPS by EFFEKTA Regeltechnik GmbH: Accessory: Function: Item number: “PowerShut Plus” Network-capable shutdown and... -
Page 37: Requirements For The Declaration Of Conformity
EN 50091-1 EN 50091-2 An EC declaration of conformity for products with the CE label may be obtained on request from the following address: EFFEKTA Regeltechnik GmbH Klausenburgerstrasse 9 88069 Tettnang, Germany Tel. no.: 0049 / (0) 7542 –9353-0 Page 37 of 37...
