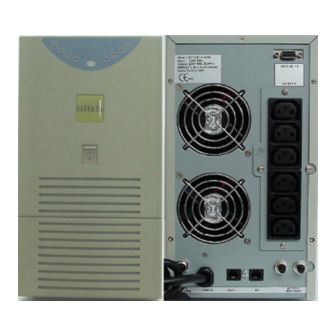

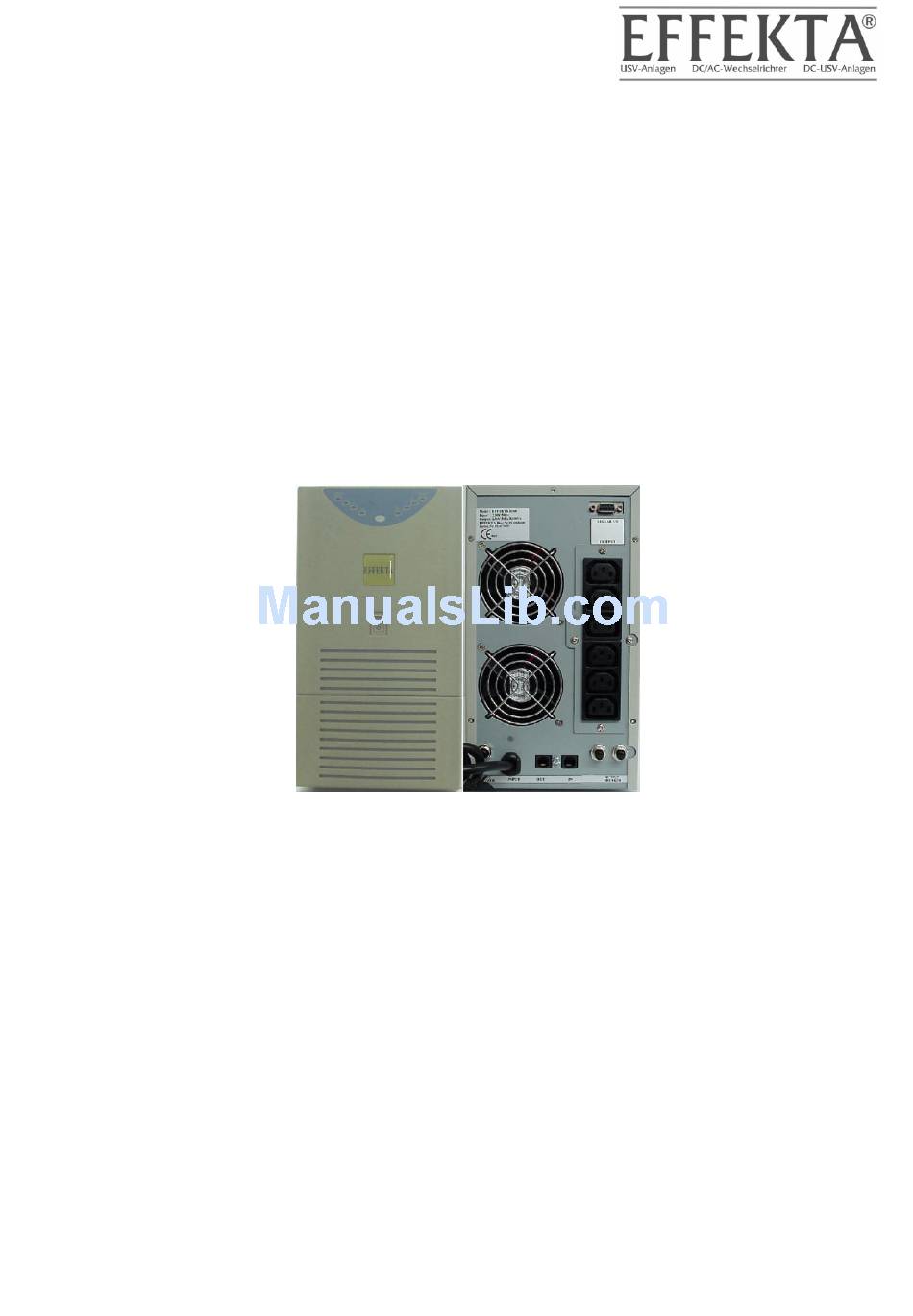

  • Page 1 Uninterruptible Power Supply MT 3200 Instruction Manual 022 / 03200MT-000 Item number: Januar 2010...
  • Page 2: Table Of Contents

    USV MT3200 Instruction manual Contents Presentation Warranty conditions Limitation of liability Safety General safety instructions Transportation and storage Setup Connection Operation Handling batteries Maintenance, servicing and faults Introduction System description Description of equipment –MT3200 Display and operator control elements on the front panel 6.1.1 Operator control elements of the UPS 6.1.2...
  • Page 3 USV MT3200 Instruction manual 13.1 Measuring the bridging time (support time) 13.2 Replacing the batteries 13.3 Service log 13.4 Service hotline 13.5 Maintenance and service contracts Technical Data 14.1 Equipment specifications 14.2 Accessories 14.3 List of wearing parts Requirements for the declaration of conformity Page 3 of 36 MT Series...
  • Page 4: Presentation

    All trademarks used are the property of their respective owners. ® EFFEKTA is a registered trademark of EFFEKTA Regeltechnik GmbH. We reserve the right to make technical and visual changes, and we are not liable for typographical errors. Page 4 of 36...
  • Page 5: Warranty Conditions

    USV MT3200 Instruction manual 2 Warranty conditions The delivery receipt is considered to be the initial proof of purchase and should be stored carefully. It is required for all warranty claims. If the product is transferred to another user, then the latter is entitled to claim under the warranty for the remainder of the warranty period.
  • Page 6: Limitation Of Liability

    USV MT3200 Instruction manual EFFEKTA GmbH does not give any express or implied warranties in relation to this equipment and its quality, performance, merchantability or suitability for a specific purpose. In some countries, the exclusion of implied warranties is not permitted by law.
  • Page 7: Safety

    USV MT3200 Instruction manual 3 Safety 3.1 General safety instructions Read and observe the user manual and safety instructions in this chapter before taking any further action (transportation, storage, connection, startup etc.). Since the UPS equipment uses mains voltage and has a suitable energy accumulator (high-capacity batteries) installed either inside or outside the device, the instructions in this chapter are very important for all users and personnel.
  • Page 8: Connection

    USV MT3200 Instruction manual Ensure that the vents of the equipment are not blocked and that the circulation of air is not impeded. 3.4 Connection Only connect the UPS to an earthed shock-proof socket or, where a terminal clamp is used, be sure to connect the protective earth conductor. Under no circumstances should the equipment be operated without a protective earth conductor.
  • Page 9: Handling Batteries

    USV MT3200 Instruction manual the power supply (switch off the mains input externally or disconnect the UPS from the mains, e.g. by unplugging it). Make sure that no fluids or foreign bodies enter the UPS. 3.6 Handling batteries Warning – danger of electric shocks and burns. Batteries can cause electric shocks and are capable of producing high short- circuit currents which can also inflict burns.
  • Page 10: Introduction

    USV MT3200 Instruction manual 4 Introduction This manual is intended to provide basic information about single-phase offline UPS equipment, namely the functional principle, use of the various functions and the procedure to follow in the event of faults. In addition, this manual contains information on transportation and storage as well as handling and installation of the UPS equipment.
  • Page 11: System Description

    USV MT3200 Instruction manual 5 System description The UPS supplies an uninterrupted, single-phase voltage to users with mission-critical applications. In addition to supplying consumer loads, the equipment also keeps its internal batteries in a fully charged state. In the event of a power failure or power fault (e.g.
  • Page 12: Description Of Equipment -Mt3200

    USV MT3200 Instruction manual 6 Description of equipment –MT3200 In this chapter, you will be introduced to the various elements of the equipment and will be provided with instructions on its operation as well as all information on equipment connections. 6.1 Display and operator control elements on the front panel Fig.
  • Page 13: Display Elements Of The Ups

    USV MT3200 Instruction manual UPS “ON/OFF” switch: This is used to switch the UPS on and off. Providing the mains supply is still switched on, the charger also remains active once the UPS has been switched off. UPS “TEST” button (dual function): When this button is pressed, the UPS changes from mains to support mode for approximately 10 seconds.
  • Page 14: Equipment Elements On The Rear Panel

    USV MT3200 Instruction manual Fault mode: Operating fault in the UPS. The indicator light goes on if an operating fault exists in the UPS or if a short- circuit develops at the UPS output. Load level: Load status of UPS. The display bar indicates the loading at the UPS output.
  • Page 15 USV MT3200 Instruction manual If all of the connections of the UPS already exist and the safety cutout is switched on, the charging unit is automatically active, i.e. the internal battery pack is already charged, without the UPS being started. c) UPS output Double socket (KG) in 2 groups of 2 pcs.
  • Page 16: Audible Alarm Signals Of The Ups

    USV MT3200 Instruction manual 6.3 Audible alarm signals of the UPS Support mode and high battery capacity: The audible warning notification sounds in the following sequence (A) [beep, beep -> long pause (8 s) -> beep, beep -> ..., repeating]. Support mode and low battery capacity: The audible warning notification sounds in the following sequence (B) [beep, beep ->...
  • Page 17: Storage And Unpacking

    USV MT3200 Instruction manual 7 Storage and unpacking 7.1 Storing the UPS If the equipment is not installed immediately, the following should be observed: The equipment and accessories must always be left in the original packaging and stored. The recommended ambient storage temperatures are: +5°C...+30°C. Protect the equipment and its packaging from moisture.
  • Page 18: Installing And Connecting The Ups

    USV MT3200 Instruction manual 8 Installing and connecting the UPS All requirements in the technical data regarding environmental and operating conditions must be observed to ensure trouble-free functioning of the UPS. The following must be observed when setting up / installing the UPS equipment: Avoid extremes of temperature and atmospheric humidity.
  • Page 19: Connecting The Ups

    USV MT3200 Instruction manual 8.1 Connecting the UPS The model is equipped with plug-type connections. The connection diagram (Fig. 5) and the following information must be observed: Fig. 5: Connection of UPS and consumer load RMT3200 16 A 1: 1,5 mm² Warning The UPS equipment contains components with high voltage and amperage.
  • Page 20: Communications Connection Of Ups

    USV MT3200 Instruction manual 8.2 Communications connection of UPS A convenient communications interface is available that facilitates data exchange with the UPS. The connection should only be made using the cables specified in the “Accessories” chapter. Pin: Assignment: Fig. 6: Internal wiring of UPS Signal: mains power communications...
  • Page 21: Operating And Controlling The Equipment

    USV MT3200 Instruction manual 9 Operating and controlling the equipment 9.1 Operating the UPS equipment The operation of this equipment is indicated by various operating modes and signals. 9.1.1 Operating modes and signals The most important operating modes of the UPS are: Charging mode: If the mains power is available and the line-side fuse or safety cutoff is switched on, the UPS is in charging mode.
  • Page 22 USV MT3200 Instruction manual On-line mode: if mains power is available and the UPS has completed the startup procedure, on-line mode is automatically activated. -> If necessary, the battery pack is also charged in this operating mode. Display/alarm signal: in on-line mode is indicated by the illumination of the ON Line display as well as the current value of the output load (here 50%).
  • Page 23 USV MT3200 Instruction manual Support mode: If the mains power fails, the UPS immediately switches to support mode. Display/alarm signal: support mode is indicated by the illumination of the “ON Bat” display and the load at the output (here 50% by way of example). Sequence (A) is used as the audible alarm signal.
  • Page 24 USV MT3200 Instruction manual Fault mode: If a fault develops in the equipment, the UPS immediately switches to fault mode. This switches off the load at the output. This operating mode can then only be reset by powering down the UPS completely. Display/alarm signal: in fault mode the fault indicator lights up.
  • Page 25: Instructions For Using The Ups

    USV MT3200 Instruction manual 9.2 Instructions for using the UPS The operator of this UPS equipment must always comply with the instructions in this manual. The operator may only carry out the following and must exercise extreme care when doing so: Use of the operator control elements: Switching the UPS on and off.
  • Page 26: Communication

    USV MT3200 Instruction manual Leave all consumer loads switched on so that the load characteristic remains unchanged. Ensure that the UPS is in on-line operating mode. Press the “TEST” button (and keep it pressed down for approx. 1 second). The UPS then switches to test mode for approximately 10 seconds. This operating mode is only used to test the function of the UPS.
  • Page 27: Starting Up The Ups Equipment

    USV MT3200 Instruction manual 10 Starting up the UPS equipment To guarantee error-free startup, the following actions must be carried out: 1. Check the line-side fuse then connect the equipment to the power supply. 2. Switch the UPS on (main switch on the front of the equipment). 3.
  • Page 28 USV MT3200 Instruction manual Problem Possible cause: Remedy: The UPS cannot be Mains power is not Ensure that all connections started and no alarm available to the UPS or have been established and signal is given. is switched off. verify this by means of appropriate voltage measurements.
  • Page 29: Software

    UPS. For more information, you can also visit our Internet home page: http://www.effekta.com/ The following basic functions are supported by all software packages: Detection and display of the UPS mains power status;...
  • Page 30: Maintenance And Servicing

    USV MT3200 Instruction manual 13 Maintenance and servicing You can expect a long service life and trouble-free operation from your UPS equipment as long as you ensure that the necessary minimum level of maintenance is carried out. However, the reliability of the UPS is also significantly affected by environmental conditions.
  • Page 31: Replacing The Batteries

    USV MT3200 Instruction manual 13.2 Replacing the batteries Before you proceed, take the safety information provided into consideration. Carry out the work in the specified sequence. Always use safety tools. Before you start work, make sure that the UPS is switched off and is disconnected from the mains power supply.
  • Page 32: Service Log

    USV MT3200 Instruction manual 13.3 Service log Enter all maintenance and servicing work performed on the UPS equipment into the service log. Date: Work carried out: Carried out by: Page 32 of 36 MT Series...
  • Page 33: Service Hotline

    Internet address: http://www.effekta.com/html/kontakt.html 13.5 Maintenance and service contracts EFFEKTA Regeltechnik GmbH offers you tailored maintenance and customer services that ensure the highest possible reliability and availability of your UPS equipment. In addition, as part of a maintenance contract, our expert technical personnel...
  • Page 34: Technical Data

    USV MT3200 Instruction manual 14 Technical Data 14.1 Equipment specifications Model: MT3200 Power: 3200 VA / 2000 W Mains power Phases 1 phase conductor + neutral conductor input: Input range 171 – 278 V AC Rated frequency 50 / 60 Hz Synchronous range 45 –...
  • Page 35: Accessories

    USV MT3200 Instruction manual 14.2 Accessories Below is a list of components that have been specifically tested and approved for this UPS by EFFEKTA Regeltechnik GmbH: Accessory: Function: Item number: “PowerShut Plus” Network-capable shutdown and LAN PowerShut software package diagnosis software...
  • Page 36: Requirements For The Declaration Of Conformity

    EN 50091-1 EN 50091-2 An EC declaration of conformity for CE-labelled products may be obtained on request from the following address: EFFEKTA Regeltechnik GmbH Klausenburgerstrasse 9 88069 Tettnang, Germany Tel. no.: 0049 / (0) 7542 –9353-0 Page 36 of 36...
