Summary of Contents for Effekta ME 400

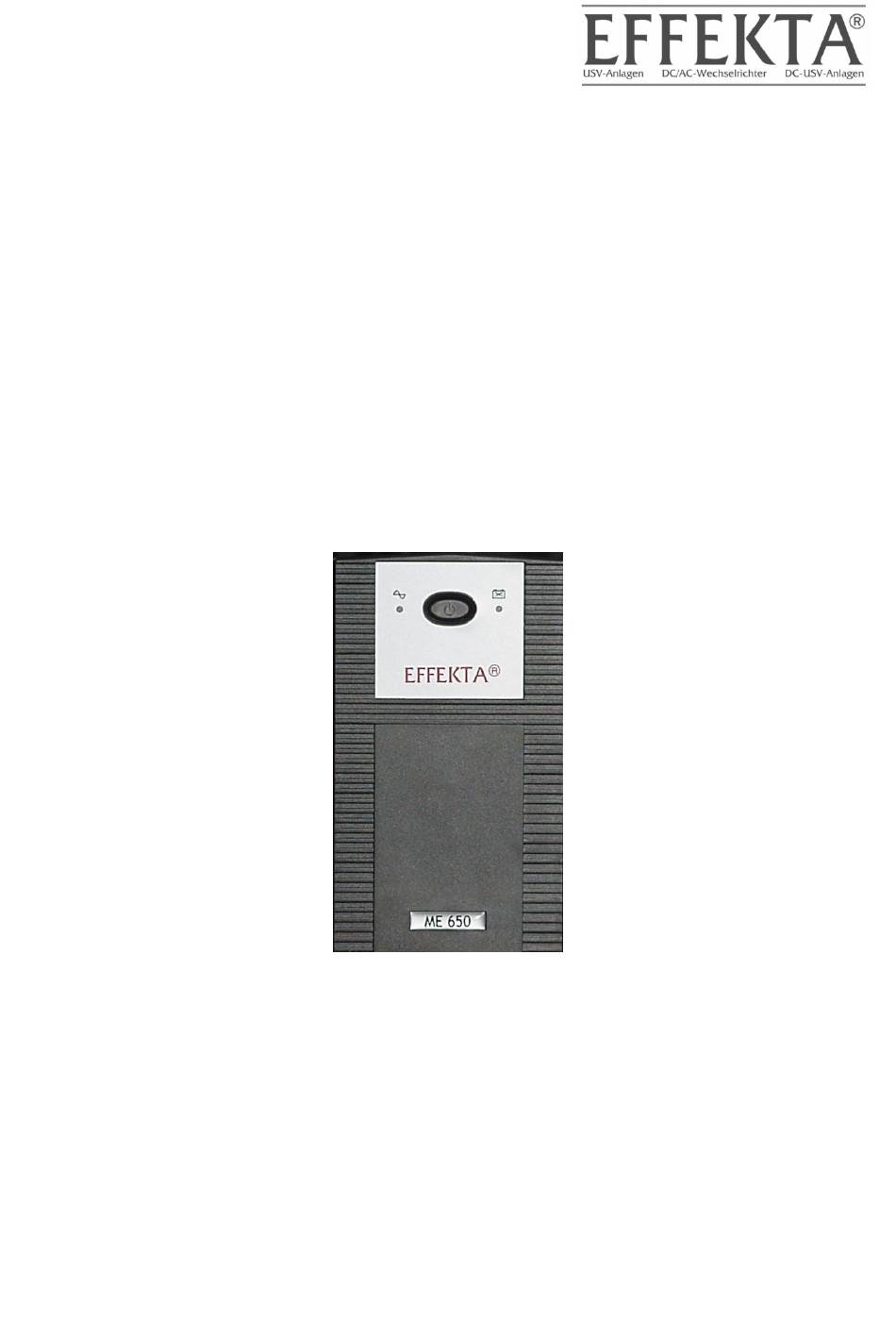

- Page 1 Uninterruptible Power Supply ME 400/500/600/650/800 Instruction Manual Item number: ACX11MES40000000 USB ACX11MES50000000 USB ACX11MES60000000 USB ACX11MES65000000 USB ACX11MES80000000 USB Juni 2008...
-
Page 2: Table Of Contents
USV ME400/500/600/650/800 Instruction Manual Contents Presentation Warranty conditions Limitation of liability Safety General safety instructions Transportation and storage Setup Connection Operation Handling batteries Maintenance, servicing and faults Introduction System description Description of equipment – ME series Display and operator control elements on the front panel 6.1.1 Warning, indicator and operating elements: 6.1.2... - Page 3 USV ME400/500/600/650/800 Instruction Manual Troubleshooting Software Maintenance and servicing 13.1 Measuring the bridging time (support time) 13.2 Service log 13.3 Service hotline 13.4 Maintenance and service contracts Technical Data 14.1 Equipment specifications 14.2 Accessories 14.3 List of wearing parts Requirements for the declaration of conformity Page 3 of 32 ME series...
-
Page 4: Presentation
All trademarks used are the property of their respective owners. ® EFFEKTA is a registered trademark of EFFEKTA Regeltechnik GmbH. We reserve the right to make technical and visual changes, and we are not liable for typographical errors. Page 4 of 32... -
Page 5: Warranty Conditions
USV ME400/500/600/650/800 Instruction Manual 2 Warranty conditions The delivery receipt is considered to be the initial proof of purchase and should be stored carefully. It is required for all warranty claims. If the product is transferred to another user, then the latter is entitled to claim under the warranty for the remainder of the warranty period. -
Page 6: Limitation Of Liability
USV ME400/500/600/650/800 Instruction Manual EFFEKTA GmbH does not give any express or implied warranties in relation to this equipment and its quality, performance, merchantability or suitability for a specific purpose. In some countries, the exclusion of implied warranties is not permitted by law. -
Page 7: Safety
USV ME400/500/600/650/800 Instruction Manual 3 Safety 3.1 General safety instructions Read and observe the user manual and safety instructions in this chapter before taking any further action (transportation, storage, connection, startup etc.). Since the UPS equipment uses mains voltage and has a suitable energy accumulator (high-capacity batteries) installed either inside or outside the device, the instructions in this chapter are very important for all users and personnel. -
Page 8: Connection
USV ME400/500/600/650/800 Instruction Manual Ensure that the vents of the equipment are not blocked and that the circulation of air is not impeded. 3.4 Connection connect the UPS to an earthed shock-proof socket. Under no Only circumstances should the equipment be operated without a protective earth conductor. -
Page 9: Handling Batteries
USV ME400/500/600/650/800 Instruction Manual power supply (switch off the mains input externally or disconnect the UPS from the mains, e.g. by unplugging it). Make sure that no fluids or foreign bodies enter the UPS. 3.6 Handling batteries Warning – danger of electric shocks and burns. Batteries can cause electric shocks and are capable of producing high short- circuit currents which can also inflict burns. -
Page 10: Introduction
USV ME400/500/600/650/800 Instruction Manual 4 Introduction This manual is intended to provide basic information about single-phase line interactive UPS equipment, namely the functional principle, use of the various functions and the procedure to follow in the event of faults. In addition, this manual contains information on transportation and storage as well as handling and installation of the UPS equipment. -
Page 11: System Description
USV ME400/500/600/650/800 Instruction Manual 5 System description The UPS supplies an uninterrupted, single-phase voltage to users with mission-critical applications. In addition to supplying consumer loads, the equipment also keeps its internal batteries in a fully charged state. In the event of a power failure or power fault (e.g. -
Page 12: Description Of Equipment - Me Series
USV ME400/500/600/650/800 Instruction Manual 6 Description of equipment – ME series In this chapter, you will be introduced to the various elements of the equipment and will be provided with instructions on its operation as well as all information on equipment connections. 6.1 Display and operator control elements on the front panel Fig. -
Page 13: Warning, Indicator And Operating Elements
USV ME400/500/600/650/800 Instruction Manual 6.1.1 Warning, indicator and operating elements: All of the indicator elements and the “ON/OFF” button are grouped together on this panel. All information on the device status of the equipment is available at a glance (Fig.3) . -
Page 14: Equipment Elements On The Rear Panel
USV ME400/500/600/650/800 Instruction Manual Battery error LED: The LED lights up in the event of a battery error. The battery should be checked and exchanged if necessary. 6.2 Equipment elements on the rear panel Fig. 4: Rear view ME series Danger! All plug connections on the rear panel (with the exception of the communication interface) are on the mains power potential when connected. - Page 15 USV ME400/500/600/650/800 Instruction Manual b ) Fuse for mains input: The mains input is enabled when the fuse is inserted. The fuse is triggered in the event of high overcurrents or an equipment defect (e.g. internal short- circuit) and the device is immediately disconnected from the connected mains power supply.
-
Page 16: Audible Alarm Signals Of The Ups
USV ME400/500/600/650/800 Instruction Manual 6.3 Audible alarm signals of the UPS Support mode and high battery capacity: The audible warning notification sounds in the following sequence (A) [beep, beep -> long pause (3 s) -> beep, beep -> ..., repeating]. Support mode and low battery capacity: The audible warning notification sounds in the following sequence (B) [beep, beep ->... -
Page 17: Storage And Unpacking
USV ME400/500/600/650/800 Instruction Manual 7 Storage and unpacking 7.1 Storing the UPS If the equipment is not installed immediately, the following should be observed: The equipment and accessories must always be left in the original packaging and stored. The recommended ambient storage temperatures are: +5°C...+30°C. Protect the equipment and its packaging from moisture. -
Page 18: Installing And Connecting The Ups
USV ME400/500/600/650/800 Instruction Manual 8 Installing and connecting the UPS All requirements in the technical data regarding environmental and operating conditions must be observed to ensure trouble-free functioning of the UPS. The following must be observed when setting up / installing the UPS equipment: Avoid extremes of temperature and atmospheric humidity. -
Page 19: Connection Sequence
USV ME400/500/600/650/800 Instruction Manual Fig. 5: Connection of UPS and consumers ME series 0.75 mm² Warning The UPS equipment contains components with high voltage and amperage. Incorrect handling may therefore result in electrical accidents which may have fatal consequences or cause material damage. The protective earth conductor must always be connected! If not, the consumer loads will also not be earthed. -
Page 20: Operating And Controlling The Equipment
USV ME400/500/600/650/800 Instruction Manual 9 Operating and controlling the equipment 9.1 Operating the UPS equipment The operation of this equipment is indicated by various operating modes and signals. 9.1.1 Operating modes and signals The most important operating modes of the UPS are: Charging mode: If the mains power is available and the line-side fuse is switched on, UPS charging mode is enabled. - Page 21 USV ME400/500/600/650/800 Instruction Manual A.V.R. mode: Within certain limits, A.V.R. mode compensates for over- or under-voltage in the power supply without drawing current from the batteries. This reduces the transfer voltage range at the UPS output compared to the mains power supply. Display/alarm signal: A.V.R.
-
Page 22: Instructions For Using The Ups
USV ME400/500/600/650/800 Instruction Manual 9.2 Instructions for using the UPS The operator of this UPS equipment must always comply with the instructions in this manual. The operator may only carry out the following and must exercise extreme care when doing so: Use of the operator control elements: Switching the UPS on and off. -
Page 23: Starting Up The Ups Equipment
USV ME400/500/600/650/800 Instruction Manual 10 Starting up the UPS equipment To guarantee error-free startup, the following actions must be carried out: 1. Check the line-side fuse then connect the equipment to the power supply. 2. Switch the UPS on (switch on the front of the equipment). 3. - Page 24 USV ME400/500/600/650/800 Instruction Manual Problem: Possible cause: Remedy: The UPS cannot be Mains power is not Ensure that all connections started and no alarm available to the UPS or have been established and signal is given. is switched off. verify this by means of appropriate voltage measurements.
- Page 25 UPS. For more information, you can also visit our Internet home page: http://www.effekta.com/ The following basic functions are supported by all software packages: Detection and display of the UPS mains power status;...
- Page 26 USV ME400/500/600/650/800 Instruction Manual 13 Maintenance and servicing You can expect a long service life and trouble-free operation from your UPS equipment as long as you ensure that the necessary minimum level of maintenance is carried out. However, the reliability of the UPS is also significantly affected by environmental conditions.
- Page 27 USV ME400/500/600/650/800 Instruction Manual 13.2 Service log Enter all maintenance and servicing work performed on the UPS equipment into the service log. Date: Work carried out: Carried out by: Page 27 of 32 ME series...
- Page 28 Internet address: http://www.effekta.com/html/kontakt.html 13.4 Maintenance and service contracts EFFEKTA Regeltechnik GmbH offers you tailored maintenance and customer services that ensure the highest possible reliability and availability of your UPS equipment. In addition, as part of a maintenance contract, our expert technical personnel...
- Page 29 USV ME400/500/600/650/800 Instruction Manual 14 Technical Data 14.1 Equipment specifications Model: ME400 ME500 ME600 ME650 Power: 400VA / 500VA / 600VA / 650VA / 225W 250W 300W 325W Mains power Phases 1 phase conductor + neutral conductor input: Input range 170-280V AC Rated frequency 50 / 60Hz...
- Page 30 Dimensions H x B x D [mm] 171 x 95 x 357mm 14.2 Accessories Below is a list of components that have been specifically tested and approved for this UPS by EFFEKTA Regeltechnik GmbH: Accessory: Function: Item number: Software package...
- Page 31 USV ME400/500/600/650/800 Instruction Manual 14.3 List of wearing parts The following components are subject to normal wear and tear and are therefore not covered by the warranty for this UPS: Wearing part: Function: Item number: XXXX XX XX ** ME400, ME500, ME600, ME650 Depending on Battery energy accumulator...
- Page 32 Standards: EN 50091-1 EN 50091-2 An EC declaration of conformity for CE-labelled products may be obtained on request from the following address: EFFEKTA Regeltechnik GmbH Rheinwaldstr. 34 78628 Rottweil, Germany Tel. no.: 0049 / (0) 741–17451-0 Page 32 of 32...
