5. Adjust the Lens focus range and zoom viewing

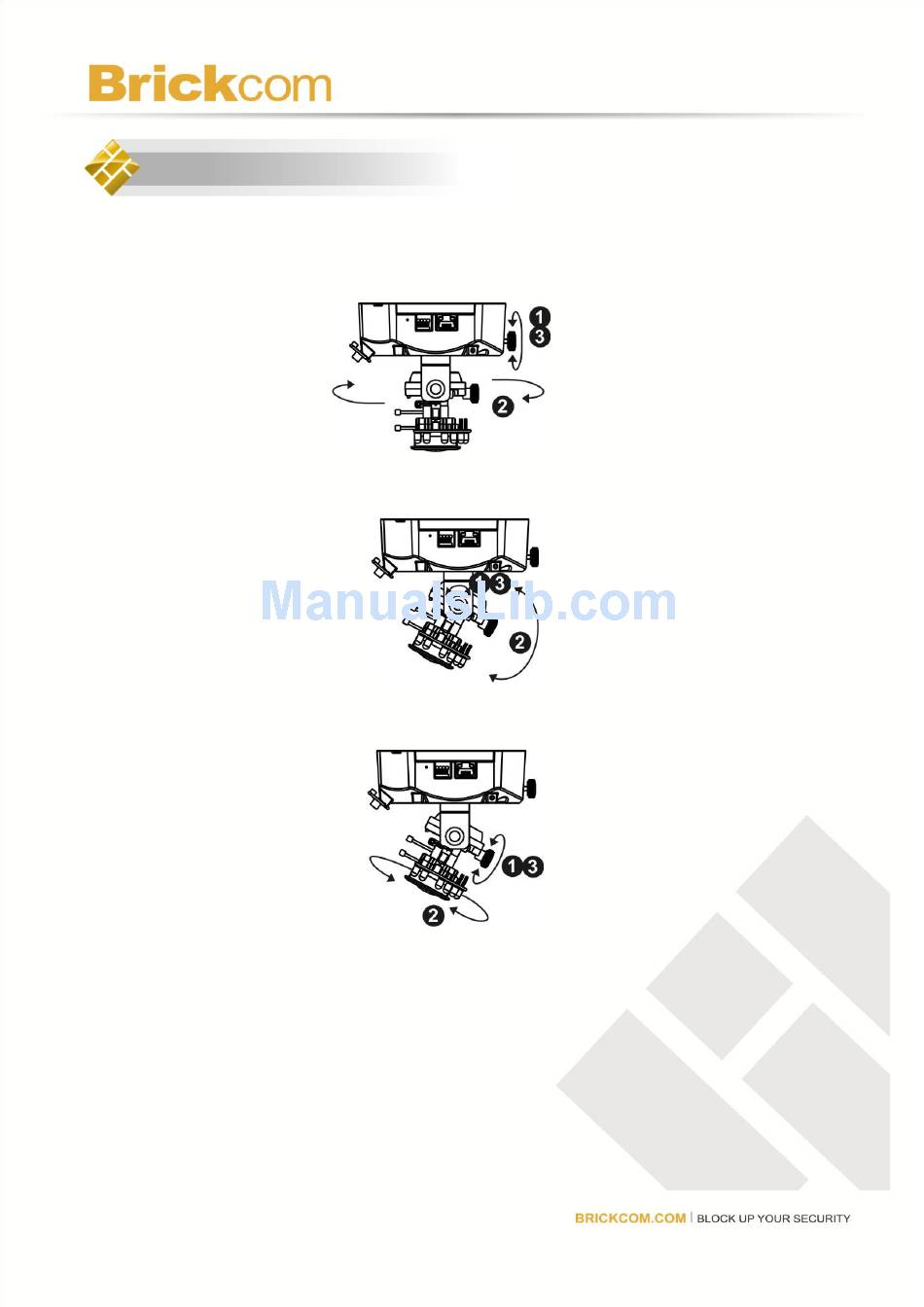

5.1 How to adjust the Lens angle?

5.1.1 Release the pan screw and then rotate the lens to left or right.

After completion, tighten the pan screw.

5.1.2 Release the tilt screw on both side of the device and then rotate

the lens to up or down. After completion, tighten the tilt screw.

5.1.3 Release the video adjustment screw and then adjust the lens

direction. After completion, tighten the video adjustment screw.
