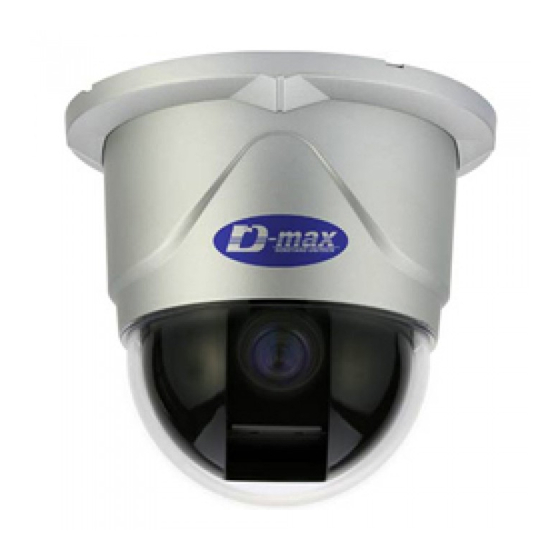

  • Page 1 MINI SPEED DOME CAMERA MINI SPEED DOME CAMERA USER MANUAL DMS-200...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. CATION ------------------------------------------------------- 3 2. INTRODUCTION OF PRODUCT -------------------------------5 1). DESCRIPTION AND FEATURES -----------------------------5 2). INSTALLING AND CONNECTING ---------------------------- 6 2-1. NAME AND FUNCTION OF EACH PART -------------------6 2-2. INSTALLATION --------------------------------------7 2-3. CONNECTION DIAGRAM --------------------------------8 3. DIRECTIONS FOR USE -----------------------------------------9 1).

  • Page 3: Cation

    1. CAUTION Thank you for purchasing mini speed dome camera DMS-200. Please operate the product after being fully aware of the manual. Pease contact us if you have any queries or face any problems. DO NOT CONTROL PAN, TILT BY FORCE Do not move the inside Pan/Tilt motor by force after removing dome cover.
  • Page 4 CAUTION IN USE. Do not disassemble the unit and put alien substances in the unit. It can cause troubles Ensure power switch-off before the installation. Ensure power switch-off and check the voltage the camera before the installation. Do not give the unit a shock and an operation. Giving a strong shock or an excessive power on the button, terminal can cause troubles This product has been designed and manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives.

  • Page 5: Introduction Of Product

    2. INSTRUCTION OF PRODUCT 1). DESCRIPTION AND FEATURES - Description - This camera has been designed elegantly for buildings, department stores that need to be in harmony with the interior as a high speed dome camera, including various observation It moreover is effective for true Day & Night. functions.

  • Page 6: Installing And Connecting

    2). INSTALLATION AND CONNECTION 2-1. NAME AND FUNCTION OF EACH PART 104 ¢ BUBBLE CAMERA COVER CAMERA BASE P/T BASE MAIN BASE BOTTOM COVER CAMERA BODY CAMERA BODY COVER...

  • Page 7: Installation

    2-2. INSTALLATION Make 4 holes after attaching Take out the cables Take apart 4 bands of camera body ceiling guide where the from the ceiling. cover camera is set. Set up DIP switch Connect with cables. (Reference to XXP) Tighten 4 screws. Attach the camera Completion body cover...

  • Page 8: Connection Diagram

    2-3. CONNECTION DIAGRAM AC24V/500mA(DMS-200iS) DC12V/1A (DMS-200S) VIDEO IN AUDIO IN Violet(N/O) Gray(COM) Black(GND) Brown(CH1) CAMERA 1~128 Red(CH2) Yellow(CH3) DC JACK Green(CH4) Sensor 1 RS-485 4 ALARM INPUT Sensor 4 VIDEO INPUT AUDIO CAMERA 129 CAMERA 255...

  • Page 9: Directions For Use

    3. DIRECTIONS FOR USE 1) DIP SWITCH SETTING Set the camera numbers in the state of It shows the status of Power On/Off. Green LED is On while ADDR, set communication speed, protocol power is alive. In the status of operation, red LED is off.

  • Page 10: How To Change Protocol

    2) HOW TO CHANGE PROTOCOL Set up this part. The switch that selects Protocol. The switch that selects Baud Rate. Change No.3 at S2 to INIT if want to change Protocol. ① Please make Power off. ② Switch Protocol that wants to change on as above table. ③...

  • Page 11: How To Set Address Dip Switches

    3) HOW TO SET ADDRESS DIP SWITCHES Use DIP switches No.1 to No.8 for address, it can be set 1 program to 255 program. DIP SWITCH (HEX) RX NO DIP SWITCH (HEX) RX NO (DEC) OFF OFF OFF OFF OFF OFF ON OFF OFF OFF OFF ON OFF OFF OFF OFF OFF OFF ON OFF OFF OFF ON...

  • Page 12: How To Use Osd Menu

    4) HOW TO USE OSD MENU 4-1. HOW TO CONTROL OSD MENU OSD (ON SCREEN DISPLAY) CONTROL It is the function to call up the Menu ＊User can not only set Preset, Group, Tour, Swing, Trace functions of the camera up by the menu, but also set them up by shortening keys.

  • Page 13: Functional Descriptions On Each Menu

    4-2. FUNCTIONAL DESCRIPTIONS ON EACH MENU 1. ID SET It is the function to set ID of the camera. Move to No.1 menu and the screen moves as following when user presses F/F key. User can choose letters that they want, if user control a joystick up / down / right / left, and user can reselect the previous letters, if user presses Z/I, Z/O or turn the head of the joystick...
  • Page 14 4. AGC level << CAMERA SETUP p1 >> 1. ID Set Press F/F Key AGC(Automatic Gain Control)- It adjusts the 2. OSD Display ID + Status amount of video amplification to maintain a 3. Back Light : Off 4. AGC level : Low full 1-volt peak-to-peak video signal output 5.
  • Page 15 8. Flickerless << CAMERA SETUP p1 >> 1. ID Set Press F/F Key Tremble on the screen is removed in the status 2. OSD Display ID + Status of Flickerless ‘ON’, the shutter speed, at the 3. Back Light : Off 4.
  • Page 16 11. Focus mode << CAMERA SETUP p2 >> 9. SSNR level : Middle Change Focus mode to hand-worked or 10. White balance : Outdoor Auto. 11. Focus mode : Oneshot 12. Zoom MAX Limit : x20 ► OneShot : Auto Focusing mode works during 13.
  • Page 17 15. Select Alarm << CAMERA SETUP p3>> 15. Select Alarm : Sensor It selects whether it moves the preset point 16. Motion Detection : Off automatically or it moves by MOTION function 17. PRESET & RUN PAGE 18. TRACE SET PAGE when being alarmed.
  • Page 18 << PRESET SET & RUN PAGE >> PRESET : 001 - Preset set CH : 001 - Preset PTZ SET - Preset Swing SET - Group SET CH : 001 - Tour SET Group ▷▶ - Run Function : UNDEF - RETURN MENU PAGE [SAVE] [DELETE]...
  • Page 19 ● [P]: Set Preset points (1~250) ④ GROUP SET: User can set maximum 12 groups ● [S]: Moving speed (1~64) Select a channel then move to next page after ● [T]: Dwell time pressing F/F key • The Preset point in the Group that 12 Preset points are set is observed repeatedly and in order with regular speed and time.
  • Page 20 18. TRACE SET PAGE << CAMERA SETUP p3 >> Set TRACE. 15. Select Alarm : Sensor 16. Motion Detection : Off User can regenerate and save a change of 17. PRESET & RUN PAGE The unrestricted location of ZOOM In/Out 18.
  • Page 21 20. ALARM PRESET SET PAGE << CAMERA SETUP p3>> • The camera can move to a preset point automatically 15. Select Alarm : Sensor when something is wrong in each ALRAM CHANNEL. 16. Motion Detection : Off • Set a preset point firstly to move if anything wrong, 17.
  • Page 22 ④ fix the black square on the middle of area that user wants to hide with using the joystick (Z/I, Z/O Key), then go back to the previous page on the screen (F/F Key) after fixing the size of the square. ENTER(F/F),Save ESC(F/N),ESC Set Privacy : 01 Select...

  • Page 23: Setting Functions By Keyboard

    24. MANUAL P/T SPEED << CAMERA SETUP p4 >> User can control the maximum speed in 22. Auto Tilt Move : Off 23. Smart pan Tilt : On controlling of up and down. It can be set 24. Manual P/T Speed : Medium 25.
  • Page 24 ② Preset Move Move to the fixed point if user presses P-SET button after pressing Preset number that user wants. ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ ③ Delete a separate Preset Go on in order as follow when the sound is Ex) Delete 5th Preset Ex) Delete 5th Preset heard in 3 sec after pressing (waiting for...
  • Page 25 Set Preset No. again in continual input. Set a GROUP again from the first after ending with , if user wants to finish Preset input in one Group to input another Group. ② Run Group ③ Stop Group ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ 4. Tour setting ①...
  • Page 26 ② Start / End Tour ③ Delete Tour ▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬▬ 5. Spiral Function It is a function to observe objects automatically in the spiral direction. ① Spiral On ② Off 6. PTZ Trace It memorizes P/T/Z motions for 200sec then operates them at the same Trace. ①...

  • Page 27: Osd Message Description

    4-4. OSD MESSAGE DESCRIPTION 1. PRESET MESSAGE It is CAMERA ID and it can be changed in ID SET MODE. CAM-001 CAM-001 CAM-001 Set PST 001 PRESET 001 Clear PST 001 It appears when moving User can check that It appears when user deletes to the preset No.1 Preset No.1 is saved as PRESET No.1.
  • Page 28 3. GROUP MESSAGE CAM-001 CAM-001 CAM-001 GP:01 P002,T001,S64 Save Group 01 [GROUP: 01] PRESET:001 As the message in the time It is displayed in the time of As the message in the time completion GROUP operation of GROUP RUN, it of operation of GROUP SET, SET, it is displayed.

  • Page 29: Trouble Shooting

    4. TROUBLE SHOOTING CAUTION IN USE • Make sure that turn the power switch off before installation. • Avoid the places where is the high/low temperature and humid. • Use a power supply of AC24 / 1.5A output • Please be careful of that you connect respective wires without mismatching in installation. •...

  • Page 30: Dimensions & Assembles

    5. ASSEMBLES measurement Mount assemble It can be connected with D-max bracket by using mount. unit : mm ① Connect MOUNT with Wall bracket ② Fix 4 screws. ③ Connect Camera body cover. ④ Completion...

  • Page 31: Configuraltion

    PRODUCT STRUCTURE ▪ SUB KEYBOARD SETTING DMS-200 MONITOR MONITOR (P/T CONTROL JUNKTION BOX JUNKTION BOX DCK-255 CONTROL KEYBOARD CONTROL KEYBOARD (MAIN) (SUB8) : Control line : Video line DCK-500...
  • Page 32 ▪ SETTING ONE KEYBOARD : Control line : Video line...

  • Page 33: Specifications

    7. SPECIFICATION MODEL DMS-200 Signal system NTSC Image sensor 410K Pixel, 1/4 " SONY Super HAD CCD Effective pixels 768(H) X 494(V), 752(H) X 582(V), Horizontal resolution More than 500 TVL B/W 570 TVL Lens 10x Optical zoom, f=3.3 - 33mm, F1.8...
