HIGH SPEED DOME CAMERA
USER MANUAL
DSC-300Si5/Se5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSC-Se5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-MAX DSC-Se5

Summary of Contents for D-MAX DSC-Se5

  • Page 1 HIGH SPEED DOME CAMERA USER MANUAL DSC-300Si5/Se5...

  • Page 3: Table Of Contents

    Table of contents CAUTION -------------------------------------------------------------------------------- INTRODUCTION OF PRODUCT 1). DESCRIPTION AND FEATURES --------------------------------------------- 2). INSTALLATION AND CONNECTION ---------------------------------------- 2-1. NAME AND FUNCTION OF EACH PART ----------------------------- 2-2. INSTALLATION -------------------------------------------------------------- 2-3. BASIC CONNECTION ----------------------------------------------------- 2-4. CONNECTION DIAGRAM ------------------------------------------------ DIRECTIONS FOR USE 1).

  • Page 4: Caution

    1.CAUTION Thank you for purchasing our product. Please operate the product after being fully aware of the manual. Pease contact us if you have any queries. Precaution Note the following matters before the installation of the product. Avoid the following places for the installation. A high/low temperature: Using indoor-cameras Snow, rain and wet: Humidity or water and in the places of +50°C~ -10°C can cause...

  • Page 5: Caution In Use

    Caution in Use Do not disassemble the unit and put alien substances in the unit. Disassembling the unit or putting alien substances such as a metal can make the camera defective. - Make sure of power switch-off before the installation. : Ensure power switch-off and check the voltage the camera before the installation.

  • Page 6: Introduction Of Product

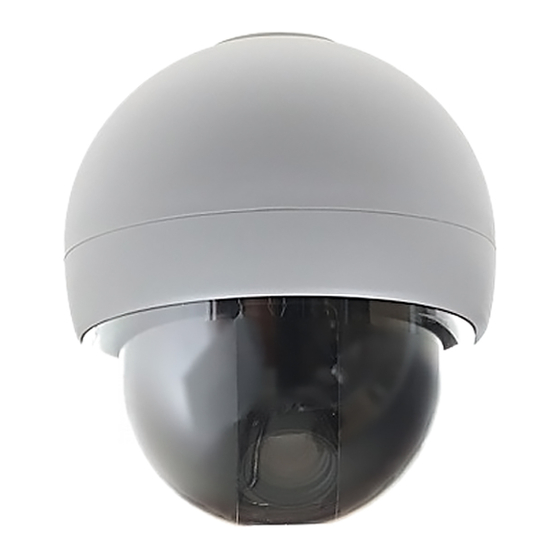

    2. INTRODUCTION OF PRODUCT 1) DESCRIPTION AND FEATURES This camera has been designed elegantly for buildings, department stores that need to be in harmony with the interior as a high speed dome camera, including various observation functions. ☺ 35x Zoom lens ☺...

  • Page 7: Installation And Connection

    2) INSTALLATION AND CONNECTION 2-1. Name and function of each part INDOOR TYPE OUTDOOR TYPE Upper cover The camera‟s body goes to here and a power cable, data cable, video cable, sensor have been connected with this Camera body A main body that has a built-in the control units and camera Lower cover Insert the body into the upper...

  • Page 8: Installation

    2-2. Installation INDOOR TYPE OUTDOOR TYPE SEPARATION OF LOWER COVER Loosen the bolt of the back of lower cover by Loosen the four bolts of the lower cover, then a screwdriver(+), then turn the cover as separate. above the picture and pull the lower cover to the down SEPARATION OF UPPER COVER Loosen the three bolts, the round head shaped, of the camera body.
  • Page 9 Pull the cover up with grabbing the bottom of the camera after loosening the three bolts Open the connector cover, then connect power, data, video cable and sensor The cover is opened if user loosens the one bolt on the connector cover by using a screwdriver(+).

  • Page 10: Basic Connection

    Have you connect the power cable in the right direction ? If yes ① RED led, in the niddle of the connector, is lighted ② Use AC24V power souce and user can use any power input that is connected with a terminal and a jack(But use 1 input).

  • Page 11: Connection Diagram

    2-3. Connection diagram DC12V/1A adaptor and junction box are provided on Connect the image line of a a purchase, Junction box consists of 2 data ports monitor ( Each data port can be connected with maximum up to 128 cameras and sub keyboard terminal. Reference to the following page.
  • Page 12 Must use AC24V power source, current intensity must be less than 1.5A and must use a double winding transformer Alarm output is tangency output of relay non-load, it can be used up to AC220/10A by connecting the load. The switch is automatically turned on when the sensor works and it is possible to cancel by using the controller after a limited time...

  • Page 13: Directions For Use

    3. DIRECIONS FOR USE 1). DIP SWITCH SETTING Ser the camera numbers in the state of It is a notice to turn the data signal ADDR. Set communication speed. on.(in power on, the green led is Protocol in the state od INIT. turned on - This part is each address od camera Set the power of the camera...

  • Page 14: How To Change Protocol

    The switch to select protocol The switch to select baud rate PROTOCOL SW 2 SW 7 SW 1 SW 3 SW 8 SW ‘INIT ADDR’ D-MAX (9600 bps) INIT P-P (9600 bps) INIT P-P (4800 bps) INIT P-P (2400 bps) INIT P-D (9600 bps)

  • Page 15: Setting Address Of Dip Switches

    3) SETTING ADDRESS OF DIP SWITCHES Use DIP switches No.1 to No.8 for address, it can be set 1 program to 255 program. DIP SWITCH (HEX) DIP SWITCH (HEX) -No.1 is changed to No.64 and the last No.64 is changed No.128 when No.7 DIP SW is on. -No.1 is changed to No.129 when No.7 DIP SW is off and No.8 DIP SW is on.

  • Page 16: How To Use Osd Menu

    4) HOW TO USE OSD MENU 4-1. How to control OSD menu ● OSD (ON SCREEN DISPLAY) CONTROL It is the function to call up the Menu ＊User can not only set Preset, Group, Tour, Swing, Trace functions of the camera up by the menu, but also set them up by shortening keys.

  • Page 17: Functional Descriptions On Each Menu

    4-2. Functional Descriptions of each Menu. 1. ID SET. It is the function to set ID of the camera. Move to No.1 menu and the screen moves as following when user presses F/F key. User can choose letters that they want, if user control a joystick up / down / right / left, and user can reselect the previous letters, if user presses Z/I, Z/O or turn the head of the joystick to right/left.
  • Page 18 << CAMERA SETUP p1 >> 4. SHUTTER SPEED CAM-001 1. ID Set Shutter speed is the duration of the electronic shutter. Set shutter 2. OSD Display : ON speed to operate automatically (Auto) or manually (Numeric Value). ●AUTO (default) – The electronic shutter speed is set automatically by 3.
  • Page 19 9. ZOOM MAX LIMIT << CAMERA SETUP p2 >> Zoom max limit allows the user to define a limitation on the amount of telephoto zoom. The default setting is X46. 9. Zoom MAX Limit : x70 Camera with 420X zoom (35X optical zoom and 12X digital zoom) can 10.
  • Page 20 according to low light condition with medium sensing. ●AUTO-LOW: Convert to monochrome mode automatically << CAMERA SETUP p2 >> according to low light condition with low sensing. ● AUTO-HI: Convert to monochrome mode automatically according 9. Zoom MAX Limit : x70 10.
  • Page 21 F/F key, then it is moved to the previous screen automatically from the menu. • [SAVE]: Previous screen. [DELETE]: Remove. [ESC]: Cancel ＊Repeat the same way after changing the number of Preset, if user set another Preset. • P/T Swing: TILT-Observe up and down, ③...
  • Page 22 ④GROUP SET: User can set maximum 12 groups • [P]: Set Preset (1~250) Select a channel then move to next page after • [S]: Move speed (1~64) pressing F/F key • [T]: Dwell time ■Set 12 Preset points in one Group, it is a function that observes the Preset points in the Group repeatedly and in order with regular speed, time 1.
  • Page 23 ■ You can look at how to set TRACE at “18. TRACE SET PAGE” ⑦ RETURN MENU PAGE: Move to a higher menu page if select this menu, then control the joystick Right/Left << CAMERA SETUP p2 >> 15. TRACE SET PAGE 9.
  • Page 24 ■ How to set TRACE Move to [SET] after pressing „ F/N KEY ‟ F/F KEY Check – Control the scenes that you want to save a joystick after the message “Set Trace: OO%” on the middle of the screen. If you are done with above action, move to [SAVE] with „...
  • Page 25 17. ALARM PRESET SET PAGE ■ The camera moves to a preset point automatically when << CAMERA SETUP p3 >> 16. ALARM CH ON/OFF PAGE Alarm activates in each ALARM CHANNEL. ■ Set preset points to move to and give a Preset number to 17.
  • Page 26 20. MOTION DETECTION SET << CAMERA SETUP p3 >> Detect Level: 00 ~ 05 (High number is high sensing) 16. ALARM CH ON/OFF PAGE Detect Position: 01 ~ 08 (Set up to 8 zones) 17. ALARM PRESET SET PAGE (To set this function, „Select Alarm‟ should be set „Motion‟ and 18.
  • Page 27 ③ Confirm, Next page ④ Fix the black square on the middle of area that you want to hide by a joystick, then go back to the previous page by [F/F] key after controlling the size of the square by [Z/I], [Z/O] key and saving it. Set the position BOX Extension / Reduction Check...
  • Page 28 << CAMERA SETUP p4 >> 24. MANUAL P/T SPEED You can control the maximum speed when controlling up and 22. Auto Tilt Mode : OFF down. It consists of Low, Medium, Max and one turn (360°)/sec 23. Smart Pan/tilt : On is possible in Max.

  • Page 29: Functional Setting, Operation/Deletion The

    4-3. Functional Setting, Operating/Deletion by the Keyboard 1. Preset setting You can set Preset point up to 250. ① Preset Input. Preset setting can be set 1 to 250 sequentially after moves the camera to where you want ② Preset Move The camera moves to the preset point, if you press Preset No.
  • Page 30 ② Operation of Swing ③ End of Swing (Run Pan) (Run Tilt) 3. Group setting ① Start Group setting mode Start the Group Select the Group in 1~12 Select in Preset No.1~250 setting mode and input them. Move Speed: Dwell Time: The Speed from A to B The dwell time at the point of 64=High, 1=Low...
  • Page 31 EX). Register Group No. 1,3,6 as Tour Register Start Register Register Finish Tour No.2 Tour No.3 Tour mode Tour mode Tour No.1 ② Start / End Tour ③ Delete Tour Start Tour Finish Tour 5. Spiral Function It is a function to observe objects in the spiral direction. ①...

  • Page 32: Osd Message Description

    4-4. OSD MESSAGE DISCRIPTION 1. PRESET MESSAGE CAM-001 CAM-001 CAM-001 SET PST 001 PRESET 001 CLEAR PST 001 User check that displayed when It is displayed when user preset No.1 is saved as an moving to the preset No.1 deletes preset No.1. the appeared message message...
  • Page 33 CAM-001 CAM-001 CAM-001 SET TOUR GP:01 TOUR&GP:01 PRESET:001 CLEAR TOUR & GRP As the message in the As the message in the time It shows the data in group time of operation of tour of operation of Tour set, anf tour saved was deleted. “GP:01”...

  • Page 34: Trouble Shooting

    4. TROUBLE SHOOTING 1. You must turn off the power switch before installation of this equipment 2. Avoid installation places where it is the ultimate cold, hot, and humid. 3. Use a power supply of AC24V, 1.5A output. 4. Please be careful that you connect respective wires without mismatching in installation. 5.
  • Page 35 exactly presser position or different. mode? preset in the set mode. When it activate alarm state, there is Did you use the exclusive control It is need to use an exclusive control no sign on the keyboard controller keyboard? keyboard so that the alarm sound is activated on the controller Yes, I do.

  • Page 36: Dimension

    5. DIMENSION Wall mount bracket Ceiling mount bracket...
  • Page 37 In-ceiling mount bracket...

  • Page 38: Assembly

    6. ASSEMBLY DSC-30EWP Wall mount bracket ① Remove main body camera from the housing ③ Fix the upper cover into a wall bracket with turning it in the same direction as the picture ④ Connect the data cable, video ② Fix four bolts after connecting each line cable and power source cable.
  • Page 39 DSC-20ECP Wall mount bracket 17.2 Assembly of outdoor dome with pole mount pendant Remove the Main body of Turn the ceiling The camera pole to connect. From the Housing. Fix the pole ceiling. Turn the joint coupler Turn the cover connect.
  • Page 40 Sub keyboard Sub keyboard...
  • Page 41 Set one main keyboard...

  • Page 42: Specification

    7. SPECIFICATION MODEL INDOOR Signal system NTSC 1/4” Sony Ex-View CCD Image sensor Effective pixels 768(H) X 494(V), 752(H) X 582(V), Horizontal resolution More than 520 TVL 35x Optical zoom, f =3.4 –119mm Lens Digital zoom 12x (Total zoom 420x) Angle of view Approx 55.8°...
  • Page 43 MODEL OUTDOOR Signal system NTSC 1/4” Sony Ex-View CCD Image sensor Effective pixels 768(H) X 494(V), 752(H) X 582(V), Horizontal resolution More than 520 TVL, B/W 570 TVL 35x Optical zoom, f =3.4 –119mm Lens Digital zoom 12x (Total zoom 420x) Angle of view Approx 55.8°...
