D-MAX 600 TVL User Manual

600 tvl high speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

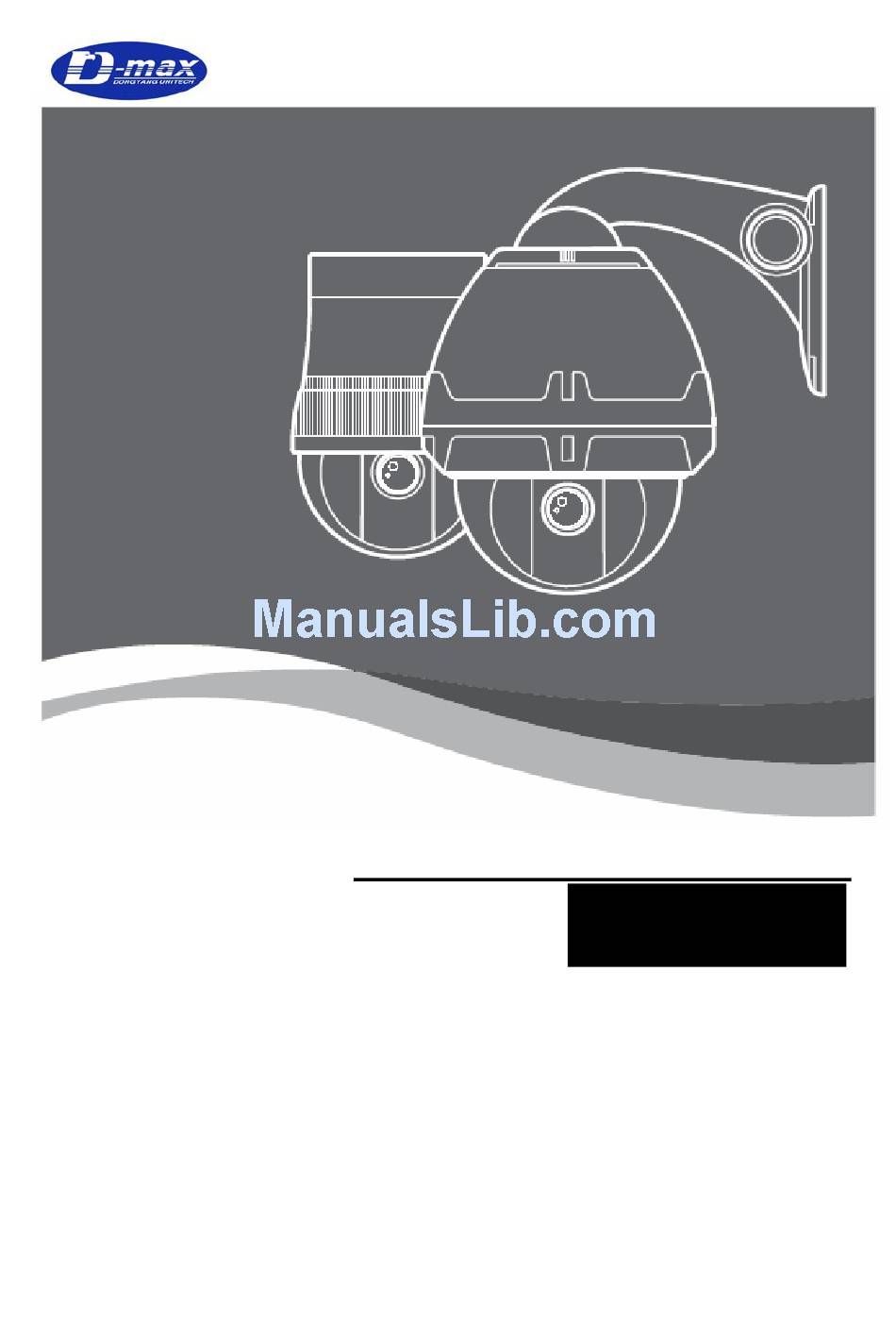

HIGH SPEED DOME CAMERA
USER MANUAL
600 TVL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 600 TVL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-MAX 600 TVL

Summary of Contents for D-MAX 600 TVL

  • Page 1 HIGH SPEED DOME CAMERA USER MANUAL 600 TVL...

  • Page 3: Table Of Contents

    Table of contents CAUTION -------------------------------------------------------------------------------- INTRODUCTION OF PRODUCT 1). DESCRIPTION AND FEATURES --------------------------------------------- 2). INSTALLATION AND CONNECTION ---------------------------------------- 2-1. NAME AND FUNCTION OF EACH PART ----------------------------- 2-2. INSTALLATION -------------------------------------------------------------- 2-3. BASIC CONNECTION ----------------------------------------------------- 2-4. CONNECTION DIAGRAM ------------------------------------------------ DIRECTIONS FOR USE 1).

  • Page 4: Caution

    1.CAUTION Thank you for purchasing our product. Please operate the product after being fully aware of the manual. Pease contact us if you have any queries. Precaution Note the following matters before the installation of the product. Avoid the following places for the installation. A high/low temperature: Using indoor-cameras Snow, rain and wet: Humidity or water and in the places of +50°C~ -10°C can cause...

  • Page 5: Caution In Use

    Caution in Use Do not disassemble the unit and put alien substances in the unit. Disassembling the unit or putting alien substances such as a metal can make the camera defective. - Make sure of power switch-off before the installation. : Ensure power switch-off and check the voltage the camera before the installation.

  • Page 6: Introduction Of Product

    ☺ High Resolution and Zoom late ☺ Day & Night function with filter High resolution 600 TVL and Built-in High Zoom It allows to make surveillance in the night or low ( 27X,33X, 37X )Rate Camera with 16x Digital Zoom illumination condition with motorized IR cut filter ☺...

  • Page 7: Installation And Connection

    2) INSTALLATION AND CONNECTION 2-1. Name and function of each part INDOOR TYPE OUTDOOR TYPE Connect it with cover housing or bottom cover, then combine with bracket. It protects inside the camera, and built-in pan It is a part to be makes the heat connected with power, cool when using...

  • Page 8: Installation

    2-2. Installation INDOOR TYPE OUTOOR TYPE Open the cover with unscrewing 5 bolts, then separate the camera body from the cover Unlock the device of the bottom cover, then housing with turning it as the same direction in separate the camera body cover from the the picture bottom cover with turning it as the same (the bolt of the bubble cover is not separated...
  • Page 9 LOCK DEVICE : Check the direction when it connects with camera body case, And lock it with DSC-1000Si AC24V INPUT Use AC24V power and use either terminal power connect or jack POWER LED : power connect. Power LED is turned when the power is ON DATA IN ( RS-485) : Never connect the power into...

  • Page 10: Basic Connection

    2-3. Basic Connection DC12V 1A adaptor and junction box are provided on a purchase. Junction box consists of 2 data ports (each data port can be connected with maximum up to Connect the video line of a 128 cameras and sub keyboard terminal. monitor User can control maximum up to 255 cameras...

  • Page 11: Connection Diagram

    2-4. Connection diagram Must use AC24V power source. The current value must be 1.5A or more and use a double winding transformer. Alarm output is tangency output of relay non-load. It can be used up to AC 220V/10A by connecting with the load. The switch is automatically turned on when the sensor works and it is possible to cancel by using the...

  • Page 12: Directions For Use

    3. DIRECIONS FOR USE 1). DIP SWITCH SETTING Set the camera numbers in the state of ADDR, set communication speed, protocol in the state of INIT. This part is each address of camera. -Termination Resistor (DIP SW NO1) -Address /Initial select (DIP SW NO3) -Turn the last camera on the data line as a switch -Set the DIP SW up in the ADDRESS.

  • Page 13: How To Change Protocol

    2) HOW TO SET PROTOCOL Set this part up Do not necessary to set it up The switch to select protocol The switch to select baud rate Change No.3 at S2 to INIT if user wants to change Protocol. ① Please the power off. ②...

  • Page 14: Setting Address Of Dip Switches

    3) SETTING ADDRESS OF DIP SWITCHES Use DIP switches No.1 to No.8 for address, it can be set 1 program to 255 program. DIP SWITCH (HEX) DIP SWITCH (HEX) -No.1 is changed to No.64 and the last No.64 is changed No.128 when No.7 DIP SW is on. -No.1 is changed to No.129 when No.7 DIP SW is off and No.8 DIP SW is on.

  • Page 15: How To Use Osd Menu

    4) HOW TO USE OSD MENU 4-1. How to control OSD menu ● OSD (ON SCREEN DISPLAY) CONTROL It is the function to call up the Menu ＊User can not only set Preset, Group, Tour, Swing, Trace functions of the camera up by the menu, but also set them up by shortening keys.

  • Page 16: Functional Descriptions On Each Menu

    4-2. Functional Descriptions of each Menu. 1. ID SET. This function is to set ◄◄ CAMERA SETUP p1 ►► 1. ID Set : CAM-001 camera ID up to 16 2. OSD Display. : ID + Status letters on the monitor. 3.
  • Page 17 5. SHUTTER SPEED ◄◄ CAMERA SETUP p1 ►► As a setting shutter speed mode, it can be distinguished a fast 1. ID Set : CAM-001 moving subject easily by means of shutter speed up. 2. OSD Display. : ID + Status 3.
  • Page 18 9. DNR Control ◄◄ CAMERA SETUP p1 ►► 1. ID Set : CAM-001 It can remarkably reduce noise of minimum illumination by super 2. OSD Display. : ID + Status noise removable technique and also file size becomes smaller while 3.
  • Page 19 ◄◄ CAMERA SETUP p2 ►► 12. WHITE BALANCE 10. Back Light : WDR Mode 11. Set Back Light Mode It prevents from that white color is changed as illumination, user can 12. White Balance : Auto set it up in 2 ways. 13.
  • Page 20 16. DAY& NIGHT ◄◄ CAMERA SETUP p2 ►► The function is used to distinguish an object clearly in the dark 10. Back Light : WDR Mode 11. Set Back Light Mode condition. 12. White Balance : Auto ▶ Auto-Low : This mode is worked automatically according to 13.
  • Page 21 20. PRESET SET & RUN PAGE ◄◄ CAMERA SETUP p3 ►► 18. Select Alarm : Sensor It is a function to set and operate Preset, Group, Tour. 19. Motion Detection : Off User can see the screen when moves the joystick to Right/Left after 20.
  • Page 22 ③ Preset Swing SET : Set Preset Swing Move next SWING page for the setting, if user presses F/F key in the state of selection of the menu ※The preset must be set before the setting as Swing Is a function to repeat an auto observation of 2 Preset points user fixes in Preset set ④...
  • Page 23 page if user presses F/F key on this menu ■ The Group user wants to set must be set firstly ※Setting is only possible when Preset is set first in the state of setting of Swing, Group, Tour, otherwise, it displays the message “Sorry Undefined”.
  • Page 24 22. ALRAM CHANNEL ON/OFF ◄◄ CAMERA SETUP p3 ►► 18. Select Alarm : Sensor 19. Motion Detection : Off 20. Preset Set & Run Page 21.Trace Set Page 22. Alarm CH On/Off Page 23. Alarm Preset Set Page 24. Privacy Zone Set Page - CH On/Off : Alarm Input –...
  • Page 25 24. PRIVARCY ZONE SET ◄◄ CAMERA SETUP p3►► Max 16 privacy zones can be configured for the protection of privacy. 18. Select Alarm : Sensor 19. Motion Detection : Off ■ How to set privacy zone 20. Preset Set & Run Page In <<PRIVACY ZONE SET>>...
  • Page 26 25. AUTO TILT MOVE ◄◄ CAMERA SETUP p4►► The PAN is turned in a 180° degree arc automatically when the angle 25. Auto Tilt Mode : Off of the camera moves down to the maximum degree, therefore, it is 26. Smart Pan/tilt : ON 27.
  • Page 27 ◄◄ CAMERA SETUP p4►► 29. SHORTCUT KEY 25. Auto Tilt Mode : Off 26. Smart Pan/tilt : ON The Shortcut Key can make some of the functions to perform faster 27. Manual P/T Speed : Medium 28. Auto Refresh Time :1day and easily.
  • Page 28 32. FACTORY RESET WARNING ◄◄ CAMERA SETUP p4►► Please be careful of that all setting data of OSD MENU are reset 25. Auto Tilt Mode : Off 26. Smart Pan/tilt : ON into the first default when operates FACTORY RESET WARNING. 27.

  • Page 29: Functional Setting, Operation/Deletion The

    4-3. Functional Setting, Operating/Deletion by the Keyboard 1. Preset setting You can set Preset point up to 250. ① Preset Input. Preset setting can be set 1 to 250 sequentially after moves the camera to where you want ② Preset Move The camera moves to the preset point, if you press Preset No.
  • Page 30 ② Operation of Swing ③ End of Swing (Run Pan) (Run Tilt) 3. Group setting ① Start Group setting mode Start the Group Select the Group in 1~12 Select in Preset No.1~250 setting mode and input them. Move Speed: Dwell Time: The Speed from A to B The dwell time at the point of 64=High, 1=Low...
  • Page 31 ■ Repeat input in continual input EX). Register Group No. 1,3,6 as Tour Register Start Register Register Finish Tour No.2 Tour No.3 Tour mode Tour mode Tour No.1 ② Start / End Tour ③ Delete Tour Start Tour Finish Tour 5.

  • Page 32: Osd Message Description

    4-4. OSD MESSAGE DISCRIPTION...

  • Page 34: Trouble Shooting

    4. TROUBLE SHOOTING...

  • Page 35: Dimension

    5. DIMENSION Wall mount bracket Ceiling mount bracket...
  • Page 36 In-ceiling mount bracket...

  • Page 37: Assembly

    6. ASSEMBLY DSC-30EWP Wall mount bracket ②Connect each cables, then screw 4 bolts. Block up beside the hole with 34mm BLANK RUBBER ③In set of it on the concrete, connect the cables as above the picture and join TAB/P1/11” flexible connector(28Ø) Unscrew the 5bolts from the Bubble cover ①...
  • Page 38 ⑤Connect the Data, Video, Power cables. ⑦Connect the Bubble again. (Refer to page 7) Connect the Housin g with the camera body. ⑥ Please check the triangular mark on the side of the body and inside.
  • Page 39 DSC-20ECP Wall mount bracket ②Fix the Pole box from the ceiling. Unscrew the 5bolts from the Bubble cover ① and open it, then separate the Camera body from the Cover housing. (The bolts from the Bubble cover are not separated completely.) ⑤Turn the Cover housing tight.
  • Page 40 Connect the Data, Video, Power ⑥ cables. (Reference to Installation and Connection.) ⑦Connect the Housing with the camera body. Please check the triangular mark on the side of the body and inside. ⑧Connect the Bubble again. Ceiling bracket is used as In/Outdoor type and you can remove or extend the Ceiling pole to fix the length.
  • Page 42 Ceiling Adhesion bracket...
  • Page 43 Set sub keyboard...
  • Page 44 Set one main keyboard...

  • Page 45: Specification

    Image sensor 1/4” Sony Super HAD CCD Effective pixels NTSC 768(H) X 494(V), PAL 752(H) X 582(V), Horizontal resolution Color : 600 TVL, B/W 700 TVL 33x Optical zoom(16x), 37x Optical zoom(16x), Lens (Digital Zoom) 27x Optical zoom(16x), f =3.5 –115.5mm f =3.5 –129.5mm...
  • Page 48 DISTRIBUTED BY...

This manual is also suitable for:

Dsc-1000si
