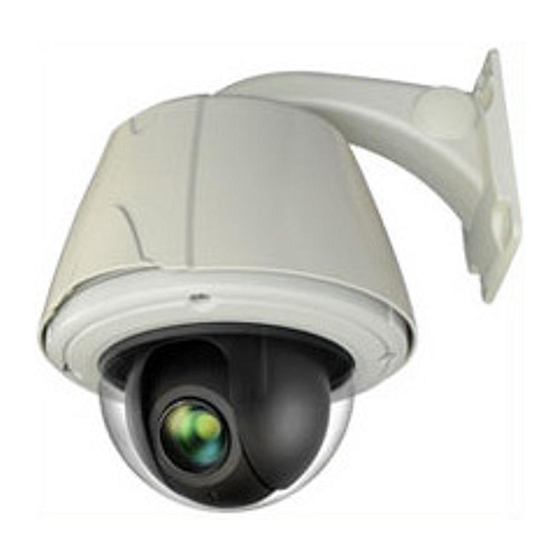

D-MAX DMC-20SEC User Manual

2megapixel hd-sdi speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

2Megapixel HD-SDI Speed Dome Camera
User manual
Version D0704
DMC-20SEC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMC-20SEC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for D-MAX DMC-20SEC

Summary of Contents for D-MAX DMC-20SEC

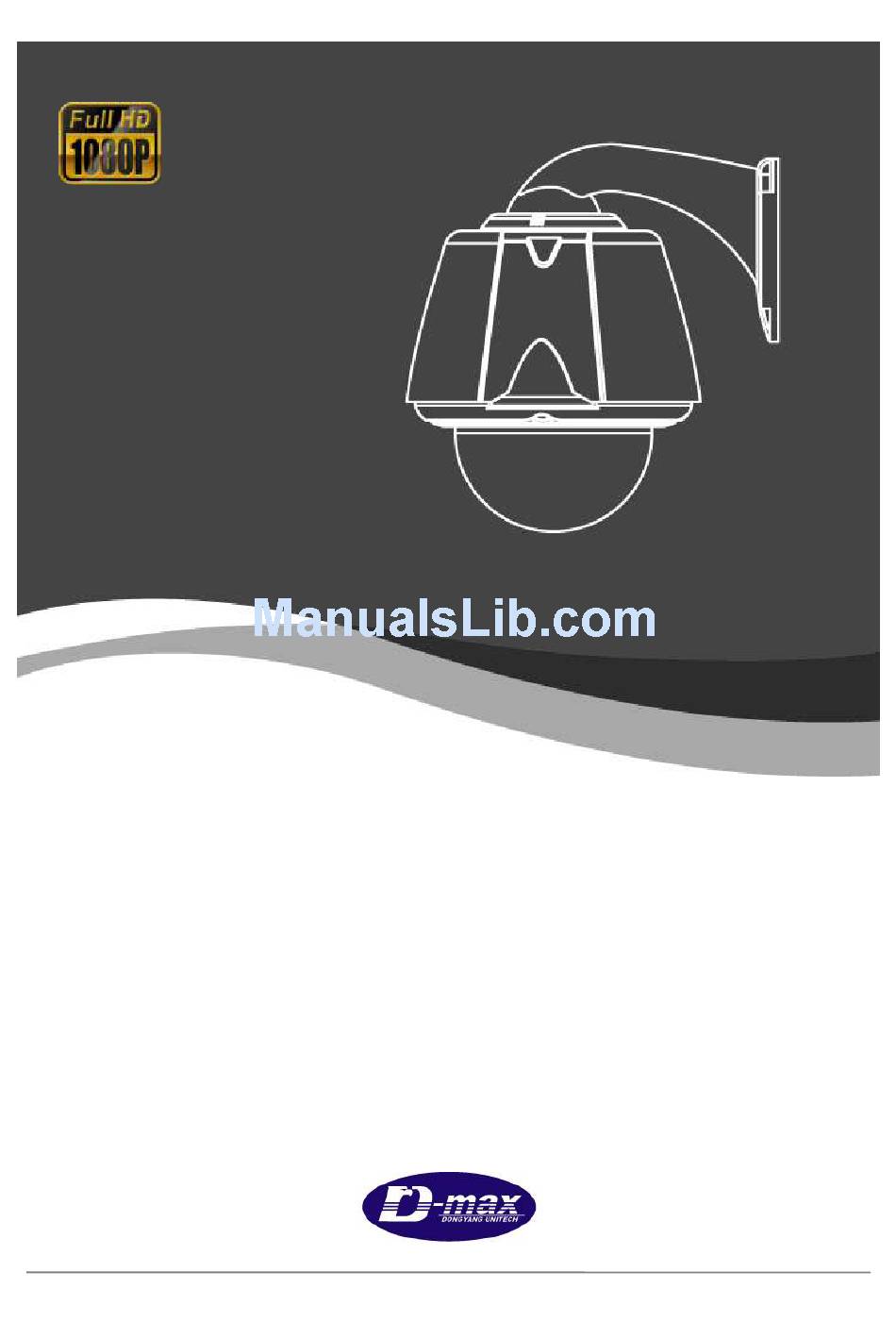

  • Page 1 2Megapixel HD-SDI Speed Dome Camera User manual Version D0704 DMC-20SEC...

  • Page 2: Table Of Contents

    2Mega HD-SDI Speed Dome Camera User manual Content Caution........................................3 Product Introduction ..................................5 Description and features ............................5 2.1. Product package ................................6 2.2. Name and function of each part ..........................7 2.3. Installation ..................오류! 책갈피가 정의되어 있지 않습니다. 2.4.

  • Page 3: Caution

    2Mega HD-SDI Speed Dome Camera User manual 1. Caution Thank you for purchasing our product. Please operate the product after being fully aware of the manual. Pease contact us if you have any query. Precaution Note the following matters before the installation of the product. Avoid the following places for the installation.

  • Page 4: Caution In Use

    2Mega HD-SDI Speed Dome Camera User manual Caution in Use Do not disassemble the unit and put alien substances in the unit. Disassembling the unit or putting alien substances such as a metal can make the camera defective. - Make sure of power switch-off before the installation. : Ensure power switch-off and check the voltage the camera before the installation.

  • Page 5: Product Introduction

    2Mega HD-SDI Speed Dome Camera User manual 2. Product Introduction 2.1. Description and features This camera, 2 Megapixel Full HD-SDI speed dome camera, has been designed elegantly for buildings, department stores that need to be in harmony with the interior as a high speed dome camera, including various observation functions.

  • Page 6: Product Package

    2Mega HD-SDI Speed Dome Camera User manual 2.2. Product package The following items are included in the product package. MEGA Speed Dome Camera 1 pcs Wall Mount Bracket 1 pcs Power Supply 1 pcs (Power Cable & Linear AC24V/2.5A adapter) Bracket Blank Rubber 2 pcs...

  • Page 7: Name And Function Of Each Part

    2Mega HD-SDI Speed Dome Camera User manual 2.3. Name and function of each part - Exterior - Name Function ① Wall Mount Bracket Attached wall bracket on the wall Outdoor PTZ housing. - when the product is released, outdoor housing and indoor ②...
  • Page 8 2Mega HD-SDI Speed Dome Camera User manual - Interior - System base ① ② Name Function ① 26-Pin D-SUB Port (Male) Terminal board connect port DIP Switch (1~8) : Address Setting switch ② DIP Switch (1~4) : Set-up Setting switch...
  • Page 9 2Mega HD-SDI Speed Dome Camera User manual Connect Cover Inside ① ⑥ ② ⑤ ③ ④ Name Function ① Power Port AC 24V / 2.5A Power input ② Power LED Turn on the light when its power on ③ HD-SDI Port HD-SDI video output (1080P 25/30 FPS output) 26 Pin D-SUB Port ④...

  • Page 10: Installation

    2Mega HD-SDI Speed Dome Camera User manual 2.4. Installation 1. Installing wall mount bracket Cause Please use Grip when housing camera dome drive’s D- sub port are connected or disconnected from housing - Not using Grip is caused by disorder when connect or disconnect camera dome drive in the camera housing.
  • Page 11 2Mega HD-SDI Speed Dome Camera User manual ③ When the camera is installed retaining wall or Concrete building, put the cables in the bracket as picture and close hole by TAB/P1/11" flexible connector(28") ⑥ Connect D-sub part and camera dome drive with triangle mark of housing as picture.
  • Page 12 2Mega HD-SDI Speed Dome Camera User manual 2. Installing Ceiling Mount Bracket ② Attach Pole box on the ceiling ③ Tighten Ceiling pole to pole box ④ Tighten Joint couple ① Loosen 4 bolts of cover and 3 bolts of camera body from camera housing (Not loosen the bubble cover bolts completely) ⑤...
  • Page 13 2Mega HD-SDI Speed Dome Camera User manual ⑥ Connect to Data, Video and Power ⑧ Connect to the clear bubble ⑦ Recombine housing and dome drive. Housing, Connect D-sub part and camera dome drive with triangle mark of housing as picture.
  • Page 14 2Mega HD-SDI Speed Dome Camera User manual 3. Using Speed Dome Junction Box (DSC-30EWB) - Speed dome junction box installation - Fasten screw up 4 screws of the junction box in order of Camera housing → Wall mount bracket → Water-proof cover →...
  • Page 15 2Mega HD-SDI Speed Dome Camera User manual connecting cables in the junction box, Please refer to wall mount bracket installation part The PTZ junction box inside part is as below. AC 24V Power Supply AC 24V Input Port AC 24V Output Port Power LED LAN (output) LAN (Input)

  • Page 16: Dip Switch Setting

    2Mega HD-SDI Speed Dome Camera User manual 3. DIP switch setting Switch 3.1. DIP setting -Termination Resistor (DIP S2/SW1) (.*** The first default is ADDRESS.**) -Set the communication speed (baud rates) and -Turn the last camera on the data line as a Protocol (Demand for the technical inquiry) up in switch to turn on/off the terminal resistor on.

  • Page 17: Protocol Setting

    2Mega HD-SDI Speed Dome Camera User manual Protocol 3.2. setting Set up the switch The switch for select protocol The switch for select baud rates Change S2 to INIT if user wants to change protocol ① Please the power off ②...

  • Page 18: Address Dip Switch Setting

    2Mega HD-SDI Speed Dome Camera User manual Address DIP 3.3. Switch Setting ADDRESS is set No 1 ~ 255 by DIP switch 1~8. DIP SWITCH (HEX) DIP SWITCH (HEX) - ADDRESS Table - - 7 DIP switched on, it can be set 65 ~ 128 as above. - 8 DIP switched on, it can be set 129~192 as above.

  • Page 19: Osd Menu Setting

    2Mega HD-SDI Speed Dome Camera User manual 3.4. OSD Menu setting 3.4.1. OSD Menu control ■ OSD (ON SCREEN DISPLAY) menu control It is the function to call up the Menu of the camera. ◈ User can not only set Preset, Group, Tour, Swing, Trace functions of the camera up by the menu, but also set them up by shortening keys.

  • Page 20: Menu Function

    2Mega HD-SDI Speed Dome Camera User manual 3.4.2. Menu function ■ OSD Menu tree Main menu Sub menu 1 Sub menu 2 SELECT PRESET PRESET ID SET PRESET PTZ SET SWING SET SET PTZ FUNCTION GROUP SET CH:01~12 TOUR SET TRACE SET DOME DRIVER SET PREVIOUS MENU PAGE...
  • Page 21 2Mega HD-SDI Speed Dome Camera User manual - DOME DRIVER SET. : Set Pan, Tilt or various surveillance functions. - CAMERA SET. : Set Video, screen display functions. - SPECIAL SET. : Set motion detection, alarm, multi-language, Password, Factory default - EXIT.
  • Page 22 2Mega HD-SDI Speed Dome Camera User manual User can select ID letter or icon by using joystick Up/Down/Right/Left. Shift letter digit by "ZOOM PRESET CH:001[PRESET:001] ! " $ % & ' ( ) * + , - . / 0 1 2 3 4 5 6 7 8 9 :;<=>?@ABCDEFGHIJKLMNOPQRS T U V W X Y Z [ \ ] ^ _ , a b c d e f g h i j k l m nopqrstuvwxyz{ㅣ}~...
  • Page 23 2Mega HD-SDI Speed Dome Camera User manual - SET PRESET & RUN. 1. SELECT PRESET CH:001 - SWING SET. 2. PRESET ID SET 3. PRESET PTZ SET 1. PAN/TILT SWING : UNDEF 4. SWING SET : 000 2. START PRESET 5.
  • Page 24 2Mega HD-SDI Speed Dome Camera User manual PESET : Enter PRESET No (Save PRESET No) SPEED : Set movement speed (1~64) 1<64 TIME : Set duration time (1~127 sec) Move next menu Move previous menu Change setting 6). TOUR SET Tour is included 12 groups.
  • Page 25 2Mega HD-SDI Speed Dome Camera User manual ■ TRACE Set ① "7. TOUR SET" ② Press F/N button to select “SET” mode → move camera by using joystick toward position you want up to for 180/sec ③ After finishing all work, move cursor to save mode → press F/N button to save joystick movement •...
  • Page 26 2Mega HD-SDI Speed Dome Camera User manual - DOME DRIVE SET. - PRIVACY ZONE SET. 1. SET PTZ FUNCTION. CH 01: CH 02: BLANK 2. RUN PTZ FUNCTION:UNDEF CH 03: BLANK CH 04: BLANK 3. SET PRIVACY. CH 05: BLANK CH 06: BLANK 4.
  • Page 27 2Mega HD-SDI Speed Dome Camera User manual 4. MANUAL P/T SPEED User can control the maximum speed in controlling - DOME DRIVE SET. of up and down; The mode is Low, Medium, Max 1. SET PTZ FUNCTION. 5. AUTO TILT MOVE 2.
  • Page 28 2Mega HD-SDI Speed Dome Camera User manual 2. H-V REVERSE - CAMERA SET. Set up H-V reverse mode. 1. ID SET(PRESS F/F KEY). ● Normal : NORMAL ● H-REV : 2. H-V REVERSE Flip the picture horizontally on the 3. AGC CONTROL : MAX screen.
  • Page 29 2Mega HD-SDI Speed Dome Camera User manual 7. DNR LEVEL - CAMERA SET. Reduce noise of minimum illumination and also file size becomes smaller while DVR is being recorded 1. ID SET(PRESS F/F KEY). by the effective reduction of noise. 2.
  • Page 30 2Mega HD-SDI Speed Dome Camera User manual 14. BACK LIGHT MODE It provides clear images of object and back ground against a severe back light. - CAMERA SET. ▶ OFF : Disables the BACKLIGHT 10. STABILIZER : OFF ▶ WDR : Activates back light. Compensate 11.
  • Page 31 2Mega HD-SDI Speed Dome Camera User manual - BLC AREA SET. F/F SAVE, F/N NOT SAVE. Reduce BLC Enlarge BLC Move BLC area area area ② It is enables to move BLC area, reduce BLC area and enlarge BLC area by Joystick ZOOM IN/OUT 15.
  • Page 32 2Mega HD-SDI Speed Dome Camera User manual ■ SPECIAL SET 1. OSD DISPLAY - SPECIAL SET. << DOME CAMERA SETUP >> 1. OSD DISPLAY : ID+STATUS - DOME DRIVER SET. : SENSOR 2. SELECT ALARM - CAMERA SET. : OFF - SPECIAL SET.
  • Page 33 2Mega HD-SDI Speed Dome Camera User manual - SPECIAL SET. 1. OSD DISPLAY : ID+STATUS - MOTION DETECTION AREA SET. 2. SELECT ALARM MOTION 3. MOTION DETECTION 4. ALARM CHANNEL ON/OFF. 5. ALARM PRESET SET F/F SAVE, F/N NOT SAVE. 6.
  • Page 34 2Mega HD-SDI Speed Dome Camera User manual - ALARM CH On/Off : Alarm Input – Each channel can be ON/OFF. - According to signal connection, user can select ACTIVE OPEN(N/C) or ACTIVE CLOSE(N/O). - If the user selects ACTIVE OPEN, it is activated when Alarm input is open, if the user selects ACTIVE Close, it is activated when Alarm input is Close - Resume Time Set : It can select the delay time that the camera move to the place alarming to observe where wrong signal...
  • Page 35 Home Position Preset and Home Position Time together for using this function.) - It is enable to set Alarm by D-max keyboard. - It is checked exist Alarm status in the keyboard, if it is sensed wrong signal, the keyboard makes beep sound and the security manager can check Alarm position status.
  • Page 36 Dehumidification again, you could select the function in the OSD. . ▶Turn ON : 1 + AUX1 + ON OFF : 1 + AUX1 + OFF It is available to set Dehumidification under D-max protocol by D-max brand keyboard; it is displayed icon on the screen. 11. LANGUAGE - Multi-language ▶...

  • Page 37: Set-Up Menu, Execute And Delete By Keyboard

    2Mega HD-SDI Speed Dome Camera User manual 13. CHANGE PASSWORD - "13. CHANGE PASSWORD" the user can select password by Joystick Left / Right. - SPECIAL SET. 9. USE SHORTCUT KEY : ON - CHANGE PASSWORD. 10. RUN DEHUMIDIFICATION. : ENGLISH 11.
  • Page 38 2Mega HD-SDI Speed Dome Camera User manual Ex) Delete No 5 Preset (Holding 3 seconds) ④ All Preset Movement Press button for 3 sec then beep sound, it follows the steps as below (holding 3 seconds) 2. Swing Setting ① Swing set Set up duration time Set up movement (1~127 sec) after...
  • Page 39 2Mega HD-SDI Speed Dome Camera User manual ② Group execute ③ Group stop 4. Tour setting ① Tour set mode ② Tour execute/Stop ③ Tour remove (Holding 3 seconds ~)
  • Page 40 2Mega HD-SDI Speed Dome Camera User manual 5. Spiral Function It is a function to observe objects automatically in the spiral direction. ② Spiral Off Spiral On * 26. “67+PRESET key” is also available in Shortcut key ‘On’ mode 6. PTZ Trace It memorizes P/T/Z motions for 200sec then operates them at the same Trace.

  • Page 41: Osd Message Description

    2Mega HD-SDI Speed Dome Camera User manual 3.4.4. OSD Message Description 1. PRESET Message CAM-001 CAM-001 CAM-001 SAVE PRESET:001 PRESET:001 CLEAR PRESET:001 It appears when user deletes It appears when moving to the User can check that Preset PRESET No.1. The message preset No.1.
  • Page 42 2Mega HD-SDI Speed Dome Camera User manual 4. TOUR Message CAM-001 CAM-001 CAM-001 Set Tour GP:01 [TOUR&GP:01] PRESET:001 CLEAR TOUR&GROUP. It shows the data in GROUP and As the message in the time of As the message in the time of operation of Tour set, “GP:01”...

  • Page 43: Trouble Shooting

    2Mega HD-SDI Speed Dome Camera User manual 4. TROUBLE SHOOTING CAUTION IN USE • Make sure that turn the power switch off before installation. • Avoid the places where is the high/low temperature and humid. • Power supply must be min AC24V/1A for indoor (DMS-200) and min AC24V/1.5A for oudoor (DMS-200Se) •...

  • Page 44: Dimension

    2Mega HD-SDI Speed Dome Camera User manual 5. Dimension Unit : mm...

  • Page 45: Configuration Diagram

    2Mega HD-SDI Speed Dome Camera User manual 6. Configuration diagram ■ Usage • CAMERA + MONITOR + CONTROLLER • CAMERA + DVR + MONITOR (Control camera OSD by DVR) • Camera + DVR + Monitor + Controller...
  • Page 46 2Mega HD-SDI Speed Dome Camera User manual ■ HD-SDI Repeater • Using 1pcs repeater • Using 2pcs repeater • Using 4pcs repeater...

  • Page 47: Specification

    2Mega HD-SDI Speed Dome Camera User manual 7. Specification Model DMC-20SEC 1/4” 2Mega Panasonic CMOS Image sensor Scan mode Progressive Scan Number of active pixels 1944(H) × 1092 (V) = 2,122,848 (pixels) Total number of pixels 2010(H) × 1108 (V) = 2,227,080 (pixels) Color:1.5Lux@F1.6(50IRE), 0.02Lux (Sens-up 60X)
