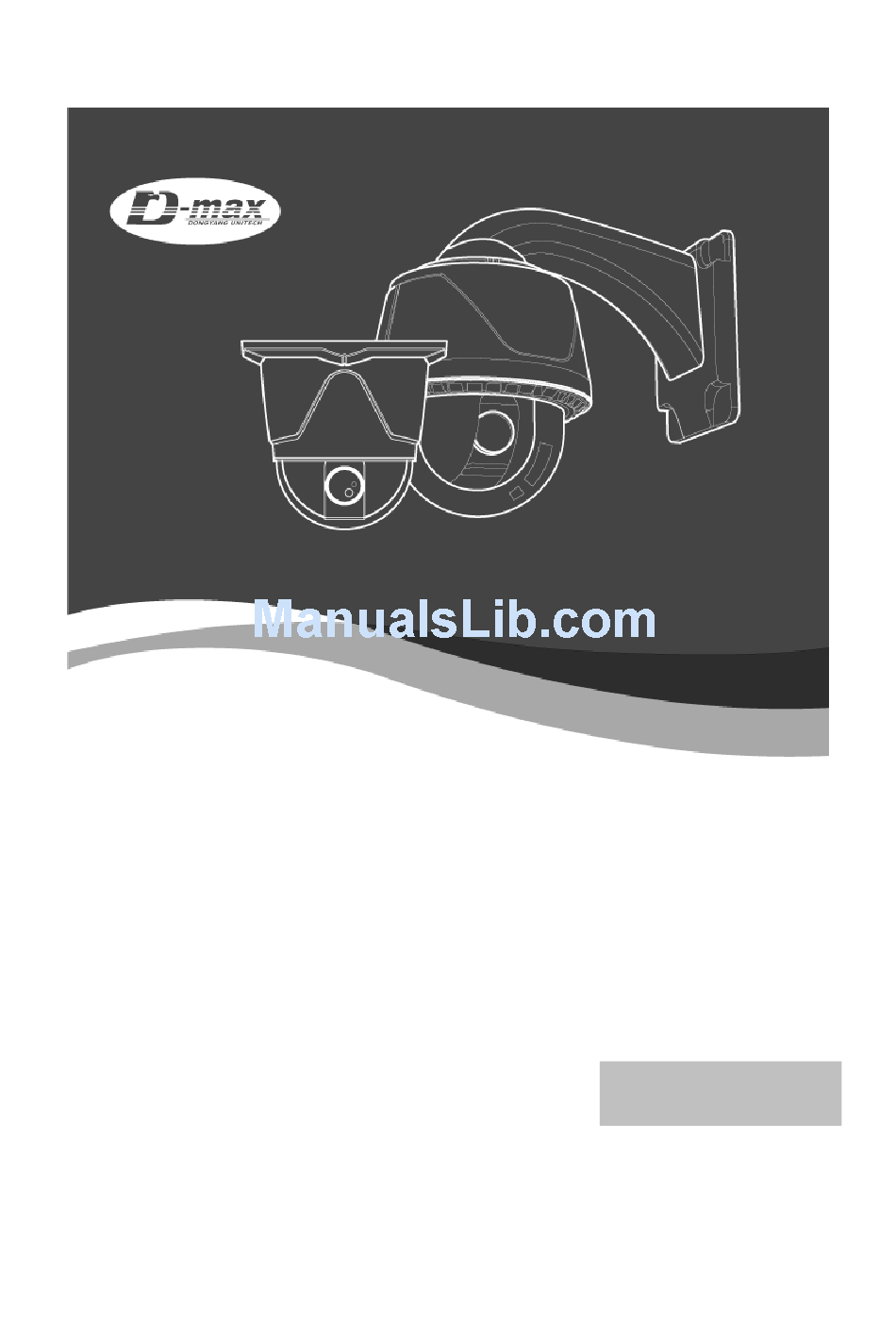

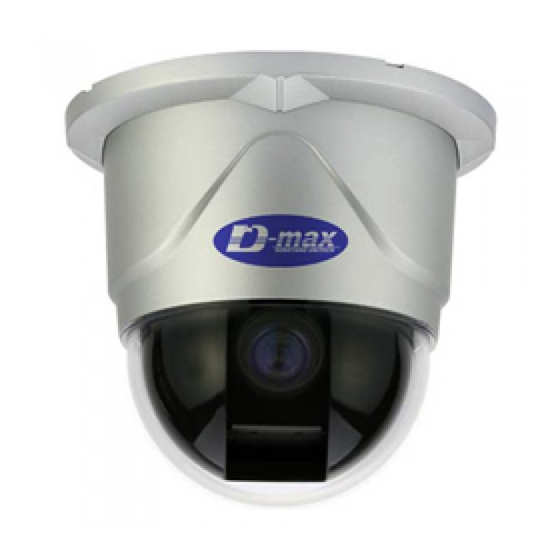

  • Page 1 MINI SPEED DOME CAMERA MINI SPEED DOME CAMERA USER MANUAL DMS-200 DMS-200Se...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. CATION ------------------------------------------------------- 3 2. INTRODUCTION OF PRODUCT -------------------------------5 1). DESCRIPTION AND FEATURES -----------------------------5 2). INSTALLING AND CONNECTING ---------------------------- 6 2-1. NAME AND FUNCTION OF EACH PART -------------------6 2-2. INSTALLATION --------------------------------------7 2-3. CONNECTION DIAGRAM --------------------------------8 3. DIRECTIONS FOR USE -----------------------------------------9 1).
  • Page 3 1. CAUTION Thank you for purchasing mini speed dome camera DMS-200. Please operate the product after being fully aware of the manual. Pease contact us if you have any queries or face any problems. DO NOT CONTROL PAN, TILT BY FORCE Do not move the inside Pan/Tilt motor by force after removing dome cover.
  • Page 4 CAUTION IN USE. Do not disassemble the unit and put alien substances in the unit. It can cause troubles Ensure power switch-off before the installation. Ensure power switch-off and check the voltage the camera before the installation. Do not give the unit a shock and an operation. Giving a strong shock or an excessive power on the button, terminal can cause troubles This product has been designed and manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives.

  • Page 5: Description And Features

    2. INSTRUCTION OF PRODUCT 1). DESCRIPTION AND FEATURES - Description - This camera has been designed elegantly for buildings, department stores that need to be in harmony with the interior as a mini speed dome camera, including various observation It moreover is effective for true Day & Night. functions.

  • Page 6: Name And Function Of Each Part

    2) INSTALLATION AND CONNECTION 2-1. NAME AND FUNCTION OF EACH PART Indoor Outdoor CAMERA CAMERA BODY HOUSING COVER CAMERA CONNECT BODY COVER CAMERA 104 ¢ BUBBLE 125 ¢ BUBBLE...

  • Page 7: Installation

    2-2. INSTALLATION Indoor Make 4 holes after attaching Take out the cables Take apart 4 bands of camera body ceiling guide where the from the ceiling. cover camera is set. Set up DIP switch Connect with cables. (Reference to XXP) Tighten 4 screws.
  • Page 8 Outdoor Unscrew the 4 bolts of the bubble cover then separate the camera housing. Connect the power, data, and video cables at Recombine housing Connect Cover, then set DIP SWITCH. (Go to and attach the bracket. at page xx)

  • Page 9: Connection Diagram

    2-3. CONNECTION DIAGRAM Indoor AC24V/more than 1A VIDEO IN AUDIO IN Violet(N/O) Gray(COM) Black(GND) Brown(CH1) Red(CH2) CAMERA 1~128 Yellow(CH3) Green(CH4) DC JACK Sensor 1 RS-485 4 ALARM INPUT Sensor 4 VIDEO INPUT CAMERA 129 CAMERA 255...
  • Page 10 Outdoor...

  • Page 11: Directions For Use

    3. DIRECTIONS FOR USE 1) DIP SWITCH SETTING Outdoor Indoor <S2> <S1> Set the camera numbers in the state of It shows the status of Power On/Off. Green LED is On while ADDR, set communication speed, protocol power is alive. In the status of in the state of INIT.

  • Page 12: How To Change Protocol

    2) HOW TO CHANGE PROTOCOL Set up this part. The switch that selects Protocol. The switch that selects Baud Rate. Change No.3 at S2 to INIT if want to change Protocol. ① Please make Power off. ② Switch Protocol that wants to change on as above table. ③...

  • Page 13: How To Set Address Dip Switches

    3) HOW TO SET ADDRESS DIP SWITCHES Use DIP switches No.1 to No.8 for address, it can be set 1 program to 255 program. DIP SWITCH (HEX) RX NO DIP SWITCH (HEX) RX NO (DEC) OFF OFF OFF OFF OFF OFF ON OFF OFF OFF OFF ON OFF OFF OFF OFF OFF OFF ON OFF OFF OFF ON...

  • Page 14: How To Use Osd Menu

    4) HOW TO USE OSD MENU 4-1. HOW TO CONTROL OSD MENU OSD (ON SCREEN DISPLAY) CONTROL It is the function to call up the Menu ＊User can not only set Preset, Group, Tour, Swing, Trace functions of the camera up by the menu, but also set them up by shortening keys.

  • Page 15: Functional Descriptions On Each Menu

    4-1. FUNCTIONAL DESCRIPTIONS ON EACH MENU 1. ID SET. This function is to set ◄◄ CAMERA SETUP p1 ►► 1. ID Set Press F/F Key camera ID up to 16 2. OSD Display. : ID + Status letters on the monitor. 3.
  • Page 16 4. AGC CONTROL ◄◄ CAMERA SETUP p1 ►► AGC(Automatic Gain Control)- It adjusts the 1. ID Set Press F/F Key amount of video amplification to maintain a full 1- 2. OSD Display. : ID + Status 3. H-V Reverse. : Normal volt peak-to-peak video signal output automatically.
  • Page 17 ◄◄ CAMERA SETUP p1 ►► 8. FLICKERLESS 1. ID Set Press F/F Key Tremble on the screen is removed in the state of 2. OSD Display. : ID + Status 3. H-V Reverse. : Normal FLICKERLESS ‘ON’, the shutter speed, at the 4.
  • Page 18 11. SET BACK LIGHT MODE ◄◄ CAMERA SETUP p2 ►► ▶ WDR MODE 10. Back Light : WDR Mode 11. Set Back Light Mode - Limit: Adjust the WDR Sensitivity by selecting 12. White Balance : Auto Low or Max 13.
  • Page 19 14. ZOOM MAX Limit ◄◄ CAMERA SETUP p2 ►► It is used when user corrects and limits the 10. Back Light : WDR Mode 11. Set Back Light Mode extensional range 12. White Balance : Auto of the focus as a function to set the maximum 13.
  • Page 20 ◄◄ CAMERA SETUP p3 ►► 18. SELECT ALARM 18. Select Alarm : Sensor Set alarm mode you want to use. 19. Motion Detection : Off 20. Preset Set & Run Page 21.Trace Set Page ▶ Sensor / Motion 22. Alarm CH On/Off Page 23.
  • Page 21 ② Preset PTZ set : Set the position of Preset Select the main menu with the joystick, then press F/F key for next page. Select [SAVE] with F/N key after setting the Preset point by using the joystick and. In/Out function, then the data is saved if user presses F/F key, then it is moved to the previous screen automatically from the menu...
  • Page 22 ③ Preset Swing SET : Set Preset Swing Move next SWING page for the setting, if user presses F/F key in the state of selection of the menu ※The preset must be set before the setting as Swing Is a function to repeat an auto observation of 2 Preset points user fixes in Preset set ④...
  • Page 23 ⑤ Tour SET Group: User can set continual Group motion that can be put 12 Groups in 1 Tour Move to the setting page if user presses F/F key on this menu ■ The Group user wants to set must be set firstly ※Setting is only possible when Preset is set first in the state of setting of Swing, Group, Tour, otherwise, it displays the message “Sorry Undefined”.
  • Page 24 If user saves new positions without “DELETE”, all saved positions will be deleted automatically. 22. ALRAM CHANNEL ON/OFF ◄◄ CAMERA SETUP p3 ►► 18. Select Alarm : Sensor 19. Motion Detection : Off 20. Preset Set & Run Page 21.Trace Set Page 22.
  • Page 25 ■ Home Position Preset The camera automatically moves to where master user set, when another user controls the camera to observe other area. (You can set 1~250 points) ■ Home Position Time It sets the dwell time in Home Position Preset. automatically moves where observes...
  • Page 26 ◄◄ CAMERA SETUP p4►► 25. AUTO TILT MOVE 25. Auto Tilt Mode : Off The PAN is turned in a 180° degree arc 26. Smart Pan/tilt : ON 27. Manual P/T Speed : Medium automatically when the angle of the camera 28.
  • Page 27 ◄◄ CAMERA SETUP p4►► 29. SHORTCUT KEY 25. Auto Tilt Mode : Off 26. Smart Pan/tilt : ON 27. Manual P/T Speed : Medium The Shortcut Key can make some of the 28. Auto Refresh Time :1day functions to perform faster and easily. 29.
  • Page 28 32. FACTORY RESET WARNING ◄◄ CAMERA SETUP p4►► Please be careful of that all setting data of OSD 25. Auto Tilt Mode : Off 26. Smart Pan/tilt : ON MENU are reset into the first default when 27. Manual P/T Speed : Medium operates FACTORY RESET WARNING.

  • Page 29: Setting Functions By Keyboard

    4-3. SETTING FUNCTIONS BY KEYBOARD 1. Preset setting User can set Preset point up to 250. ① Preset Input Preset setting can be set 1 to 250 sequentially after moves the camera to the place to will be memorized ② Preset Move Move to the fixed point if user presses P-SET button after pressing Preset number that user wants.
  • Page 30 3. Group setting ① Start Group setting mode Set Preset No. again in continual input. Set a GROUP again from the first after ending with , if user wants to finish Preset input in one Group to input another Group. ②...
  • Page 31 4. Tour set mode ① Tour set mode ② Start / End Tour ③ Delete Tour 5. Spiral Function It is a function to observe objects automatically in the spiral direction. ① Spiral On ② Off * 26. “67+PRESET key” is also available in Shortcut key ‘On’ mode...
  • Page 32 6. PTZ Trace It memorizes P/T/Z motions for 200sec then operates them at the same Trace. ① Start / End Trace ② Off ② Set Trace ③ Delete Trace * 26. “66+PRESET key” is also available in Shortcut key ‘On’ mode...

  • Page 33: Osd Message Description

    4-4. OSD MESSAGE DESCRIPTION 1. PRESET MESSAGE It is CAMERA ID and it can changed MODE. CAM-001 CAM-001 CAM-001 Set PST 001 PRESET 001 Clear PST 001 It appears when user deletes User can check that PRESET No.1. The message ‘All Preset No.1 is saved as clear PRESET’...
  • Page 34 3. GROUP MESSAGE CAM-001 CAM-001 CAM-001 GP:01 P002,T001,S64 Save Group 01 [GROUP: 01] PRESET:001 As the message in the time It is displayed in the time of As the message in the time completion GROUP operation of GROUP RUN, it of operation of GROUP SET, SET, it is displayed.

  • Page 35: Trouble Shooting

    • Avoid the places where is the high/low temperature and humid. • Power supply must be min AC24V/1A for indoor (DMS-200) and min AC24V/1.5A for oudoor (DMS-200Se) • Please be careful of that you connect respective wires without mismatching in installation.

  • Page 36: Assembles

    5. ASSEMBLES measurement Indoor Wall Mount Bracket It can be connected with D-max bracket by using mount. (The mount and bracket are optional for indoor, DMS-200) unit : mm ① Connect MOUNT with Wall bracket ② Fix 4 screws. ③ Connect Camera body cover.
  • Page 37 Outdoor Wall Mount Bracket ③ Connect the power, data, and video cables at Connect Cover ① Unscrew the 4 bolts of the bubble cover then separate the camera housing. ② Fix four bolts after connecting each line and block up the side hole of the bracket with 34mm block rubber.
  • Page 38 6. CONFIGURATIONS ▪ SUB KEYBOARD SETTING DMS-200 (P/T CONTROL MONITOR MONITOR JUNKTION BOX JUNKTION BOX DCK-255 CONTROL KEYBOARD CONTROL KEYBOARD (MAIN) (SUB8) : Control line : Video line DCK-500A...
  • Page 39 ▪ SETTING ONE KEYBOARD : Control line : Video line...

  • Page 40: Specifications

    7. SPECIFICATION MODEL DMS-200 Signal system NTSC Image sensor 410K Pixel, 1/4 " SONY Super HAD CCD Effective pixels 768(H) X 494(V), 752(H) X 582(V), Horizontal resolution More than 600 TVL B/W 700 TVL Lens 10x Optical zoom, f=3.94 – 46.05mm, F1.67~1.88...
