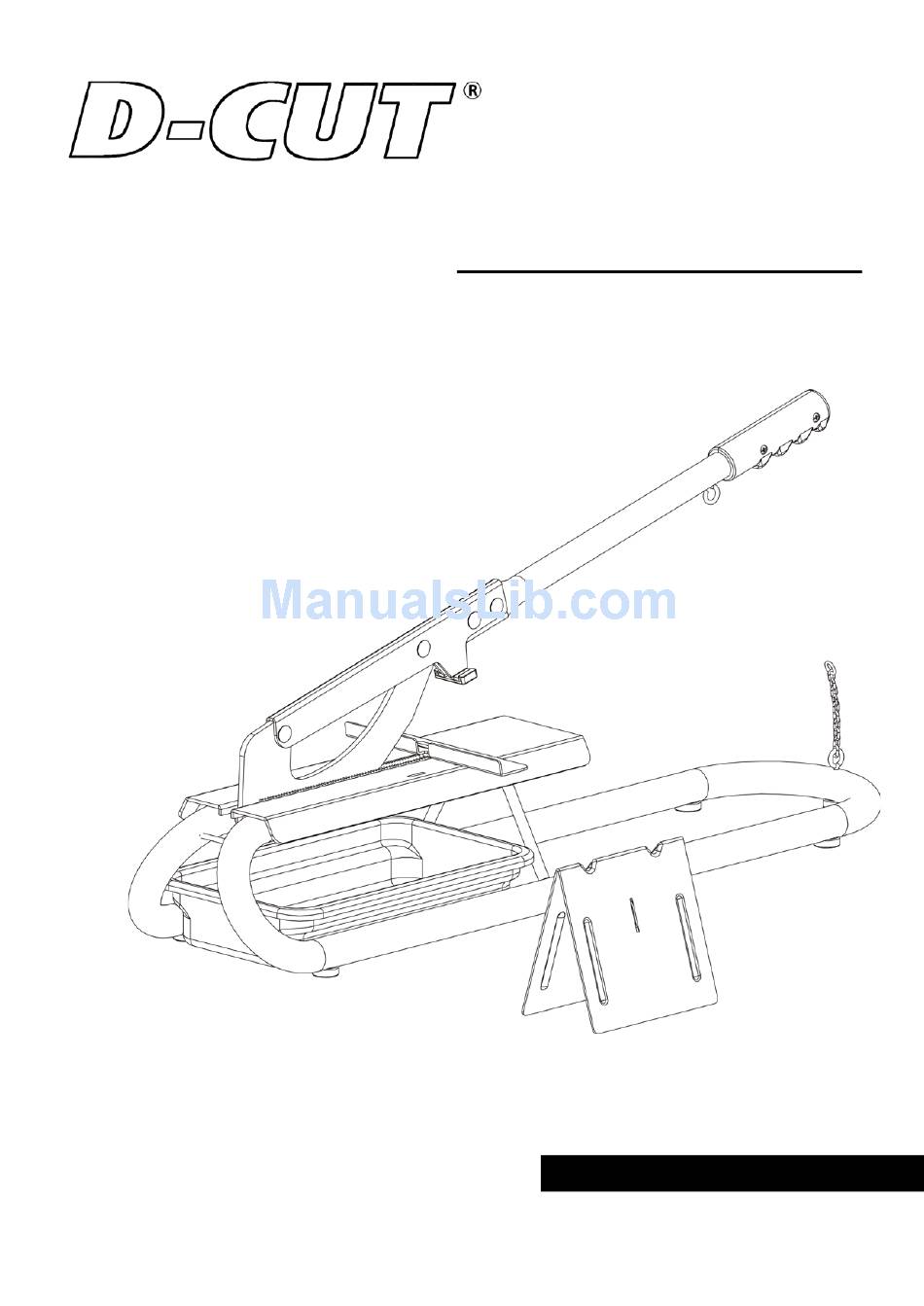

- Page 1 OPERATION MANUAL D-Cut Laminate Cutter XP-215 www.dcutproducts.com CUTTING AND C...
- Page 2 The Slot on the Cutter Base On the cutter base, there are a few sets of the slot used for the stopper attachment. Always use the slots closer to the pivot of the blade according to the width of the plank. The closer to the pivot of the blade, the more cutting power you will get.
- Page 3 Lengthwise Cut When cutting laminate lengthwise, remove the stopper from the cutter base. Mark a line on the laminate plank and place it on the base. Hold it down firmly while pushing down the cutter blade. Small teeth located along the cutting slot will keep the laminate plank from slipping.
- Page 4 P a r t L i s t Parts Q’ty Parts Q’ty Steel Teeth Supporting Bar Working Table End Cap Blade Base Customized Bolt Chain Blade Holder Hook B Solid Rivet Rubber Feet Rubber Pad Blind Rivet Handle Stopper Attachment Hook A Ash-bin Right ABS Handle...
