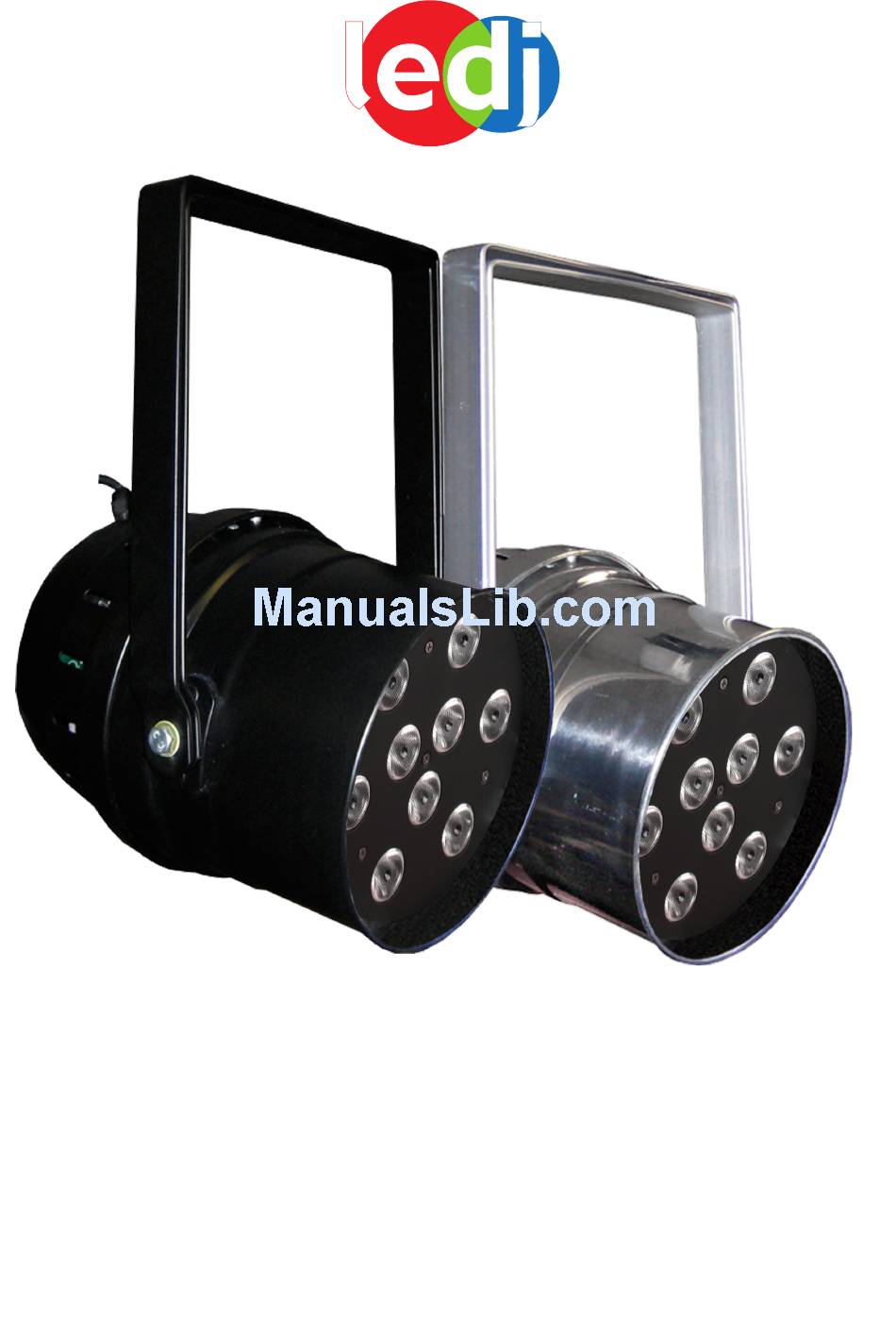

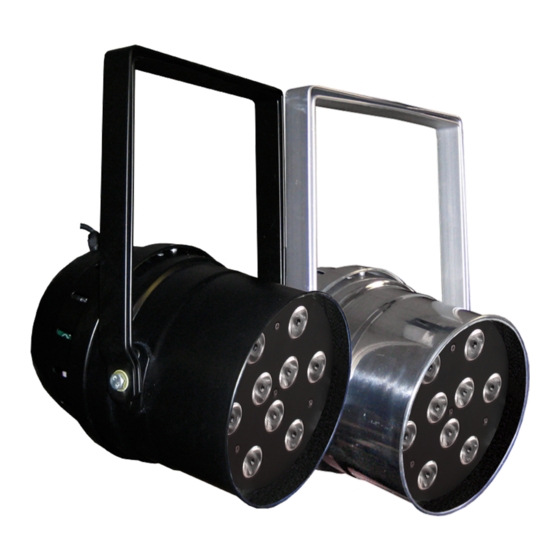

- Page 1 . p r o l i g h t . c o . u k TRI LED-56 CAN USER MANUAL Order code: LEDJ38 - Black Order code: LEDJ39 - Polished...
- Page 2 Tri LED-56 Can Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 Tri LED-56 Can Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Tri LED-56 Can Technical specifications You should find inside the LEDJ carton the following items: 1, Tri LED-56 Can 2, Instruction manual Technical Specifications: DMX channels: 6 9 x Ultra Bright 3W Tri-colour LEDs 3-pin XLR in/out sockets 400Hz flicker free...
- Page 5 The two digits after it are the brightness 00 to 99 or in “CF” they are the strobe speed. Examples: If you set C1, C2 and C3 to zero, the Tri LED-56 can will have no LEDs on (blackout). If you set C1 to 99 and C2 and C3 to zero, the Tri Par will be 100% Red.
- Page 6 Tri LED-56 Can Operation 5, DMX Addressing mode To access the DMX address mode, press the “MODE” button until the LED display shows “A001”, and use the “UP and “DOWN” buttons to select the desired DMX address and press the “ENTER”...
- Page 7 DATA Cable (DMX cable) requirements (for DMX operation): • The Tri LED-56 Can can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 8 Tri LED-56 Can DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
