WORKSHOP MANUAL
100T, 150T & 175T
HANDFED MIXERS
WINGET LIMITED
PO BOX 41
EDGEFOLD INDUSTRIAL ESTATE
PLODDER LANE
BOLTON
LANCS
BL4 OLR
Tel: ++ 44 (0) 1204 854650
Fax: ++ 44 (0) 1204 854663
service@winget.co.uk
parts@winget.co.uk
www.winget.co.uk
ISSUE 9 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winget 100T

Summary of Contents for Winget 100T

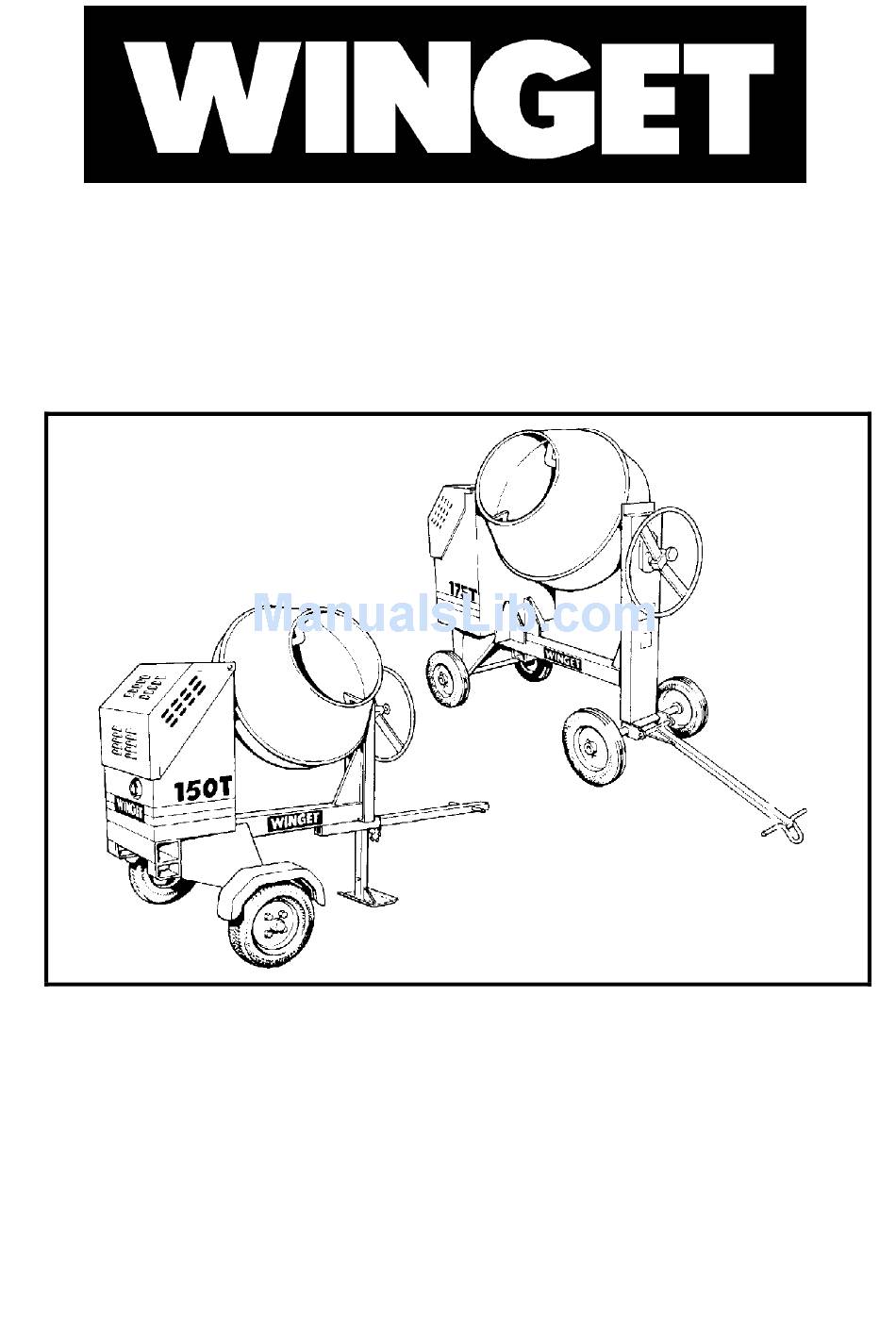

  • Page 1 WORKSHOP MANUAL 100T, 150T & 175T HANDFED MIXERS WINGET LIMITED PO BOX 41 EDGEFOLD INDUSTRIAL ESTATE PLODDER LANE BOLTON LANCS BL4 OLR Tel: ++ 44 (0) 1204 854650 Fax: ++ 44 (0) 1204 854663 service@winget.co.uk parts@winget.co.uk www.winget.co.uk ISSUE 9 2015...

  • Page 2: Table Of Contents

    WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 CONTENTS Section 1 Introduction Section 2 Repair and Service Procedures Section 3 General Arrangement Dimensions Section 4 Service Schedules Section 5 Lubrication Diagram Section 6...

  • Page 3: Introduction

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 1 INTRODUCTION...
  • Page 4 Issue 9 2015 Introduction It is assumed that personnel involved in either the assembly or repair of Winget Mixers will be familiar with the product, either through the operation of, or previous repair and maintenance work. It is not intended to be used by personnel who are neither familiar with the product nor mechanically inexperienced.

  • Page 5: Repair And Service Procedures

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 2 REPAIR & SERVICE PROCEDURES...
  • Page 6 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Repair & Maintenance Procedures The following procedures are based in part on the procedures issued to Distributors and the instructions should be used in conjunction with the appropriate Parts and Operators Manual or CD ROM.
  • Page 7 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Lifting Points A lifting point capable of supporting the weight of the mixer is incorporated into the trunnion. This lifting point is highlighted with an ISO ‘Hook’ symbol adjacent to the point.
  • Page 8 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 The suspension units are secured to the mainframe using six/eight bolts and nuts to remove, slacken the wheel nuts, jack up and support the mainframe on suitable supports.
  • Page 9 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 With taper roller bearings, tighten the nut then back off 1/4-1/2 a turn, check that the hub spins freely without to much end float, .004” is sufficient. Align the castle nut with the split pinhole in the stub axle and fit the retaining split pin.
  • Page 10 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Rear Axle-Four Wheel Tow Early 175T mixers have a separate rear axle bolted to the mainframe. Jack up and support the mainframe with the rear wheels clear of the ground. Remove the nuts, bolts and washers securing the axle to the mainframe and remove the axle assembly.
  • Page 11 100T 150T 175T DRUM DRIVE LAYOUT...
  • Page 12 Attach the special drum clip tool; available under part number 513204000 from your local Winget distributor, placing the pins of the tool into the holes in each end of the clip. (Refer to the illustration) Using a suitable spanner tighten the drum clip to the drum until it is secure.
  • Page 13 100T 150T 175T DRUM CLIP FIXING...
  • Page 14 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Drum Blade Replacement NOTE: the drum on Honda powered mixers rotates anti-clockwise. on all others the rotation is clockwise, therefore Honda powered mixers use different blades.
  • Page 15 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Drum Shaft, Bearings and Drum Centre Remove the drum assembly as described previously. Lay the drum assembly on its side and release the lockwashers. Support the centre housing and remove the setscrews, which pass through the bevel gear and prise off the bevel gear.
  • Page 16 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 The locking plunger is held in place in the tilting wheel by a second smaller spiral pin. Knock out this pin and remove the locking plunger and spring.
  • Page 17 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 nuts and flat washers holding the gear. Push the bolts back through the gear, slide the gear forward and lift clear of the mainframe. Lift off the lower guard.
  • Page 18 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Remove the circlip from the groove within the housing and using a soft faced hammer knock the shaft and bearings out of the housing. The bearings can now be removed from the shaft.
  • Page 19 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 or subtracting shims between the thick packer and housing ensure the housing is horizontal in the trunnion and square to the rear plate. Re-check the chain tension and fully tighten the bolts and setscrews securing the housing, knock over the lockwashers.
  • Page 20 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Reassembly Fit the circlip into the groove within the trunnion journal and lubricate the outer circumference/bearing face with copperslip. Insert the nylatron bearing strip into the trunnion bearing, fit the “O” rings into their respective grooves within the bearing housing and pack the “O”...
  • Page 21 100T 150T 175T 'O' RING LOCATION 49S41 49S42 PACK ‘O’ RING CAVITIES AND NYLATRON BEARING WITH GREASE ON ASSEMBLY...
  • Page 22 175T. Start the engine and run test checking for unusual noises. Engine, Lister-Petter LT1/LV1-32 (100T & 150T) Lister-Petter LT1/LV1-10 (175T) PTO Shaft Clockwise Rotation. “CE” marked machines are fitted with ‘anti-kick back starting handles’ in order to comply with European legislation.
  • Page 23 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 On LT1/LV1-10 moving the sprocket on the shaft before fully inserting the gib head key and tightening the grubscrew. Check and adjust the chain tension by adding or subtracting engine shims. The tension is correct when the chain deflects approximately 5mm, or ½...
  • Page 24 HANDFED MIXERS YANMAR L48 TYPE D THROTTLE ENGINE THROTTLE CONTROL USED ON LATER L48 ENGINES FITTED TO 100T, 150T, 175T & 200T HANDFED MIXERS NOTE: SOME GOVERNOR LEVERS MAY ONLY HAVE TWO HOLES NOT THREE AS ILLUSTRATED WITH THE REGULATOR HANDLE IN THE “STOP “ POSITION...
  • Page 25 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Battery Removal/Replacement The 12-volt battery is secured on the R/H side of the Yanmar engine within the engine housing for security. To remove, unscrew the ‘T’ handle from the stop control rod and remove the closing plate.
  • Page 26 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Lift the engine back into the mainframe and secure to the bed. Insert the bolts but do not fully tighten, refit the ‘V’ belt check the belt alignment, if the alignment is incorrect rectify by sliding the engine mounting plate and bracket back and forth on the engine bed, tighten the engine retaining bolts.
  • Page 27 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Refer to the wiring diagram for details of the connections between the motor, contactor and emergency stop button. Belt Drive Pulley/”V” Belt Removal/Replacement The drive pulley is mounted onto the motor extension shaft, and is secured with a feather key and grubscrew.
  • Page 28 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 To provide the reduction in speed necessary to drive the drum at a nominal 22 rpm the countershaft chain wheel and engine drive chain are replaced by a “V”...
  • Page 29 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Reverse the procedure to refit taking care when selecting any replacement bolts to avoid damaging the charge windings behind the flywheel. Lift the engine back into the mainframe and secure to the bed. Insert the bolts but do not fully tighten, refit the “V”...
  • Page 30 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 countershaft chain wheel and engine drive chain are replaced by a “V” belt and “V” drive pulleys. The engine is also mounted differently in that it is bolted to a height adjustable bedplate, similar to the electric 240/110V motor, Petter AC1-05 and Yanmar engines to allow for belt tensioning.
  • Page 31 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 two pulleys. When the tension is correct fully tighten all the bolts and recheck the tension. A belt running too tight will cause starting problems and the increased loadings will increase the rate of wear on the belt causing it to stretch prematurely and may also damage the reduction gear bearings.
  • Page 32 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Lashing Down & Lifting Points General Care should be taken when lifting or transporting the Mixer to ensure that lifting or retaining Straps are in good condition and the following procedures must be followed when lifting or lashing down to avoid causing unnecessary damage.
  • Page 33 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Lifting the Mixer (Forklift/Telehandler) Using the tilting handwheel locking plunger, lock the drum upright as illustrated overleaf. If the wheels are immersed in dried concrete or mortar, free them before attempting to lift the mixer.

  • Page 34: General Arrangement Dimensions

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 3 GENERAL ARRANGEMENT DIMENSIONS...
  • Page 35 DIMENSIONS & GENERAL ARRANGEMENT FOUR WHEEL 100T 150T 175T MODELS 1515 1650 1680 1560 1730 1780 (ALL DIMENSIONS NOMINAL) 1000 1100 1110 Weight 375kg 425kg 460kg 100T 150T 175T TWO WHEEL 1720 1910 2060 MODELS 2390 2490 2640 1630 1770...

  • Page 36: Service Schedules

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 4 SERVICE SCHEDULES...
  • Page 37 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Service Schedule Also refer to the Parts & Operators Handbook The engine will require additional services or adjustments in addition to those listed below. (See the appropriate Engine Operators Handbook or...
  • Page 38 WORKSHOP MANUAL 100T / 150T / 175T Winget Concrete Mixers From 1988 Onwards Issue 9 2015 Battery (if fitted) Check terminals, clean if necessary, top up Drum Drive Inspect and lubricate the chain and teeth of the drum bevel gear and pinion.

  • Page 39: Lubrication Diagram

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 5 LUBRICATION DIAGRAM...
  • Page 40 LUBRICATION POINTS Lub Point Type No of Points Drive Chains Wheels Wheel Hubs (Pneu) Grease Steering Joint Tilt Wheel...
  • Page 41 Linkages & Hinges Rubia B20W/30 Oil Pivots Rubia B20W/30 Oil Bearings Multis EP2 Grease (on assembly) Refer to your local oil supplier for a list of the locally available equivalent grades MIXER DRUM SEALANT Silicone Sealant Winget Part No : V2000772...

  • Page 42: Wiring Diagrams

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 6 WIRING DIAGRAMS...

  • Page 43: Technical Information

    TECHNICAL INFORMATION ELECTRICALLY DRIVEN MIXERS WIRING CIRCUIT Electrical connections must only be made by a suitably qualified electrician.
  • Page 44 TECHNICAL INFORMATION YANMAR L40/48 KEY START WIRING CIRCUIT In adition to the circuit shown below, the engine is fitted with its own loom. (see Yanmar service literature)
  • Page 46 TECHNICAL INFORMATION LISTER-PETTER AC1-05 KEY START WIRING CIRCUIT...

  • Page 47: Noise Levels

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 7 NOISE LEVELS...
  • Page 48 SECTION 7 NOISE LEVELS Noise Tests were carried out in accordance with EC Directive 79/113 on a 10 metre Hemisphere with the drum empty and rotating and in accordance with EC Directive 2000/14/EC again on a 10 metre hemisphere with the drum loaded and rotating.
  • Page 49 Yanmar L40 ARE-SE Standard Build (2000/14/EC) 10 metre 101Lwa Operators Ear 80Lpa Honda GX160K1 Standard Build (2000/14/EC) 10 metre 101Lwa Operators Ear 85Lpa 110/240 Volt Electric Motor (79/113 & 2000/14/EC) 10 metre 98Lwa Operators Ear 80Lpa...

  • Page 50: Special Tools

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 8 SPECIAL TOOLS...
  • Page 51 100T 150T 175T DRUM CLIP TOOL 513204000 DRUM CLIP TOOL...

  • Page 52: Parts Listings

    WORKSHOP MANUAL 100T, 150T & 175T SECTION 9 PARTS LISTING...
  • Page 53 Mixers 100T 150T 175T...
  • Page 54 DRUM B - 1A TRUNNION & TILT WHEEL B - 1B DRUM DRIVE B - 1C LISTER - PETTER LT1/LV1-32 (100T & 150T) C - 1 LISTER - PETTER LT1/LV1-10 (175T) C - 1A ELECTRIC DRIVE (100T) C - 2A...
  • Page 55 A - 1A 100T & 150T Mixers from February 1988 MCH-30...
  • Page 56 A - 1A FOUR WHEEL MAINFRAME & TOW BAR Item Part no Serial no Description 1 513340900 MAINFRAME, 100T (Not Honda eng.) 1 513363900 MAINFRAME, 100T (With Honda eng.) 1 513341000 MAINFRAME, 150T 2 513341100 / 05641 AXLE, front,100T 2A 513358100...
  • Page 57 A - 1AA 100T & 150T Mixers from February 1988 MCH-30...
  • Page 58 A - 1AA MESH GUARDS Item Part no Serial no Description 1 513364300 GUARD, mesh, L.H. 2 513364400 GUARD, mesh, R.H. 3 513364500 GUARD, mesh, rear 5 11S02B SCREW, set 6 267S04 WASHER, flat 7 61S02 NUT, self locking V601136, Nov '03...
  • Page 59 A - 1B 100T & 150T Mixers from February 1988 MCH-33...
  • Page 60 80A 513362400 # GUARD, ( 150T with Yanmar eng. only) 81 11S02A SCREW, set 82 17S03 WASHER, spring # 100T (with Yanmar & Honda engines only) 06737 / # 150T (with Yanmar engines only) 02719 / 85 513362600 # PLATE...
  • Page 61 175T Mixers A - 2A from February 1988...

  • Page 62: Screw, Set

    FOUR WHEEL MAINFRAME & TOW BAR A - 2A Item Part no Serial no Description 1 513275200 / 01725 AXLE, rear 2 513203400 / 01725 AXLE, front 2A 513358100 01726 / AXLE, front 3 513274900 / 01725 BRACKET, front axle swivel 4 513154500 / 01725 SWIVEL, front axle...
  • Page 63 A - 2B 175T Mixers from February 1988 MCH-32...

  • Page 64: Screw, Set

    A - 2B COVERS & GUARDS Item Part no Serial no Description 5 513287000 TOP PLATE, engine housing 9 513286800 LID, engine housing 10 513248700 GUARD, chain 12 V2003109 STOP, rubber (round screw-in bobbin) 12 513205300 STOP, rubber (two screw block) 13 513266900 GUARD, sprocket, diesel engine 13A 513205600...
  • Page 65 A - 3 100T, 150T & 175T Mixers from February 1988...

  • Page 66: 28S02E

    A - 3 COVERS & GUARDS (Lister-Petter AC1-05 Electric Start) Item Part no Serial no Description 1 513286800 LID, engine housing 2 11S04C SCREW, set 3 267S06 WASHER, flat 4 555170000 SPACER 6 513205300 STOP, rubber 7 11S02A SCREW 8 267S04 WASHER, flat 9 61S02 NUT, Binx...
  • Page 67 A - 3 100T, 150T & 175T Mixers from February 1988...
  • Page 68 A - 3 COVERS & GUARDS (Lister-Petter AC1-05 Electric Start) Item Part no Serial no Description Continued>>> 60 513358500 BRACKET, battery (welded to chassis) 61 V2004120 62 V2004055 CLAMP 63 267S04 WASHER, flat 64 17S03 WASHER, spring 65 7S04 66 513358600 COVER, battery 67 11S04B SCREW, set...
  • Page 69 A - 4 100T & 150T Mixers from February 1988...
  • Page 70 A - 4 TWO WHEEL MAINFRAME & TOW BAR Item Part no Description Date - 513342200 MAINFRAME, assembly, 100T MAINFRAME, assembly, 150T - 513342300 1 513344200 MAINFRAME, 100T MAINFRAME, 150T 1 513344300 2 513344000 EYE, towing 2A 513364700 Nov-03 /...
  • Page 71 A - 4 100T & 150T Mixers from February 1988...
  • Page 72 804120 / REFLECTOR, red, non triangular, rear of mudguard, not EU from serial nos below Following parts are not illustrated From serial nos 100T-09456, 150T-05103 22 386103000 REFLECTOR, white, non triangular front of mudguard 22A 513369300S BRACKET, reflector, white, straight...
  • Page 73 A - 5 175T Mixers from February 1988 MCH-6...
  • Page 74 A - 5 TWO WHEEL MAINFRAME & TOW BAR Item Part no Serial no Description ……. 513345100 02184 / MAINFRAME, assembly MAINFRAME, 175T FT 1 513360200 2 513344000 EYE, towing 2A 513364700 Nov-03 / COUPLING, towing 3 8S04E BOLT 3A 8S04L Nov-03 / BOLT 4 267S06...
  • Page 75 A - 5 175T Mixers from February 1988...
  • Page 76 A - 5 TWO WHEEL MAINFRAME & TOW BAR Item Part no Serial no Description 13H 10S05 WASHER 13J 44S03C PIN, split 14 475130700 WHEEL, assembly, 10" 14A V602717 RIM, wheel, 10" 14B 475123001 TUBE, inner 14C 475123002 TYRE, 10" 15 513361000 MUDGUARD, plastic 16 513361100...
  • Page 77 B - 1A 100T, 150T & 175T Mixers from February 1988 MD -18...
  • Page 78 Serial no Description 10 513152901 BASE, drum, 100T 10 513161001 BASE, drum, 150T & 175T 11 513151100 BLADE, 100T (Not Honda engines) 11 513363100 BLADE, 100T (With Honda engines) 11 513157500 BLADE, 150T & 175 12 513149600 DRUM CENTRE 13 88S07D...
  • Page 79 B - 1B 100T, 150T & 175T Mixers from February 1988 MD - 19...
  • Page 80 B - 1B TRUNNION & TILT WHEEL Item Part no Serial no Description 1 54S01A PIN, spirol SCREW, grub, 100T 1A 57S06F1 05999 / SCREW, grub, 150T 1A 57S06F1 02026 / SCREW, grub, 175T 1A 57S06F1 02021 / 2 513194400...
  • Page 81 B - 1C 100T, 150T & 175T Mixers from February 1988 MD - 20...
  • Page 82 LINK, half 43 513150300 SPROCKET, bevel pinion shaft 44 513298900 PLATE, adjusting 45 513152500 SHAFT, bevel pinion, 100T 45 513158700 SHAFT, bevel pinion, 150T & 175T 46 513149800 HOUSING, pinion shaft, 100T 46 513160700 HOUSING, pinion shaft, 150T & 175T...
  • Page 83 B - 1C 100T, 150T & 175T Mixers from February 1988...
  • Page 84 B - 1C DRUM DRIVE Item Part no Serial no Description 59 300204140 KEY, gib head 60 513211900 WASHER, tab 67 513211700 PACKER 68 513290700 PULLEY, ‘V’, for electric motors, Yanmar and Honda engines 71 104S03 72 41S05 WASHER, spring 79 66S03C SCREW 80 66S03D...
  • Page 85 C - 1 100T & 150T Mixer from February 1988...
  • Page 86 NOTE : ENGINE CHANGE Lister-Petter LT1-32 to LV1-32 From mixer serial numbers: 100T 07978 and 150T 03813. Early in 2005 the Lister-Petter LT1-32 was superseded by the LV1-32. The engines as complete assemblies are interchangeable as are consumable items such as filters etc.
  • Page 87 C - 1 100T & 150T Mixer from February 1988 ELP-...
  • Page 88 11E EL60142520 FILTER, air 11F EL20113118 FILTER, fuel 12 11S05T / 1995/96 SCREW, set, 100T 13 61S05 / 1995/96 NUT, binx “Binx”, self-locking, 100T 15 7S05 / 1995/96 NUT, 100T 17 513341900 PIPE, exhaust, 100T 17 513342500 PIPE, exhaust, 150T...
  • Page 89 C - 1A 175T Mixer from February 1988...
  • Page 90 C - 1A LISTER-PETTER LT1/LV1-10 drive assembly Item Part no Serial no Description 1 513248300 SPROCKET, engine 1A 57S05D2 02679 / SCREW, grub 2 513248400 SHIMS pack 1 3 513266800 BRACKET, exhaust 4 513278200 (year) / 1995/96 PIPE, 125mm long, 1/4“ BSP 4 513359800 1995/96 / 2003 PIPE, 125mm long, 1/2“...
  • Page 91 C - 1A 175T Mixer from February 1988...
  • Page 92 C - 1A LISTER-PETTER LT1/LV1-10 drive assembly Item Part no Serial no Description 13 61S05 NUT, “Binx”, self-locking 14 267S07 WASHER, flat 18 8S05E BOLT 19 105S05 WASHER, taper 20 8S05J BOLT 21 513267400 CHANNEL, engine base, 22 513267500 PIPE, exhaust 25 66S05A SCREW, set 26 192S05...
  • Page 93 C - 2A 100T Mixers from February 1988...
  • Page 94 C - 2A ELECTRIC (240/110 volt) drive assembly Item Part no Serial no Description 1 513342100 PLATE, motor mounting 2 8S05H BOLT 3 61S05 NUT, “Binx” 4 267S07 WASHER, flat 5 513290600 PULLEY, ‘V’ 6 57S04D2 SCREW, grub 11 304710840 KEY, parallel 12 397400300 BELT, ‘V’...
  • Page 95 C - 2B 150T Mixers from February 1988 MEL-...
  • Page 96 C - 2B ELECTRIC (240/110 volt) drive assembly Item Part no Serial no Description 1 513342100 / Feb-90 PLATE, motor mounting 1 513350000 Feb-90 / PLATE, motor mounting 2 8S05H BOLT 3 61S05 NUT, self-locking “Binx” 4 267S07 WASHER, flat 5 513290600 PULLEY, ‘V’...
  • Page 97 C - 2C 175T Mixers from February 1988 MEL-...
  • Page 98 C - 2C ELECTRIC (240/110 volt) drive assembly Item Part no Serial no Description 1 513290400 PLATE, motor mounting 2 8S05H BOLT 3 61S05 NUT, self-locking “Binx” 4 267S07 WASHER, flat 5 513290600 PULLEY, ‘V’ 6 57S04D2 SCREW, socket head 11 304710840 KEY, parallel 12 397400300...
  • Page 99 C - 3 100T, 150T & 175T Mixers from February 1988...
  • Page 100 C - 3 START SWITCHES, electric drive Item Part no Date Description ………...… ELECTRIC MOTOR (see Index page) STARTER, Danfoss 240v, 100T, 150T & 175T 5 208398600 …… 208398500 CASE, starter …… 192928000 CONTACTOR …… 207818001 RELAY, overload 5 208398800 STARTER, Danfoss 110v, 100T ……...
  • Page 101 C - 4 100T, 150T & 175T Mixers from February 1988 ELP-37...
  • Page 102 C - 4 LISTER-PETTER AC1 (electric start) Item Part no Serial no Description 1 V2004253 ENGINE, Lister/Petter AC1 2 11S04F SCREW, set 3 267S06 WASHER, flat 4 61S04 NUT, self- locking “Binx” 5 513267500 PIPE, exhaust 6 513359300 BRACKET, exhaust 7 11S03C SCREW, set 8 267S05...
  • Page 103 C - 5 100T, 150T & 175T Mixers from October 2000 ELP-37...
  • Page 104 06737 / 100T 02719 / 150T & 175T 1 V2005210 ENGINE, Yanmar L40A/L48A/L48N From Serial nos 09571-100T & 05135-150T/175T L48A replaced by L48N, Engines are interchangeable, check model before ordering filters etc 2 513361600 PIPE, exhaust 3 153S02 CLAMP, exhaust...
  • Page 105 C - 5 100T, 150T & 175T Mixers from October 2000...
  • Page 106 49 513358800 SUPPORT, bracket 51 325S04 ADAPTOR, male/male 52 298S05 SEAL, bonded 53 31S02LL HOSE, hydraulic 54 127S03 PLUG, blanking, engine oil drain $ From mixer serial numbers 07373 / 100T 03347 / 150T 03387 / 175T V601136, April 13...
  • Page 107 C - 6 100T, 150T & 175T Mixers from October 2000 ELP-37...
  • Page 108 C - 6 YANMAR L40/48 ARE-SE/L48N5SJ1 (electric start) Battery, start switch & loom Item Part no Serial no Description 06737 / 100T 150T & 175T 02719 / 26 V2005211 CABLE, negative 35 267S07 WASHER, flat 36 17S06 WASHER, spring 37 7S05...
  • Page 109 C - 7 100T, 150T & 175T Mixers from November 2003 ELP-37...
  • Page 110 20 513363000 PULLEY 21 V2004220 WASHER, 'Special' 22 17S04 WASHER, spring 23 11S03D SCREW, set 24 305110550 KEY, parallel BELT, 'V', (100T) 25 397400400 26 513363400 SPACER 30 8S03D BOLT 31 267S05 WASHER, flat 32 61S03 NUT, self- locking “Binx”...
  • Page 111 D - 1 100T, 150T & 175T Mixers...
  • Page 112 — 101S05B RIVET. pop 3 504600900 DECAL, “Engine housing lid closed” 4 504694600 DECAL, “Safety Warning” 8 V2003039 DECAL, “WINGET” logo, 9 V2003038 DECAL, stripe, 2 colour 10 —— DECAL, diesel fuel (OBSOLETE: use item 10A) 10A V2003101 DECAL, “Diesel fuel”...
  • Page 113 D - 2 100T 150T & 175T Mixers...
  • Page 114 D - 2 DECALS & PLATES Item Part no Serial no Description 1 V2003105 DECAL, “100T”, Black DECAL, “100T” White (Not illustrated) 1 V602436 2 V2003106 DECAL, “150T” Black 2 V602437 DECAL, “150T” White (Not illustrated) 3 V2003107 DECAL, “175T” Black 3 V602438 DECAL, “175T”...
  • Page 115 D - 2A 100T 150T & 175T Mixers...
  • Page 116 D - 2A DECALS & PLATES Item Part no Serial no Description 1 V2005276 DECAL, " Engine cold starting" 2 V2005311 DECAL, "LWA 101" 3 V2004131 DECAL, "LPA 85" 4 V2005214 DECAL, "The recoil starter" 5 FSE357 DECAL, "ENGINE STOP" 6 V2005630 DECAL, "Locking Plunger"...
  • Page 117 D - 3 100T 150T & 175T Mixers...
  • Page 118 D - 3 SPECIAL TOOLS Item Part no Serial no Description 1 513204000 CLAMP, drum clip V601136, issue 02, 0296...
  • Page 119 NUMERICAL INDEX Built from February 1988 Part no. Page Part no. Page Part no. Page Part no. Page 22096210 B - 1A 208398800 C - 3 397400300 C - 5 513152700 B - 1B 30788101 C - 3 208398900 C - 3 411411275 C - 2A 513152901 B - 1A 30788102 C - 3...
  • Page 120 Part no. Page Part no. Page Part no. Page Part no. Page 513212300 B - 1B 513340800 A - 1B 513358700 C - 4 105S05 C - 2C 513248300 C - 1A 513340800 A - 2B 513358800 C - 4 107S14 B - 1B 513248400 C - 1 513340800 A - 3...
  • Page 121 Part no. Page Part no. Page Part no. Page Part no. Page 16S06C C - 3 267S06 A - 5 57S04D2 B - 1C 6S02D A - 1B 17S02 C - 3 267S06 C - 4 57S04D2 C - 2A 6S02D A - 3 17S03 A - 1A 267S06 C - 5...
  • Page 122 Part no. Page Part no. Page 902S02 A - 4 V2005208 D - 1 902S02 A - 5 V2005209 C - 6 EL375231 C - 1 V2005210 C - 5 EL375231 C - 1A V2005211 C - 6 EL60142480 C - 1 V2005213 C - 5 EL60150016 C - 1 V2005218 D - 2...
  • Page 123 CALIFORNIA CALIFORNIA CALIFORNIA CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm...

This manual is also suitable for:

150t175t
