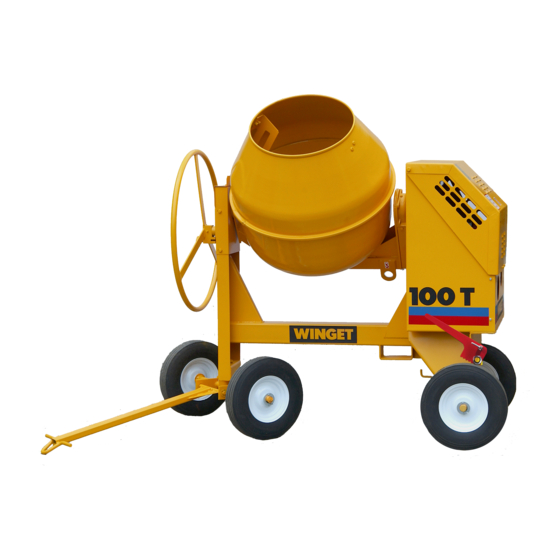

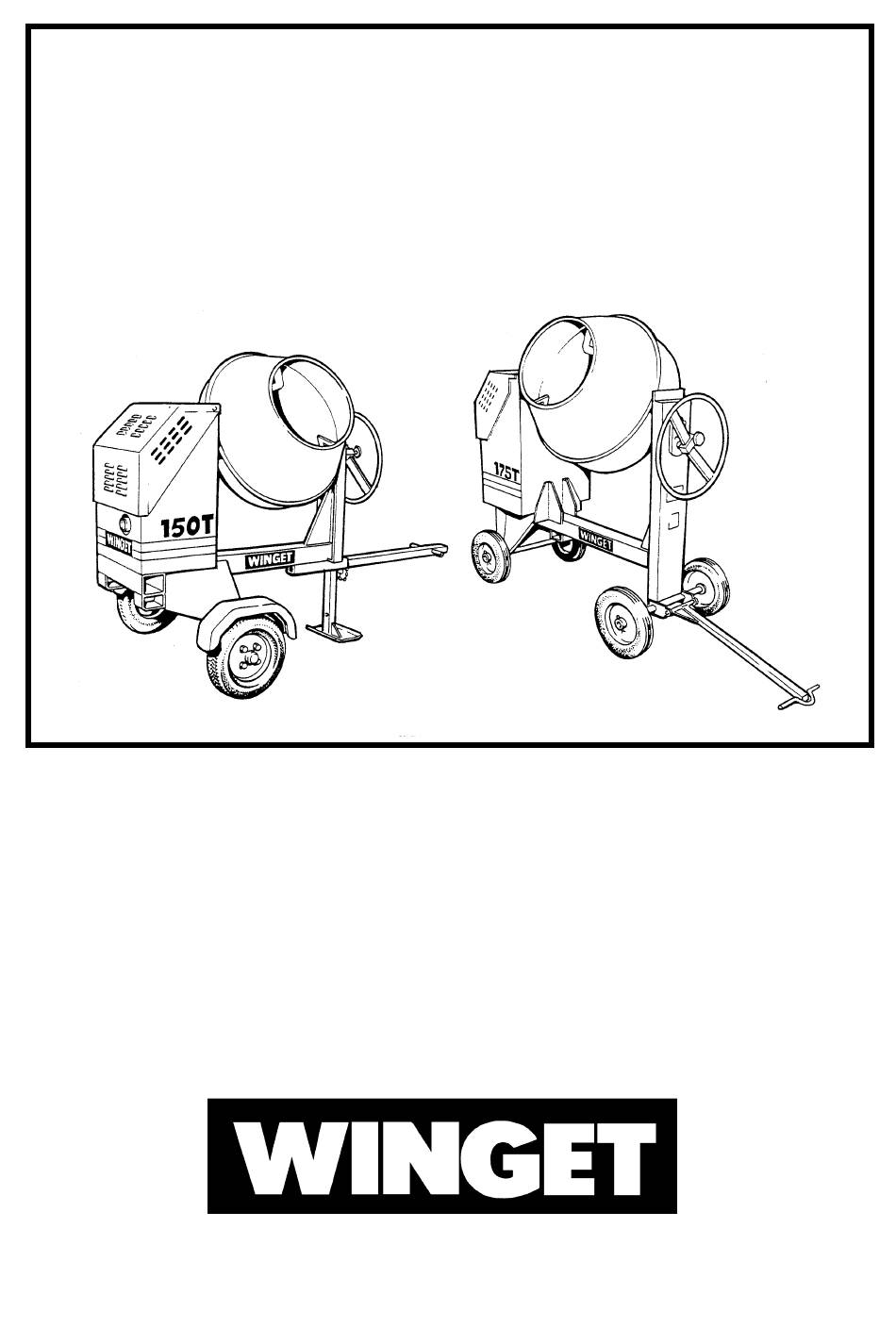

MIXERS
100T 150T 175T
OPERATORS HANDBOOK
&
PARTS
Supplement to Manual V603781 November 2021
110V Electric Drive From Serial Number
100T-12194
150T-06045 175T-06046
WINGET LIMITED, P.O. Box 41, Edgefold Industrial Estate, Plodder Lane, Bolton, BL4 0LR, England
Tel: +44 (0) 1204 854650
www.winget.co.uk
parts@winget.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winget 100T

Summary of Contents for Winget 100T

  • Page 1 OPERATORS HANDBOOK & PARTS Supplement to Manual V603781 November 2021 110V Electric Drive From Serial Number 100T-12194 150T-06045 175T-06046 WINGET LIMITED, P.O. Box 41, Edgefold Industrial Estate, Plodder Lane, Bolton, BL4 0LR, England Tel: +44 (0) 1204 854650 www.winget.co.uk parts@winget.co.uk...

  • Page 3: Table Of Contents

    INTRODUCTION CONTENTS Section Page Section Page TECHNICAL INFORMATION Lubricants INTRODUCTION Mixer drum sealant Introduction Tyre pressures Warranty Noise levels Safe Working Drum speed Decals Motor specifications Lashing down & lifting points 110V Mixer weights & dimensions 110V Mixer wiring diagram OPERATION Installation Electric motors...

  • Page 4: Introduction

    The contents of this Handbook, although correct at the time of publication may be subject to alteration by the Manufactures without notice. Winget Limited operate a policy of continuous product development. Therefore, some illustrations or text within this publication may differ from your machine.

  • Page 5: Warranty

    No claim will be considered if other than genuine Winget Limited parts, which must be obtained from Winget Limited via an authorised Distributor, are used to effect a repair, or if lubricants other than those recommended by Winget Limited are used.
  • Page 6 SAFE WORKING Safety is the responsibility of the persons working with this machine. Think “safety” at all times. Read and remember the contents of this Handbook MACHINE MODIFICATION Any modifications to the machine will affect its working parameters and safety factors.
  • Page 7 SAFE WORKING SERVING & MAINTENANCE Never allow unqualified personnel to attempt to remove or replace any part of the machine, or anyone to remove large or heavy components without adequate lifting equipment. Before maintenance work is begun, ensure that the electric motor is switched off, and isolated from the mains.
  • Page 8 SAFE WORKING DECALS Ensure that all warning decals fitted to the mixer are legible. If any should become detached, they must be replaced immediately. Descriptions of the pictorial decals are as follows: Read Operators Handbook, or Operators These surfaces may be hot. Handbook storage place.

  • Page 9: Safe Working

    SAFE WORKING Lashing down & Lifting points General Care should be taken when lifting or transporting the mixer to ensure that lifting or retaining straps are in good condition and the following procedures must be followed when lifting or lashing down to avoid causing unnecessary damage.
  • Page 10 SAFE WORKING Lashing Down It is recommended that unless the mixer is pulled up against a headboard or some form of substantial wheel chocks that two ratchet type webbing straps are used to retain the mixer, one pulling to the rear and one pulling to the front.

  • Page 11: Operation

    OPERATION INSTALLING THE MIXER ON SITE Electric motors To start and stop: Welded to the mixer are lifting points. Gain access to start button by raising the These are provided to assist with loading motor housing cover (50). unloading mixer Start the motor by pressing the green transportation across site.

  • Page 12: Servicing

    SERVICING SERVICE SCHEDULE Every day Links, shafts & hinges: Lubricate. Every week (or 50 hours running) The above and following items Nuts, bolts and keys. Tighten (Each week for first month): Drive belts: Check V belt tension . Drum Bevel Gears: Lubricate with open gear fluid.

  • Page 13: Lubrication

    SERVICING SERVICING PROCEDURE Drum drives Lubrication Every week (or 50 hours running) It is essential that oils and Drive chains: grease used for servicing do Lubricate drive chains (A) with a little not become contaminated engine oil through the oiler on top of the with sand or cement dust.

  • Page 14: Technical Information

    Multis EP 2 Shafts, linkages and hinges Rubia B 20W/30 Noise levels of mixers. Measured in accordance with EC Directive 2000/14/EC & UKSI 2001/1701 Models 100T, 150T and 175T LWA 90 LPA 71 @ 1m drum empty Drum speed Handbrake 20-22 rpm Tested to hold on a 5°...
  • Page 15 TECHNICAL INFORMATION DIMENSIONS Weight (approx) 110V 100T 150T 175T 100T 150T 175T A 1515 1650 1680 325kg 385kg 405kg B 1560 1730 1780 F 1000 1100 1110 100T 150T 175T Weight (approx) 110V 100T 150T 175T A 1805 1890 2060...
  • Page 16 TECHNICAL INFORMATION ELECTRICALLY DRIVEN MIXERS WIRING CIRCUIT-SCHNEIDER CONTACTOR Electrical connections must only be made by a suitably qualified/competent person or electrician.
  • Page 17 PARTS 110V Mixers 100T 150T 175T...
  • Page 19 Contents COVERS & GUARDS (100T & 150T) A - 1B COVERS & GUARDS (175T) A - 2B ELECTRIC 110V DRIVE ASSEMBLY START SWITCHES 110V ELECTRIC DRIVE DECALS & PLATES D - 1 SPECIAL TOOLS D - 3...
  • Page 21 A - 1B 100T & 150T Mixers MCH-33...
  • Page 22 52 267S06 WASHER, flat 53 7S04 60 555170000 SPACER 70 513151800 BRACKET, trunnion 71 104S03 72 41S05 WASHER, spring 75 66S03CC SCREW, set 80 513371900 GUARD, 100T & 150T 81 11S02A SCREW, set 82 17S03 WASHER, spring V603781 Supplement Nov 21...
  • Page 23 A - 2B 175T Mixers MCH-32...
  • Page 24 A - 2B COVERS & GUARDS Item Part no Serial no Description 5 513287000 TOP PLATE, engine housing 9 513286800 LID, engine housing 10 513372300 GUARD, belt, 110V 175T 12 513205300 STOP, rubber 16 513372200 PLATE, closing, 110V 17 513372100 BOX, document, rivet on insde of item 16 1 17B 101S05B RIVET, pop...
  • Page 25 C - 2 100T, 150T & 175T Mixers...
  • Page 26 Serial no Description 5 513290600 PULLEY, ‘V’ belt 6 57S4D2 SCREW, grub KEY, parallel, supplied with motor 12 397400800 BELT "V" 100T 12 397400900 BELT "V" 150T/175T 18 202493800 MOTOR, 110V 1.5Kw 2.0Hp 20 11S03D SCREW, set 21 267S05 WASHER, flat...
  • Page 27 C - 3 100T, 150T & 175T Mixers...
  • Page 28 C - 3 START SWITCHES, electric drive Item Part no Description Date 1 202493800 MOTOR, 110V 1.5Kw 2.0Hp 2 208398900 CONTACTOR, Schneider 110v …… 208398500 CASE, starter …… 192928000 CONTACTOR …… 207818004 RELAY, overload, 9-13 amp 3 11S01A SCREW, set 4 7S01 5 17S02 WASHER, spring...
  • Page 29 D - 1 100T, 150T & 175T Mixers...
  • Page 30 PLATE, serial — 101S05B RIVET, pop 3 504600900 DECAL, “Engine housing lid closed” 4 504694600 DECAL, “Safety Warning” 8 V2003039 DECAL, “WINGET” logo, 9 V2003038 DECAL, stripe, 2 colour 10 V2003101 DECAL, “Diesel fuel” 13 V2003665 DECAL, “Sling point” 14 V2003598 DECAL, “Britsh made”...
  • Page 31 D - 2 100T 150T & 175T Mixers...
  • Page 32 DECAL, “Remove start handle” 10 V2004289 DECAL, “Keep hands clear of drum” 11 V2004302 DECAL, Engine stop" 12 V601906 KIT, decals, 100T, 150T, 175T Each kit contains all of the decals required for one machine. 13 V2005218 DECAL "Key switch" 14 V2004796 DECAL "Do not disconnect battery"...
  • Page 33 D - 2A 100T 150T & 175T Mixers...
  • Page 34 D - 2A DECALS & PLATES Item Part no Serial no Description 2 V2006408 DECAL, "LWA 90" 4 V2005214 DECAL, "The recoil starter" 5 FSE357 DECAL, "Engine stop 6 V2005630 DECAL, "Locking Plunger" 7 V2004744 DECAL, " Eye Protection" 8 513371100 DECAL, "Emergency stop"...
  • Page 35 D - 3 100T 150T & 175T Mixers...
  • Page 36 D - 3 SPECIAL TOOLS Item Part no Serial no Description 1 513204000 CLAMP, drum clip V603781 Supplement Nov 21...
