Winget 100Te Operators Handbook & Parts

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

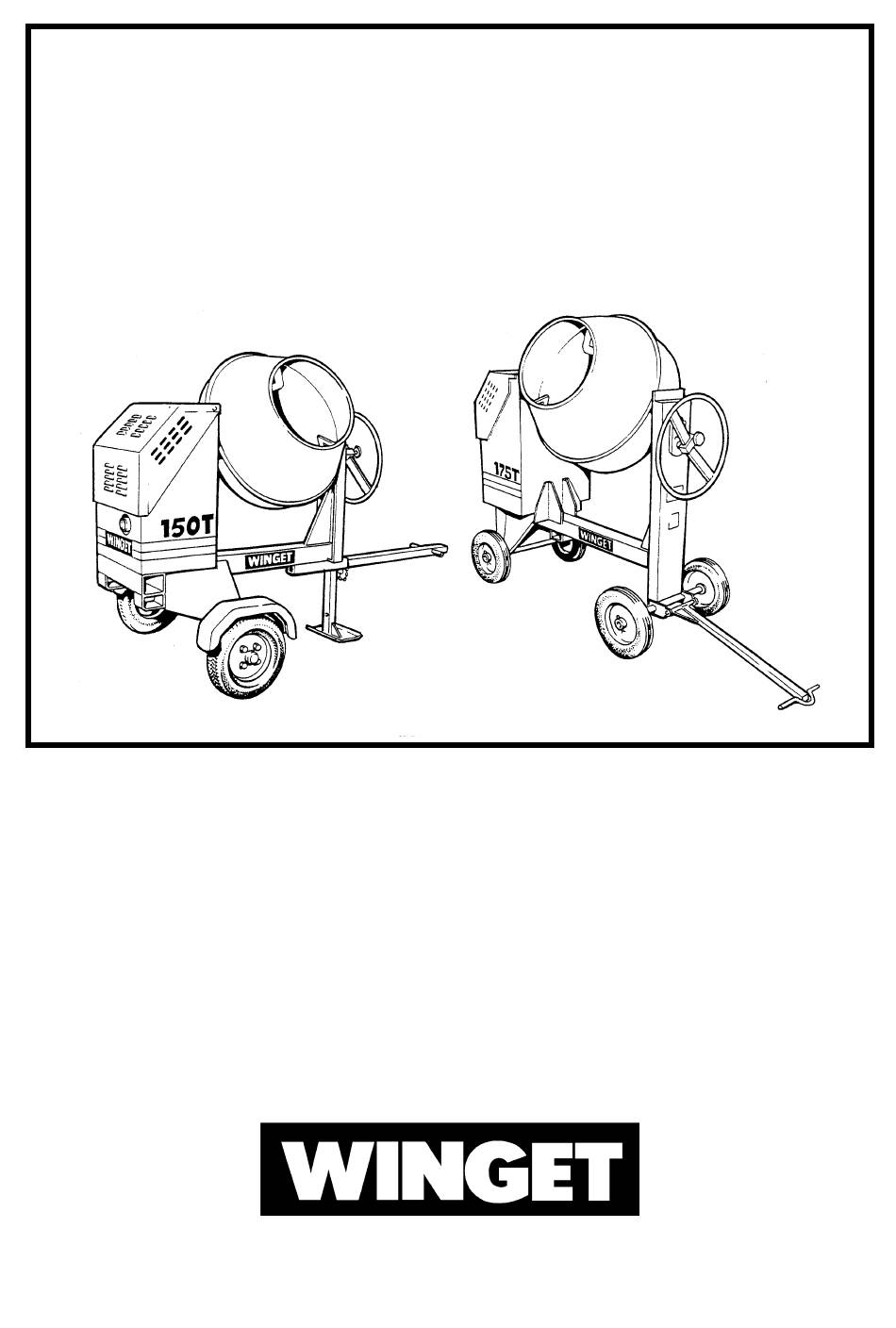

MIXERS
100Te 150Te 175Te
OPERATORS HANDBOOK
&
PARTS
110V
Electric Drive
From Serial Numbers
100T-12194 150T-06 183 175T-06183
WINGET LIMITED, Edgefold Industrial Estate, Plodder Lane, Bolton, BL4 0LR, UK
Tel: +44 (0) 1204 854650
www.winget.co.uk
service@winget.co.uk
parts@winget.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 100Te and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winget 100Te

Summary of Contents for Winget 100Te

  • Page 1 MIXERS 100Te 150Te 175Te OPERATORS HANDBOOK & PARTS 110V Electric Drive From Serial Numbers 100T-12194 150T-06 183 175T-06183 WINGET LIMITED, Edgefold Industrial Estate, Plodder Lane, Bolton, BL4 0LR, UK Tel: +44 (0) 1204 854650 www.winget.co.uk service@winget.co.uk parts@winget.co.uk...

  • Page 2: Table Of Contents

    INTRODUCTION CONTENTS Section Page Section Page TECHNICAL INFORMATION Lubricants INTRODUCTION Mixer drum sealant Introduction Tyre pressures Warranty Noise levels Safe Working Drum speed Decals Motor specifications Lashing down & lifting points 110V Mixer weights & dimensions 110V Mixer wiring diagram OPERATION Installation Electric motors...

  • Page 3: Introduction

    The contents of this Handbook, although correct at the time of publication may be subject to alteration by the Manufactures without notice. Winget Limited operate a policy of continuous product development. Therefore, some illustrations or text within this publication may differ from your machine.

  • Page 4: Warranty

    No claim will be considered if other than genuine Winget Limited parts, which must be obtained from Winget Limited via an authorised Distributor, are used to effect a repair, or if lubricants other than those recommended by Winget Limited are used.

  • Page 5: Safe Working

    SAFE WORKING Safety is the responsibility of the persons working with this machine. Think “safety” at all times. Read and remember the contents of this Handbook MACHINE MODIFICATION Any modifications to the machine will affect its working parameters and safety factors.
  • Page 6 SAFE WORKING SERVING & MAINTENANCE Never allow unqualified personnel to attempt to remove or replace any part of the machine, or anyone to remove large or heavy components without adequate lifting equipment. Before maintenance work is begun, ensure that the electric motor is switched off, and isolated from the mains.
  • Page 7 SAFE WORKING DECALS Ensure that all warning decals fitted to the mixer are legible. If any should become detached, they must be replaced immediately. Descriptions of the pictorial decals are as follows: Read Operators Handbook, or Operators These surfaces may be hot. Handbook storage place.

  • Page 8: Safe Working

    SAFE WORKING Lashing down & Lifting points General Care should be taken when lifting or transporting the mixer to ensure that lifting or retaining straps are in good condition and the following procedures must be followed when lifting or lashing down to avoid causing unnecessary damage.
  • Page 9 SAFE WORKING Lashing Down It is recommended that unless the mixer is pulled up against a headboard or some form of substantial wheel chocks that two ratchet type webbing straps are used to retain the mixer, one pulling to the rear and one pulling to the front.

  • Page 10: Operation

    OPERATION INSTALLING THE MIXER ON SITE Electric motors To start and stop: Welded to the mixer are lifting points. Gain access to start button by raising the These are provided to assist with loading motor housing cover (50). unloading mixer Start the motor by pressing the green transportation across site.

  • Page 11: Servicing

    SERVICING SERVICE SCHEDULE Every day Links, shafts & hinges: Lubricate. Every week (or 50 hours running) The above and following items Nuts, bolts and keys. Tighten (Each week for first month): Drive belts: Check V belt tension . Drum Bevel Gears: Lubricate with open gear fluid.

  • Page 12: Servicing Procedure

    SERVICING SERVICING PROCEDURE Drum drives Lubrication Every week (or 50 hours running) It is essential that oils and Drive chains: grease used for servicing do Lubricate drive chains (A) with a little not become contaminated engine oil through the oiler on top of the with sand or cement dust.

  • Page 13: Technical Information

    TECHNICAL INFORMATION Lubricants Mixers are factory filled with the following TOTAL oils or equivalents Electric motor bearing (where fitted) Multis EP 2 Drive chain Rubia B 20W/30 Bevel gear & pinion Open gear fluid Drum shaft Anti-seize compound Grease nipples (where fitted) Multis EP 2 Shafts, linkages and hinges Rubia B 20W/30...
  • Page 14 TECHNICAL INFORMATION DIMENSIONS Weight (approx) 110V 100T 150T 175T 100T 150T 175T A 1515 1650 1680 325kg 385kg 405kg B 1560 1730 1780 F 1000 1100 1110 100T 150T 175T Weight (approx) 110V 100T 150T 175T A 1805 1890 2060 445kg 350kg 405kg...
  • Page 15 TECHNICAL INFORMATION ELECTRICALLY DRIVEN MIXERS WIRING CIRCUIT-SCHNEIDER CONTACTOR Electrical connections must only be made by a suitably qualified/competent person or electrician.
  • Page 16 PARTS 110V Mixers 100Te 150Te 175Te...
  • Page 17 Contents FOUR WHEEL MAINFRAME (100Te & 150Te) A - 1A FOUR WHEEL MAINFRAME (175Te) A - 2A A - 1B COVERS & GUARDS (100Te & 150Te) A - 2B COVERS & GUARDS (175Te) B - 1A DRUM TRUNNION & TILT WHEEL...
  • Page 18 A - 1A 100T & 150T Mixers MCH-30...
  • Page 19 FOUR WHEEL MAINFRAME & TOW BAR (100Te & 150Te) A - 1A Item Part no Serial no Description 1 513340900 MAINFRAME, 100T 1A 513371700 11752/ PLATE, vent 1B 11S02A SCREW, set 1C 17S03 WASHER, spring 1 513341000 MAINFRAME, 150T 1A 513371700...
  • Page 20 FOUR WHEEL MAINFRAME & TOW BAR (100Te & 150Te) A - 1A Item Part no Serial no Description 34F 267S05 12475/ 100T WASHER, flat, metric 06401/ 150T 34G 326S05 12475/ 100T NUT, rivet knurled, metric 06401/ 150T 11195/ 100T 05637/...
  • Page 21 A - 2A 175T Mixers...
  • Page 22 FOUR WHEEL MAINFRAME & TOW BAR (175Te) A - 2A Item Part no Serial no Description 2A 513358100 AXLE, front 8 475115000 WHEEL, cushion tyre, 405mm (16") dia 18 353830650 PIN, spirol PIN, split 20 44S05G WASHER, flat 21 10S09 MAINFRAME 24 513269400 PLATE, vent...
  • Page 23 A - 2A FOUR WHEEL MAINFRAME & TOW BAR Item Part no Serial no Description 2A 513358100 AXLE, front 8 475115000 WHEEL, cushion tyre, 405mm (16") dia 18 353830650 PIN, spirol PIN, split 20 44S05G WASHER, flat 21 10S09 MAINFRAME 24 513269400 PLATE, vent 24A 513371700...
  • Page 24 A - 1B 100T & 150T Mixers MCH-33...
  • Page 25 COVERS & GUARDS 100Te / 150Te 110V A - 1B Item Part no Serial no Description 9 513341300 LID, engine housing 10 513371800 GUARD, belt,100T 10 513372400 GUARD, belt, 150T 12 513205300 STOP, rubber 16 513372000 PLATE, closing, 100T 16 513272500...
  • Page 26 A - 2B 175T Mixers MCH-32...
  • Page 27 COVERS & GUARDS 175Te 110v A - 2B Item Part no Serial no Description 5 513287000 TOP PLATE, engine housing 9 513286800 LID, engine housing 10 513372300 GUARD, belt, 110V 175T 12 513205300 STOP, rubber 16 513372200 PLATE, closing, 110V 17 513372100 BOX, document, rivet on insde of item 16 1 17B 101S05B...
  • Page 28 B - 1A 100T, 150T & 175T Mixers MD -18 Also available : Complete drums and drum centre Assemblies. Please click here for further information...
  • Page 29 B - 1A DRUM Item Part no Serial no Description 10 513152901 BASE, drum, 100T BASE, drum, 150T & 175T 10 513161001 BLADE, 100T 11 513151100 BLADE, 150T & 175 11 513157500 12 513149600 DRUM CENTRE 13 88S07D BEARING 14 513152902 CONE, drum, 100T CONE, drum, 150T 14 513161002...
  • Page 30 B - 1A DRUM Item Part no Serial no Description 70 28S05G SCREW 71 104S03 NUT, imperial, obsolete, use 71 7S04 NUT, metric WASHER, spring, imperial, obsolete, use 72 17S05 WASHER, spring, metric 76 41S07 WASHER, spring WASHER, flat, imperial, obsolete, use 85 267S06 WASHER, flat, metric 86 513204000...
  • Page 31 B - 1B 100T, 150T & 175T Mixers Also Available : Complete Tlting Pinion Assemblies. Please click here further information MD - 19...
  • Page 32 B - 1B TRUNNION & TILT WHEEL Item Part no Serial no Description 1 54S01A PIN, spirol SCREW, grub, 1A 57S06F1 2 513194400 PLUNGER, locking 2A 513345300 SPRING, plunger 3 513345400 HANDWHEEL 5 513151000 STUB, trunnion journal - 513149400 BRACKET, tilting, assembly BRACKET, tilting (order assembly) 6A 112821000 BUSH...
  • Page 33 B - 1B TRUNNION & TILT WHEEL Item Part no Serial no Description 77 66S02CC SCREW, set 78 41S04 WASHER, spring 85 10S03 WASHER, flat 86 107S14 NUT, ‘Nyloc’ self-locking Mar '23...
  • Page 34 B - 1C 100T, 150T & 175T Mixers Also Available : complete driveline assemblies. Please click here further information MD - 20...

  • Page 35: Drum Drive

    B - 1C DRUM DRIVE Item Part no Serial no Description 21 513151600 SPROCKET, countershaft, L.H. thread 22 513149700 JOURNAL, trunnion 23 315803100 PLUG, lubricating 24 132352000 CIRCLIP 25 88S15D BEARING 26 49S41 O' RING, 79mm I/D 29 513150400 BEARING, trunnion 30 49S42 O' RING, 75.5mm I/D 31 513153100...
  • Page 36 B - 1C DRUM DRIVE Item Part no Serial no Description WASHER, spring 72 41S05 WASHER, spring, imperial 73 17S05 WASHER,spring, metric SCREW, set 79 66S03C SCREW, 80 66S03D SCREW, set, imperial 81 11S04A SCREW, set, metric SCREW, c/sunk socket 82 208S03F WASHER, flat 85 10S03...
  • Page 37 C - 2 100T, 150T & 175T Mixers...
  • Page 38 C - 2 ELECTRIC 110 volt drive assembly Item Part no Serial no Description 5 513290600 PULLEY, ‘V’ belt 6 57S4D2 SCREW, grub KEY, parallel, supplied with motor 12 397400800 BELT "V" 100T 12 397400900 BELT "V" 150T/175T 18 202493800 MOTOR, 110V 1.5Kw 2.0Hp 20 11S03D SCREW, set...
  • Page 39 C - 3 100T, 150T & 175T Mixers...
  • Page 40 C - 3 START SWITCHES, electric drive Item Part no Date Description 1 202493800 MOTOR, 110V 1.5Kw 2.0Hp 2 208398900 CONTACTOR, Schneider 110v …… 208398500 CASE, starter …… 192928000 CONTACTOR …… 207818004 RELAY, overload, 12-18 amp 3 11S01A SCREW, set 4 7S01 5 17S02 WASHER, spring...
  • Page 41 D - 1 100T, 150T & 175T Mixers...

  • Page 42: Decals & Plates

    PLATE, serial — 101S05B RIVET, pop 3 504600900 DECAL, “Engine housing lid closed” 4 504694600 DECAL, “Safety Warning” 8 V2003039 DECAL, “WINGET” logo, 9 V2003038 DECAL, stripe, 2 colour 10 V2003101 DECAL, “Diesel fuel” 13 V2003665 DECAL, “Sling point” 14 V2003598 DECAL, “Britsh made”...
  • Page 43 D - 2 100T 150T & 175T Mixers...
  • Page 44 D - 2 DECALS & PLATES Item Part no Serial no Description 1 V2003105 DECAL, “100T”, Black 2 V2003106 DECAL, “150T” Black 3 V2003107 DECAL, “175T” Black 4 V2004227 DECAL, “Battery isolator” 5 V2004229 DECAL, “Operators handbook 6 V2004235 DECAL, “Negative earth” 7 V2004282 DECAL, “Hot surface”...
  • Page 45 D - 2A 100T 150T & 175T Mixers...
  • Page 46 D - 2A DECALS & PLATES Item Part no Serial no Description DECAL, "LWA 90" 2 V2006408 DECAL, "The recoil starter" 4 V2005214 DECAL, "Engine stop 5 FSE357 DECAL, "Locking Plunger" 6 V2005630 DECAL, " Eye Protection" 7 V2004744 DECAL, "Emergency stop" 8 513371100 DECAL "UKCA"...
  • Page 47 Mixer Service Assemblies To save your workshop time and money, we are pleased to offer the below sub- assemblies, all built & tested on our production line in Bolton, UK. Simply make a note of the part number you need and click here to enquire.
  • Page 48 Mixer Service Assemblies To save you time and money, we are pleased to offer the below sub-assemblies, all built & tested on our production line in Bolton, UK. Simply make a note of the part number here you need and click to enquire.
  • Page 49 Mixer Service Assemblies To save you time and money, we are pleased to offer the below sub-assemblies, all built & tested on our production line in Bolton, UK. Simply make a note of the part number here you need and click to enquire.
