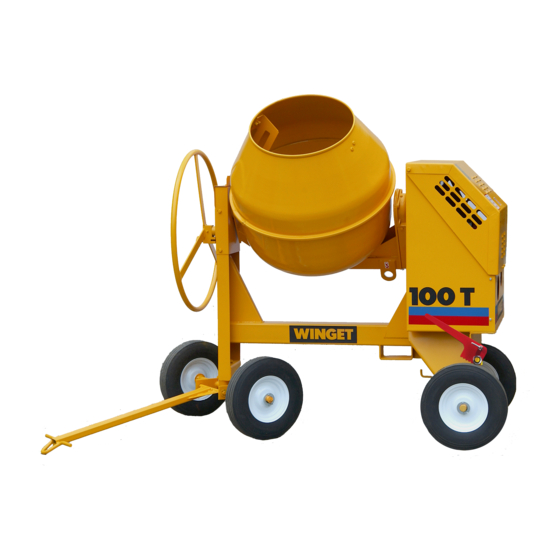

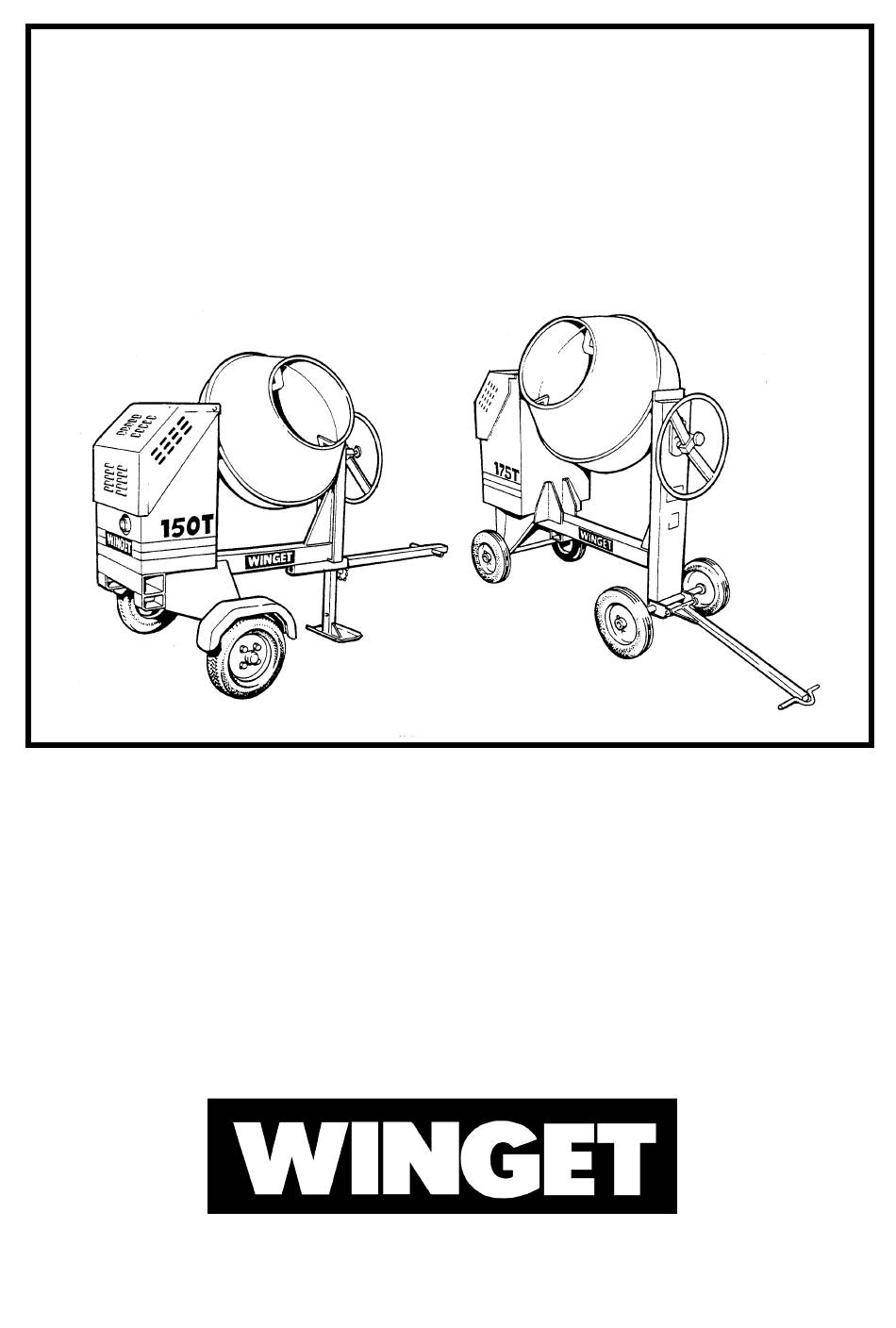

Page 1 MIXERS 100T 150T 175T OPERATORS HANDBOOK & PARTS Manual V601318 March 2022 Up to Serial Number 100T-11751, 150T-05854 175T-05857 WINGET LIMITED, P.O. Box 41, Edgefold Industrial Estate, Plodder Lane, Bolton, BL4 0LR, England Tel: +44 (0) 1204 854650 www.winget.co.uk parts@winget.co.uk...
Page 2: Table Of Contents
INTRODUCTION CONTENTS Section Page Section Page INTRODUCTION TECHNICAL INFORMATION Introduction Lubricants Warranty Mixer drum sealant Safe Working Tyre pressures Decals Noise levels Lashing down & lifting points Drum speed Engines & Motors OPERATION Dimensions Installation Electrically driven mixers wiring LT1/LV1 engines Lister-Petter AC1-05 key start wiring AC1-05 engines Yanmar L40/L48 key start wiring...
Page 3: Introduction
The contents of this Handbook, although correct at the time of publication may be subject to alteration by the Manufactures without notice. Winget Limited operate a policy of continuous product development. Therefore, some illustrations or text within this publication may differ from your machine.
Page 4: Warranty
No claim will be considered if other than genuine Winget Limited parts, which must be obtained from Winget Limited via an authorised Distributor, are used to effect a repair, or if lubricants other than those recommended by Winget Limited are used.
Page 5 SAFE WORKING Safety is the responsibility of the persons working with this machine. Think “safety” at all times. Read and remember the contents of this Handbook MACHINE MODIFICATION Any modifications to the machine will affect its working parameters and safety factors.
Page 6 SAFE WORKING ENGINE Starting any diesel engine can be dangerous in the hands of inexperienced people. Operators must be instructed in the correct procedures before attempting to start any engine. Always obtain advice before mixing oils; some oils are not compatible. If in doubt, drain and refill.
Page 7 SAFE WORKING SERVING & MAINTENANCE Never allow unqualified personnel to attempt to remove or replace any part of the machine, or anyone to remove large or heavy components without adequate lifting equipment. Before maintenance work is begun, ensure that the engine is stopped, or that the electric motor is switched off, and isolated from the mains.
Page 8 SAFE WORKING Remove starting handle. Keep hands clear of drum. Beware of electrical hazards. Battery isolator. Engine stop. Keep clear of chain drives. These surfaces may be hot.
Page 9 SAFE WORKING...
Page 10: Safe Working
SAFE WORKING Lashing down & Lifting points General Care should be taken when lifting or transporting the mixer to ensure that lifting or retaining straps are in good condition and the following procedures must be followed when lifting or lashing down to avoid causing unnecessary damage.
Page 11 SAFE WORKING shown above to keep the centre of gravity as low as possible. Position the mixer on the vehicle bed and chock the rear wheels to prevent it rolling until lashed down. Turn the front axle so that the drawbar is below the mixer and not forming an obstruction on the vehicle bed.
Page 12 SAFE WORKING...
Page 13: Operation
OPERATION correct. The oil sump must be filled to the INSTALLING THE MIXER ON SITE ‘full’ mark on the dipstick; do not overfill. Welded to the mixer are lifting points. Check that the fuel supply is adequate These are provided to assist with loading and the system is primed unloading mixer...
Page 14 OPERATION LT/LV1 engine Description A Dipstick B Lubricating oil filler C Engine control D Decompressor lever E Air cleaner F Fuel tank The cold start aid (where fitted) The cold start aid is fitted to the combustion air intake port and is used when the ambient temperature is below –10 deg.C (14 deg.F).
Page 15 OPERATION Ensure there are no burrs on the handle. Before attempting to use the handle, clean and lightly oil that part of it which fits onto the engine. Hand starting the engine Select the excess fuel position by gently pulling the engine control lever (L) outward over the middle catch (M) and turning it fully clockwise.
Page 16: Ac1-05 Engines
OPERATION AC1-05 engine (Electric start with key) Description A Oil filler B Engine control C Air cleaner D Fuel tank E Key switch F Dipstick Starting the engine Pull the lever (B) towards you. This will move the engine control anti-clockwise into the RUN position.
Page 17 OPERATION Yanmar L40/L48 Description A Fuel cock B Engine speed lever E Starting key Electric starting the engine Open the fuel cock (A). Put the engine start lever to the RUN position (B). Turn the starting key (E) clockwise to START position.
Page 18 OPERATION Yanmar L40/L48 Stopping the engine Before stopping the engine, move the engine speed lever to SLOW speed, and run the engine for about 3 minutes with no load. Return the engine speed lever to the STOP position. With electric-start engines, turn the starter key to the OFF position.
Page 19 OPERATION Yanmar L40/L48 Manual starting in the event of a flat battery Description A Fuel cock B Engine speed lever C Decompression lever D Recoil starting handle Starting the engine Open the fuel cock (A). Put the engine start lever to the RUN position (B).
Page 20 OPERATION Honda The following engine operating instructions should be read in conjunction with the Honda Owner’s Manual. Starting the engine Turn the fuel valve to the ON position. Move the choke lever to the CLOSED position. Do not use the choke if the engine is warm or the air temperature is high.
Page 21 OPERATION Stopping the engine To stop the engine, turn the engine switch to the OFF position. Turn the fuel valve to the OFF position.
Page 22: Electric Motors
2.10 OPERATION Electric motors To start and stop: Gain access to start button by raising the motor cover (50). Start the motor by pressing button (51). Lower the motor cover (50). To stop the motor, press button (52). (Pressing button (53) will also stop it.) In an EMERGENCY, press button (52) to stop the motor.
Page 23 OPERATION 2.11 Ensure that a suitable container has been positioned by the side of the mixer to catch the discharging load. Turn the drum to Discharge (2), and allow the load to run into the container. Rotation of the drum Looking at the mouth of the drum, all of the engines and motors drive the drum in a clockwise direction.
Page 24: Lighting Board
2.12 OPERATION INSTALLING/REMOVING THE LIGHTING BOARD (WHERE FITTED) Where a lighting board is supplied with the Mixer, follow the procedure below to install and remove the lighting board when preparing for road towing or for use on site. The board locates on the rear lower panel of the mixer and is secured by two threaded wing nuts.
Page 25: Servicing
SERVICING SERVICE SCHEDULE IMPORTANT! (See also the relevant Engine Workshop Manual) For servicing the Yanmar and Honda engines, see Every day the engine Operation Links & hinges: Lubricate. Manual Shafts & bearings: Lubricate. Engine: Check fuel and lubricating oil levels. (see Engine Manual Check for oil and fuel leaks.
Page 26: Greasing And Lubrication
SERVICING SERVICING PROCEDURE Greasing and lubrication Drum drives It is essential that oils and Every week (or 50 hours running) grease used for servicing do Drive chains: not become contaminated with sand or cement dust. Lubricate drive chains (A) with a little engine oil.
Page 27: Bolt Torques
SERVICING Bolt torques Every week for the first month, then every three months Check the tightness of all bolts, nuts, and keys etc. Pay particular attention to engine mounting bolts. Engine, general servicing Under very dusty conditions, air cleaners, lubricating oil and fuel filters will require more frequent attention.
Page 28 SERVICING AC1-05 engines Release the clips (F) and lift off the cover (G). Remove the element (H) from the cleaner body. Clean the cleaner body and cover (G) of all dust. Fit a new element and joint if necessary. Replace the cover (G). ENGINE LUBRICATION OIL Every day Check lubrication oil level with the...
Page 29 SERVICING AC1-05 engines only Change oil filter as follows: The oil filter is mounted inside the crankcase at the gear end and consists of a detachable cover containing the element which is secured by a centre bolt into the crankcase. Unscrew the centre bolt (C) and withdraw the filter cover (D) and the element (E).
Page 30 SERVICING Prime LT/LV1 fuel system as follows: Fill the fuel tank. Move the engine control lever to the 'RUN' position. Vent the filter through bleed screw (G) until a full air free flow of fuel is obtained. Vent fuel through the pump bleed screw (K) until a full air free flow of fuel is obtained.
Page 31: Battery
SERVICING When no air bubbles are escaping push the rubber hose (0) back onto the fuel pump. Crank the engine until the injector is heard to 'squeak'. BATTERY BATTERIES CONTAIN SULPHURIC ACID WHICH CAN CAUSE SEVERE BURNS AND PRODUCE EXPLOSIVE GASES. If the acid has been splashed on the skin, eyes or clothes flush with copious amounts of...
Page 32: Mixer Drum Assembly
513204000 can be obtained from any Winget distributor.) A Bolt the two blades into the drum base (1). Tighten the bolts with fingers only. Smear silicone sealant around the mating flanges of the cone (2) and drum base (3).
Page 33 SERVICING G Locate the clamping tool (7) into the two holes (8) of the drum clip. Tighten the tool securely using a suitable spanner. H Centralise the bridge piece (9) on the drum clip between the jaws of the clamping tool. 1 Weld the bridge piece (9) to the drum clip (5).
Page 34: Mixer Drum Drive Overhaul
3.10 SERVICING Mixer drum drive overhaul On reassembling the drum drive, after an D The bevel pinion assembly (d) must be overhaul, the following points must be set horizontally in the trunnion. Do this observed: as follows: Ensure that the drive chain (f) is correctly adjusted, then set the bevel A Coat with an anti-seize compound the pinion assembly (d) horizontal by...
Page 35: Suspension Units
SERVICING 3.11 Suspension Units Tyres Two wheeled mixers, "Fast tow" Check the tyres for wear, damage and deterioration. suspension units require Check tyre pressures only when the tyres are maintenance as they are a sealed unit. cold. They have an internal construction of (see "specifications"...
Page 36 3.12 SERVICING...
Page 37: Technical Information
Grease nipples Multis EP 2 Linkages and hinges Rubia B 20W/30 Noise levels of mixers. Measured in accordance with EC Directive 2000/14/EC Models 100T, 150T and 175T LPA 80 LWA 101 (All engines except Honda) LPA 85 LWA 101 (Honda only)
Page 38: Dimensions
TECHNICAL INFORMATION DIMENSIONS Weight (approx) LV1 Eng 100T 150T 175T 175T 100T 150T A 1515 1650 1680 375kg 425kg 460kg B 1560 1730 1780 Weight (approx) L48 Eng 100T 150T 175T 400kg 420kg 340kg F 1000 1100 1110 Weight (approx) LV1 Eng...
Page 39: Electrically Driven Mixers Wiring
TECHNICAL INFORMATION ELECTRICALLY DRIVEN MIXERS WIRING CIRCUIT Electrical connections must only be made by a suitably qualified electrician.
Page 40: Lister-Petter Ac1-05 Key Start Wiring
TECHNICAL INFORMATION LISTER-PETTER AC1-05 KEY START WIRING CIRCUIT...
Page 41 TECHNICAL INFORMATION YANMAR L40/48 KEY START WIRING CIRCUIT In adition to the circuit shown below, the engine is fitted with its own loom. (see Yanmar service literature)
Page 42 TECHNICAL INFORMATION...
Page 44 PARTS Mixers built UP TO February 1988 Mixers built FROM February 1988 <<< To front of book...
Page 46 Mixers 100T 150T 175T...
Page 47 Mixers built UP TO February 1988 FOUR WHEEL MAINFRAME A - 1 TWO WHEEL MAINFRAME, slow tow A - 2 TWO WHEEL MAINFRAME, fast tow A - 3 DRUM B - 1A TRUNNION & TILT WHEEL B - 1B DRUM DRIVE B - 1C LISTER DRIVE ASSEMBLY C - 1...
Page 49 A - 1 100T, 150T & 175T Mixers up to February 1988 MCH-8...
Page 50 A - 1 FOUR WHEEL MAINFRAME & GUARDS Item Part no Serial no Description 100T 1 513275100 / Feb 88 AXLE, rear 2 513197900 AXLE, front 150T & 175T 1 513275200 / Feb 88 AXLE, rear, 2 513203400 AXLE, front...
Page 51 A - 1 100T, 150T & 175T Mixers up to February 1988...
Page 52 FOUR WHEEL MAINFRAME & GUARDS Item Part no Serial no Description 22 241859000 PLUG, polythene DECAL (see page D - 1) 23 504600900 24 513268400 MAINFRAME, 100T 24 513269400 MAINFRAME, 150T & 175T 25 11S04C SCREW, set 26 7S01 26A 513340800 SPACER 100T...
Page 53 A - 2 100T, 150T & 175T Mixers up to February 1988 MCH-7...
Page 54 A - 2 TWO WHEEL MAINFRAME, slow tow Item Part no Serial no Description 1 513276400 / Feb 88 AXLE 2 513169500 SPACER, axle 3 513168900 SPACER, stub axle retaining 4 513168500 PIN, pivot 5 513169600 SPACER, towbar 6 352410120 PIN, mills 7 501386200 COLLAR, towing rod...
Page 55 A - 3 100T, 150T & 175T Mixers, up to February 1988 MCH-9...
Page 56 A - 3 TWO WHEEL MAINFRAME, fast tow Item Part no Serial no Description 1 513276400 / Feb 88 AXLE 2 513209900 ROD, brake, nearside 3 513169000 ARM, compensating 4 513209800 ARM,, brake operating 5 513210000 ROD, brake, offside 6 513168900 SPACER, stub axle retaining 7 513169100 SPRING, suspension...
Page 57 A - 3 100T, 150T & 175T Mixers, up to February 1988...
Page 58 A - 3 TWO WHEEL MAINFRAME, fast tow Item Part no Serial no Description 36 475117020 NUT, slotted 37 475117004 HUB CAP 38 475117002 NUT, wheel 39 475117003 STUD, wheel 40 475117000 WHEEL, assembly ……… ……… RIM, wheel (order assembly) ………...
Page 59 B - 1A 100T, 150T & 175T Mixers up to February 1988 MD -18...
Page 60 62A V2000772 SEALANT tube 1 63 513202800 GASKET 64 513199800 WASHER, tab 66 10S04 WASHER, flat SCREW, blade upper, 100T 69 200S03E SCREW, blade lower, 100T 69A 200S03G 69 200S03G SCREW, 150T & 175T 70 28S05G SCREW 71 104S03 72 41S05...
Page 61 B - 1B 100T, 150T & 175T Mixers up to February 1988...
Page 62 36 513211500 TRUNNION, 150T & 175T 36A 513212000 PLATE, upper (welded) 36B 513212000 PLATE, lower (welded) 38 513153000 GUARD, bevel gear GUARD, chain, 100T 42 513152700 42 513203300 GUARD, chain, 150T & 175T 52 513151500 PINION, tilting 53 10S18 WASHER, flat...
Page 63 B - 1C 100T, 150T & 175T Mixers up to February 1988 MD - 20...
Page 64 35B 134105001 LINK, half 43 513150300 SPROCKET, bevel pinion shaft 44 513298900 PLATE, adjusting SHAFT, bevel pinion, 100T 45 513152500 SHAFT, bevel pinion, 150T & 175T 45 513158700 HOUSING, pinion shaft, 100T 46 513149800 HOUSING, pinion shaft, 150T & 175T...
Page 65 C - 1 100T, 150T & 175T Mixers, up to February 1988...
Page 66 9 241102000 ELBOW, female 10 241902000 SOCKET 11 354051000 ENGINE, Lister LT1, assembly 11A EL60131350 FILTER, air 11B EL20113118 FILTER, fuel 100T 12 411411250 STUD 13 61S05 NUT, binx 14 12S23 WASHER, flat 15 513266700 BASE BLOCK, engine 16 8S05H...
Page 67 C - 2 100T, 150T & 175T Mixers, up to February 1988 ELP18...
Page 68 C - 2 DRIVE ASSEMBLY, PETTER Item Part no Serial no Description 1 513267300 / Feb-88 SPROCKET, engine 100T 2 513267000 BLOCK, engine base 3 8S05H BOLT 4 61S05 NUT, binx 5 12S23 WASHER, flat 6 513248400 SHIMS set 1...
Page 69 C - 2 100T, 150T & 175T Mixers, up to February 1988...
Page 70 C - 2 DRIVE ASSEMBLY, PETTER Item Part no Serial no Description Continued >>>> Machines fitted with Cyclopac air cleaner 33 220236000 AIR CLEANER 34 11S03B SCREW, set 35 61S03 NUT, binx 36 12S18 WASHER, flat 37 353323025 PIN, split 38 260817001 HOSE, flexible 39 260512012...
Page 71 C - 2A 100T, 150T & 175T Mixers, up to February 1988...
Page 72 C - 2A DRIVE ASSEMBLY, HATZ Item Part no Serial no Description 1 513214400 SHIM set 1 2 513214500 SPROCKET with ….. 188S04C2 SCREW, cone point socket 3 513283600 CHANNEL, engine supports set 1 with ….. 66S05D SCREW, set ….. 192S05 NUT, Binx …..
Page 73 C - 3 100T, 150T & 175T Mixers, up to February 1988 MEL 8 & 9...
Page 74 C - 3 DRIVE ASSEMBLY, ELECTRIC, chain Item Part no Date Description 100T 1 513267800 / Feb-88 BASE, motor 150T & 175T 2 513268001 CHANNEL, motor base, L.H. (illustrated) 1 - 513268002 CHANNEL, motor base, R.H. (not ill.) 3 513267900...
Page 75 C - 4 100T, 150T & 175T Mixers, up to February 1988 MEL-10...
Page 76 8 11S02A SCREW, set 9 7S02 10 17S03 WASHER, spring 11 304710040 KEY, parallel 12 397400100 BELT, ‘V’ 100T 13 513290300 ANGLE, motor adjusting 14 411411275 STUD 15 7S05 16 17S06 WASHER, spring 17 202493500 MOTOR, electric, 240v, .75kw (1hp) 17 202493600 MOTOR, electric, 110v, 1.1kw (1.5hp) 1...
Page 77 C - 5 100T, 150T & 175T Mixers up to February 1988...
Page 78 C - 5 DANFOSS' START SWITCHES, electric belt drive Item Part no Serial no Description ELECTRIC MOTOR (see Index page) STARTER, 240v, 100T, 150T & 175T 5 208398600 - 208398500 CASE, starter - 192928000 CONTACTOR - 207818001 RELAY, overload 5 208398800...
Page 79 D - 1 100T, 150T & 175T Mixers...
Page 80 — 15S01A SCREW 3 504600900 DECAL, “Engine housing lid closed” 4 504694600 DECAL, “Safety Warning” 8 V2003039 DECAL, “WINGET” logo, 9 V2003038 DECAL, stripe, 2 colour 10 —— DECAL, diesel fuel (OBSOLETE: use item 10A) 10A V2003101 DECAL, “Diesel fuel”...
Page 81 D - 2 100T 150T & 175T Mixers...
Page 82 DECALS & PLATES Item Part no Serial no Description 1 V2003105 DECAL, “100T”, Black 1 V602436 DECAL, “100T” White (Not illustrated) 2 V2003106 DECAL, “150T” Black 2 V602437 DECAL, “150T” White (Not illustrated) 3 V2003107 DECAL, “175T” Black 3 V602438 DECAL, “175T”...
Page 83 D - 2A 100T 150T & 175T Mixers...
Page 84 D - 2A DECALS & PLATES Item Part no Serial no Description 1 V2005276 DECAL, " Engine cold starting" 2 V2005311 DECAL, "LWA 101" 3 V2004131 DECAL, "LPA 85" 4 V2005214 DECAL, "The recoil starter" 5 FSE357 DECAL, "ENGINE STOP" 6 V2005630 DECAL, "Locking Plunger"...
Page 85 D - 3 100T 150T & 175T Mixers...
Page 86 D - 3 SPECIAL TOOLS Item Part no Serial no Description 1 513204000 CLAMP, drum clip V601136, issue 02, 0296...
Page 87 NUMERICAL INDEX Mixers built up to 1988 Part no Page no Part no Page no Part no Page no 22096210 B - 1A 134105002 B - 1C 208398500 C - 5 30788101 C - 5 134105056 B - 1C 208398600 C - 5 30788102 C - 5...
Page 88 Part no Page no Part no Page no Part no Page no 304710032 C - 3 475117007 A - 2 513150200 B - 1C 304710040 C - 4 475117007 A - 3 513150300 B - 1C 315803100 B - 1C 475117008 A - 2 513150400...
Page 89 Part no Page no Part no Page no Part no Page no 513167600 A - 3 513203400 A - 1 513266900 A - 1 513167700 A - 2 513203600 B - 1A 513267000 C - 2 513167700 A - 3 513203800 B - 1A 513267100...
Page 90 Part no Page no Part no Page no Part no Page no 513277900 C - 1 105S04 C - 2A 11S05C C - 2 513278000 C - 2 105S05 C - 4 12S18 C - 1 513278100 C - 2 105S06 C - 1 12S18...
Page 91 Part no Page no Part no Page no Part no Page no 200S03G B - 1A 57S03D2 C - 4 6S02Z A - 1 203S04 A - 3 57S05D2 C - 1 6S03E B - 1B 206S03C A - 1 61S03 C - 1 6S03E...
Page 92 Part no Page no 97S13 C - 2 V2000772 B - 1A V2003038 D - 1 V2003039 D - 1 V2003101 D - 1 V2003105 D - 2 V2003106 D - 2 V2003107 D - 2 V2003598 D - 1 V2003665 D - 1 V2004130...
Page 94 Mixers 100T 150T 175T...
Page 96 B - 1A TRUNNION & TILT WHEEL B - 1B DRUM DRIVE B - 1C LISTER - PETTER LT1/LV1-32 (100T & 150T) C - 1 LISTER - PETTER LT1/LV1-10 (175T) C - 1A ELECTRIC DRIVE 110V/240V (100T) upto 2005 C - 2A...
Page 97 A - 1A 100T & 150T Mixers from February 1988 MCH-30...
Page 98 A - 1A FOUR WHEEL MAINFRAME & TOW BAR Item Part no Serial no Description MAINFRAME, 100T (Not Honda eng.) 1 513340900 1 513363900 MAINFRAME, 100T (With Honda eng.) 1 513341000 MAINFRAME, 150T 1A 513371700 11752/ 100T PLATE, vent, Yanmar L48V5V...
Page 99 A - 1A 100T & 150T Mixers from February 1988 MCH-30...
Page 100 Serial no Description 34F 41S05 WASHER, spring 34G 104S03 54 10S17 WASHER, flat 55 44S03D PIN, split 11195 / 100T 05637 / 150T 56 513370700 LEVER, handbrake, assembly 56A 513370800 CATCH, sprung 57 513370600 PIVOT, bracket 57A 11S04C SCREW, set, not illustrated...
Page 101 A - 1AA 100T & 150T Mixers from February 1988 MCH-30...
Page 102 A - 1AA MESH GUARDS Item Part no Serial no Description 1 513364300 GUARD, mesh, L.H. 2 513364400 GUARD, mesh, R.H. 3 513364500 GUARD, mesh, rear 5 11S02B SCREW, set 6 267S04 WASHER, flat 7 61S02 NUT, self locking V601136, Nov '03...
Page 103 A - 1B 100T & 150T Mixers from February 1988 MCH-33...
Page 104 Description 9 513341300 LID, engine housing 10 513341400 /11751/05854 GUARD, chain/belt not Yanmar L48V5V 1 10 513371600 11752/ GUARD, belt, 100T, Yanmar L48V5V 10 513371500 05855/ GUARD, belt, 150T, Yanmar L48V5V STOP, rubber (screw-in bobbin) 12 V2003109 12 513205300 STOP, rubber (two screw block)
Page 105 A - 1B 100T & 150T Mixers from February 1988 MCH-33...
Page 106 A - 1B COVERS & GUARDS Item Part no Serial no Description 06737 / # 100T (with Yanmar & Honda engines only) # 150T (with Yanmar engines only) 02719 / 85 513362600 # PLATE, rope guide 86 11S02C # SCREW, set...
Page 107 175T Mixers from February 1988 A - 2A...
Page 108 FOUR WHEEL MAINFRAME & TOW BAR A - 2A Item Part no Serial no Description 1 513275200 / 01725 AXLE, rear 2 513203400 / 01725 AXLE, front 2A 513358100 01726 / AXLE, front 3 513274900 / 01725 BRACKET, front axle swivel 4 513154500 / 01725 SWIVEL, front axle...
Page 109 175T Mixers from February 1988 A - 2A...
Page 110 FOUR WHEEL MAINFRAME & TOW BAR A - 2A Item Part no Serial no Description 05604 / 175T 56 513370700 LEVER, handbrake, assembly 56A 513370800 CATCH, sprung 57 513370600 PIVOT, bracket 57A 11S04C SCREW, set, not illustrated 57B 17S05 WASHER, spring, not illustrated 57C 267S06 WASHER, flat, not illustrated 58 10S18...
Page 111 A - 2B 175T Mixers from February 1988 MCH-32...
Page 112 A - 2B COVERS & GUARDS Item Part no Serial no Description 5 513287000 TOP PLATE, engine housing 9 513286800 LID, engine housing 10 513248700 /05810 GUARD, chain/belt 10 513371400 05811/ GUARD, belt Yanmar L48V5V 12 V2003109 STOP, rubber (round screw-in bobbin) 12 513205300 STOP, rubber (two screw block) 13 513266900...
Page 113 A - 3 100T, 150T & 175T Mixers from February 1988...
Page 114 A - 3 COVERS & GUARDS (Lister-Petter AC1-05 Electric Start) Item Part no Serial no Description 1 513286800 LID, engine housing 2 11S04C SCREW, set 3 267S06 WASHER, flat 4 555170000 SPACER 6 513205300 STOP, rubber 7 11S02A SCREW 8 267S04 WASHER, flat 9 61S02 NUT, Binx...
Page 115 A - 3 100T, 150T & 175T Mixers from February 1988...
Page 116 A - 3 COVERS & GUARDS (Lister-Petter AC1-05 Electric Start) Item Part no Serial no Description Continued>>> 60 513358500 BRACKET, battery (welded to chassis) 61 V2004120 62 V2004055 CLAMP 63 267S04 WASHER, flat 64 17S03 WASHER, spring 65 7S04 66 513358600 COVER, battery 67 11S04B SCREW, set...
Page 117 A - 4 100T & 150T Mixers from February 1988 MCH 6...
Page 118 A - 4 TWO WHEEL MAINFRAME & TOW BAR Item Part no Date Description MAINFRAME, assembly, 100T - 513342200 - 513342300 MAINFRAME, assembly, 150T 1 513344200 MAINFRAME, 100T MAINFRAME, 150T 1 513344300 2 513344000 EYE, towing 2A 513364700 Nov-03 /...
Page 119 A - 4 100T & 150T Mixers from February 1988...
Page 120 804120 / REFLECTOR, red, non triangular, rear of mudguard, not EU from serial nos below Following parts are not illustrated From serial nos 100T-09456, 150T-05103 22 386103000 REFLECTOR, white, non triangular front of mudguard 22A 513369300S BRACKET, reflector, white, straight...
Page 121 A - 5 175T Mixers from February 1988 MCH-6...
Page 122 A - 5 TWO WHEEL MAINFRAME & TOW BAR Item Part no Serial no Description ……. 513345100 02184 / MAINFRAME, assembly MAINFRAME, 175T FT 1 513360200 2 513344000 EYE, towing 2A 513364700 Nov-03 / COUPLING, towing 3 8S04E BOLT 3A 8S04L Nov-03 / BOLT 4 267S06...
Page 123 A - 5 175T Mixers from February 1988...
Page 124 A - 5 TWO WHEEL MAINFRAME & TOW BAR Item Part no Serial no Description 13H 10S05 WASHER 13J 44S03C PIN, split 14 475130700 WHEEL, assembly, 10" 14A V602717 RIM, wheel, 10" 14B 475123001 TUBE, inner 14C 475123002 TYRE, 10" 15 513361000 MUDGUARD, plastic 16 513361100...
Page 125 B - 1A 100T, 150T & 175T Mixers from February 1988 MD -18...
Page 126 63 513202800 GASKET 64 513199800 WASHER, tab 66 10S04 WASHER, flat 69A 200S03E SCREW, blade upper, 100T, obsolete, use SCREW, blade upper, 100T, metric 69A 301S06F 69 200S03G SCREW, blade lower, 100T, obsolete, use SCREW, blade lower, 100T, metric 69 301S06H...
Page 127 B - 1A 100T, 150T & 175T Mixers from February 1988 MD -18...
Page 128 B - 1A DRUM Item Part no Serial no Description 70 28S05G SCREW 71 104S03 NUT, imperial, obsolete, use 71 7S04 NUT, metric 72 41S05 WASHER, spring, imperial, obsolete, use 72 17S05 WASHER, spring, metric 76 41S07 WASHER, spring 85 10S03 WASHER, flat, imperial, obsolete, use 85 267S06 WASHER, flat, metric...
Page 129 B - 1B 100T, 150T & 175T Mixers from February 1988 MD - 19...
Page 130 B - 1B TRUNNION & TILT WHEEL Item Part no Serial no Description 1 54S01A PIN, spirol SCREW, grub, 100T 1A 57S06F1 05999 / SCREW, grub, 150T 1A 57S06F1 02026 / SCREW, grub, 175T 1A 57S06F1 02021 / 2 513194400...
Page 131 B - 1C 100T, 150T & 175T Mixers from February 1988 MD - 20...
Page 132 LINK, half 43 513150300 SPROCKET, bevel pinion shaft 44 513298900 PLATE, adjusting 45 513152500 SHAFT, bevel pinion, 100T 45 513158700 SHAFT, bevel pinion, 150T & 175T 46 513149800 HOUSING, pinion shaft, 100T 46 513160700 HOUSING, pinion shaft, 150T & 175T...
Page 133 B - 1C 100T, 150T & 175T Mixers from February 1988...
Page 134 B - 1C DRUM DRIVE Item Part no Serial no Description 59 300204140 KEY, gib head 60 513211900 WASHER, tab 67 513211700 PACKER 68 513290700 PULLEY, ‘V’, for electric motors, Yanmar and Honda engines 71 104S03 72 41S05 WASHER, spring 79 66S03C SCREW 80 66S03D...
Page 135 C - 1 100T & 150T Mixer from February 1988...
Page 136 NOTE : ENGINE CHANGE Lister-Petter LT1-32 to LV1-32 From mixer serial numbers: 100T 07978 and 150T 03813. Early in 2005 the Lister-Petter LT1-32 was superseded by the LV1-32. The engines as complete assemblies are interchangeable as are consumable items such as filters etc.
Page 137 C - 1 100T & 150T Mixer from February 1988 ELP-...
Page 138 11E EL60142520 FILTER, air 11F EL20113118 FILTER, fuel 12 11S05T / 1995/96 SCREW, set, 100T 13 61S05 / 1995/96 NUT, binx “Binx”, self-locking, 100T 15 7S05 / 1995/96 NUT, 100T 17 513341900 PIPE, exhaust, 100T 17 513342500 PIPE, exhaust, 150T...
Page 139 C - 1A 175T Mixer from February 1988...
Page 140 C - 1A LISTER-PETTER LT1/LV1-10 drive assembly Item Part no Serial no Description 1 513248300 SPROCKET, engine 1A 57S05D2 02679 / SCREW, grub 2 513248400 SHIMS pack 1 3 513266800 BRACKET, exhaust 4 513278200 (year) / 1995/96 PIPE, 125mm long, 1/4“ BSP 4 513359800 1995/96 / 2003 PIPE, 125mm long, 1/2“...
Page 141 C - 1A 175T Mixer from February 1988...
Page 142 C - 1A LISTER-PETTER LT1/LV1-10 drive assembly Item Part no Serial no Description 13 61S05 NUT, “Binx”, self-locking 14 267S07 WASHER, flat 18 8S05E BOLT 19 105S05 WASHER, taper 20 8S05J BOLT 21 513267400 CHANNEL, engine base, 22 513267500 PIPE, exhaust 25 66S05A SCREW, set 26 192S05...
Page 143 C - 2A 100T Mixers from February 1988...
Page 144 C - 2A ELECTRIC (240/110 volt) drive assembly, upto 2005 Item Part no Serial no Description 1 513342100 PLATE, motor mounting 2 8S05H BOLT 3 61S05 NUT, “Binx” 4 267S07 WASHER, flat 5 513290600 PULLEY, ‘V’ 6 57S04D2 SCREW, grub 11 304710840 KEY, parallel 12 397400300...
Page 145 C - 2B 150T Mixers from February 1988 MEL-...
Page 146 C - 2B ELECTRIC (240/110 volt) drive assembly, upto 2005 Item Part no Serial no Description 1 513342100 / Feb-90 PLATE, motor mounting 1 513350000 Feb-90 / PLATE, motor mounting 2 8S05H BOLT 3 61S05 NUT, self-locking “Binx” 4 267S07 WASHER, flat 5 513290600 PULLEY, ‘V’...
Page 147 C - 2C 175T Mixers from February 1988 MEL-...
Page 148 C - 2C ELECTRIC (240/110 volt) drive assembly, upto 2005 Item Part no Serial no Description 1 513290400 PLATE, motor mounting 2 8S05H BOLT 3 61S05 NUT, self-locking “Binx” 4 267S07 WASHER, flat 5 513290600 PULLEY, ‘V’ 6 57S04D2 SCREW, socket head 11 304710840 KEY, parallel 12 397400300...
Page 149 C - 3 100T, 150T & 175T Mixers from February 1988...
Page 150 C - 3 START SWITCHES, electric drive, upto 2005 Item Part no Date Description ………...… ELECTRIC MOTOR (see Index page) STARTER, Danfoss 240v, 100T, 150T & 175T 5 208398600 …… 208398500 CASE, starter …… 192928000 CONTACTOR …… 207818001 RELAY, overload...
Page 151 C - 4 100T, 150T & 175T Mixers from February 1988 ELP-37...
Page 152 C - 4 LISTER-PETTER AC1 (electric start) Item Part no Serial no Description 1 V2004253 ENGINE, Lister/Petter AC1 2 11S04F SCREW, set 3 267S06 WASHER, flat 4 61S04 NUT, self- locking “Binx” 5 513267500 PIPE, exhaust 6 513359300 BRACKET, exhaust 7 11S03C SCREW, set 8 267S05...
Page 153 C - 5 100T, 150T & 175T Mixers from October 2000 ELP-37...
Page 154 150T & 175T 1 V2005210 ENGINE, Yanmar L40A/L48A/L48N From Serial nos 09571-100T & 05135-150T/175T L48A replaced by L48N, Engines are interchangeable, check model before ordering filters etc For Yanmar L48V5V Stage 5 Emission Compliant Engines see Page C-5A 2 513361600...
Page 155 C - 5 100T, 150T & 175T Mixers from October 2000...
Page 156 49 513358800 SUPPORT, bracket 51 325S04 ADAPTOR, male/male 52 298S05 SEAL, bonded 53 31S02LL HOSE, hydraulic 54 127S03 PLUG, blanking, engine oil drain $ From mixer serial numbers 07373 / 100T 03347 / 150T 03387 / 175T V601136, September 16...
Page 157 C - 5A 100T, 150T & 175T Mixers...
Page 158 21 V2004220 WASHER, 'Special' 22 17S04 WASHER, spring 23 8S03D BOLT 24 305110550 KEY, parallel 25 397400200 BELT, 'V', 100T 25 397400600 BELT, 'V', 150T & 175T ………..……… CABLE, negative (See page C-6) 30 8S03D BOLT 31 267S05 WASHER, flat 32 61S03 NUT, self- locking “Binx”...
Page 159 C - 6 100T, 150T & 175T Mixers from October 2000 ELP-37...
Page 160 C - 6 YANMAR L40/48 ARE-SE/L48N5SJ1/L48V5V (electric start) Battery, start switch & loom Item Part no Serial no Description 06737 / 100T 150T & 175T 02719 / 26 V2005211 CABLE, negative 35 267S07 WASHER, flat 36 17S06 WASHER, spring 37 7S05...
Page 161 C - 6A 100T, 150T & 175T Mixers ELP-37...
Page 162 C - 6A YANMAR L48N5SJ1/L48V5V (electric start) Emergency stop cable Item Part no Serial no Description 11195 / 100T 05637 150T 05604 / 175T 1 513370900 CABLE, emergency stop WASHER, flat 2 267S04 TIE, Cable, panel mount 3 V2006398 V601136, June '20...
Page 163 C - 7 100T, 150T & 175T Mixers from November 2003 ELP-37...
Page 164 20 513363000 PULLEY 21 V2004220 WASHER, 'Special' 22 17S04 WASHER, spring 23 11S03D SCREW, set 24 305110550 KEY, parallel BELT, 'V', (100T) 25 397400400 26 513363400 SPACER 30 8S03D BOLT 31 267S05 WASHER, flat 32 61S03 NUT, self- locking “Binx”...
Page 165 D - 1 100T, 150T & 175T Mixers...
Page 166 — 101S05B RIVET. pop 3 504600900 DECAL, “Engine housing lid closed” 4 504694600 DECAL, “Safety Warning” 8 V2003039 DECAL, “WINGET” logo, 9 V2003038 DECAL, stripe, 2 colour 10 —— DECAL, diesel fuel (OBSOLETE: use item 10A) 10A V2003101 DECAL, “Diesel fuel”...
Page 167 D - 2 100T 150T & 175T Mixers...
Page 168 DECALS & PLATES Item Part no Serial no Description 1 V2003105 DECAL, “100T”, Black 1 V602436 DECAL, “100T” White (Not illustrated) 2 V2003106 DECAL, “150T” Black 2 V602437 DECAL, “150T” White (Not illustrated) 3 V2003107 DECAL, “175T” Black 3 V602438 DECAL, “175T”...
Page 169 D - 2A 100T 150T & 175T Mixers...
Page 170 D - 2A DECALS & PLATES Item Part no Serial no Description 1 V2005276 DECAL, " Yanmar Engine cold starting" (Not Yanmar L48V5V Stage 5 Engine) 2 V2005311 DECAL, "LWA 101" 3 V2004744 DECAL, "Eye Protection" 4 V2005214 DECAL, "The recoil starter" 5 FSE357 DECAL, "ENGINE STOP"...
Page 171 D - 3 100T 150T & 175T Mixers...
Page 172 D - 3 SPECIAL TOOLS Item Part no Serial no Description 1 513204000 CLAMP, drum clip V601136, issue 02, 0296...
Page 174 CALIFORNIA CALIFORNIA CALIFORNIA CALIFORNIA Proposition 65 Warning Diesel engine exhaust and some of its constituents are known to the State of California to cause cancer, birth defects, and other reproductive harm...

This manual is also suitable for:

150t 175t

Winget 100T Operators Handbook & Parts

Quick Links

Need help?

Questions and answers

Related Manuals for Winget 100T

Summary of Contents for Winget 100T

This manual is also suitable for:

Table of Contents
