StarTech.com CMDUCT1UX Quick Start Manual

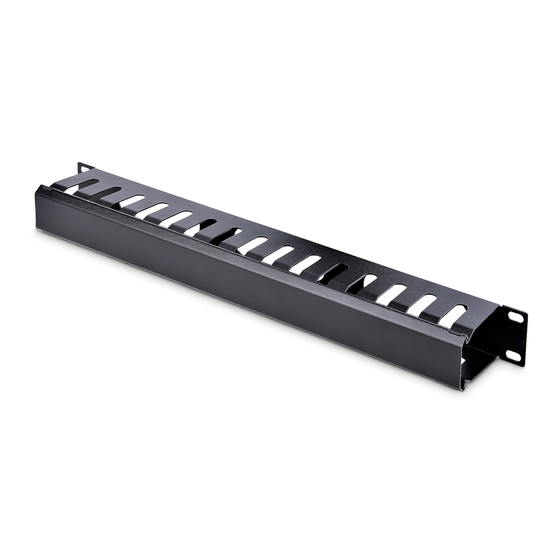

1U Horizontal Finger Duct Cable Management Panel for Racks - Includes Cover

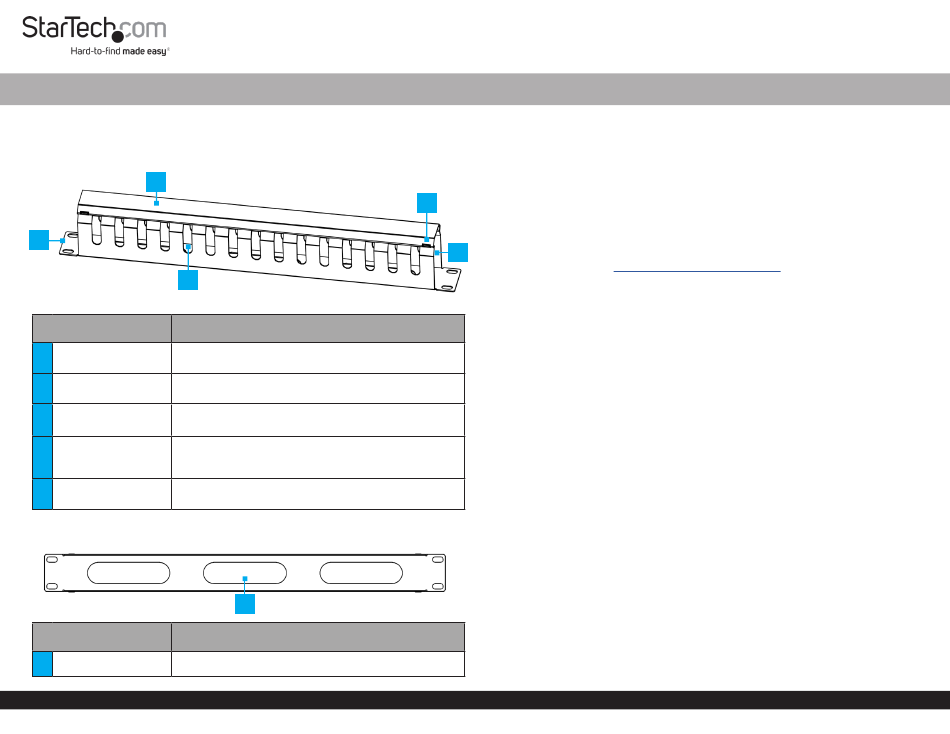

Product Diagram
CMDUCT1UX
Front View
2
1
3
Component
• Secures the Duct Cable Management Panel to the
1
Mounting Ears
rack
• Keeps cables out of the way and can be removed for
2 Duct Cover
installation or upgrades
• Allows cables to be inserted and held in place
Cable Management
3
Fingers
• Available along the length on both sides
• Each corner of the Duct Cable Management Panel
4 Duct Cover Latches has a latching mechanism that keeps the Duct Cover
in place
• Allow the inserted cables to run off to the side of the
5
Cable Path
Duct Cable Management Panel
Rear View
Component
1 Pass-through Holes • Insert the cables through the Pass-through Holes
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
*Product may vary from image
Function
1
*Product may vary from image
Function
Package Contents
• Horizontal Cable Duct x 1
• Screws x 4
• Cage Nuts x 4
• Washers x 4
4
• Quick-Start Guide x 1
Requirements
5 For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
• Phillips head screwdriver
• Cage nut tool (Optional)
Installation
1. Determine the U Height Number or Mounting Location on the Posts of the rack
where to install the Duct Cable Management Panel.
2. Install the Cage Nuts (x 4) onto the Cage Nut Holes on the chosen U Height
Number. Use a Cage Nut Tool if available or your preferred installation method.
3. Align the Mounting Ears with the previously inserted Cage Nuts on the rack posts.
4. Insert the Washers (x 4) onto the Screws (x 4). Use a Phillips Head Screwdriver
to install the Screws (x 4) and fasten the Duct Cable Management Panel to the
Mounting Posts of the rack.
Operation
1. Insert the cables through the Cable Management Fingers and the Pass-through
Holes at the rear. Organize as desired.
2. Latch and secure the Duct Cover using the four Duct Cover Latches.
www.StarTech.com/CMDUCT1UX
Quick-Start Guide
Manual Revision: February 15, 2023 7:09 PM
