Summary of Contents for StarTech.com H2M1AS2-MONITOR-ARM

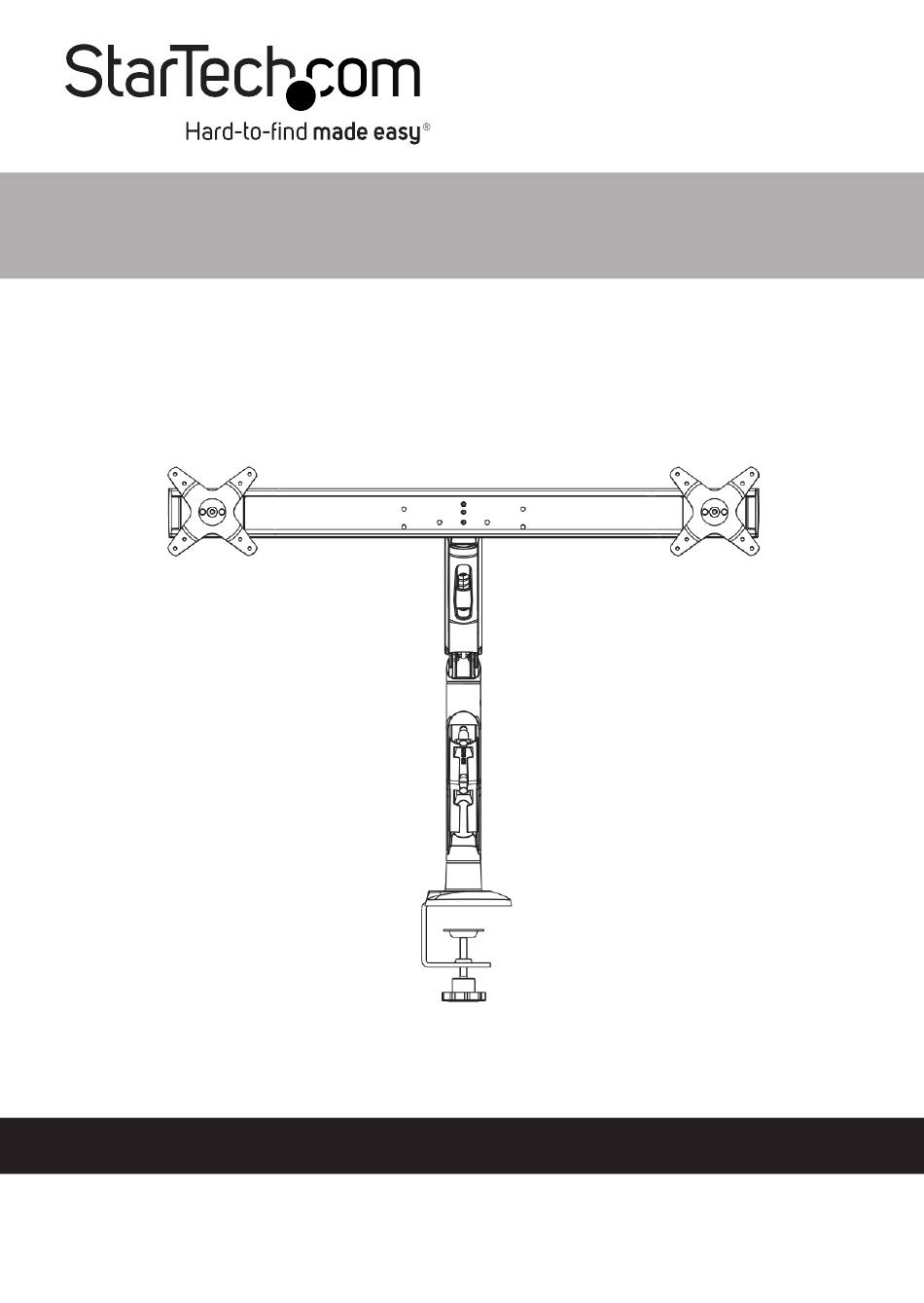

Page 1 Height Adjustable Dual Monitor Mount - Crossbar Design - Up to 27” Monitors Full-Product Manual H2M1AS2-MONITOR-ARM Actual products may vary from photos For the latest information and specifications visit www.StarTech.com/support Manual Revision: 02/12/2025...
Page 2: Safety Statements
安全対策 • • 製品の設置やマウントは、使用地域の安全ガイドラインおよび建築基準に従い、有資格の専門業者が行うようにしてください。 Misure di sicurezza • L ’installazione e/o il montaggio dei prodotti devono essere eseguiti da un tecnico professionale certificato che conosca le linee guida locali sulle norme edilizie e sulla sicurezza. Medidas de seguridad • La instalación y/o montaje del producto debe ser realizada por un profesional certificado de acuerdo con las directrices de los códigos locales de seguridad y construcción. Sicherheitsmaßnahmen • Die Installation und/oder Montage des Produkts sollte von einem zertifizierten Fachmann gemäß den örtlichen Sicherheits- und Bauvorschriften durchgeführt werden. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 3: Warning Statements
• Pinch hazards! Keep hands away from any pinch points created by the mechanical components when lowering or raising the display. Failure to do so may result in serious personal injury. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 4 • Risques de pincement ! Gardez les mains à l’écart de tout point de pincement créé par les composants mécaniques lorsque vous abaissez ou relevez l’écran. Le non-respect de cette consigne peut entraîner des blessures corporelles graves. To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 5 Waarschuwingen • StarTech.com Ltd. is niet verantwoordelijk voor materiële schade en/of persoonlijk letsel als gevolg van de in dit technische document beschreven installatieprocedures. • Monteer dit product volgens de instructies. Lees de gehele handleiding en zorg ervoor dat u de instructies volledig begrijpt voordat u dit product monteert en/of gebruikt.
Page 6 • 本製品に機器を追加する前に、本製品が適切に組み立てられていること、および本製品が追加した機器の重量を支えることができることを確認してくださ。 • 本製品を調整する前に、すべての機器が適切に固定されていることを確認してください。 • バネの弾性反動に注意！本製品にはスプリング機構が搭載されており、作動させるとアセンブリ部品やディスプレイが反動で上方向に大きく動く場合があります。スプリングアームを取り扱う際、またはスプリングアームに近接する際は、十分に注意を払ってください。。 • 挟まれ注意！ディスプレイを下げたり上げたりするときには、機械部品に挟まれる可能性がある部分に手を近づけないでください。重傷を負う可能性があります。 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 7 Dichiarazioni di avvertenza • StarTech.com Ltd. non è responsabile per eventuali danni a cose e/o persone derivanti dalle procedure di installazione descritte in questo documento tecnico. • Assemblare il prodotto seguendo le istruzioni. Prima di assemblare e/o utilizzare il prodotto, leggere l’intero manuale e assicurarsi che le istruzioni siano state comprese appieno.
Page 8: Advertencias De Uso
Advertencias de uso • StarTech.com Ltd. no se responsabiliza de los daños materiales y/o personales derivados de los procedimientos de instalación descritos en este documento técnico. • Monte este producto siguiendo las instrucciones. Lea todo el manual y asegúrese de que las instrucciones se entienden completamente antes de montar y/o utilizar este producto.
Page 9 Warnhinweise • StarTech.com Ltd. ist nicht verantwortlich für Sach- und/oder Personenschäden, die durch die in diesem technischen Dokument beschriebenen Installationsverfahren entstehen. • Bauen Sie dieses Produkt gemäß der Anleitung zusammen. Lesen Sie das gesamte Handbuch und stellen Sie sicher, dass Sie die Anweisungen vollständig verstanden haben, bevor Sie dieses Produkt zusammenbauen...
Page 10: Table Of Contents
Table of Contents Safety Statements ..................2 Warning Statements ................3 Requirements ..................11 Package Contents...................11 Product Diagrams ..................13 Assembly ....................16 1. Desk Clamp Assembly......................... 16 2. VESA Mount Assembly and Monitor Installation ..............17 3. Cable Management ..........................18 4. Motion Tension Adjustments ......................19...
Page 11: Requirements
Compatible VESA mounting hole pattern of 75 x 75 or 100 x 100 mm • Display size up to 27” • Package Contents Monitor Arm Base EVA Cushion VESA Mount To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 12 M4 VESA Mount Screws Cable Management Clip M3 Hex Key M6 Hex Key Crossbar with End Caps M6x12mm Screws M6 Cap Nuts Grab-Handle Instruction Manual To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 13: Product Diagrams
Product Diagrams Component Desk Clamp Base Swivel Arm Spring Arm Monitor VESA Mounts Cable Management...
Page 14 Top View Front View...
Page 15 Side View...
Page 16: Assembly
Failure to do so may result in serious personal injury. Do not over-tighten the screws. If any resistance is encountered, stop tightening. 1. Desk Clamp Assembly Figure 1 Figure 2 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 17: Vesa Mount Assembly And Monitor Installation
Always assess the assembly’s stability, with the aid of a second person, during and after the initial display mounting and whenever adjustments are made. Figure 3 Figure 4 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 18: Cable Management
3. Cable Management Figure 5 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 19: Motion Tension Adjustments
Use the M3 Hex Key (F) to adjust, but not remove, the tension • adjustment screws located on the VESA mount and at the arms’ joints. Figure 6 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
Page 20 Move the spring arm to the highest position and use the M6 • Hex Key (G) to adjust the tension screw located behind the post at the top of the monitor arm. Figure 7 To view manuals, videos, drivers, downloads, technical drawings, and more visit www.StarTech.com/support...
