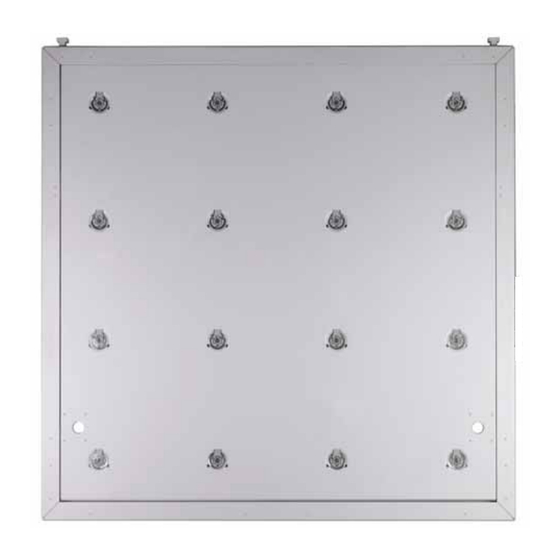

Martin EvenLED RGB LED Panel User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EvenLED
TM
RGB LED Panel
User Manual

Advertisement

Table of Contents
loading

Related Manuals for Martin EvenLED RGB LED Panel

Summary of Contents for Martin EvenLED RGB LED Panel

  • Page 1 EvenLED RGB LED Panel User Manual...

  • Page 2: Dimensions

    The Martin logo, the Martin name and all other trademarks in this document pertaining to services or products by Martin Professional A/S or its affiliates and subsidiaries are trademarks owned or licensed by Martin Professional A/S or its affiliates or subsidiaries.

  • Page 3: Safety Information

    If you have questions about how to operate the EvenLED safely, please contact your Martin dealer or call the Martin 24-hour service hotline on +45 8740 0000, or in the USA on 1-888-tech-180.
  • Page 4 • Do not operate the EvenLED if the ambient temperature (Ta) exceeds 40° C (104° F). • Do not modify the EvenLED in any way not described in this manual or install other than genuine Martin parts. Do not stick filters, masks or other materials directly onto LEDs. Use only Martin-approved accessories to mask or modify the light beam.

  • Page 5: Table Of Contents

    Contents Dimensions ............... . 2 Safety Information .

  • Page 6: Introduction

    Denmark Unpacking The EvenLED is supplied with this user manual. This manual is also available for download from the Martin website at www.martin.com. As soon as you remove the product from its packaging, remove the foam inserts from the corners of the product and remove the cardboard strips that are wedged between the mounting frame and panel for protection during shipment.

  • Page 7: Physical Installation

    EvenLED. Installation must be carried out by qualified professionals only. Contact your Martin supplier for assistance if you have any questions about how to install this product safely.

  • Page 8: Assembly And Mounting

    Assembly and mounting Assembling the panel and frame To assemble the EvenLED panel and frame: Panel locks Figure 1: Panel mounts 1. See Figure 1. Slide the panel mounts (11) into the panel mounting slits (8). 2. Retract the panel locks (12) by pushing them towards the centre of the panel. 3.
  • Page 9 6. Insert the frame mount T-hooks (7 in Figure 3) into the frame lock holes (5 in Figure 2). 7. Slide the frame mount locking knobs (4 in Figure 2) fully out from the center towards the ends of the hanging bracket and tighten them.
  • Page 10 4. See Figure 6. Attach one end of the safety wire through both the top handle (14 in Figure 3) on the first frame and the already mounted safety wire. Attach the other end of the safety wire through the top handle (14 in Figure 3) of the second frame to secure it below the first frame.

  • Page 11: Planning The Dmx Control System

    We will also assume that commands from the DMX controller to the first EvenLED panel on the DMX link are sent on channels 1 - 96 (other channels can be used if a Martin DMX Thief™ is connected on the control data link).

  • Page 12: Cable And Link Layout Details

    32 devices or split it into two or more branches. • Terminate each chain on the link with a 120 ohm resistor (available from Martin, P/N 04150308) across the data hot (+) and cold (-) conductors (pins 2 and 3 on a 5-pin XLR connector) at the output of the last panel on the chain.

  • Page 13: System Layouts

    System layouts Figure 8 gives examples of how systems can be laid out depending on the type of control required. Note the different results of connecting to DMX THROUGH or to DMX OUT. Panels are set to 16-bit mode in all the examples.

  • Page 14: Connecting The System

    Connecting the system Connectors – overview Figure 9: Connections See Figure 9. The EvenLED panel must be connected to power and to a DMX control data link using the following connectors: DMX connectors (5-pin XLR) • DMX IN accepts a DMX 512 control signal. It reads DMX commands sent to the first incoming DMX address and assigns that as the starting address for the EvenLED panel.

  • Page 15: Ac Power

    Warning! Connect EvenLED panels to AC power and to each other using the 20 A rated, UL-listed, 12 AWG cables supplied by Martin as accessories for this product. Replacement power cables from other sources can be used as an alternative, but they must be 3-conductor SJT or better jacket-type, approved for a current of 20 A and temperature of 90°...

  • Page 16: Connecting To Power

    Table 1: Conductor identification If you choose not to use the EvenLED power cables available from Martin, you must use power cable that is rated 20 A minimum and suitable for the installation environment, SJT or better jacket type, and rated to 90°...

  • Page 17: Current Overload Safety

    Disconnect the panel from power and contact your Martin supplier for assistance. If the current overload protection circuit fails, a 6.3 amp fast-blow fuse in the PSU provides a final total protection.

  • Page 18: Making Data Connections

    • Pins 7 (White/brown) and 8 (Brown): Common Pins 3 and 6 are available for Data 2 connections in DMX 512-A or similar systems. They must be wired as follows: • Pin 3 (White/green): Available for Data 2 hot (+) Pin 1 Pin 8 •...

  • Page 19: Operation

    Each LED is controlled as shown in "DMX protocols" on page LED mapping can be reconfigured – and LEDs can be controlled in groups – using the Martin DMX Thief accessory (see “Using DMX Thief™” on page 23). Figure 12: LED mapping...

  • Page 20: Dmx Protocols

    DMX protocols The tables below give control details for each individual LED in the EvenLED panel. 16-bit control Start code = 0 Channel Value Percent Function → 0 - 255 0 - 100% Intensity 0 100% Red (fine) 0 - 255 0 - 100% Fine adjustment Green...

  • Page 21: Configuring Panels Using A Dmx Controller

    • EvenLED panels must be interconnected using DMX THROUGH connectors. The DMX OUT connectors do not relay mode-setting data. • Any Martin DMX Thief™ devices on the DMX link must be bypassed temporarily by disconnecting the DMX cable connectors from their DMX IN and DMX OUT sockets and connecting the DMX cable connectors directly together.

  • Page 22: Mode-Setting Procedure

    Mode-setting procedure To set the modes in EvenLED panels: 1. Power all panels off. 2. See Table 2. Set the controller to send the ‘panel configuration enable’ DMX values in Step 1. 3. Power panels on. When panels receive the ‘panel configuration enable’ values at power on, they will display their software versions and their mode settings in an alternating sequence until they receive the DMX values for Step 2 from the DMX controller.

  • Page 23: Mode-Setting Dmx Sequence

    • Panel control Y-axis inversion so that LEDs are numbered from the top of the panel. • 8- or 16-bit mode DMX output and input configurations See the user manual supplied with the DMX Thief and available for download from www.martin.com for full details.

  • Page 24: Service And Maintenance

    Please contact your Martin supplier for details. It is Martin policy to apply the strictest possible calibration procedures and use the best quality materials available to ensure optimum performance and the longest possible component lifetimes. However, LEDs are subject to wear and tear over the life of the product, resulting in gradual changes in color and overall brightness over many thousands of hours of use.

  • Page 25: Troubleshooting

    Troubleshooting Problem Probable cause(s) Remedy No power to panel. Check power and connections. Isolate panel from power. Contact Martin for Current overload protection circuit activated. Panel is completely dead. assistance. Fuse is not user-replaceable. Isolate panel from Fuse blown. power. Contact Martin for assistance.

  • Page 26: Specifications

    Specifications P h y s i c a l Length ..............995 mm (39.2 in.) Width .
  • Page 27 Martin RS-485 Opto-Splitter™ optically isolated 4-way RS485/DMX splitter-amplifier ..P/N 90758060 Martin LightJockey 2™ Windows Application (incl. Universal USB/DMX Interface Box) ..P/N 90702055 O r d e r i n g I n f o r m a t i o n EvenLED™...
  • Page 28 Equipment), as amended by Directive 2003/108/EC, where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products. EvenLED user manual...
  • Page 32 • Olof Palmes Allé 18 • 8200 Aarhus N • Denmark Tel: +45 8740 0000 • Fax +45 8740 0010...
