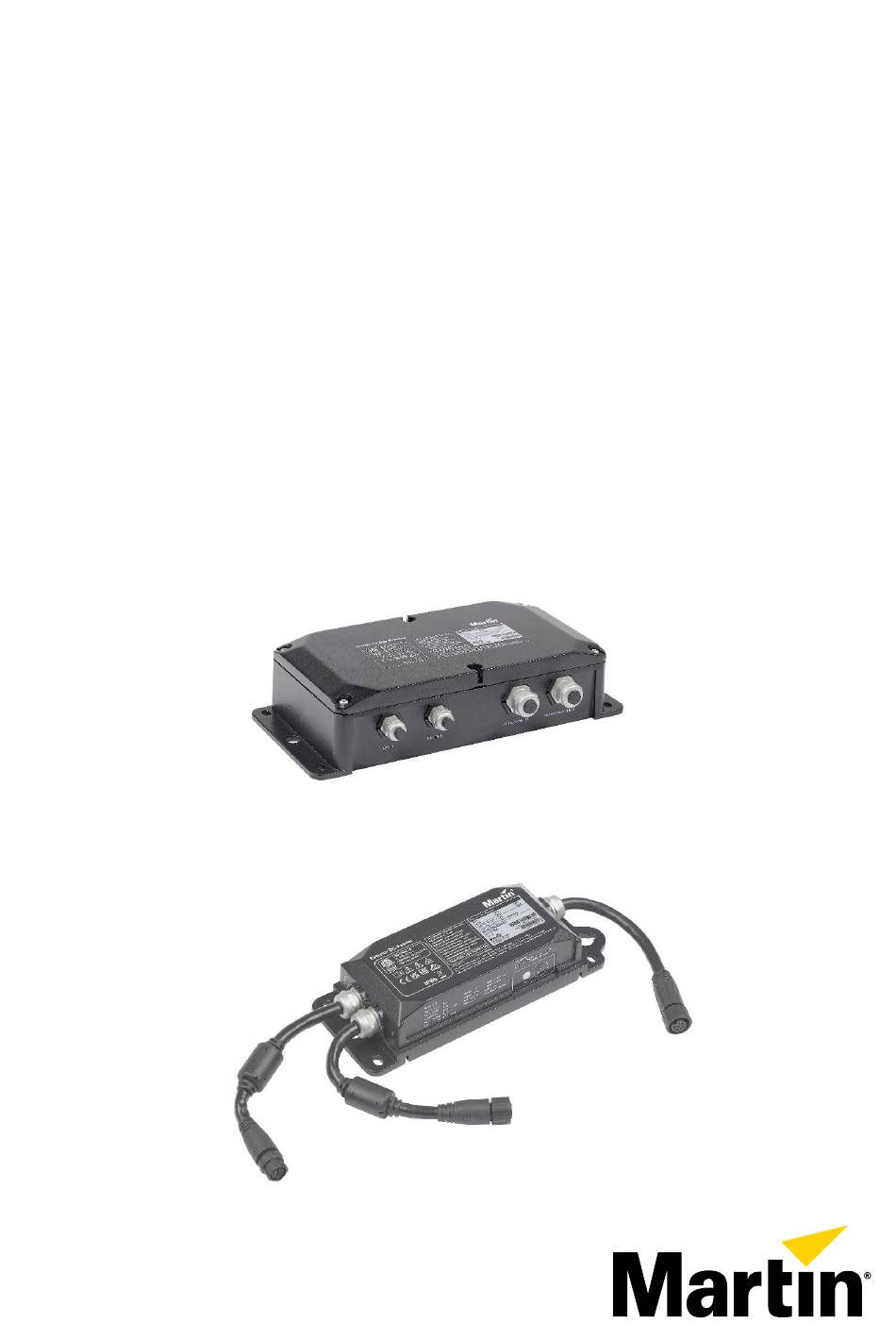

- Page 1 Exterior AC-Feeder Exterior DC-Feeder Safety, Installation and User Manual Exterior AC-Feeder Exterior DC-Feeder...
-
Page 2: Dimensions
Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries. -
Page 3: Table Of Contents
Contents Dimensions ............................2 Safety information ........................... 4 Introduction ............................7 Unpacking ..........................7 Exterior AC-Feeder ......................... 8 Overview ............................ 8 Installing ............................. 9 Power management switch ...................... 12 Exterior DC-Feeder ........................13 Overview ..........................13 Installing ........................... 13 Test/Reset button and status LED ....................14 Service and maintenance ...................... -
Page 4: Safety Information
Follow the safety precautions listed in the following section and observe all warnings in this manual and printed on the product. The latest version of this User Manual is available for download from the Martin website at www.martin.com. Before you install, operate or service the product, check the Martin website and make sure that you have the latest user documentation for the fixture. - Page 5 Check and respect the directions given in the user manuals of all the devices that you intend to connect to an Exterior AC-Feeder or Exterior DC-Feeder. Pay particular attention to the instructions and warnings that apply to: •...
- Page 6 SJTW, SJOOW or better. In the EU the cables must be type H05RN-F, H07RN-F or better. If you connect Exterior AC-Feeder devices to AC mains power in a chain that takes power from one source, respect the following limits: •...
-
Page 7: Introduction
DC power and data to Martin Exterior Dot-1/4/9 Pro lighting fixtures: • Exterior AC Feeder – accepts AC mains power at 100-120 / 200-277 V, 50 / 60 Hz and Martin P3 or DMX/RDM data. The AC-Feeder sends 15 volt DC power and data to Martin Exterior Dot-1/4/9 Pro fixtures. -
Page 8: Exterior Ac-Feeder
AC mains power input, AC mains power thru, network data input and network data thru connections are made using connectors inside the device. The hybrid (DC power and data) output connection to a daisy- chain of Martin lighting fixtures is made via a cable tail with a connector suitable for connection to Martin Exterior Dot-1/4/9 fixtures. -
Page 9: Installing
Physical installation The Exterior AC-Feeder is designed to be mounted on a flat surface in any orientation with four M6 screws or other suitable fasteners. Four holes (see I on previous page) for fasteners are provided in the flanges at the corners of the device. - Page 10 3. Tighten the compression nut on the cable gland until the mains power input cable is held tightly. To daisy-chain power to another Exterior AC-Feeder, pass the AC mains power output cable through the unused AC mains power cable gland, strip 8–9 mm (0.32–0.35 in.) of insulation from the power output cable wires and fasten the wires into the quick-connectors as described above for the power cable input wires.
- Page 11 PDE input cable tail PDE throughput cable tail The PDE cable tail set (see illustration above) available as an optional accessory from Martin lets you set up the Exterior AC-Feeder for quick connection and disconnection to AC mains power and data either alone or as an element in a daisy-chain.
-
Page 12: Power Management Switch
When you have finished making connections, reinstall the cover on the Exterior AC-Feeder as described earlier. Connecting hybrid (data and DC power) output to fixtures The Exterior AC-Feeder is supplied with a cable tail for sending data and DC power to a daisy-chain of Martin Exterior Dot-1/4/9 Pro fixtures. Power management switch The Exterior AC-Feeder features a POWER management switch on the PCB next to the network data terminals. -
Page 13: Exterior Dc-Feeder
1. Connect to a source of 48 VDC power and data via one of the hybrid input cable tails (D in drawing above). 2. Connect 15 VDC power and data output to one or two daisy chains of Martin Exterior Dot-1/4/9 Pro fixtures via the hybrid power and data cable tail (A in drawing above). -
Page 14: Test/Reset Button And Status Led
• Green constant – P3 running. • Magenta flashing – ArtNet/sACN ready. • Magenta constant – ArtNet/sACN running. • Fast RGB cycling – Test patterns running. • Yellow constant –Overtemperature protection. ® Martin Exterior AC-Feeder and Exterior DC-Feeder Safety, Installation and User Manual... -
Page 15: Service And Maintenance
Important! Excessive dirt buildup causes overheating and will damage the product. Damage caused by inadequate cleaning is not covered by the product warranty. The user will need to clean the device periodically. other service operations must be carried out by Martin Professional or an authorized Martin service agent. -
Page 16: Compliance And Environmental
European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products ®... - Page 17 www.martin.com...
