Summary of Contents for Martin Exterior Dot-HP Pro

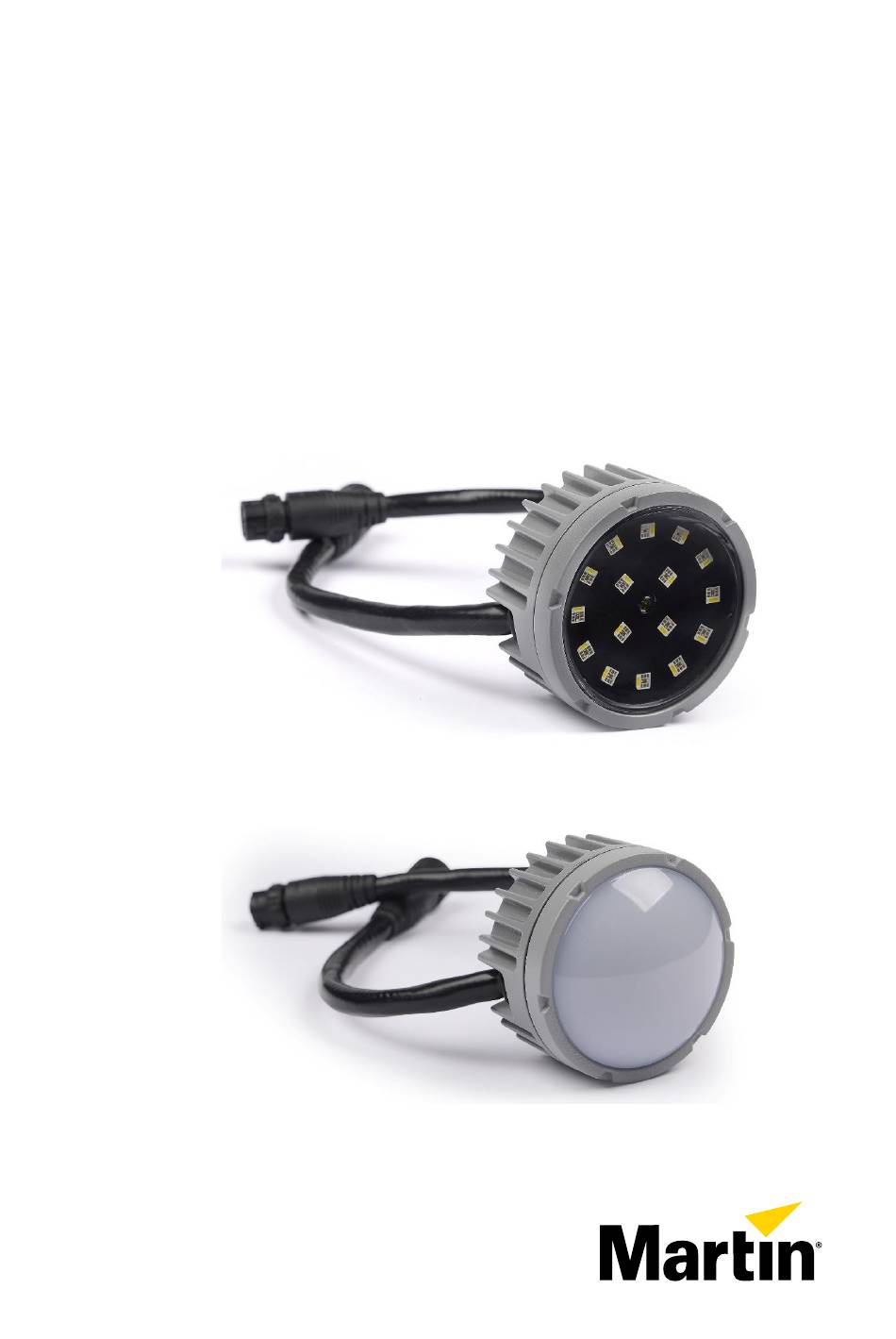

Page 1 Exterior Dot-HP Pro User manual with Safety and Installation Manual...
Page 2 Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.
Page 3: Table Of Contents
Exterior Dot-HP Pro ................4 Before using the product for the first time ..........4 System layout diagrams ................4 Setting up the Exterior Dot-HP Pro .............. 9 Setting up using a Martin P3 controller ........... 9 Setting up using RDM ................9 Martin Companion...................
Page 4: Introduction
User Manual. This combined User Manual plus Safety and Installation Manual is available for download from the Exterior Dot-HP Pro area of the Martin website. The User Manual contains information that is mainly of interest for lighting designers and operators, whereas the Safety and Installation Manual contains important information for all users, especially installers and technicians.
Page 5 Example layout using a P3 PowerPort 2000 ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 6 Example layout using a P3 PowerPort 500 IP Install ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 7 Example layout using a DCE PSU 240 IP ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 8 Splitting a hybrid link using a DCE Splitter/Booster IP ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 9: Setting Up The Exterior Dot-Hp Pro
Setting up using RDM If you are connected to Exterior Dot-HP Pro Dots via an Ethernet link, you can set up the Dots from a PC using any RDM-compatible controller via Art-Net. It is possible to use sACN to control Dots, but for setup you need to use RDM via Art-Net.
Page 10 DEVICE_HOURS powered on Counter, total number of power ✓ ✓ DEVICE_POWER_CYCLES cycles Counter, total number of hours ✓ ✓ LAMP_HOURS LEDs powered on ✓ SENSOR_DEFINITION Sensor description ✓ SENSOR_VALUE Sensor readout ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 11: Fixture Discovery
1. Check that the Dots are correctly connected to the RDM controller on the data link and that power is applied to all Dots. 2. Send a discovery command via RDM (Martin Companion does this automatically as soon as the cable is connected).
Page 12: Setting Up For Dmx Control
FX that run on complete Dots or on individual pixels. Setting DMX mode The Exterior Dot-HP Pro can be set to any of the following five DMX modes (see “DMX protocols” on page 23): • In Standard Mode, each Dot is controlled as one unit and uses six DMX channels.
Page 13: Dimming Curves
The POWER_LIMIT_MODE command lets you set Dots to full or half power via RDM. You can also set Dots to full or half power by moving a physical switch inside Martin P3 PowerPort 500 IP, P3 PowerPort 2000 IP and Exterior AC-Feeder devices as well as by adjusting Dot settings in Martin P3 System Controllers.
Page 14: Color Modes
Color modes The Exterior Dot-HP Pro has four color modes: Direct, Extended Gamut, Calibrated Color and Linear Video. When a Dot is set to Direct DMX control mode, it is fixed in Direct Color Mode – you cannot select a calibrated color mode.
Page 15: Status Messages
Status messages The Exterior Dot-HP Pro features a self-diagnostic system that detects any issues concerning correct operation or safety (temperature that exceeds safe level, for example) and communicates the issues as status messages or warnings. These messages can be useful in connection with service and maintenance.
Page 16: Setting Up Standalone Operation
Setting up standalone operation In standalone mode, the Exterior Dot-HP Pro can display a ‘scene’ (a color, an intensity or a dynamic FX etc.) or a ‘show’ that can contain up to twenty scenes if you use Martin Companion. Once standalone scenes have been programmed, Dots can display them without needing a control signal.
Page 17 2. Select the Dot or Dots that you want to program in the Standalone section: 3. Click on CREATE and create the first scene using the control faders. Click on ADD SCENE and continue creating scenes until your show is complete: ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 18 4. Click on SAVE to save the scenes that you have created: 5. Click on PREVIEW SCENES to see the scenes that you have created: ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 19 6. Click on STOP to stop previewing the scenes: 7. Click on RUN SHOW to run the standalone show: ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 20 Note that Martin Companion automatically assigns one Dot as the standalone host, and all the others as clients. The host fixture only tells the client Dots to “go to scene X with fade time Y”. The lighting effect that each Dot uses in a specific scene is stored inside each Dot individually.
Page 21: Operating The Exterior Dot-Hp Pro
Test sequences and fixture status The Exterior Dot-HP Pro Series Safety and Installation Manual that is included at the end of this User Manual contains information on displaying fixture status codes and running test sequences that you may find useful before starting operation.
Page 22: Pixel Layout
Pixel layout The Exterior Dot-HP Pro pixel layout is shown below: ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 23: Dmx Protocols
DMX protocols The Exterior Dot-HP Pro has five DMX control modes. Standard Mode Standard DMX Mode gives 16-bit dimming, RGB color control and White color temperature control. Default Channel Resolution Value Function Fade Value Dimmer 1, 2 16-bit Fade Closed → Open...
Page 24 Pure Red (Red LEDs only) 83-84 Pure Yellow (Red + Green LEDs only) 85-86 Pure Green (Green LEDs only) 87-88 Pure Cyan (Green + Blue LEDs only) 89-90 Pure Blue (Blue LEDs only) ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 25 Dot offset (Shift from 10 – 350 degrees) 1 - 35 Synchronized 8-bit Snap 37 - 100 No function 101 - 120 Random start 121 - 140 Random duration 141 - 255 No function ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 26: Direct Mode
0-255 100% Blue, pixel 16 8-bit Fade → 0-255 100% CTC defaults to 4000 K but can be changed using RDM. Tint defaults to neutral but can be changed using RDM. ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 27: Fx Overview
Video Output of LEDs Number of No function SloMo is average of frames to last x frames average Same effect on all Exterior Dot- HP Pros ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 28 • Predefined color Color 256 predefined Selects No function effects Looks color looks Color mask • Ignores P3 or combination Individual DMX colors control of each pixel ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 29: Fx List
Build Up/Down Step Pixels turn on/off in order without crossfade Build Up/Down Fade Pixels turn on/off in order with crossfade Pixels turn on/off in random order without Build Up/Down Random Step crossfade ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 30 Random slice of pie with crossfade Snake 1 LED Step 1 pixel running around with snap Snake 1 LED Fade 1 pixel running around with crossfade Snake 2 LED Step 2 pixels running around with snap ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 31 Gradient Fade Center 120 deg pixels Similar to Pixel mask 187, but moving over the Gradient Fade Center 165 deg pixels Nightrider Nightrider (classic red pixel chase effect) Starfield Regular Starfield Heavy Heavy ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 32 122 Overlay Radar Spin Step Radar line spinning with snap 123 Overlay Radar Spin Fader Radar line spinning with crossfade 124 Overlay Line Spin Step Diagonal line spinning with snap ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 33 Similar to Pixel mask 183, but moving over the 153 Overlay Gradient Fade 75 deg pixels Similar to Pixel mask 182, but moving over the 154 Overlay Gradient Fade 120 deg pixels ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 34 Red-Yellow variations across the LEDs with Step snap Random Red-Yellow LEDs Red-Yellow variations across the LEDs with Fade crossfade Yellow-Green variations across the LEDs (in 187 Yellow-Green LEDs Step pixel order) with snap ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 35 Red White Blue Step Full with snap Red White Blue Fade Full with crossfade Fire Pixels Water Pixels Swimming pool Pixels Pixels Hot and cold Pixels Warm and fuzzy Pixels Silver and gold Pixels ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 36 Output of LEDs is average of last x frames (DMX or P3) – the FX Speed channel sets the number of Timing 246 Video Slo-Mo frames to average … No FX ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 37 Special 251 Pixel Masks Static combination of pixels is ON No FX Value of the FX Speed channel selects between Special 254 Color Looks Static 256 predefined looks 255 No FX ® Martin Exterior Dot-Pro HP User Manual Rev. A...
Page 38 www.martin.com...
Page 39 Exterior Dot-HP Pro Safety and Installation manual XXXX XXXX...
Page 40 Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.
Page 41 Exterior Dot HP-Pro dome front without flange bracket Exterior Dot-HP Pro dome front with flange bracket All dimensions are in millimeters ® Martin Exterior Dot HP Pro Safety and Installation Manual English Rev. A...
Page 42 Exterior Dot-HP Pro mounting profile Exterior Dot-HP Pro flange bracket All dimensions are in millimeters. ® Martin Exterior Dot HP Pro Safety and Installation Manual English Rev. A...
Page 43 Mounting the device ................13 System installation ..................... 17 Testing ....................... 19 Maintenance ....................... 20 Cleaning ....................20 Pressure relief valve ................20 Specifications and compliance ................21 ® Martin Exterior Dot HP Pro Safety and Installation Manual English Rev. A...
Page 44: Safety Information
The Exterior Dot-HP Pro is suitable for mounting at any height, including less than 1.2 m (3.9 ft.) and more than 5 m (16.4 ft.) above ground or floor level. Do not operate the Exterior Dot-HP Pro at an altitude of more than 2000 m (6570 ft.) above sea level.
Page 45 Do not reapply power until repairs have been completed. The Exterior Dot-HP Pro is IP67-rated. It is suitable for use in wet locations, but do not immerse it in water or install it in a location where it may become submerged.
Page 46 Splitter/Booster IP device available from Martin. This IP66-rated device lets you split a hybrid (power/data) daisy-chain into two lines and/or extend the chain beyond the 90 m (295 ft.) limit. The Exterior Dot-HP Pro is designed to accept DC power at 48 volts from one of the following sources: •...
Page 47 Wear protective glasses when working on or near the device. Protection from injury Fasten the Exterior Dot-HP Pro securely to a fixed surface or structure when in use. The device is not portable when installed. To reduce the risk of strangulation, all flexible wiring connected to the device shall be effectively fixed to the installation surface or structure if the wiring is within arm's reach.
Page 48: Precautions To Avoid Damage
Maintaining IP67 protection The Exterior Dot-HP Pro is supplied as a sealed unit. Do not try to disassemble the product in any other way, or you will affect the product’s IP67-rated weatherproofing. This may cause the product to malfunction and lead to damage that is not covered by the product warranty.
Page 49 • Any water that reaches the base of an Exterior Dot-HP Pro device will normally drain away, so there is normally no risk of water forming a pool on a vent. However, do not install a device in any way that prevents rainwater, condensation etc.
Page 50: Introduction
Devices are supplied with a clear front or diffuser dome installed. Before installing, operating or servicing an Exterior Dot-HP Pro device, please check the Exterior Dot- HP Pro area of the Martin website at www.martin.com and make sure that you have the latest user documentation for the device.
Page 51: Physical Installation
Location Exterior Dot-HP Pro devices are intended for temporary or permanent indoor and outdoor use. With an IP67 rating, they are protected against dust, humidity and water and are able to withstand powerful water jets, but they are not submersible. Do not submerge the device and do not install it in a location where water can build up around the device or under the base of the device.
Page 52 Mounting directly on a surface To fasten an Exterior Dot-HP Pro device directly to a flat surface where you have access to the rear of the surface: 1. See illustrations above. Pre-drill holes for the cables and fasteners, taking the dimensions from the drawing above.
Page 53 Use screw plugs if necessary for a secure installation. 4. Fasten each mounting profile D securely to the surface or structure using two fasteners per profile. 5. If you are going to install the Exterior Dot-HP Pro device now, apply a small quantity of Loctite 243 to...
Page 54 To install Exterior Dot-HP Pro devices on a surface using the 320 mm and 1280 mm lengths of mounting profile available from Martin, follow the directions given above for 57 mm profiles, but note the following: • You can cut profile to custom lengths with a hacksaw or angle grinder. After cutting, remove burrs and sharp edges (with a metal file, for example).
Page 55: System Installation
5. There are two options for connecting a chain of Exterior Dot-HP Pro devices to 48 volt DC power and data.
Page 56 - the output of a third-party 48 volt DC external PSU with a suitable current rating. You can then take data from a Martin P3 System Controller and add the data together with the 48 volt DC power to the Exterior Dot-HP Pro hybrid link using a suitable Input Adapter cable available as an accessory from Martin.
Page 57: Testing
If the Dot has not been receiving a control signal via DMX (including sACN and Art-Net) or P3 but it begins to receive one, the Dot will return to normal operation immediately. Device status codes Exterior Dot-HP Pro devices indicate their status by lighting all their LEDs as follows: LED color Signal Status...
Page 58: Maintenance
Exterior Dot-HP Pro is correctly sealed. Pressure relief valves have a limited service life. They become blocked over time as the micropores in the membrane fill with particles.
Page 59: Specifications And Compliance
Specifications and compliance For product specifications, please see the Exterior Dot-HP Pro area of the Martin website at www.martin.com. FCC compliance This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
Page 60 www.martin.com...
