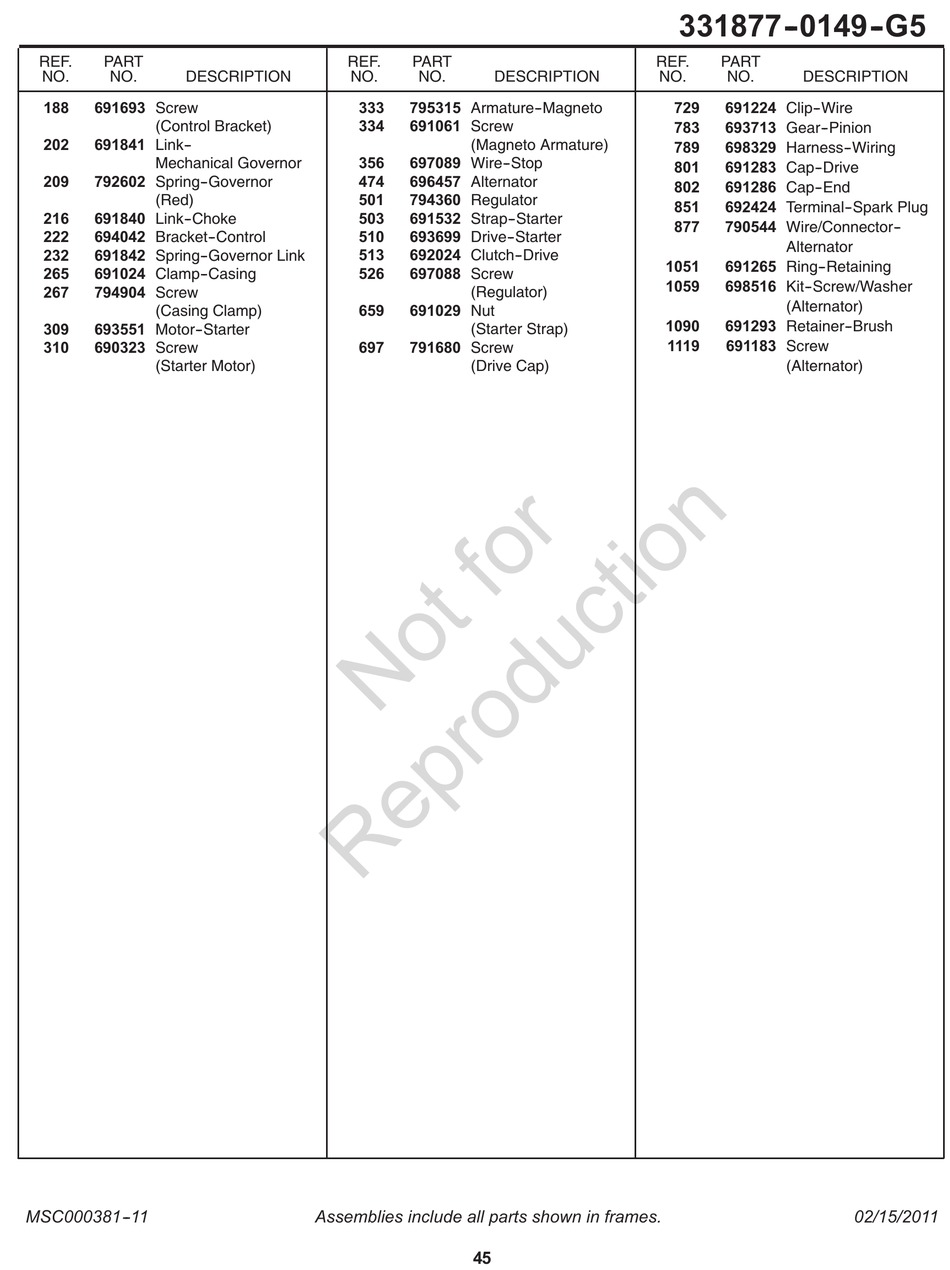

REF. PART
NO. NO. DESCRIPTION
    Screw
(Control Bracket)
   Link--
Mechanical Governor
   Spring--Governor
(Red)
   Link--Choke
   Bracket--Control
   Spring--Governor Link
   Clamp--Casing
    Screw
(Casing Clamp)
   Motor--Starter
   Screw
(Starter Motor)
MSC000381- -11
REF. PART
NO. NO. DESCRIPTION
   Armature--Magneto
   Screw
(Magneto Armature)
   Wire--Stop
   Alternator
   Regulator
   Strap--Starter
   Drive--Starter
   Clutch--Drive
   Screw
(Regulator)
   Nut
(Starter Strap)
    Screw
(Drive Cap)
Assemblies include all parts shown in frames.
45
   *
REF. PART
NO. NO. DESCRIPTION
   Clip--Wire
   Gear--Pinion
   Harness--Wiring
   Cap--Drive
   Cap--End
   Terminal--Spark Plug
   Wire/Connector--
Alternator
   Ring--Retaining
   Kit--Screw/Washer
(Alternator)
     Retainer--Brush
   Screw
(Alternator)
02/15/2011
