Central Units For Ø60 Mm Box - EGi Domos2 User Manual

40070, 40080, 40090, 40200
for
overview
The function of the DOMOS2 central units ref. 40070 and 40080 is to give
additional audio programs to a system based on a central unit for DIN rail
mounting. 40090 Central unit gives the following services: radio, clock,
intercom and surveillance (baby sitter). A system can support up to a maximum
of 4 central units for ø60 mm box (3 audio programs + 40090 central unit).
WARNING: The services that are activated/deactivated on the central unit will
affect the whole installation. Therefore, the menus displayed on the control units
will change depending on the services activated on the central units.
Each central unit for ø60 mm box (EGi ref. 40070, 40080, 40090 and 40200)
must be connected to a power supply (EGi ref. 40710, 40720 or 40730)
through the system bus. Central units for ø60 mm box allow several services
depending on the central unit model.
40070 Central unit has 1 RCA stereo audio input to connect audio sources
through 0501 or 0502 wire. It has also 1 IR output for 40110 IR transmitter
wire, which allows the remote control of the audio source (provided it is compatible
with the system) from any room with a DOMOS2 in-wall control unit, using the
remote control of the audio source (CD, DVD, audio equipment, etc.).
40080 Central unit gives a FM program with 9 presets that are stored on
the module.
central units
Ø 60mm box
40070
1 RCA AUDIO INPUT (1 AUDIO PROGRAM + IR)
40080
1 AUDIO PROGRAM + FM
40090
CLOCK + INTERCOM + SURVEILLANCE + SOS + DOOR PHONE
40200
1 USB INPUT
40090 Central unit gives additional services to your DOMOS2 installation. It provides the clock for the
installation and manages room-to-room intercom, acoustic surveillance (baby sitter) and SOS function.
40200 Central unit allows your system to play music in MP3 format thanks to its USB connector.
40070
1
2
3
Connect your audio equipment to the installation using 0502 connection wire, if your audio source has a
RCA connection, or using 0501 connection wire, if your audio source has a 3.5 mm jack output connector.
Gradually, turn the volume up on the audio source until the LED indicator for audio detection blinks.
17

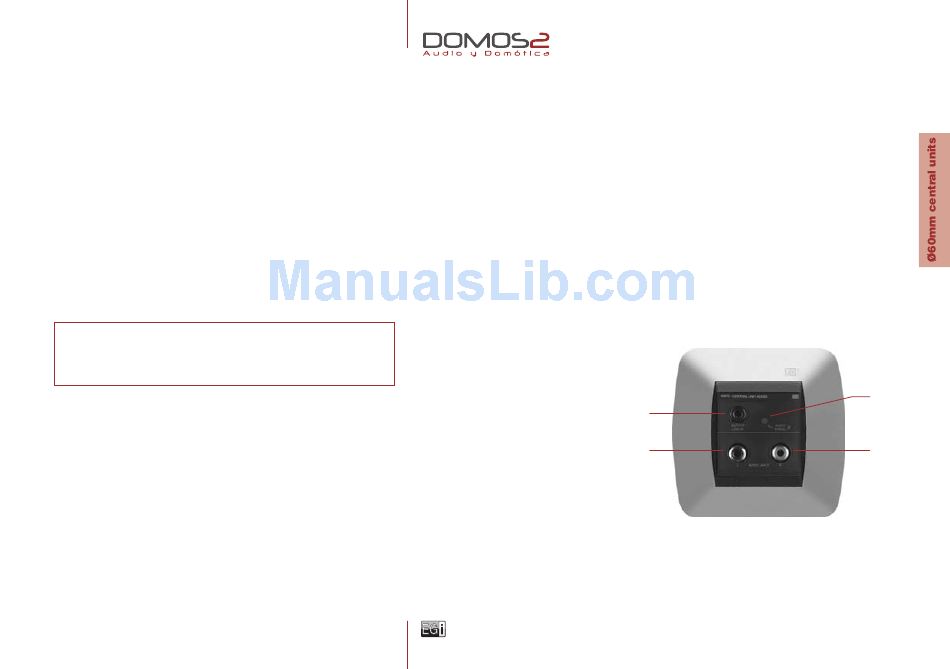

1 RCA AUDIO INPUT (1 AUDIO PROGRAM + IR)
Infrared output (IR) for 40110 IR transmitter wire.
RCA Stereo audio input.
LED Indicator for audio detection.
EGi ref. 40070
1
2
www.egiaudio.com
3
