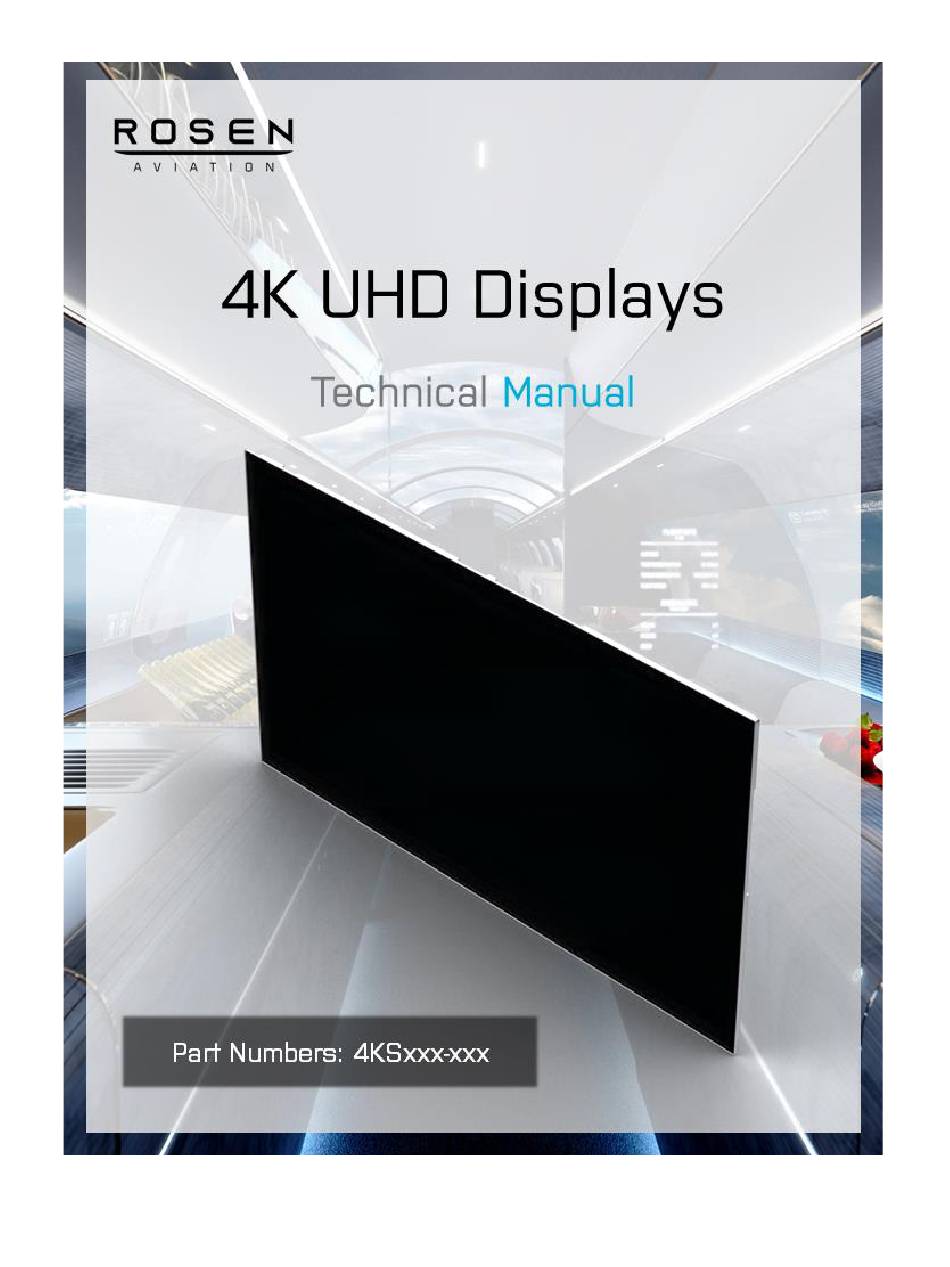

  • Page 1 Electronic Revision Controlled Document Number 111728 Rev A...
  • Page 2 © 2021 by Rosen Aviation, LLC All Rights Reserved The information contained herein is proprietary to Rosen Aviation, LLC. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form by any means without the written authorization from Rosen Aviation, LLC, except as allowed under copyright laws.

  • Page 3: Table Of Contents

    Rosen Aviation 4K UHD Monitors Contents 1. INTRODUCTION .........................4 1.1. System Overview ......................4 Control Options ......................... 4 Mating Connectors......................4 2. LRU LIST ..........................4 3. INSTALLATION GUIDELINES ...................5 3.1. Mounting Configurations ..........Error! Bookmark not defined. 3.2. Cooling and Ventilation ....................5 3.3.

  • Page 4: Introduction

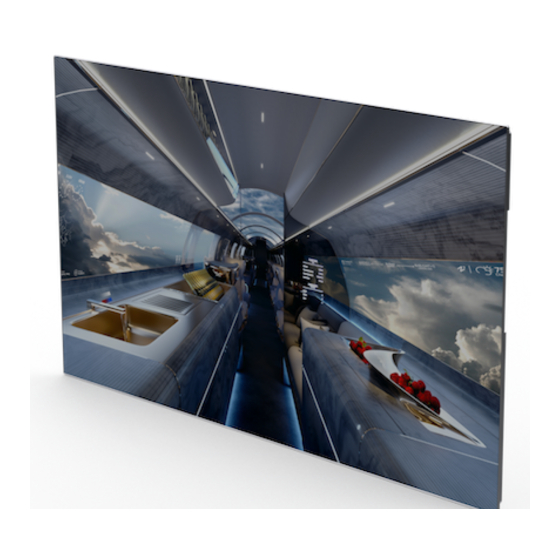

    Rosen Aviation 4K UHD Monitors 1. INTRODUCTION This manual provides installation guidance and references to all technical information required to install, service and maintain the Rosen 4K UHD Displays. 1.1. System Overview The Rosen 4K Displays offer an all-in-one design which allows several installation options. Each display can be installed in flush mount and semi-proud orientations.

  • Page 5: Installation Guidelines

    Rosen Aviation 4K UHD Monitors 3. INSTALLATION GUIDELINES 3.1. Cooling and Ventilation For venting requirements see Outline and Installation drawings. 3.2. Electrical Requirements ⚫ Operational Voltage Range 18 to 32VDC (DC models) ⚫ Operational Voltage Range 97 to 134 VAC 360 to 800 HZ (AC models) For Max Current see Outline and Installation drawing for each display size.

  • Page 6: Power Connector (J1) Pin-Out Logic And Function

    Rosen Aviation 4K UHD Monitors Power Connector (J1) Pin-out Logic and Function Table 2 Power Logic and Function for DC monitors Signal Input/output Description PRIMARY 28VDC Input Aircraft power supply PRIMARY RETURN Input Aircraft power supply SECONDARY 28VDC Input Aircraft power supply...

  • Page 7: Ethernet Connector (J3) Pin-Out Logic And Function

    Rosen Aviation 4K UHD Monitors Wi-Fi Connector (J3) Pin-out Logic and Function Table 5 Wi-Fi Logic and Function Signal Input/output Description Center Wi-Fi Input Wi-Fi input Outer Return Input Wi-Fi input No Wi-Fi on the 4KS320-004 monitor Ethernet Connector (J4) Pin-out Logic and Function...

  • Page 8: Usb (J4) Pin-Out Logic And Function

    Rosen Aviation 4K UHD Monitors Signal Input/output Description RESERVED Reserved Reserved RESERVED Reserved Reserved RESERVED Reserved Reserved RESERVED Reserved Reserved RESERVED Reserved Reserved RESERVED Reserved Reserved USB-A OTG ID Input Open = USB Debug, Ground = USB normal use USB (J5) Pin-out Logic and Function...

  • Page 9: Hdmi (J5) Pin-Out Logic And Function

    Rosen Aviation 4K UHD Monitors HDMI (J7) Pin-out Logic and Function Table 9 USB Logic and Function Signal Input/output Description TMDS Data2+ Input TMDS Data2 Shield TMDS Data2− Input TMDS Data1+ Input TMDS Data1 Shield TMDS Data1− Input TMDS Data0+...

  • Page 10: Fiber Optic (J6) Pin-Out Logic And Function

    Rosen Aviation 4K UHD Monitors Fiber optic (J8) Pin-out Logic and Function Table 10 Fiber Optic Logic and Function Signal Input/output Description Ethernet 1 RX Input RX for Ethernet 1 SDI-1 Input SDI video input 1 Ethernet 2 RX Input...

  • Page 11: Ethernet Strapping

    Rosen Aviation 4K UHD Monitors Ethernet Strapping Setting the IP Address Mode in the Technician Settings to a static IP address will enable Ethernet Strapping. The table below describes the Ethernet pinout configuration for the 4K Display when the IP Address Mode is set to 10.0.0.100. The table shows the first eight entries, but the...

  • Page 12: Pre-Installation

    Rosen Aviation 4K UHD Monitors Pre-installation ⚫ All required Rosen products are complete and available. ⚫ Aircraft geometry as well as fastener locations have been manufactured within the tolerances defined in the Rosen Outline and Installation drawings. Installation The Following equipment is necessary to complete the installation.
  • Page 13 Rosen Aviation 4K UHD Monitors 4.1. OSD MAIN MENU Video Settings Reset video settings: use to reset to factory settings Aspect Ratio: the Following are available 1 Normal - scale the video image horizontally to fit the width of the screen 2 Full screen- scale video horizontally &...
  • Page 14 Rosen Aviation 4K UHD Monitors About Device: Gives user Information about the monitor Reboot: Reboots the device so you don’t need to pull power Legal and regulatory: FCC info and rules Technical settings To protect the display from accidental or unintentional adjustments, the Technical Menu is accessible only with a special button combination.

  • Page 15: Troubleshooting

    BootAnimations (Supports Android-style .zip formats) Once the media files are appropriately organized, plug the USB drive into a monitor and follow on screen instructions. Files can also be transferred via network update, contact Rosen Aviation for additional information. 5.1. Troubleshooting...
  • Page 16 Rosen Aviation 4K UHD Monitors Description Section Category Comments Temperature and Altitude Ground Survival/Short-Time Operating 4.5.1 Low Temp Operating Low Temperature 4.5.2 Ground Survival/Short-Time Operating 4.5.3 High Temp Operating High Temperature 4.5.4 – In-Flight Loss of Cooling 4.5.5 Not Applicable Altitude 4.6.1...
  • Page 17 Rosen Aviation 4K UHD Monitors Description Section Category Comments Engine Starting Under Voltage Operation 16.6.1.5 (DC) Abnormal Operating Conditions 16.6.2 Voltage Steady State (DC) 16.6.2.1 – Low Voltage Conditions 16.6.2.2 Momentary Under Voltage (DC) 16.6.2.3 Abnormal Surge Voltage (DC) 16.6.2.4 Inrush Current 16.7.5...

  • Page 18: Supported Video Specifications

    Rosen Aviation 4K UHD Monitors 5.4. Supported Video Specifications 3G-SDI Resolutions 480i/29.97 576i/25 720p/50, 720p/59.94, 720p/60 1080i/25, 1080i/29.97, 1080i/30 1080p/23.97, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30, 1080p/50, 1080p/59.94, 1080p/60 3G-SDI 4K UHD Resolutions 3840x2160/23.97, 3840x2160/24, 3840x2160/25, 3840x2160/29.97, 3840x2160/30, 3840x2160/50, 3840x2160/59.94, 3840x2160/60 HDMI resolutions 480i/29.97, 480i/30...

  • Page 19: Definitions

    Rosen Aviation 4K UHD Monitors 6. DEFINITIONS 3G-SDI Newer, high-definition serial digital interface with a single 2.970 Gbit/s serial link LRU Line Replaceable Unit LCD Liquid Crystal Display P/N Part Number RS-232 Standard for serial data communication lines VDC Volts direct current 7.
