Receiver
Modules 4-6
XLR Audio Output
Jack (Receiver 6)
XLR Audio Output
Jack (Receiver 5)
XLR Audio Output
Jack (Receiver 4)

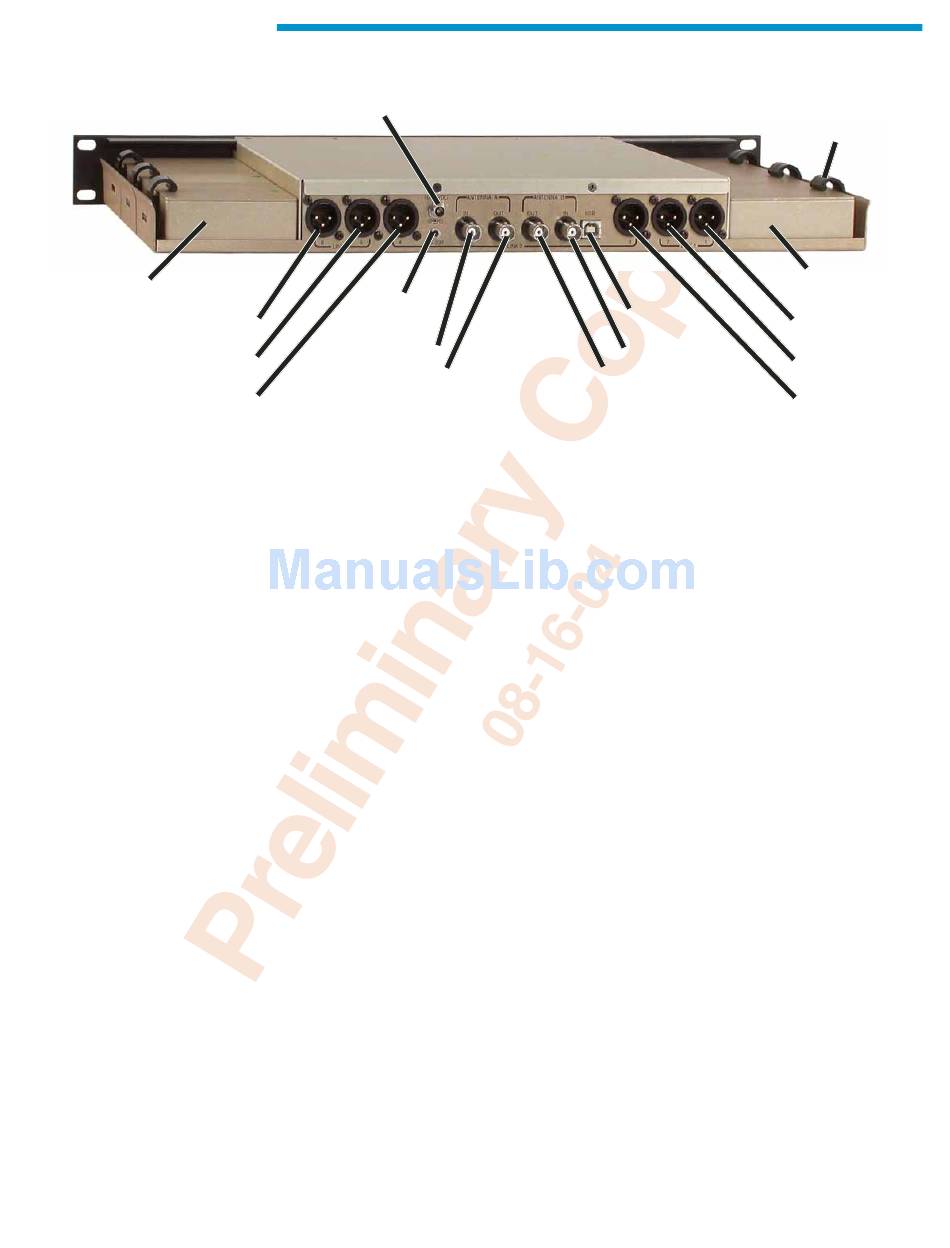

Rear Panel Features

The rear panel provides six balanced XLR audio outputs,
two 50 Ohm BNC antenna inputs, two 50 Ohm BNC
antenna outputs from an internal multicoupler, a power
jack with a locking connector, and USB and RS-232 serial
ports.

Power Input Jack

The power input jack accepts +10 VDC to +18 VDC
(center pin is positive and sleeve is ground). The input is
diode protected to prevent damage if the power is
accidentally applied with reversed polarity. The unit will
not operate until the correct polarity is restored.

Receiver Modules

Up to six receiver modules in two rows of three can be
installed in each VRM. Spring loaded Receiver Module
Retainer Clips ensure module connections are main-
tained during transport and installation.

XLR Audio Output Jacks

Six balanced audio output jacks using standard XLR
connectors are provided to connect the Venue System to
external equipment. The default value for receiver audio
output is "in phase" in regard to the audio signal from the
transmitter. This can be reversed using the Phase
Setup Screen. (See VR Menu Functions, Phase.)
Rear Panel
Power Input Jack
RS-232
Port
Antenna (A) Input
Antenna (A) Output
Rio Rancho, NM – USA
Modular Digital Hybrid Wireless

USB Port

Antenna (B) Input
Antenna (B) Output

RS-232 Port

A serial RS-232 interface is provided for setup and
control of the Venue System from computers or other
devices using industry standard RS-232 communication
links.

Antenna Input Jacks

Two BNC input connectors are provided for right-angle
whip antennas, cables from remote antennas, or cables
from another VRM. An internal mulitcoupler ensures the
RF is applied equally to all installed Receiver Modules
and also to the Antenna Output Jacks.

Antenna Output Jacks

Two pairs of 50 Ohm BNC output jacks provide zero-gain
antenna "loop-throughs" for an additional receivers,
allowing convenient expansion without the need for an
external RF multicoupler or additional antenna systems.
Venue Systems can be looped together successfully only when they
cover the same frequency block range. Units outside of the
frequency block range will experience substantial signal loss and
very short operating range.
USB Port
Standard USB Version 1.1 connector for setup and
control of the VRM from computer systems (Windows
2000 or XP only) with a USB interface.
™
Reeiver System
Receiver Module
Retainer Clip
Receiver
Modules 1-3
XLR Audio Output
Jack (Receiver 1)
XLR Audio Output
Jack (Receiver 2)
XLR Audio Output
Jack (Receiver 3)
Note
®
7
