UCR401

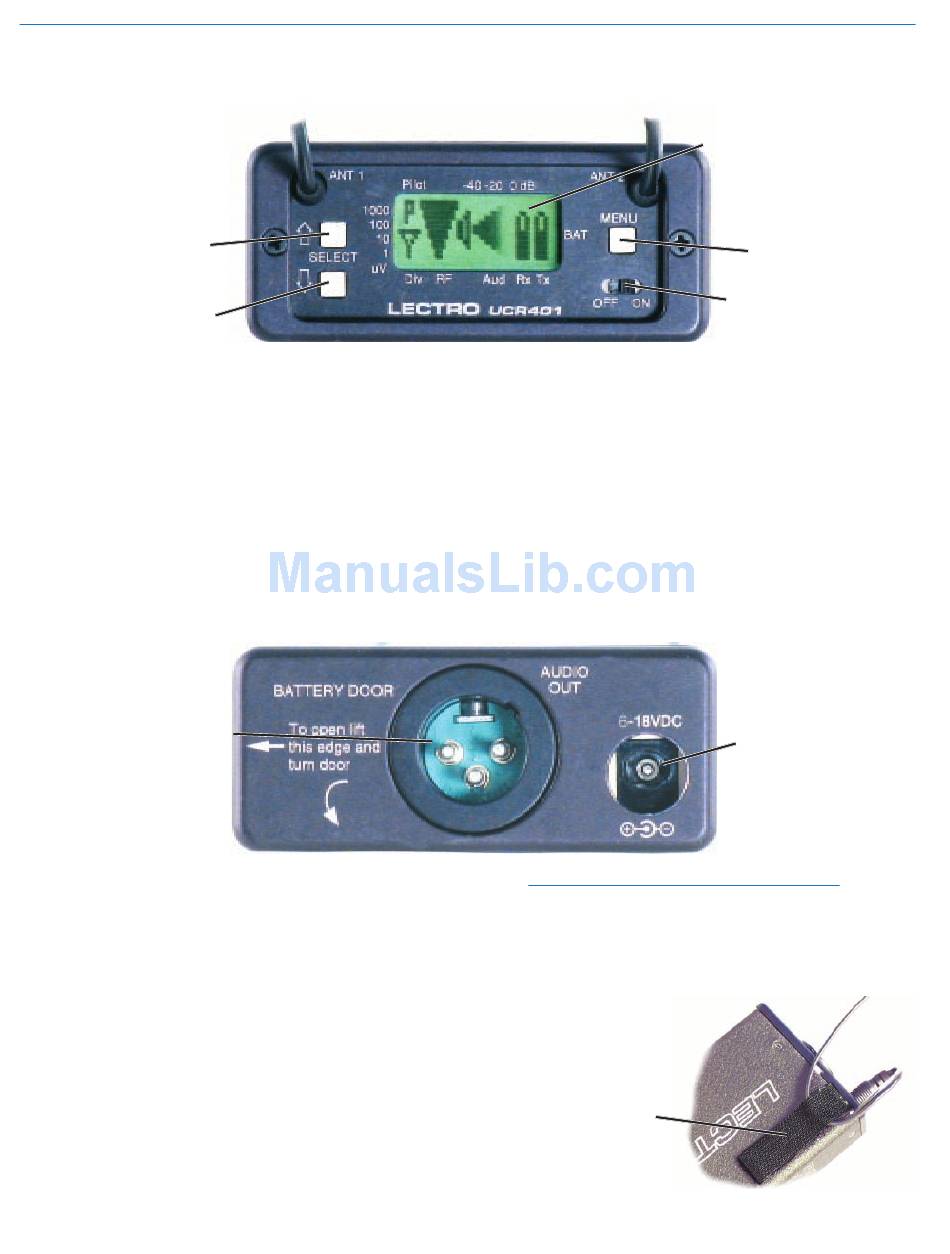

Front Panel Controls and Functions

SEL Up Button
SEL Down Button

LCD Screen

The LCD Screen is a graphics-type Liquid Crystal
Display that is used to monitor system operation and
configure the UCR401.

MENU Button

The MENU button steps through the four primary win-
dows and setup screens.

Rear Panel Features

AUDIO OUT Jack

XLR Audio Output Jack

This is a standard XLR configuration with pin 2 "posi-
tive" with reference to handheld and plug-on transmit-
ters. With lavaliere microphones and belt-pack transmit-
ters, however, phase will vary with different types of
microphones (2-wire versus 3-wire for example). The
audio output is balanced but not floating, so an unbal-
anced signal is available using pin 1 as ground and pin
2 as signal, leaving pin 3 open.

Power Input Jack

The power input jack can accept 6-18 VDC - the center
pin is positive and sleeve is ground. The input is diode
protected to prevent damage if the power is applied
with reversed polarity, but the unit will not work until the
reversed polarity condition is fixed. The jack and plug
feature twist-lock retention. The Power Input Jack will
also accommodate non-locking plugs.
10

SELECT Up/Down Buttons

The SELECT Up/Down buttons are used to select vari-
ous options within each display selection and for setting
the operating frequency of the receiver.

Power ON/OFF Switch

The Power ON/OFF switch is used to apply battery or
external power to the unit.
Note: The external power source must have its
own short-circuit protection
Strain relief to avoid accidental disconnection can
be provided with the included small hook and loop
strip. Attach the adhesive strip side to the side of
the receiver or mount with
the opening end of the
strip up - place the cable
in the strip and secure.
Velcro Strain Relief
LCD
MENU Button
Power OFF/ON Switch
Power Input Jack
