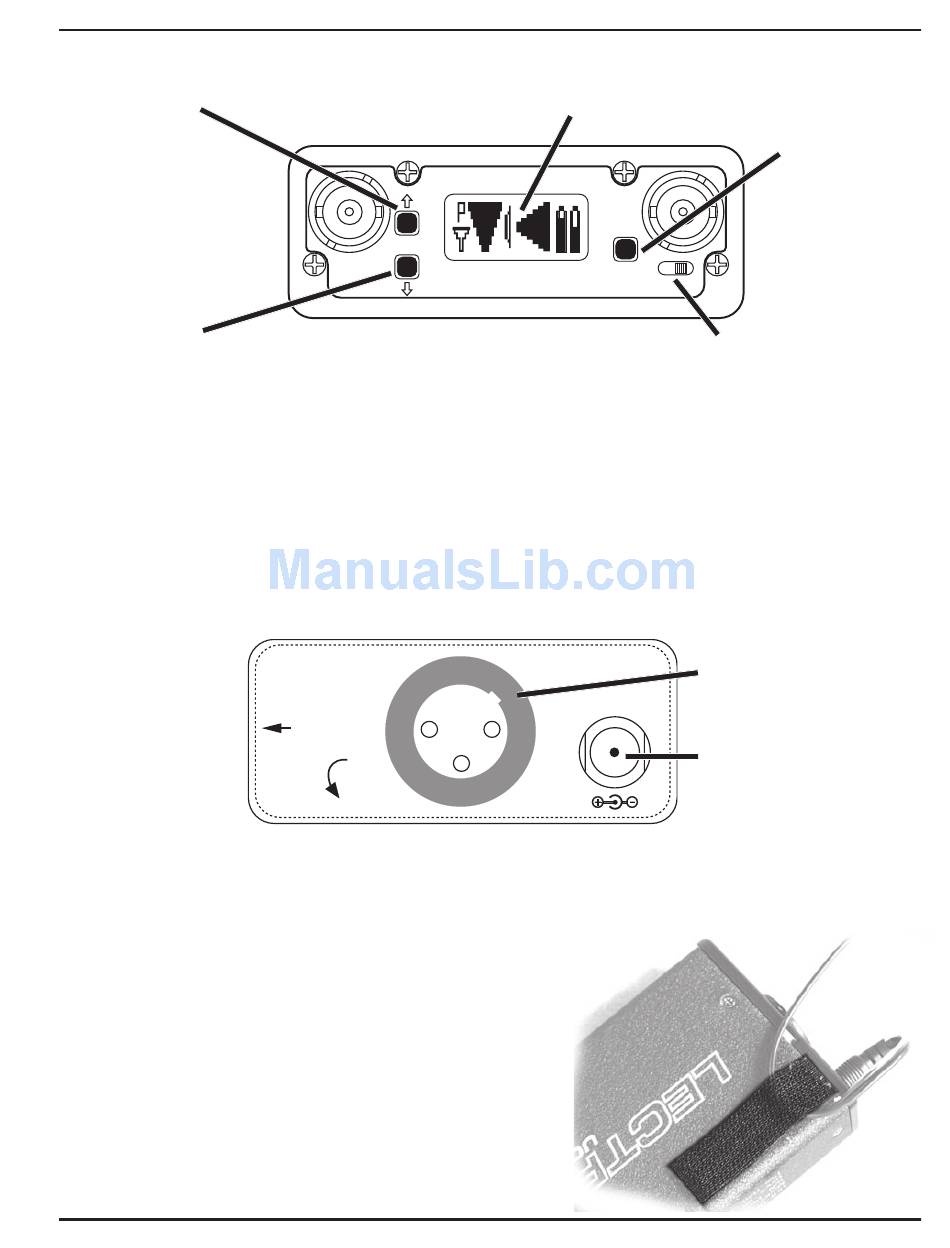

FRONT PANEL CONTROLS AND INDICATORS

SELECT Up Button - control up one
SELECT Down
Button - control
down one step

LCD SCREEN

The LCD Screen is a graphics-type Liquid Crystal
Display that is used to monitor system operation and
configure the UCR201.

MENU BUTTON

The MENU button steps through the four primary
windows and setup screens.

XLR AUDIO OUTPUT JACK

This is a standard XLR configuration with pin 2 "positive"
with reference to hand-held and plug-on transmitters.
With lavalier microphones and belt-pack transmitters,
however, phase will vary with different types of micro-
phones (2-wire vs. 3-wire for example). The audio output
is balanced but not floating, so an unbalanced signal is
available using pin 1 as ground and pin 2 as signal,
leaving pin 3 open.

POWER INPUT JACK

The power input jack can accept 10-18 VDC - the center
pin is positive and sleeve is ground. The input is diode
protected to prevent damage if the power is applied with
reversed polarity, but the unit will not work until the
reversed polarity condition is fixed. Strain relief to avoid
accidental disconnection can be provided with the
included small hook and loop strip. Attach the adhesive
step
1
Pilot
1000
100
10
SEL
1
uV
Div RF
LECTRO

REAR PANEL FEATURES

BATTERY DOOR
1
To open lift
this edge and
turn door
3
Rio Rancho, NM – USA
LCD
2
-40 -20 0 dB
BAT
Aud Rx Tx
MENU
OFF
UCR 2 1 1

SELECT UP/DOWN BUTTONS

The SELECT Up/Down buttons are used to select
various options within each display selection and for
setting the operating frequency of the receiver.

POWER ON/OFF SWITCH

The Power ON/OFF switch is used to applied battery or
external power to the unit.
AUDIO
OUT
10-18VDC
2
strip side to the side of the receiver or mount with the
opening end of the strip up - place the cable in the strip
and secure.
