Venue Receiver-Quick Start Guide
3. Repeat steps 2 and 3 for the remaining
receiver module pairs to be set to switched
diversity operation.

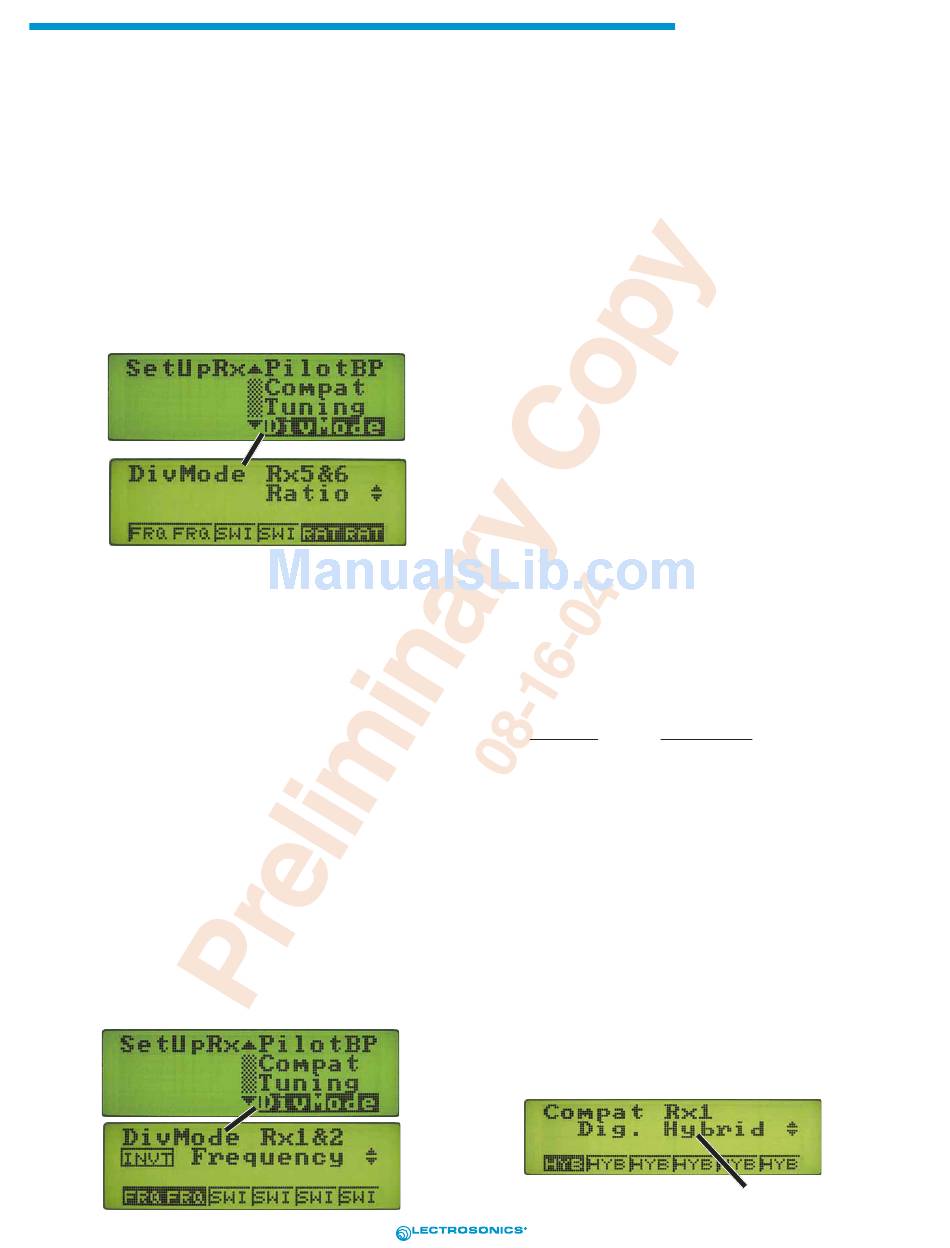

OptiBlend (Ratio Diversity) Setup

1. To set a receiver module pair for OptiBlend
(ratio diversity) operation, navigate to the
DivMode Setup Screen.
2. Press the front panel Receiver Select Button
for either Receiver Module in the pair to be
used for OptiBlend diversity. (In the example,
Receiver Select button 5 or 6 was pressed.)
3. Rotate the MENU/SELECT control to display
"Ratio". The Receiver Module boxes on the
screen bottom will display "RAT" for both the
selected receiver an its compliment.
4. Repeat steps 2 and 3 for the remaining
receiver module pairs to be set to ratio
diversity operation.

Frequency Diversity Setup

Frequency Diversity differs from the other two diversity
modes in that it uses two receiver modules and two
transmitters with each receiver module/transmitter
combination operating on a different frequency. In order
for Frequency Diversity to function properly, the audio
outputs of the two transmitters must be balanced. (See
Frequency Diversity Mode Audio Balancing to properly
balance the audio output from each transmitter.)
Both transmitters must be the same model.
1. To set a receiver module pair for frequency
operation, navigate to the DivMode Setup
Screen.
12
Note
2. Press the front panel Receiver Select Button
for either Receiver Module in the pair to be
used for frequency diversity.
3. Rotate the MENU/SELECT control to display
"Frequency". The Receiver Module boxes on
the screen bottom will display "FRQ" for both
the selected receiver an its compliment.
4. Repeat steps 2 and 3 for the remaining
receiver module pairs to be set to frequency
diversity operation.
Set Compatibility Modes, Audio
Levels, etc.
This procedure assumes that the external equipment has
already been connected to the appropriate XLR Audio
Output Jacks on the VRM rear panel.
For receiver modules set to switched diversity, each
receiver module in the diversity pair is set independently
of the other member of the pair.
For receiver modules that are part of a ratio diversity or
frequency diversity pair, setting the compatibility mode,
audio levels, etc. for one member of the diversity pair,
sets the same parameter for the other member of the
diversity pair. The exception is for frequency diversity,
battery status monitoring can be set for each individual
transmitter.

Setting Compatibility Modes

Five compatibility modes are available for each receiver
module to match various transmitter types. They are:
Selection
Dig. Hybrid
Mode 3
200 Series
100 Series
IFB
The Compatibility Mode for each receiver module must
match the transmitter associated with that module.
1. To set a receiver's compatibility mode,
navigate to the Compat Setup Screen.
2. Use the Receiver Select buttons to select
Receiver Module 1.
3. Rotate the MENU/SELECT control to display
the desired Compatibility Mode. An
abbreviation for the mode selected will be
displayed in the Receiver Module box for the
selected receiver(s).
Abbreviation
HYB
M.3
200
100
IFB
Compatibility Mode
