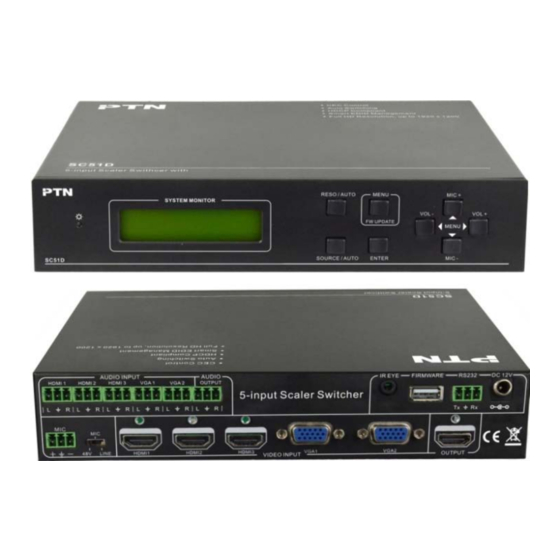

PTN SC51D User Manual

Compact scaler switcher
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Manual
SC51D
PTN Compact Scaler Switcher
All Rights Reserved
Version: SC51D_2014V1.2
www.PTN-electronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC51D and is the answer not in the manual?

Questions and answers

Related Manuals for PTN SC51D

Summary of Contents for PTN SC51D

  • Page 1 User Manual SC51D PTN Compact Scaler Switcher All Rights Reserved Version: SC51D_2014V1.2 www.PTN-electronics.com...
  • Page 2 DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com...
  • Page 3 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.

  • Page 4: Table Of Contents

    Compact Scaler Switcher Table of Contents 1. Introduction ......................... 1 1.1 Introduction to SC51D ..................1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Product Appearance ....................2 2.1 SC51D Front Panel ................... 2 2.2 SC51D Rear Panel .................... 3 3.
  • Page 5 4.5.4 Setup ..................... 23 4.6 Instructions of VGA Converting Cable ............. 24 5. Specification ......................26 6. Panel Drawing ......................27 7. Troubleshooting & Maintenance ................28 8. Safety Operation Guid e ....................2 9. After-sales Service ....................30 PTN Electronics Limited www.PTN-electronics.com...

  • Page 6: Introduction

    1. Introduction 1.1 Introduction to SC51D SC51D is a compact mini scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA audio: switched following the video; 1 MIC audio input). As the VGA input supports VGA, YPbPr and C-video, so the scaler switcher is compliant with multiple video signals.

  • Page 7: Product Appearance

     1 x Warranty Card  1 x Conformity Certificate  1 x User Manual 2. Product Appearance 2.1 SC51D Front Panel ① Power indicator Turn red when power on, turn green when in standby mode. ② LCD screen Show the real-time system working status.

  • Page 8: Sc51D Rear Panel

     MIC volume down button, press it to turn down the volume of the microphone  Use as direction button MOVE DOWN when in menus. different model and Note: Pictures shown in this manual is for reference only, specifications are subject to real product. 2.2 SC51D Rear Panel PTN Electronics Limited www.PTN-electronics.com...

  • Page 9: System Connection

    USB port, connect with USB flash disk or other storage with update file to update the system firmware. ⑤ RS232 Serial control port, 3p captive screw connector, connect with a control device (such as a computer) to control SC51D. ⑥ 12V DC Power port, connect with the 12V DC power adapter. ⑦ MIC...

  • Page 10: Connection Procedure

    SC51D with VGA cable. Step2. Connect the corresponding audio source to the corresponding AUDIO INPUT port of SC51D with audio cable accordingly. The audio of HDMI can be set as embedded or external by sending right commands. Step3. Connect a HDMI display device to HDMI output port of SC51D with HDMI cable.
  • Page 11 When switch to “LINE” (It has a low frequency characteristics, and wide frequency response in this mode), the microphone input is used for connecting with line audio or wireless microphone output. There are two different connections: PTN Electronics Limited www.PTN-electronics.com...

  • Page 12: Application

    Support auto-adjusting and manual-adjusting. Press and hold on RESO/AUTO button for 7 seconds or more to enter in auto-adjusting/manual-adjusting mode. Notice: 1. In auto-adjusting mode, SC51D will choose the resolution of the display device as the preferred resolution. PTN Electronics Limited...

  • Page 13: Switching Operations

    Once rebooting, SC51D will automatically enter in auto-switching mode, and then detect all inputs and memorize their connection status for future rebooting using. And if the signal last displayed is still available, then SC51D will output the signal. If not, there will be no signal on outputs.

  • Page 14: Software Updating

     Connect INPUT 3 with a source device, and then it will choose INPUT 3 to output.  Remove the signal of INPUT 3, SC51D will detect from INPUT 1 to INPUT 5. And when it detects that input 2 is available, it will choose INPUT 2 to output.

  • Page 15: Operations Of Ir

    Compact Scaler Switcher 4.2 Operations of IR 4.2.1 IR Remote With its CEC function, users are able to control the SC51D and source devices synchronously via one IR remote. ① Standby button To enter in/ exit standby mode. ② Input channel selection buttons INPUT 1 is for HDMI1, INPUT 2 for HDMI2…INPUT 5 for VGA2.

  • Page 16: Operations Of Cec Function

    And due to CEC function, user can control HDMI source device with basic operations (play, pause, fast forward, fast reverse, menu etc). So user is able to control SC51D and HDMI source device via the IR remote of SC51D.

  • Page 17: Installation/ Uninstallation Of Rs232 Control Software

    Compact Scaler Switcher SC51D and the RS232 port of control device (e.g. a PC). Install the RS232 control software to the control device, then users are able to control the SC51D by sending RS232 commands. Here is a operation guidance for RS232 control.
  • Page 18 Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, and then you are able to send commands in Command Sending Area. PTN Electronics Limited www.PTN-electronics.com...

  • Page 19: Rs232 Communication Commands

    MIC Unmute Mute MIC audio MIC Mute 50722% 50723% Unmute MIC audio MIC Unmute Enable Mic precedence Mic precedence: enable 50694% 50695% Disable Mic precedence Mic precedence: disable Check Mic precedence status Mic precedence: XXXX 50696% PTN Electronics Limited www.PTN-electronics.com...
  • Page 20 Change the resolution to 1280X800 Resolution: 1280x800 50628% WXGA Change the resolution to 1920X1080 Resolution: 1920x1080 50629% 1080P Change the resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA Change the resolution to1600X1200 50621% Resolution: 1600x1200 UXGA Setup Commands PTN Electronics Limited www.PTN-electronics.com...
  • Page 21 Display mute icon of MIC audio MIC Mute Icon: enable 50765% Display freeze icon Freeze Icon: enable 50766% Not display freeze icon Freeze Icon: disable 50644% Display channel status Input Icon: enable Not display channel status Input Icon: disable 50645% PTN Electronics Limited www.PTN-electronics.com...
  • Page 22 LEFT button Key: left 50610% 50611% RIGHT button Key: right UP button Key: up 50612% 50613% DOWN button Key: down 50616% MENU button (enter OSD) OSD: Enter 50618% EXIT button (exit OSD) OSD: Exit Inquire Commands PTN Electronics Limited www.PTN-electronics.com...
  • Page 23 50754% Check the panel locked status Front Panel Lock/UnLock Line Volume:XX Mic Volume:XX Display statues including MIC, LINE Source:XXXX 50783% audio, Resolution, Output Audio Resolution:XXXX on/off, Manual/ Auto-switching modes Digital Sound Ouput: XXXX Switch status: XXXX PTN Electronics Limited www.PTN-electronics.com...
  • Page 24 50905% Forward CEC cmd: fwd 50906% CEC cmd: up Down CEC cmd: down 50907% 50908% Left CEC cmd: left 50909% Right CEC cmd: right Conform command CEC cmd: select 50910% Exit command CEC cmd: exit 50911% PTN Electronics Limited www.PTN-electronics.com...

  • Page 25: Operations In Osd Menu

    4.5 Operations in OSD Menu SC51D provides a powerful OSD operation menu, contains 4 parts: optional settings, image settings, audio settings and system setting etc. Press MENU button on front panel (or MENU button on IR remote/send command 50616%) to enter in OSD menu, so it is able to do some settings through the OSD menu.
  • Page 26 3. Thirdly, switch to channel INPUT4/INPUT5 again. HDMI1 Audio Select: switch between Embedded and Line to choose the desired audio output port for HDMI1. HDMI2 Audio Select: switch between Embedded and Line to choose the desired audio output port for HDMI2. PTN Electronics Limited www.PTN-electronics.com...

  • Page 27: Picture

    HDMI3. Software Update (USB): Insert the USB flash disk with updating file to USB port of SC51D, to update the software through this menu. 4.5.2 Picture Including Picture Mode, Color Temperature, Aspect Ratio, Noise Reduction, Screen and Color Range.

  • Page 28: Sound

    Sound mode: Includes Standard, Music, Movie, Sports and User. Only User mode supports to set treble and bass. Surround Sound: Includes Off, Surround and SRS Trusurround XT. EQ: To adjust the sound balance. 4.5.4 Setup Including OSD Language, Blending, HDMI CEC and OSD Duration PTN Electronics Limited www.PTN-electronics.com...

  • Page 29: Instructions Of Vga Converting Cable

    OSD Duration: Includes 5 s, 10 s, 15 s and Off. “s” is for Second. 4.6 Instructions of VGA Converting Cable As VGA source supports YPbPr and C-video source, SC51D provides with 2 VGA converting cables to compliant with these signals.
  • Page 30 “INPUT 4 Select” to AV1, and “INPUT 5 Select” to AV2. After setting, press INPUT 4 (or INPUT 5) button to switch to AV1 (or AV2) source. B. Connecting the VGA converting cable like this: PTN Electronics Limited www.PTN-electronics.com...

  • Page 31: Specification

    C-VIDEO, YPbPr, VGA) Input Output 3P captive (3.81mm) 3P captive (3.81mm) Connector Connector Input Output >4.7kΩ 75Ω Impedance Impedance Audio General Stereo Frequency 20Hz~20K Hz Channel >80dB @1KHz Response Separation >90dB @20Hz to 20K CMRR Control Parts PTN Electronics Limited www.PTN-electronics.com...

  • Page 32: Panel Drawing

    -10 ~ +40℃ Humidity 10% ~ 90% 8W, supply power to SC51D and Power Power DC12V ± 0.5V TPHD402PR separately Supply Consumption 16W, SC51D supplies power to TPHD402PR Dimension 220x 44x 148mm Weight 0.65Kg (W*H*D) 6. Panel Drawing PTN Electronics Limited www.PTN-electronics.com...

  • Page 33: Troubleshooting & Maintenance

    Static becomes stronger Bad grounding Check the grounding and when connecting the video make sure it is connected connectors well. Cannot control the device Wrong RS232 Type in correct RS232 by control device (e.g. a communication parameters communication PTN Electronics Limited www.PTN-electronics.com...
  • Page 34 Send it to authorized by RS232 / IR remote / been broken. dealer for repairing. front panel buttons If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. PTN Electronics Limited www.PTN-electronics.com...

  • Page 35: After-Sales Service

    Compact Scaler Switcher 8. After-sales Service 1) If there appear some problems when running SC51D, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty. 2) You can email to our after-sales department or make a call, please tell us the following information about your cases.
  • Page 36 PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
