- Page 1 Scaler Switcher with Digital Amplifier USER MANUAL SC121D-TN PTN Scaler Switcher with Digital Amplifier Version: SC121D-TN2013V1.2 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
Scaler Switcher with Digital Amplifier Table of Contents 1. Introduction ....................... 1 1.1. Introduction to SC121D-TN................1 1.2. Package Contents ..................1 2. Features ........................1 3. Specification ......................2 4. Operations of the Control Panel and the Remote Controller ........3 4.1. -
Page 4: Introduction

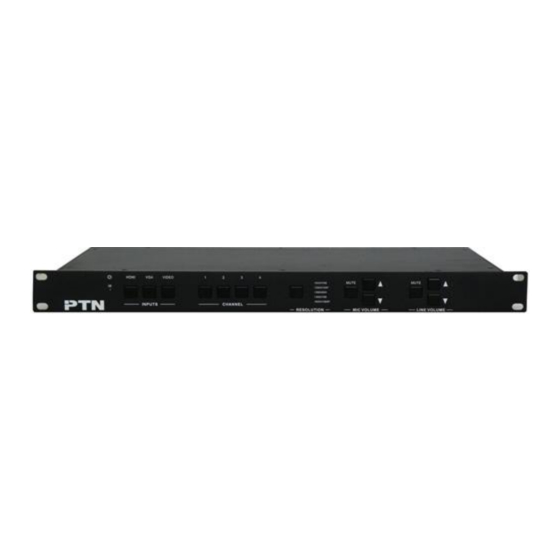

1. Introduction 1.1. Introduction to SC121D-TN SC121D-TN is a full HD scaler switcher with 12 video, 6 audio & 2 MIC inputs. It scales & switches any video signal HDMI, VGA, YPbPr, C-Video & S-video to HDBaseT, HDMI & VGA simultaneously, and any audio to 2x20W amplifier. It’s controllable via the button, IR, RS232 &... -
Page 5: Specification
6 Stereo Audio for line audio Input audio Output 2x10W@8Ω/2x20W@4 2 MIC audio Ωamplifier 4 RCA female connector for YPbPr, Input Output RCA connector C-Video & S-Video Connector Connector Amplifier connector audio 4 3.5mm jack for VGA PTN Electronics Limited www.PTN-electronics.com... -
Page 6: Operations Of The Control Panel And The Remote Controller
IR sensor. It is for IR remote controlling, receiving the signal of IR remote. ③ Signal indicating LED. ④ Video source selection buttons. You can select video/audio sources by these buttons. And VEDIO source including three different signal: YPbPr, C-Video and S-Video. ⑤ Signal channel selection buttons. PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Operations Of The Remote Controller
MENU mode. selected, including： 720P: 1280x720 1080P: 1920x1080 XGA: 1024x768 MIC volume control WXGA: 1280x800 area, can work when not in MENU mode. HD: 1360x768 PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Interfaces Connection Introduction
⑨ Connector for POWER. ⑩ Grounding protection. 5.1. Video Input/output SC121D-TN supports different kinds of video signal, such as C-Video, S-Video, YPbPr, VGA, and HDMI. And all can be scaled to high-resolution HDMI & VGA format and switched out. 5.1.1. C-Video and S-Video input ... -
Page 9: Vga Input
1024×768@75 Hz 640×480@75Hz 1280×1024@75Hz 800×600@56Hz 1360×768 800×600@60 Hz 1920×540 800×600@72 Hz 1920×1080I 800×600@75Hz 1920×1080P 1024×768@60 Hz Digital embedded audio decoding. Changeable aspect ratio (Full-screen, wide screen, 4:3, auto-adjust). Support HDCP1.3, compatible with DVI signal. PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Audio Input/Output
6. System Diagram Figure 2 System Diagram 7. OSD Functions Introduction SC121D-TN provides a nice OSD operation menu, with various functions and language. The operation introduction is showed as follows. 7.1. Picture Setting The first icon from left of OSD menu is to set the picture parameter. It includes the pictures mode preset, color temperature, contrast, brightness, hue, saturation, sharpness, scale, and Advance picture adjust. -
Page 11: Audio Setting
The Second icon from left of OSD menu is to set the audio/sound parameter. It includes the sound effect preset, bass, treble, balance, scene mode, surround and smart volume setting. Some parameters are available depending on different input. Please check the picture below: PTN Electronics Limited www.PTN-electronics.com... -
Page 12: System Setting
1) Copy the file “MT23ATV.bin” to a USB flash disk. (The “MT23ATV.bin” file is provided/authorized by PTN engineering department) 2) Plug the USB flash disk to the USB port on SC121D-TN. 3) Pressing the button “HDMI” on the front panel for 6 seconds or sending RS232 command 0698% for updating, then press the button “OK”... -
Page 13: Communication Protocol And Command Codes
Change the resolution to 1360X768 HD 1360X768 Resolution: XGA 0626% Change the resolution to 1024X768 XGA 1024X768 Resolution: 720P 0627% Change the resolution to 1280X720 720P 1280X720 0628% Change the resolution to 1280X800 WXGA Resolution: WXGA PTN Electronics Limited www.PTN-electronics.com... - Page 14 Switching to VGA1 input Source: VGA1 0706% Switching to VGA2 input Source: VGA2 0707% Switching to VGA3 input Source: VGA3 0708% Switching to VGA4 input Source: VGA4 0709% Switching to composite video AV1 input Source: CVIDEO1 PTN Electronics Limited www.PTN-electronics.com...
-
Page 15: Tcp/Ip Controlling
08XX% Preset MIC volume MIC Volume: XX 9.2. TCP/IP Controlling The TP port of SC121D-TN is used for TCP/IP control. And all the control commands are the same as the RS232 command list.Below is the detailed introduction. 9.2.1. IP Configuration 1) Connect a computer to the TP port, set its IP to the same IP section as the default IP of SC121D-TN (192.168.0.178). - Page 16 3) Enter the password “88888”, and then you can enter the configuration page to configure the IP port, including the IP reset, PW reset etc. As picture below: Notice: Serial configuration must be fixed to meet SC121D-TN, so it cannot be changed.
-
Page 17: Connection Introduction
Scaler Switcher with Digital Amplifier 9.2.2. Connection Introduction 1) Connect a computer and SC121D-TN to the same network. Open the PTNET software (or any other TCP/IP communication software) and create a connection, enter the IP address and port of SC121D-TN (default IP: 192.168.0.178,... -
Page 18: Troubleshooting & Maintenance
9) If the switcher cannot be controlled by the buttons on the front panel, RS232 port or IR remote, the switcher may have broken. Please send it to the dealer for repairing. PTN Electronics Limited www.PTN-electronics.com... -
Page 19: Safety Operation Guide
DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 20: After-Sales Service
Scaler Switcher with Digital Amplifier 12. After-sales Service 1) If there appear some problems when running SC121D-TN, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty.
