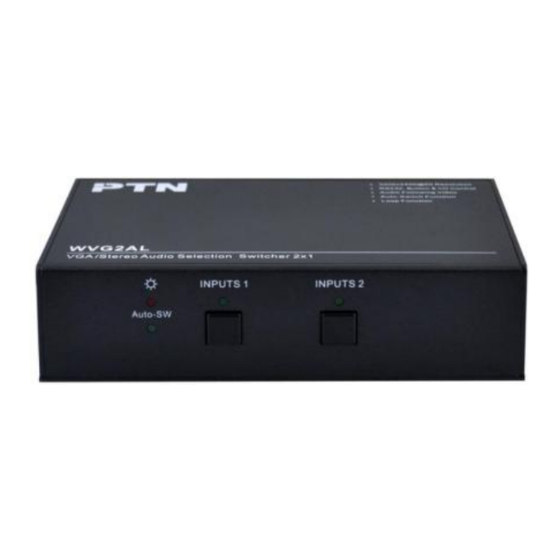

- Page 1 VGA/Stereo Audio Selection Switcher 2x1 USER MANUAL WVG2AL PTN VGA/Stereo Audio Selection Switcher 2x1 Version: WVG2AL2013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
VGA/Stereo Audio Selection Switcher 2x1 Table of Contents 1. Introduction ....................... 1 1.1. Introduction to WVG2AL ................1 1.2. Package Contents ..................1 2. Features ........................1 3. Specification ......................1 4. Operations of the Control Panel ................3 5. System Connection ....................3 5.1. -
Page 4: Introduction
WVG2AL is a high-performance switcher for computer graphic signal and stereo audio signal respectively with 2 inputs and 1 output, with auto-switching function. With the RS232 serial control port, WVG2AL can be controlled by a control appliance, such as a PC, an IR remote or any other remote control device. - Page 5 Max DC compensatio 1.5V Humidity 10% ~ 90% Power Temperature -20 ~ +70℃ Consumption Power 100VAC ~ 240VAC, Product Supply 50/60Hz Weight Case W190 x H43x D100mm Dimension NOTE: All nominal levels are at ± 10%. PTN Electronics Limited www.PTN-electronics.com...
-
Page 6: Operations Of The Control Panel
Auto-SW will be on. Long-press it again to enter the manual-switching mode. ③, ④ INPUTS 1, VGA video source selection button, INPUTS 1 is for input INPUTS 2 port 1.INPUTS 2 is for input port 2. 5. System Connection 5.1. Interface Connection PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Connect With The Remote Plate
Used for looping function. Copy the VGA signal ③ LOOP of input port 1 and loop output to the input port of the next WVG2AL. VGA input ports, the first one is INPUTS 1 and ④, ⑥ VGA input ports the second one is INPUTS 2. -
Page 8: Connection With Control System
2) Install the serial driver. 3) Run the COM software and check the connecting state. 4) If it’s OK, then we can control WVG2AL by sending RS232 command codes. If not, probably the control line is bad contact. PTN Electronics Limited... -
Page 9: System Diagram
Date bit: 8 Stop bit: 1 Parity bit: none Commands Function Description Feedback (Example) 1B1. Switching from input 1 to the output Source: AV 01->01 2B1. Switching from input 2 to the output Source: AV 02->01 PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Troubleshooting & Maintenance
6) If the switcher cannot be controlled by the buttons on the front panel or the RS232 port, the switcher may have broken. Please send it to the dealer for repairing. PTN Electronics Limited www.PTN-electronics.com... -
Page 11: Safety Operation Guide
6) As to non-professional or without permission, please DO NOT try to open the casing of the equipment, DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 12: After-Sales Service
VGA/Stereo Audio Selection Switcher 2x1 10. After-sales Service 1) If there appear some problems when running WVG2AL, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty.
