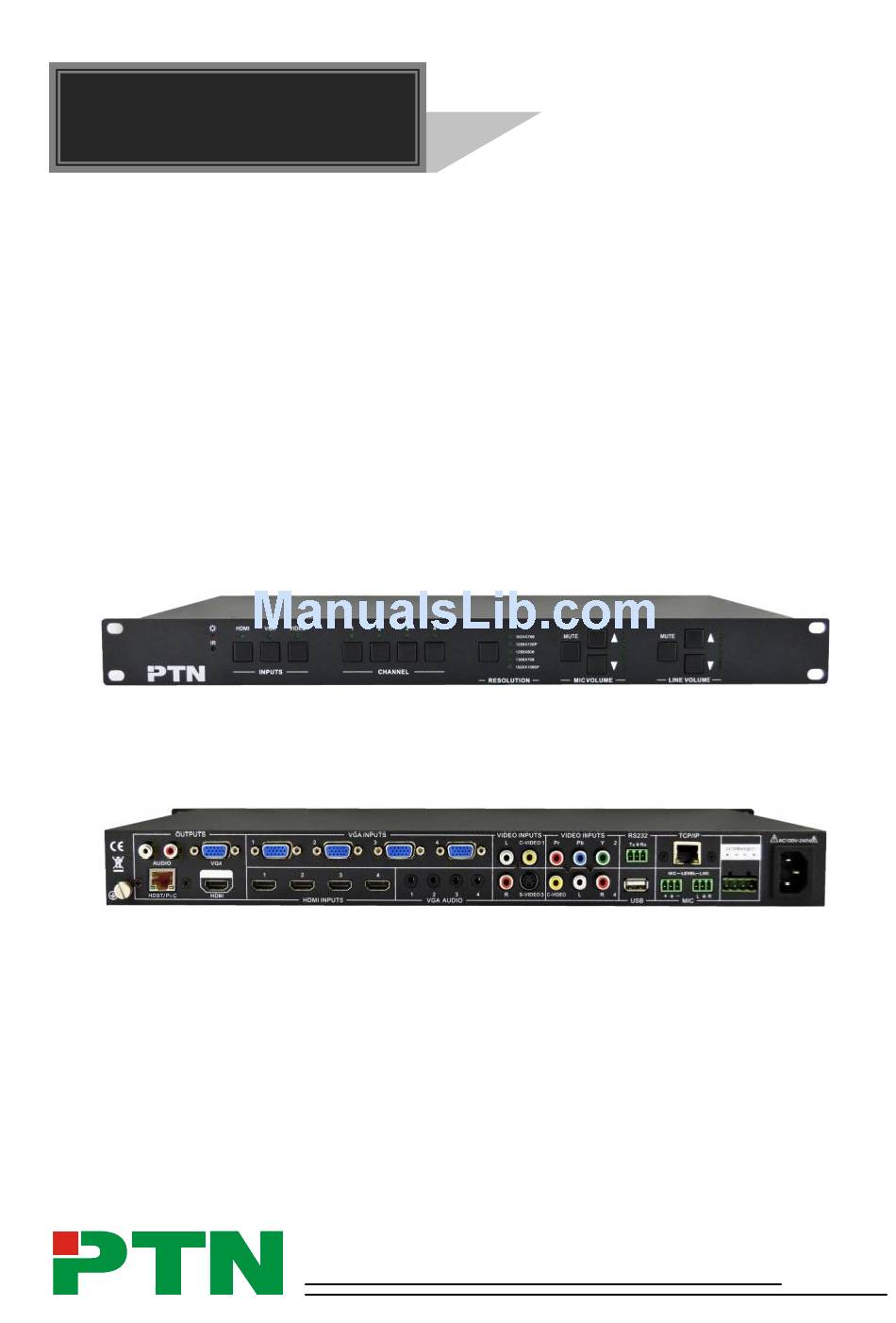

- Page 1 User Manual SC121D-TN PTN Scaler Switcher with Digital Amplifier All Rights Reserved Version: SC121D-TN_2014V1.3 www.PTN-electronics.com...
-
Page 2: Safety Precautions
Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. PTN Electronics Limited www.PTN-electronics.com... - Page 3 This is a manual for SC121D-TN. It can also be applied to SC121D series scaler switchers including SC121D, SC121D-T and SC121D-N with little adjustment. “T”...
-
Page 4: Table Of Contents
Scaler Switcher with Digital Amplifier Contents 1. Introduction ......................... 1 1.1. Introduction to SC121D-TN ................1 1.2. Features ......................1 1.3. Package List ..................... 1 2. Panel Description ......................2 2.1. Front Panel ....................... 2 2.2. Rear Panel......................2 3. System Connection ..................... 3 3.1. -
Page 5: Introduction

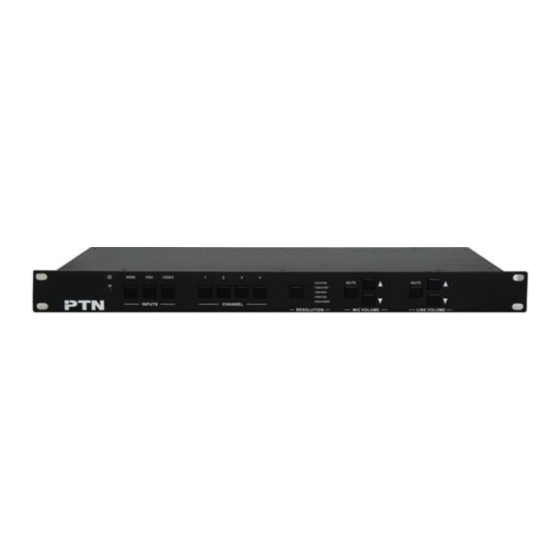

1. Introduction 1.1. Introduction to SC121D-TN SC121D-TN is a full HD scaler switcher with 12 video, 6 audio & 2 MIC inputs. It scales & switches any video signal HDMI, VGA, YPbPr, C-Video & S-video to HDBaseT, HDMI & VGA simultaneously, and any audio to 2x20W amplifier. It’s controllable via the button, IR, RS232 &... -
Page 6: Panel Description
2.2. Rear Panel ① Two RCA connectors for stereo audio output; One VGA output; One HDMI output with audio embedded; One HDBT port (selectable) for HDMI extending (works with TPHD402PR), support PTN Electronics Limited www.PTN-electronics.com... -
Page 7: System Connection
SC121D-N. When there is a HDBT port, the switcher may be named as SC121D-T. For example, the name “SC121D-TN” suggests that the switcher has both the two port. While “SC121D” suggests that the switcher has neither a TCP/IP port nor a HDBT port. -
Page 8: Connection Procedures
Step4. Connect a control device (e.g. a PC) to the TCP/IP ports or RS232 sockets of SC121D-TN. Send commands to control SC121D-TN via control software. Step5. Connect the HDMI HDBT port of SC121D-TN with TPHD402PR to extend the signal. Step6. Connect display devices to video output ports; connect earphones/amplifiers to audio output ports. -
Page 9: Poc Solution
HDBT port supports PoC, which allows SC121D-TN and TPHD402PR share the same power supply and eliminates the need for extra power supply at the remote nodes. Connect SC121D-TN with TPHD402PR via a CAT5e/6 cable, then plug the power cable of SC121D-TN to an AC100V~240V power supply, TPHD402PR can be energized... -
Page 10: Applications
Scaler Switcher with Digital Amplifier 3.5. Applications SC121D-TN has a good application in various occasions, such as computer realm, monitoring, big screen displaying, meeting room, education and bank & securities institution etc. 3.6. Collocation Products SC121D-TN usually works with other devices to deliver multiple video& audio sources. -
Page 11: Operations
ID looping function. 99pcs WP8 can be looped and controlled together, by ID identifying. Programmed by USB or RS232, working with PTN PC software (PS-WP). Crystal and backlit buttons with easy user-friendly customizable changeable labels. -
Page 12: Osd Operations
MENU mode. HD: 1360x768 4.2. OSD Operations SC121D-TN provides a nice OSD operation menu, with various functions and languages. The operation introduction is showed as follows. 4.2.1. Picture Setting The first icon from left of the OSD menu is to set the picture parameter. It includes picture mode, color temperature, contrast, brightness, hue, saturation, sharpness, scale, and Advance picture adjust. -
Page 13: Audio Setting
The Second icon from left of the OSD menu is to set the audio/sound parameter. It includes the sound effect preset, bass, treble, balance, scene mode, surround and smart volume setting. Some parameters are available depending on different inputs. Please check the picture below: PTN Electronics Limited www.PTN-electronics.com... -
Page 14: System Setting
1) Copy the file “MT23ATV.bin” to a USB flash disk. (The “MT23ATV.bin” file is provided/ authorized by PTN engineering department) 2) Plug the USB flash disk to the USB port on SC121D-TN. 3) Pressing the button “HDMI” on the front panel for 6 seconds or sending RS232 command 0698% for updating, then press the button “OK”... -
Page 15: Rs232 Control
Scaler Switcher with Digital Amplifier 4.4. RS232 Control RS232 signal can be transmitted between SC121D-TN and TPHD402PR, it is able to control SC121D-TN from remote. Control local device from remote: Connect the RS232 ports of SC121D-TN and TPHD402PR, and connect a control device (e.g. -
Page 16: Rs232 Commands
Audio turn down, XX ranges from 00 to 99. (xx=0~99) 0604% Lock the front panel button Panel Locked 0605% Unlock the front panel button Panel UnLocked 01XX% Preset the volume. The XX is ranging from Volume: XX PTN Electronics Limited www.PTN-electronics.com... - Page 17 Change the resolution to 1280X720 720P 1280X720 Resolution: WXGA 0628% Change the resolution to 1280X800 WXGA 1280X800 Resolution: 1080P 0629% Change the resolution to 1920X1080 1080P 1920X1080 LINE Volume: XX/MIC 0630% Check the volume level Volume: XX PTN Electronics Limited www.PTN-electronics.com...
- Page 18 Switching to VGA4 input Source: VGA4 0709% Switching to composite video AV1 input Source: CVIDEO1 0710% Switching to YPbPr input Source: YPbPr 0711% Switching to S-Video input Source: SVIDEO 0712% Switching to composite video AV2 input Source: CVIDEO2 PTN Electronics Limited www.PTN-electronics.com...
-
Page 19: Tcp/Ip Control
IP section as the default IP of the SC121D-TN (192.168.0.178). Same IP as the switcher Controlled by PC(s) in LAN The SC121D-TN can be connected with a router to make up a LAN with the PC(s), this PTN Electronics Limited www.PTN-electronics.com... -
Page 20: Tcp/Ip Settings
Scaler Switcher with Digital Amplifier make it able to be controlled in a LAN. When control, just make sure the SC121D-TN’s IP section is the same with the router. Please connect as the following figure for LAN control. Step1. Connect the TCP/IP port of the SC121D-TN to Ethernet port of PC with twisted pair. - Page 21 Set the port number to 4001 (unique, other numbers are unavailable). c) Press the button Apply on present page to save your settings. Step6. Select the tab “reset device”, then your settings will be loaded to the SC121D-TN. PTN Electronics Limited www.PTN-electronics.com...
-
Page 22: Specification
Scaler Switcher with Digital Amplifier 5. Specification 5.1. Specifications of SC121D-TN Video Input Video Output 4 HDMI 4 VGA 1 HDMI Input 1 YPbPr Output 1 VGA 2 C-Video 1 HDBT 1 S-Video HDMI female connector VGA(15 pin HD), HDMI female connector... -
Page 23: Specifications Of Video/Audio Input/Output
Color RGB adjustable 5.2.2. YPbPr input Input Display Parameter Resolution Frame Frame Frame frequency frequency frequency 720×480 I 15.75 720×480 P 31.5 720×576 I 15.625 720×576 P 31.25 1280×720P 16:9 1280×720P 37.50 16:9 1920×1080 I 1125 28.125 16:9 PTN Electronics Limited www.PTN-electronics.com... -
Page 24: Vga Input
Support HDCP1.3, compatible with DVI signal. 5.3. Audio input/output 2 pairs of L/R analog audio input, 4 VGA audio and 2 MIC audio inputs 2x10W@8Ω amplifier output. L/R stereo audio output and HDMI embedded audio. PTN Electronics Limited www.PTN-electronics.com... -
Page 25: Panel Drawing
482.60 mm 1024x768 1280x720P 1280x800 1360x768 1920x1080P INPUTS CHANNEL RESOLUTION MIC VOLUME LINE VOLUME 437.00 mm OUTPUTS VGA INPUTS VIDEO INPUTS VIDEO INPUTS RS232 TCP/IP C-VIDEO 2x10Watt@8 Ω AUDIO LINE HDBT/PoC HDMI HDMI INPUTS VGA AUDIO PTN Electronics Limited www.PTN-electronics.com... -
Page 26: Troubleshooting & Maintenance
Check the grounding and when connecting the video bad grounding make sure it is connected connectors well. If your problem persists after following the above troubleshooting steps, seek further help from authorized dealer or our technical support. PTN Electronics Limited www.PTN-electronics.com... -
Page 27: After-Sales Service
Scaler Switcher with Digital Amplifier 8. After-sales Service If there appear some problems when running SC121D-TN, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: PTN warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 28 PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
