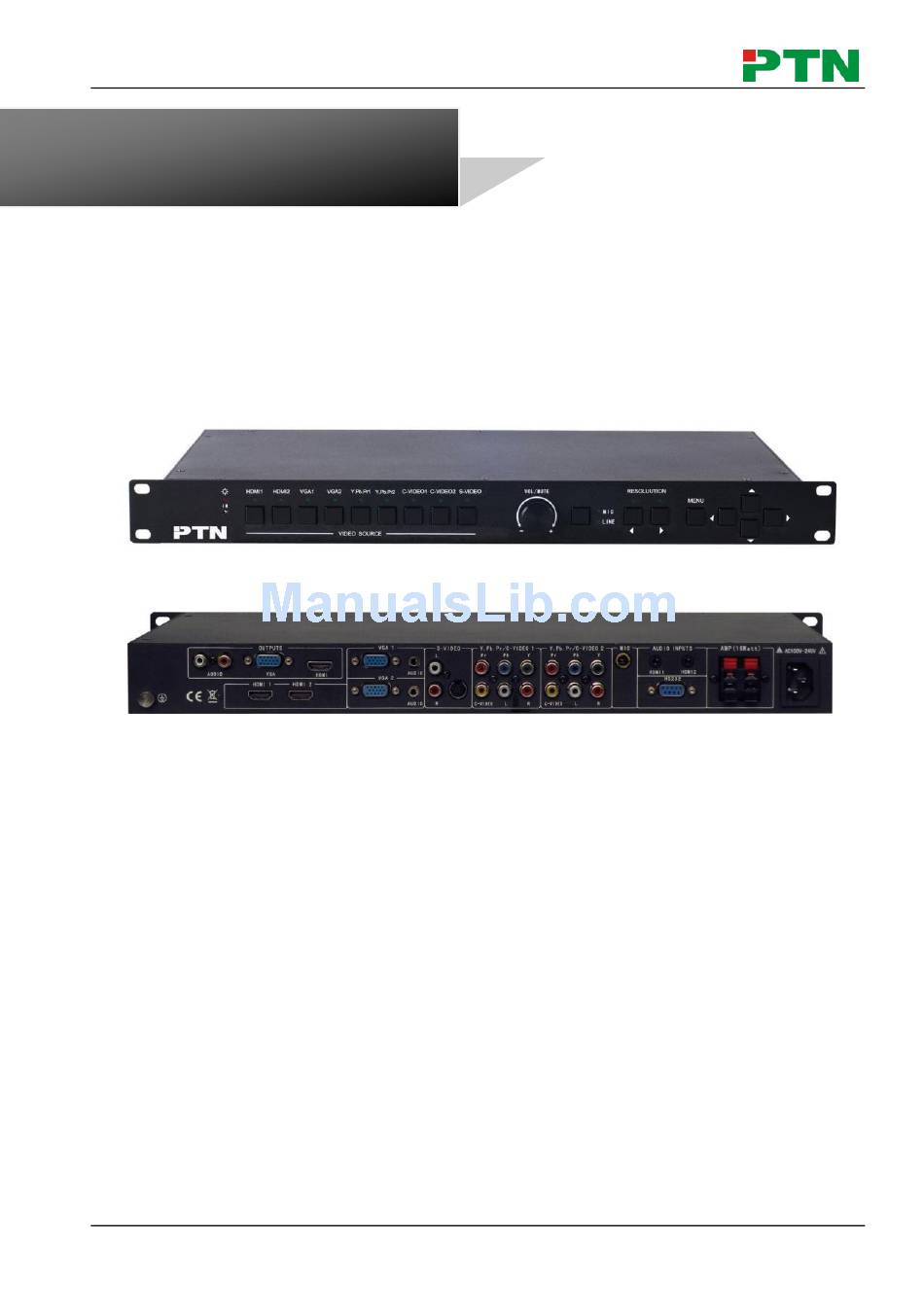

- Page 1 Scaler Switcher (with Digital Amplifier) USER MANUAL SC91DM PTN Scaler Switcher (with Digital Amplifier) Version: SC91DM2013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
Scaler Switcher (with Digital Amplifier) Table of Contents 1. Introduction ....................... 1 1.1. Introduction to SC91DM ................... 1 1.2. Package Contents .................... 1 2. Features ........................1 3. Specification ......................2 4. Operations of the Control Panel and the IR Remote ..........3 4.1. -
Page 4: Introduction

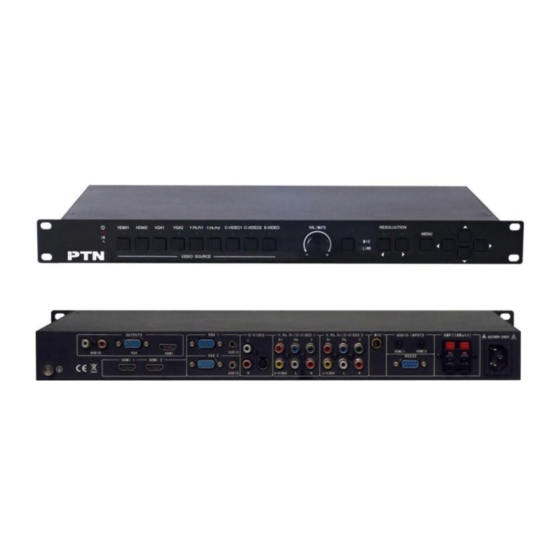

1. Introduction 1.1. Introduction to SC91DM SC91DM is the Full-HD scaling presentation switcher with digital amplifier, scaling 9 video inputs including 2 HDMI, 2 VGA, 2 component video, 2 composite video, 1 separate video up to 2 outputs at HDMI and VGA simultaneously with inbuilt amplifier, supporting HDTV, controllable via IR remote, front panel &... -
Page 5: Specification
5 Stereo Audio Input Output 2x8Watt@40Ohms 1 mono MIC audio amplifier RCA for for YPbPr, RCA for stereo audio Input C-Video & S-Video Output Captive screw Connector audio Connector connector for 3.5mm jack for VGA 2x8Watt@40Ohms PTN Electronics Limited www.PTN-electronics.com... -
Page 6: Operations Of The Control Panel And The Ir Remote
You can control the volume by the knob, or RS232. It is the mixed and processed volume, which can be connected to the speaker directly. Volume adjusting knob is used to turn up/down the volume of the line audio PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Operations Of The Ir Remote
It can control various functions, such as switching, resolution changing, volume function and OSD function. Notice: The cell battery is not included, please buy it separately. Video signal source OSD Function selection Volume Adjustable function Resolution Selection PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Interfaces Connection Introduction
⑥ RS232 control port, works with the third-party controller, for bi-directional RS232 commands. 5.1. Video Input/output SC91DM supports different kinds of video signal, such as C-Video, S-Video, YPbPr, VGA and HDMI. And all can be scaled to high-resolution HDM I & VGA format and switched out. -
Page 9: Vga Input
Short key to optimize V/H position, phase and frequency. Multiplicity SCALER Mode（4:3,FILL ALL etc）. 5.1.4. HDMI input Support all standard signal format in CEA-861B specification. HDMI resolution support: Resolution Resolution 720×480I@30Hz 1280×720P@60Hz 720×480P@60Hz 1920×1080I@25Hz 720×576I@25Hz 1920×1080I@30Hz 720×576P@50Hz 1920×1080P@50Hz 1280×720P@50Hz 1920×1080P@60Hz PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Audio Input/Output
Only one HDMI port can be used at the same time. 5.2. Audio input/output Integrated SGTV5810/5830, support 2 channels audio output. Support NICAM and Germany FM. Support BG/DK/I/L/L’. SRS audio enhance function (Optional). Support earphone output (Side AV board). 6. System Diagram PTN Electronics Limited www.PTN-electronics.com... -
Page 11: Picture In Picture (Pip) Displaying Function
Scaler Switcher (with Digital Amplifier) 7. Picture in Picture (PIP) Displaying Function SC91DM supports PIP function, which two signals can be mixed obeying the rules below: “√” means signal on the row & another signal on the column can be mixed as PIP window. -
Page 12: Audio Setting
Volume: adjust the line volume. Mute: mute or unmute the line volume. Sound mode: Four modes can be chose, include music, theatre, news and personal. In personal mode, the treble, bass and balance can be adjusted by yourself. PTN Electronics Limited www.PTN-electronics.com... -
Page 13: System Setting
Factory rest: reset to the factory setting. Source rename: rename the display of source name, six names can be chose. H enable start: adjust the horizontal position of VGA output. V enable start: adjust the vertical position of VGA output. PTN Electronics Limited www.PTN-electronics.com... -
Page 14: Position Setting
Main window source: show the source of main window, cannot be set. Main window adjustments: adjust the H size and V size of the output signal, then you can adjust the position of the output image. Please check the picture below: PTN Electronics Limited www.PTN-electronics.com... -
Page 15: Firmware Update
1) Copy the file “MT23ATV.bin” to a USB flash disk. (The “MT23ATV.bin” file is provided/authorized by PTN engineering department) 2) Plug the USB flash disk to the SC91DM USB port on it front panel. 3) Press the button “MENU” for 15 seconds or more, until it comes out an update OSD. -
Page 16: Communication Protocol And Command Codes
Video 1 Input Selection 0709% Video 2 Input Selection 0707% S-Video Input Selection 0711% 800X600 SVGA 0712% 1024X768 XGA 0713% 1280X1024 SXGA 0714% 1280X800 WXGA 0715% 1280X720 720P 0716% 1600X1200 UXGA 0717% 1920X1080 1080P 0718% 1920X1200 WUXGA PTN Electronics Limited www.PTN-electronics.com... - Page 17 5: Set the Contrast to be 86th degree (the Contrast is 100 degrees in total). The command should be: "0486%" . 6: Set the Color to be 92nd degree (the Color is 100 degrees in total). The command should be: "0592%". PTN Electronics Limited www.PTN-electronics.com...
-
Page 18: Troubleshooting & Maintenance
9) If the switcher cannot be controlled by the buttons on the front panel, RS232 port or IR remote, the switchers may have broken. Please send it to the dealer for repairing. PTN Electronics Limited www.PTN-electronics.com... -
Page 19: Safety Operation Guide
DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 20: After-Sales Service
Scaler Switcher (with Digital Amplifier) 13. After-sales Service 1) If there appear some problems when running SC91DM, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty.
