User Manual
HDMI Selection Switcher
USER MANUAL
1 Function
WHD4 / WHD8 is a 4x1 / 8x1 selection switcher, which enables easy manual or RS232/infrared
remote switching within different HDMI sources.
It is a high performance HDMI device with resolution up to 1920*1200@60Hz, 1080p & 2K,
supporting EDID and DDC, with HDCP & HDTV compliant.
2 WHD4 / WHD8 (HDMI selection switcher 4x1 / 8x1)

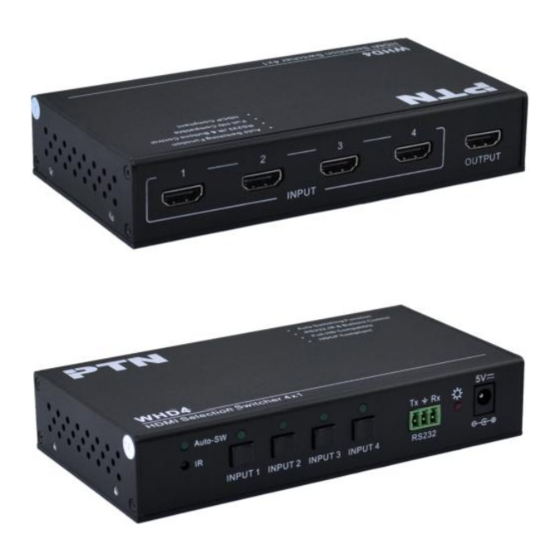

WHD4:
WHD8:
PTN electronics Limited
HDMI Switcher
WHD4 & WHD8
www.PTN-electronics.com
Advertisement
Related Manuals for PTN WHD4
Summary of Contents for PTN WHD4
- Page 1 WHD4 & WHD8 1 Function WHD4 / WHD8 is a 4x1 / 8x1 selection switcher, which enables easy manual or RS232/infrared remote switching within different HDMI sources. It is a high performance HDMI device with resolution up to 1920*1200@60Hz, 1080p & 2K, supporting EDID and DDC, with HDCP &...
- Page 2 10% ~ 90% -20 ~ +70℃ Power Power Supply 100VAC ~ 240VAC, 50/60Hz Consumption W155 x H30 x D80mm for WHD4 0.5Kg for WHD4; Case Dimension Product Weight W310 x H30 x D100mm for WHD8 1Kg for WHD8. PTN electronics Limited...
- Page 3 Communication protocol: Baud rate: 9600 Date bit: 8 Stop bit: 1 Parity bit: none (WHD4 has the same protocol with WHD8, the only difference is without input5 to input8) Command Function Description Feedback Code 1B1. Switching the audio/video to input 1 AV: 1 ->...
-
Page 4: System Diagram
HDMI Selection Switcher 6 System Diagram PTN electronics Limited www.PTN-electronics.com...
