Page 1: User Manual
PTN Electronics PS121 Presentation Switcher User Manual Learning Function Auto-Switch PS Series --- Presentation Switcher Please read this manual carefully before using this product. -
Page 2: Table Of Contents
3. Real Panel .............................. 7 4. Controlling .............................. 8 5. Specification ............................12 6. Connection of PS121 and WP18R....................13 7. Optional accessory ..........................14 8. System Diagram ..........................15 9. Troubleshooting & Maintenance ....................... 15 PTN Electronics Limited... -
Page 3: Operation Notice
Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited. - Page 4 PS121 Presentation Switcher In order to ensure the credibility use of the product and the user’s safety, please comply with the following items during installation and maintenance: The system must be earthed properly. Please do not use two blades plugs and ensure the alternating power supply ranged from 100v to 240v and from 50Hz to 60Hz.
-
Page 5: Function
PS121 Presentation Switcher 1. Function PTN PS121 switcher is the multi-format input unit special for the presentation usage, built in the RS232/RS485 controller. It is the economical and high level solution for the audiovisual system. It has three parts DVI 4x1 selection switcher, VGA 4x1 selection switcher, C-Video 4x1 selection switcher, separately working. -

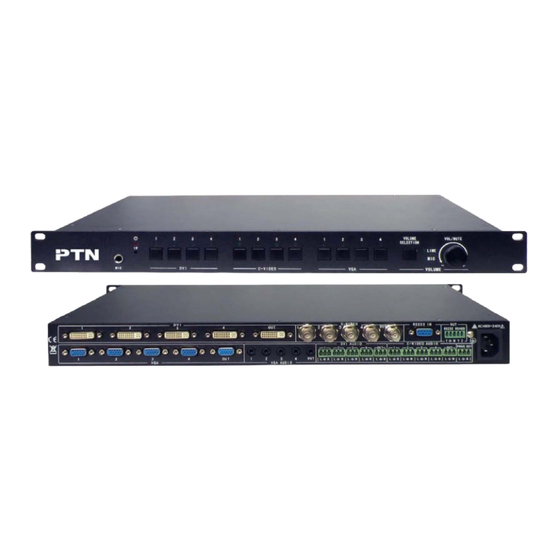

Page 6: Front Panel
PS121 Presentation Switcher Control : RS-232 serial control port. Public command, working with the third-party device. RS-232/RS-485 output, programmable output. The user can customize the RS-232/RS-485 commands, controlling the displaying equipments. IR remote control .Default IR remote to control the full function of selection switcher Rack-mountable aluminum enclosure, 1 U height. -
Page 7: Real Panel
RS 232 input: connect to the control device, (see below the “RS232 protocol”) RS 232 & RS485 output: connect to the display device (like projector, LCD displayer, LED displayer etc.). When you switch PS121, it will send the presupposed RS232 or RS485 command series. (see below the “RS232 protocol”) -
Page 8: Controlling
PS121 Presentation Switcher Controlling Part A: Remote operation 1): Audio adjustment zone 2): Video signal source/channel selection Audio volume adjustment zone: “Mute”: mute the displaying audio signal. “Audio Lock”: keep the last-selected audio display; it will not change with the new switch operation. - Page 9 PS121 Presentation Switcher Part B: PC or RS232 control RS-232 Protocol Baud: 9600bps 8,n,1 format: no ASCII Series Function Feedback code 600% Mute Mute ON /Mute OFF Master volume + 601% VGA 1 Volume : XX (0~60) 0602% Master volume -...
- Page 10 PS121 Presentation Switcher DVI 1 Volume: XX (0~60) DVI 2 Volume: XX (0~60) DVI 3 Volume: XX (0~60) DVI 4 Volume: XX (0~60) AV 1 Volume: XX (0~60) AV 2 Volume: XX (0~60) 0800% Check the volume AV 3 Volume: XX (0~60)
- Page 11 PS121 Presentation Switcher Part c: WP18R control PS121 working with WP18R Source Selection: VGA signal channel selection: 4 channels corresponding to 4 VGA inputs source. Composite video signal channel selection: 4 channels corresponding to 4 composite video inputs source. DVI signal channel selection: 4 channels corresponding to 4 DVI signal inputs source.
-
Page 12: Specification
PS121 Presentation Switcher 5. Specification Video Input Video Output 4 DVI 1.0 standard (T.M.D.S 1 DVI-I (DB 24+5), female signal) Input Output 1 Computer Graphics picture 4 Computer Graphics 1 Composite video 4 Composite video 4 DVI-I (DB 24+5), female... -
Page 13: Connection Of Ps121 And Wp18R
-20 ~ +70℃ Humidity 10% ~ 90% Power Power Supply 100VAC ~ 240VAC, 50/60Hz Consumption W483 x H44 x D235 mm Case Dimension Product Weight (1U high ,full rack wide ) 6. Connection of PS121 and WP18R PTN Electronics Limited www.PTN-electronics.com... -
Page 14: Optional Accessory
PS121 Presentation Switcher 7. Optional accessory WP18R Base Box PTN Electronics Limited www.PTN-electronics.com... -
Page 15: System Diagram
PS121 Presentation Switcher 8. System Diagram 9. Troubleshooting & Maintenance 1. When images of terminal unit output with ghost, such as the projector output with ghost, please check the projector’s setting or try another high quality connection cord. 2. When there is a color losing or no video signal output, please check the input and output end connection of VGA cable.
