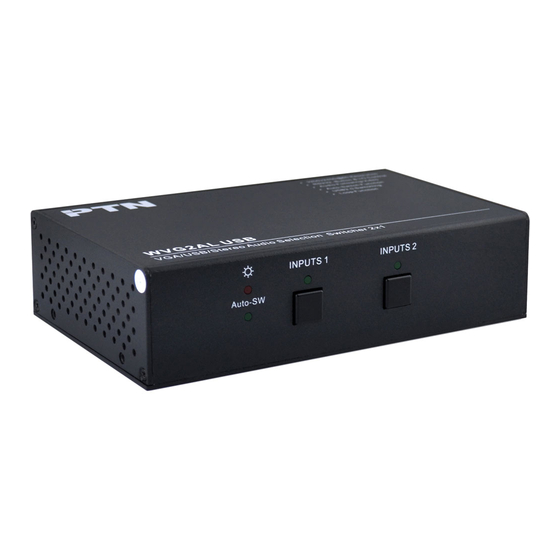

- Page 1 VGA/Stereo Audio/USB Selection Switcher 2x1 USER MANUAL WVG2AL USB PTN VGA/Stereo Audio/USB Selection Switcher 2x1 Version: WVG2AL USB2013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
VGA/Stereo Audio/USB Selection Switcher 2x1 Table of Contents 1. Introduction ....................... 1 1.1. Introduction to WVG2AL USB ................ 1 1.2. Package Contents ..................1 2. Features ........................1 3. Specification ......................1 4. Operations of the Control Panel ................3 5. -
Page 4: Introduction
2 inputs and 1 output, with auto-switching function. With the RS232 serial control port, WVG2AL USB can be controlled by a control appliance, such as a PC, an IR remote or any other remote control device. - Page 5 Max DC Power 1.5V compensation Consumption Temperature -20 ~ +70℃ Humidity 10% ~ 90% 100VAC ~ 240VAC, Power Supply Product Weight 50/60Hz Case W190 x H43x D100mm Dimension NOTE: All nominal levels are at ± 10%. PTN Electronics Limited www.PTN-electronics.com...
-
Page 6: Operations Of The Control Panel
INPUTS 1, VGA video source selection button, INPUTS 1 is INPUTS 2 for input port 1.INPUTS 2 is for input port 2. 5. System Connection 5.1. Interface Connection ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Connect With The Remote Plate
5.2. Connect with the Remote Plate 100m Cable 100 meters controllable with the remote contact plate. Mountable Plate, 86*86 universal standard wall base box. LED indicator built in the controlling plate. Remote Plate Installation: PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Connection With Control System
2) Install the serial driver. 3) Run the COM software and check the connecting state. 4) If it’s OK, then we can control WVG2AL USB by sending RS232 command codes. If not, probably the control line is bad contact. PTN Electronics Limited... -
Page 9: System Diagram
Date bit: 8 Stop bit: 1 Parity bit: none Commands Function Description Feedback (Example) Switching from input 1 to the 1B1. Source: AV 01->01 output Switching from input 2 to the Source: AV 02->01 2B1. output PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Troubleshooting & Maintenance
6) If the switcher cannot be controlled by the buttons on the front panel or the RS232 port, the switcher may have broken. Please send it to the dealer for repairing. PTN Electronics Limited www.PTN-electronics.com... -
Page 11: Safety Operation Guide
DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 12: After-Sales Service
VGA/Stereo Audio/USB Selection Switcher 2x1 10. After-sales Service 1) If there appear some problems when running WVG2AL USB, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty.
