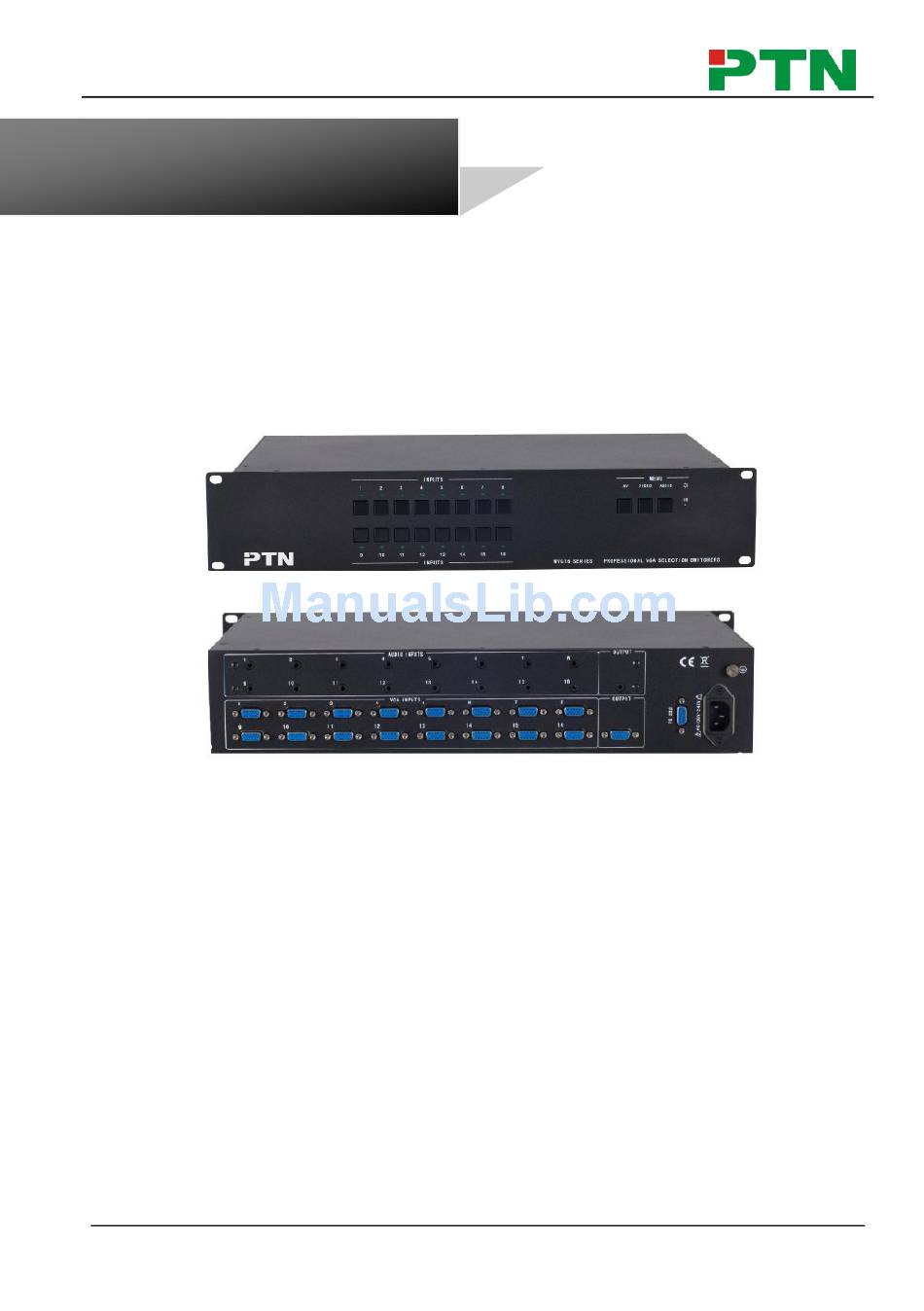

- Page 1 VGA/Stereo Audio Selection Switcher 16x1 USER MANUAL WVG16A PTN VGA/Stereo Audio Selection Switcher 16x1 Version: WVG16A2013V1.1 PTN Electronics Limited www.PTN-electronics.com...
- Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.
-
Page 3: Table Of Contents
VGA/Stereo Audio Selection Switcher 16x1 Table of Contents 1. Introduction ....................... 1 1.1. Introduction to WVG16A ................1 1.2. Package Contents ..................1 2. Features ........................1 3. Specification ......................1 4. Operations of the Control Panel and the IR Remote ..........3 4.1. -
Page 4: Introduction

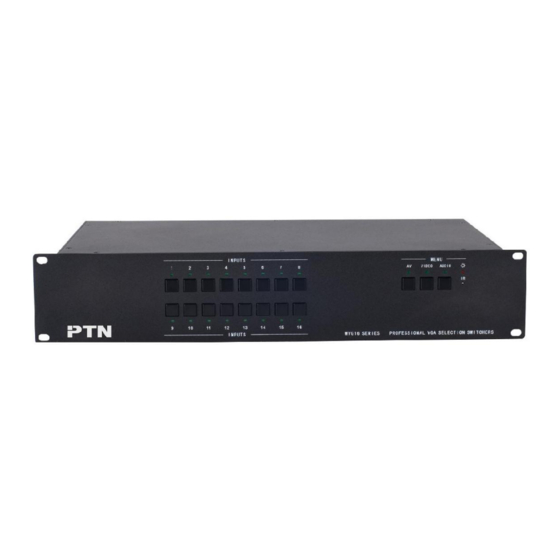

1. Introduction 1.1. Introduction to WVG16A WVG16A is a 16x1 selection switcher for VGA & stereo audio. It supports auto-switching and has a bandwidth up to 3200*2400@60MHz. It’s a high performance device for conference room, educational facility, multi-media meeting room, demonstration hall etc. - Page 5 1.5V Humidity 10% ~ 90% compensation Power Temperature -20 ~ +70℃ Consumption 100VAC ~ 240VAC, Power Supply Product Weight 3.2Kg 50/60Hz Case Dimension W483 x H87x D260mm(2U high) NOTE: All nominal levels are at ± 10%. PTN Electronics Limited www.PTN-electronics.com...
-
Page 6: Operations Of The Control Panel And The Ir Remote
Operation: Press buttons in this order“3”, “VIDEO”. Audio button: To transfer only audio signals from input channel to output channel AUDIO Example: To transfer audio signals from input channel No.2 to output channel No.3. Operation: Press buttons in this order “2”, “AUDIO”. PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Usage Of The Ir Remote
Audio input channels, 16 in total. 3.5mm mini jack. ② AUDIO OUTPUT Audio output channel. 3.5mm mini jack. VGA input channels, 16 in total. Female 15 pin HD ③ VGA INPUTS connector. ④ VGA OUTPUT VGA output channel. Female 15 pin HD connector. PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Connection With Control System
2) Install the serial driver. 3) Run the COM software and check the connecting state. 4) If it’s OK, then we can control WVG16A by sending RS232 command codes. If not, probably the control line is bad contact. PTN Electronics Limited... -
Page 9: System Diagram
Turn on the feedback command from the com port. Undo. To cancel the previous operation. Switch to the “demo” mode, 1->1, 2->2, 3->3 … and so Demo. [x1]#. Transfer signals from the input channel [x1] to the output channel [x1]. PTN Electronics Limited www.PTN-electronics.com... - Page 10 2) In above commands, “[”and “]” are symbols for easy reading and do not need to be typed in actual operation. 3) Please remember to end the commands with the ending symbols “.” and “;”. PTN Electronics Limited www.PTN-electronics.com...
-
Page 11: Troubleshooting & Maintenance
6) As to non-professional or without permission, please DO NOT try to open the casing of the equipment, DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com... -
Page 12: After-Sales Service
VGA/Stereo Audio Selection Switcher 16x1 10. After-sales Service 1) If there appear some problems when running WVG16A, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty.
