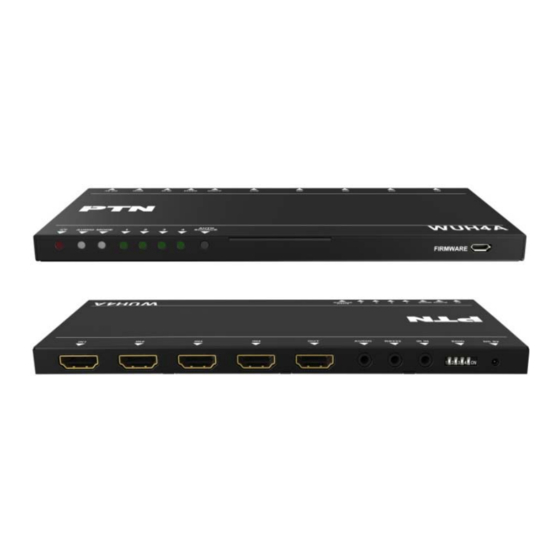

- Page 1 User Manual WUH4A PTN 4K HDMI Switcher 4x1 All Rights Reserved Version: WUH4A_2014V1.0 www.PTN-electronics.com...
-
Page 2: Fcc Statement
Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited. FCC Statement This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Safety Precautions
Unplug the power cord when left unused for a long period of time. Information on disposal for scrapped devices: do not burn or mix with general household waste, please treat them as normal electrical wastes. PTN Electronics Limited www.PTN-electronics.com... -
Page 4: Table Of Contents
4K HDMI Switcher 4x1 Contents 1. Introduction ......................... 1 1.1 Introduction to WUH4A ..................1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ..................... 3 3.1 Usage Precautions .................... -
Page 5: Introduction
Select any of the inputs by front panel button or IR Remote, the corresponding indicator on the front panel will illuminate to show real-time I/O connection status. Compliance with HDMI 1.4& HDCP1.4, WUH4A can transmit non-depressed 4K (at max) signal. WUH4A boasts comprehensive audio capacities including PCM, Dolby Digital, DTS, and DTS-HD. -
Page 6: Panel Description
⑥ FIRMWARE USB port, used for firmware update & powering Note: Output HDCP compliant status depends on input signal. When the input signal is with HDCP, then output signal is with HDCP and vice versa. PTN Electronics Limited www.PTN-electronics.com... -
Page 7: Rear Panel
2) All of the power switches, plugs, sockets and power cords should be insulated and safe. 3) All devices should be connected before power on. 3.2 System Diagram The following diagram illustrates typical input and output connections that can be utilized with WUH4A: PTN Electronics Limited www.PTN-electronics.com... -
Page 8: Connection Procedures
Step1. Connect HDMI/ DVI source device(s) (e.g. Blue-ray DVD) to the HDMI INPUT ports of WUH4A with HDMI cable. Step2. Connect HDMI displays to HDMI OUTPUT ports of WUH4A with HDMI cable. Step3. Connect an amplifier to the audio output port. -
Page 9: Application
Once rebooted, WUH4A will automatically select input 1 as input source even though there is no connection in input 1. Signal removing principle Once removed the current display signal, WUH4A will detect all input signals with PTN Electronics Limited www.PTN-electronics.com... -
Page 10: Ir Control
1~4 4.3 RS232 Control WUH4A provides with 1 3.5mm RS232 port for serial port control. Connect WUH4A to the control device (e.g. a PC) with RS232 cable and set the parameters in the right manner, the control device is capable to control WUH4A via designed software. -
Page 11: Basic Settings
4K HDMI Switcher 4x1 4.3.2 Basic Settings Firstly, connect WUH4A with an input device and an output device. Then, connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. Here we take the software CommWatch.exe as example. The icon is showed as below:... -
Page 12: Rs232 Communication Commands
2. Type in the complete commands including ending symbol “.”. 3. Load the desired EDID file to the RS232 control software after sending command EDIDUpgrade[x]. , it will show “EDIDUpgrade OK!” after the upgrade is completed. PTN Electronics Limited www.PTN-electronics.com... -
Page 13: Edid Management
WUH4A provides with convenient EDID management to create effective communication between the display and sources. In factory default status (Status: 0000), WUH4A pass through the signals directly, input& output device process the signal automatically. You can change the EDID data by adjusting the 4-pin EDID DIP switcher. -
Page 14: Firmware Upgrade
4K HDMI Switcher 4x1 5. Firmware Upgrade WUH4A boasts a USB port for online firmware upgrade on the front panel. Follow these steps to upgrade firmware: Step1. Copy the upgrade software (see as below) and the latest upgrade file (.bin) to Step2. -
Page 15: Specification
3.5mm Connector IR IN x1 / audio x 1 /RS232 x 1 Chassis Dimension W194xH11.4xD80(mm), ultra thin Raw Materials Aluminum chassis Weight About 160g Power Supply DC 5V 1A Consumption ﹣10 ～ ﹢40℃ Temperature Reference Humidity 10%-90% PTN Electronics Limited www.PTN-electronics.com... -
Page 16: Supported Input Video Formats
3840 x 2160p@25Hz 3840 x 2160p@30Hz 1080p 3D@60Hz Note: WUH4A supports 4k&1080p 3D HDMI signal, please adopt quality HDMI cables compliant with HDMI1.4 for reliable transmission when connecting. 7. Panel Drawing 194.00 mm 11.43 mm 12.53 mm... -
Page 17: Troubleshooting & Maintenance
The connecting cables may Check whether the cables not be connected correctly are connected correctly No HDMI signal output in WUH4A while local HDMI or it may be broken. and in working condition. input is in normal working state Splash screen in output... -
Page 18: After-Sales Service
4K HDMI Switcher 4x1 9. After-sales Service If there appear some problems when running WUH4A, please check and deal with the problems referring to this user manual. Any transport costs are borne by the users during the warranty. 1) Product Limited Warranty: PTN warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day you buy this product (The purchase invoice shall prevail). - Page 19 4K HDMI Switcher 4x1 PTN Electronics Limited www.PTN-electronics.com...
- Page 20 PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
Need help?
Do you have a question about the WUH4A and is the answer not in the manual?
Questions and answers

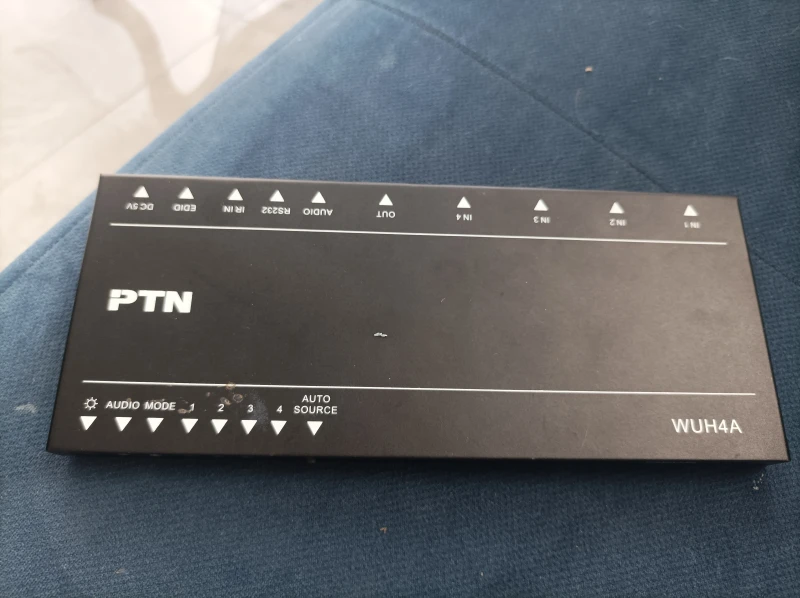

Para que sirve este aparato
