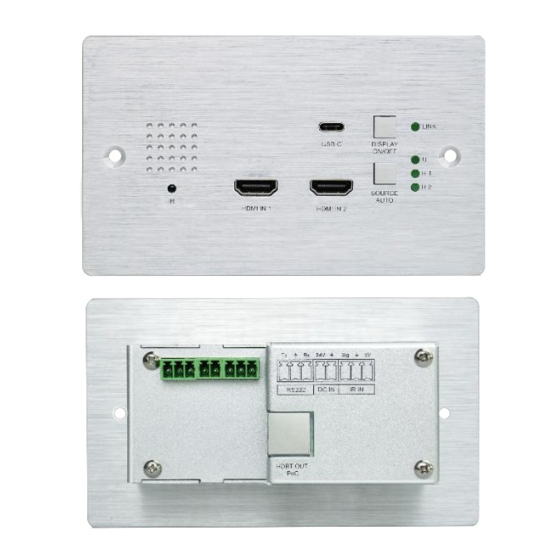

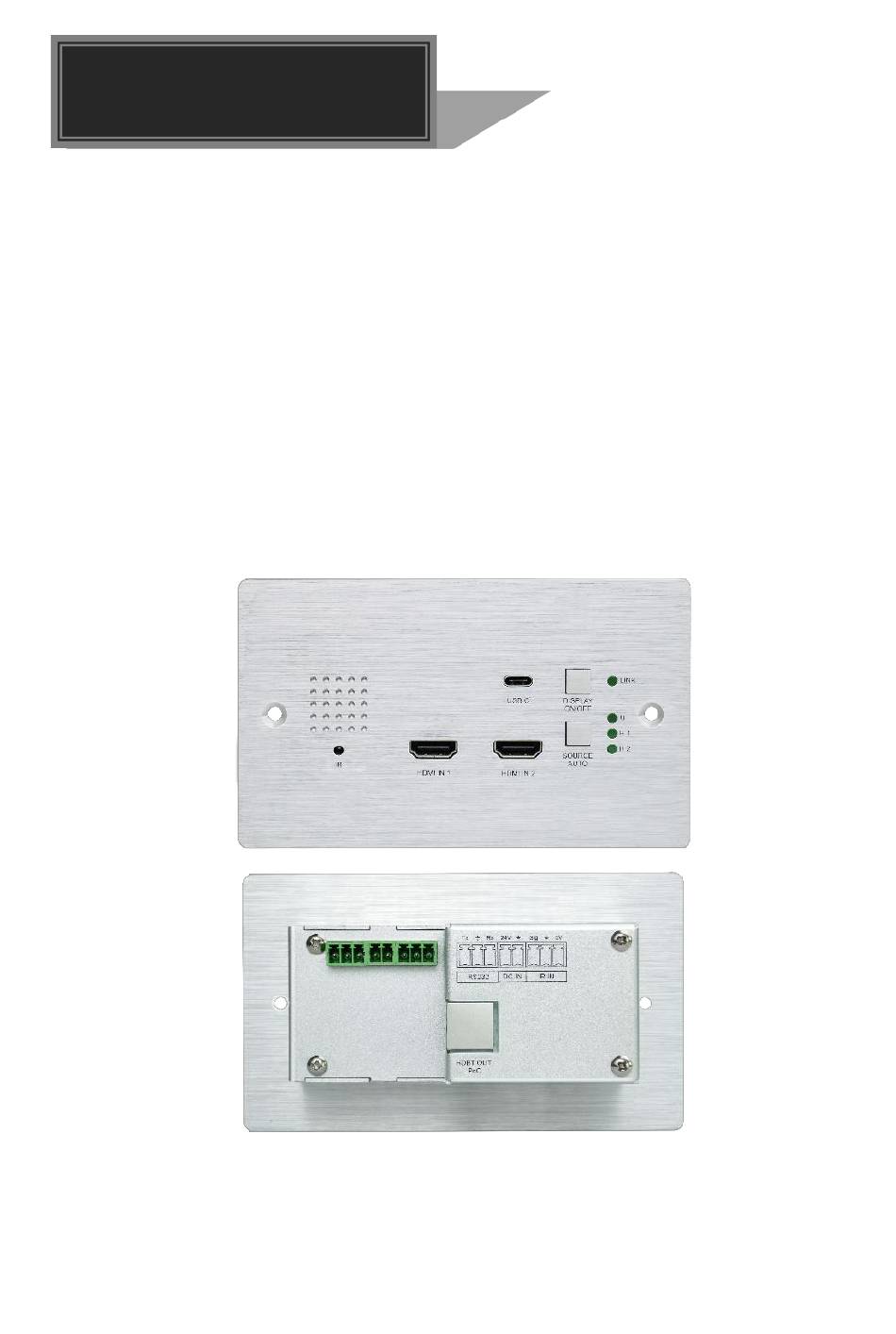

- Page 1 User Manual TPUH408TU-UK 3x1 Wallplate Transmitter Switcher with HDMI and USB-C All Rights Reserved Version: TPUH408TU-UK_2018V1.1...
- Page 2 3x1 Wallplate Transmitter Switcher with HDMI and USB-C Preface Read this user manual carefully before using the product. Pictures shown in this manual are for reference only. Different models and specifications are subject to real product. This manual is only for operation instruction, please contact the local distributor for maintenance assistance.
- Page 3 3x1 Wallplate Transmitter Switcher with HDMI and USB-C SAFETY PRECAUTIONS To ensure the best performance from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for ...
-
Page 4: Table Of Contents
3x1 Wallplate Transmitter Switcher with HDMI and USB-C Table of Content 1. Product Introduction ....................1 1.1 Features ......................1 1.2 Package List ...................... 2 2. Specification ....................... 3 3. Panel Description ......................4 3.1 Front Panel ......................4 3.2 Rear Panel ......................5 3.3 Side Panel ...................... -
Page 5: Product Introduction
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 1. Product Introduction Thanks for choosing the TPUH408TU-UK 3x1 Wallplate Transmitter Switcher, which is designed to switch and extend HDMI or Slimport input signal to far-end display device, and the transmission distance is up to 131ft/40m at 4K and 229ft/70m at 1080P video by using a single CATx cable. -
Page 6: Package List
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 1.2 Package List 1x TPUH408TU-UK 1x 2-pin Terminal Block 2x 3-pin Terminal Blocks 1x Power Adapter (24V 1.25A) 1x User Manual Note: Please contact your distributor immediately if any damage or defect in the... -
Page 7: Specification
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 2. Specification Input Input (2) HDMI, (1) USB-C (Slimport) Input Connector (2) Female type A HDMI, (1) Type-C USB, HDMI Input Resolution Up to 4K/UHD@60Hz 4:2:0 Slimport Input Resolution Up to 4K/UHD@30Hz 4:4:4 Output Output (1) HDBT OUT... -
Page 8: Panel Description
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 3. Panel Description 3.1 Front Panel ① IR: Built-in IR sensor for IR learning feature. It doesn’t support IR pass-through. ② HDMI IN 1: Type-A HDMI port to connect HDMI source. ③ HDMI IN 2: Type-A HDMI port to connect HDMI source. ④... -
Page 9: Rear Panel
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 3.2 Rear Panel 2 3 4 ① HDBT (POC): RJ45 HDBaseT output port to connect to the HDBT IN port of the receiver by a CATx cable. It supports 12V-48V PoC to enable the switcher can be powered from a compatible receiver. -
Page 10: Side Panel
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 3.3 Side Panel ① FIRMWARE: Micro-USB port for firmware upgrade. -
Page 11: System Connection
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 4. System Connection Usage Precautions Make sure all components and accessories included before installation. System should be installed in a clean environment with proper temperature and humidity. All of the power switches, plugs, sockets, and power cords should be insulated and ... -
Page 12: Button Control
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 5. Button Control 5.1 Source Switching 1) Press the SOURCE AUTO button to switch to next source device, and then the corresponding input LED will turn green. 2) Press and hold the SOURCE AUTO button at least 3 seconds to enable auto switching mode, and it abides by the following principles: New Input ... -
Page 13: Rs232 Control
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 6. RS232 Control 6.1 RS232 Connection According the RS232 control mode, there are two types of RS232 connection can be selected. ① When only control the local switcher, connect a control device (e.g. PC) to the RS232 port of the switcher, the connection diagram shown as below: Laptop ②... -
Page 14: Rs232 Control Software
Uninstallation: Delete all the control software files in corresponding file path. Basic Settings: Connect TPUH408TU-UK with all input devices and output devices needed, then to connect it with a computer which is installed with RS232 control software. Double-click the software icon to run this software. -
Page 15: Rs232 Command
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 6.3 RS232 Command Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none 6.3.1 Device Control Command Function Feedback Example 50617% Restore factory default FACTORY RESET 50699% Get firmware version VERSION Vx.x.x... - Page 16 3x1 Wallplate Transmitter Switcher with HDMI and USB-C 50775% 1920x1080@60Hz DVI EDID:1920x1080@60, DVI EDID:1920x1200, PCM 2CH 50776% 1920x1200 PCM 2CH 6CH EDID:3840x2160@60, 4:2:0 50777% 3840x2160@60Hz 4:2:0 8 bit 8BIT Enable EDID user-defined mode. 50782% Uploading the user-defined EDID file EDID: USER by Micro-USB port within 10 seconds.
-
Page 17: Cec Control
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 6.3.4 CEC Control The switcher also supports sending of a few common CEC commands using RS232 command code. Specific CEC command can also be sent from the switcher. The RS232 commands are as given in the following table. Please note that only CEC enabled devices that have the specified logical address will respond to CEC commands. -
Page 18: Button User-Defined
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 7. Button User-defined Press the DISPLAY ON/OFF button can turn on/off the display. If the incompatible display device needs to be used, the DISPLAY ON/OFF button can be programed by IR learning feature or RS232 command. IR learning feature: ... - Page 19 3x1 Wallplate Transmitter Switcher with HDMI and USB-C Programed by RS232 command: The DISPLAY ON/OFF button also can be defined to send control characters by following the below command format. Command Function Command Example Format k=0, Set the DISPLAY ON k=1, Set the DISPLAY OFF /+02:abc123 xxxx: ASCII characters...
-
Page 20: Panel Drawing
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 8. Panel Drawing 146.00 mm 120.60 mm 3.00 mm 39.10 mm 108.63 mm lower level 39.1mm 26.2mm... -
Page 21: Troubleshooting & Maintenance
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 9. Troubleshooting & Maintenance Problems Potential Causes Solutions Color losing or no video signal output in HDMI display. The connecting cables No HDMI signal output in Check whether the cables may not be connected the device while local are connected correctly correctly or it may be... -
Page 22: Customer Service
3x1 Wallplate Transmitter Switcher with HDMI and USB-C 10. Customer Service The return of a product to our Customer Service implies the full agreement of the terms and conditions hereinafter. There terms and conditions may be changed without prior notice. 1) Warranty The limited warranty period of the product is fixed three years.
