PTN SC51T User Manual

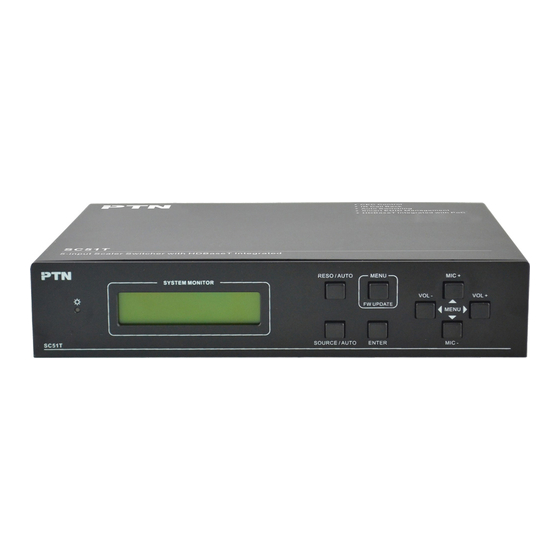

Ptn compact scaler switcher
Hide thumbs Also See for SC51T:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
User Manual
SC51T
PTN Compact Scaler Switcher
All Rights Reserved
Version: SC51T (with PoC) 2013V1.0
www.PTN-electronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC51T and is the answer not in the manual?

Questions and answers

Related Manuals for PTN SC51T

Summary of Contents for PTN SC51T

  • Page 1 User Manual SC51T PTN Compact Scaler Switcher All Rights Reserved Version: SC51T (with PoC) 2013V1.0 www.PTN-electronics.com...
  • Page 2 Please refer to the dealers for the latest details. This manual is copyright PTN Electronics Limited. All rights reserved. No part of this publication may be copied or reproduced without the prior written consent of PTN Electronics Limited.

  • Page 3: Table Of Contents

    Compact Scaler Switcher (with PoC) Table of Contents 1. Introduction ......................... 1 1.1 Introduction to SC51T ..................1 1.2 Features ......................1 1.3 Package Contents ..................... 1 2. Product Appearance ....................2 2.1 SC51T Front Panel .................... 2 2.2 SC51T Rear Panel..................... 3 3.
  • Page 4 4.4.1 Installation/uninstallation of RS232 Control Software ......14 4.4.2 Basic Settings ..................14 4.4.3 RS232 Communication Commands ............15 4.4.4 Control SC51T or 3rd Party Device from Local ........20 4.4.5 Control SC51T from Local or Remote............ 20 4.5 Operations in OSD Menu................. 21 4.5.1 Option ....................

  • Page 5: Introduction

    1. Introduction 1.1 Introduction to SC51T SC51T is a compact mini scaler switcher with 5 video inputs (3 HDMI, 2 VGA) and 6 audio inputs (3 HDMI audio & 2 VGA audio: switched following the video; 1 MIC audio input). As the VGA input supports VGA, YPbPr and C-video, so the scaler switcher is compliant with multiple video signals.

  • Page 6: Product Appearance

    Please confirm if the product and the accessories are all included, if not, please contact with the dealers. 2. Product Appearance 2.1 SC51T Front Panel ① Power indicator. Turns red when power on, turns green when in standby mode. ② LCD screen Shows the real-time system working status.

  • Page 7: Sc51T Rear Panel

     Used as volume up button.  Used as direction button PREVIOUS when in menus. ⑩ MIC-  Used as MIC volume down button.  Used as direction button MOVE DOWN when in menus. 2.2 SC51T Rear Panel PTN Electronics Limited www.PTN-electronics.com...
  • Page 8 ⑥ RS232 Serial control port, 3p captive screw connector, connects with a control device (such as a computer) to control SC51T or other device connected with TPHD402PR. ⑦ 12V DC Power port. Connects with the 12V DC power adapter.

  • Page 9: System Connection

    SC51T with VGA cable. Step2. Connect the corresponding audio source to the corresponding AUDIO INPUT port of SC51T with audio cable one to one. The audio of HDMI can be embedded or external by sending right command. Step3. Connect HDMI display device to HDMI output port of SC51T with HDMI cable.

  • Page 10: Connection Of Microphone

    Compact Scaler Switcher (with PoC) IR signal receiver, the IR signal must be sent out by the other model. For example: When “IR IN” of SC51T connects with an IR receiver, the IR transmitter must connect to IR OUT of TPHD402PR.
  • Page 11 ” connect to ground, and “-” connects to signal. “-” and “ ” connect to ground, and “+” connects to signal. b) Balanced connection: “+” connects to positive, “-” connects to negative and “ ” connects to ground. PTN Electronics Limited www.PTN-electronics.com...

  • Page 12: Application

    If need to choose the resolution of local HDMI display device:  Cut off the power of SC51T and break the connection between SC51T and TPHD402PR.  Turn on the power of SC51T.

  • Page 13: Operation Examples

     Connect INPUT 3 with a source device, and then it will choose INPUT 3 to output.  Remove the signal of INPUT 3, SC51T will detect from INPUT 1 to INPUT 5. And when it detects that input 2 is available, it will choose INPUT 2 to output.

  • Page 14: Software Updating

    PTN engineering department or from our website: http://www.PTN-electronics.com) 2) Plug the USB flash disk to the SC51T USB port on its front panel. 3) Press the button “MENU” for 7 seconds or more to update the software automatically.

  • Page 15: Operations Of Ir

    4.2 Operations of IR 4.2.1 IR Remote As IR signal can be transmitted bi-directionally between SC51T and TPHD402PR, it is able to use the IR remote at the far-end to control SC51T or HDMI source devices (via CEC function buttons). ① Standby button To enter in/exit standby mode.

  • Page 16: Ir Operations

    The 5 IR OUT ports are corresponding to the 5 video inputs one to one, and switch following the corresponding video source. 1) Control far-end device from local To control SC51T or far-end display device from local by using corresponding remote controller. 2) Control local device from remote To control SC51T or local source device from remote by using corresponding remote controller.

  • Page 17: Operations Of Cec Function

    And due to CEC function, user can control HDMI source device with basic operations (play, pause, fast forward, fast reverse, menu etc). So user is able to control SC51T and HDMI source device via the IR remote of SC51T.

  • Page 18: Operations Of Rs232 Control

    As RS232 can be transmitted bi-directionally between SC51T and TPHD402PR, so it is able to control a third party RS232 device from local or control SC51T from remote. When to control a third party RS232 device, the baud rate of this device should be 2400, 4800, 9600, 19200, 38400, 57600 or 115200.

  • Page 19: Rs232 Communication Commands

    Unlock the front panel buttons key unlock Preset the volume. The XX is ranging from 501XX% LINE Volume: XX 00 to 99 Preset the brightness. The XX is ranging 502XX% Brightness: XX from 00 to 99 PTN Electronics Limited www.PTN-electronics.com...
  • Page 20 Brightness: XX 50637% Check the contrast Contrast: XX 50638% Check the saturation Saturation: XX 50639% Check sharpness Sharpness: XX 50640% Check the color temperature Color Temp: XX 50646% Enable MIC Volume bar display Volume Bar: Display PTN Electronics Limited www.PTN-electronics.com...
  • Page 21 MIC Volume: XX 50751% Check if the LINE audio is mute or not LINE Mute On/Off 50752% Check if the MIC audio is mute or not MIC Mute On/Off 50753% Check the freeze status Freeze: Enable/Disable PTN Electronics Limited www.PTN-electronics.com...
  • Page 22 Check the panel locked status Panel Locked/Unlocked Enable serial control mode 1 (control 50787% Pc control far end SC51T & far-end from local) Enable serial control mode 2 (control 50788% Far end control 51T SC51T from local or far-end) ICON LINE Mute:...
  • Page 23 For example, when switched to INPUT1 (HDMI1), and then choose HDMI embedded audio/external audio as HDMI audio of this port, it can be successfully set, and the feedback is “set in HDMI1 port”. PTN Electronics Limited www.PTN-electronics.com...

  • Page 24: Control Sc51T Or 3Rd Party Device From Local

    Secondly, send command 50787% (serial control mode 1, factory default) via RS232 communication software. Lastly, send the right command of SC51T or other remote RS232 device connected in present system. Connect as below: Control SC51T or 3rd party device from local 4.4.5 Control SC51T from Local or Remote...

  • Page 25: Operations In Osd Menu

    Control SC51T from remote 4.5 Operations in OSD Menu SC51T provides a powerful OSD operation menu, contains 4 parts: optional settings, image settings, audio settings and system setting etc. Press MENU button on front panel (or MENU button on IR remote/send command 50616%) to enter in OSD menu, so it is able to do some settings through the OSD menu.

  • Page 26: Option

    Includes Software Update (USB), Output Adjust, Input4 Select and Input5 Select. Software Update (USB): Insert the USB flash disk with updating file to USB port of SC51T, to update the software through this menu. Output Adjust: Adjust output image position (X: horizontal direction and Y: vertical direction) and ratio aspect (width and height).

  • Page 27: Picture

    Noise Reduction (not for VGA format): Includes Off, Low, Middle, High and Default. Screen: (not for HDMI source): Includes Auto Adjust, Horizontal, Vertical, Size, and Phase. Color Range (not for VGA format): Includes 0~255 and 16~235, use ENTER button to select the color range. PTN Electronics Limited www.PTN-electronics.com...

  • Page 28: Sound

    Please check the picture below: Sound mode: Includes Standard, Music, Movie, Sports and User. Only User mode supports to set treble and bass. Surround Sound: Includes Off, Surround and SRS Trusurround XT. EQ: To adjust the sound balance. PTN Electronics Limited www.PTN-electronics.com...

  • Page 29: Setup

    OSD Duration: Includes 5 s, 10 s, 15 s and Off. “s” is for Second. 4.6 Instructions of VGA Converting Cable As VGA source supports YPbPr and C-video source, SC51T provides with 2 VGA converting cables to compliant with these signals.
  • Page 30 “INPUT 4 Select” to AV1, and “INPUT 5 Select” to AV2. After setting, press INPUT 4 (or INPUT 5) button to switch to AV1 (or AV2) source. B. Connecting the VGA converting cable like this: PTN Electronics Limited www.PTN-electronics.com...

  • Page 31: Specification

    C-VIDEO, YPbPr, VGA) Input Output 3P captive (3.81mm) 3P captive (3.81mm) Connector Connector Input Output >10kΩ 50KΩ Impedance Impedance Audio General Stereo Frequency 20Hz~20K Hz Channel >80dB @1KHz Response Separation >90dB @20Hz to 20K CMRR Control Parts PTN Electronics Limited www.PTN-electronics.com...

  • Page 32: Panel Drawing

    Humidity 10% ~ 90% 8W, supply power to SC51T and Power Power DC12V ± 0.5V TPHD402PR separately Supply Consumption 16W, SC51T supplies power to TPHD402PR Case Product W220x H44x D148mm 0.67Kg Dimension Weight 6. Panel Drawing PTN Electronics Limited www.PTN-electronics.com...

  • Page 33: Troubleshooting & Maintenance

    50605% to unlock. 8) If the scaler switcher cannot be controlled by the buttons on the front panel, RS232 port or IR remote, the switcher may have broken. Please send it to the dealer for repairing. PTN Electronics Limited www.PTN-electronics.com...

  • Page 34: Safety Operation Guide

    DO NOT repair it on your own, in case of accident or increasing the damage of the equipment. 7) DO NOT splash any chemistry substance or liquid in the equipment or around. PTN Electronics Limited www.PTN-electronics.com...

  • Page 35: After-Sales Service

    Compact Scaler Switcher (with PoC) 9. After-sales Service 1) If there appear some problems when running SC51T, please check and deal with the problems reference to this user manual. Any transport costs are borne by the users during the warranty.
  • Page 36 PTN Electronics Limited Tel: +86-755-2846 1819 Fax: +86-755-8471 7796 Email: info@PTN-electronics.com Website: www.PTN-electronics.com...
