1 Quick start

› 1. Charge the battery completely before riding for
the first time. Charge temperature: 0°C to 45°C.

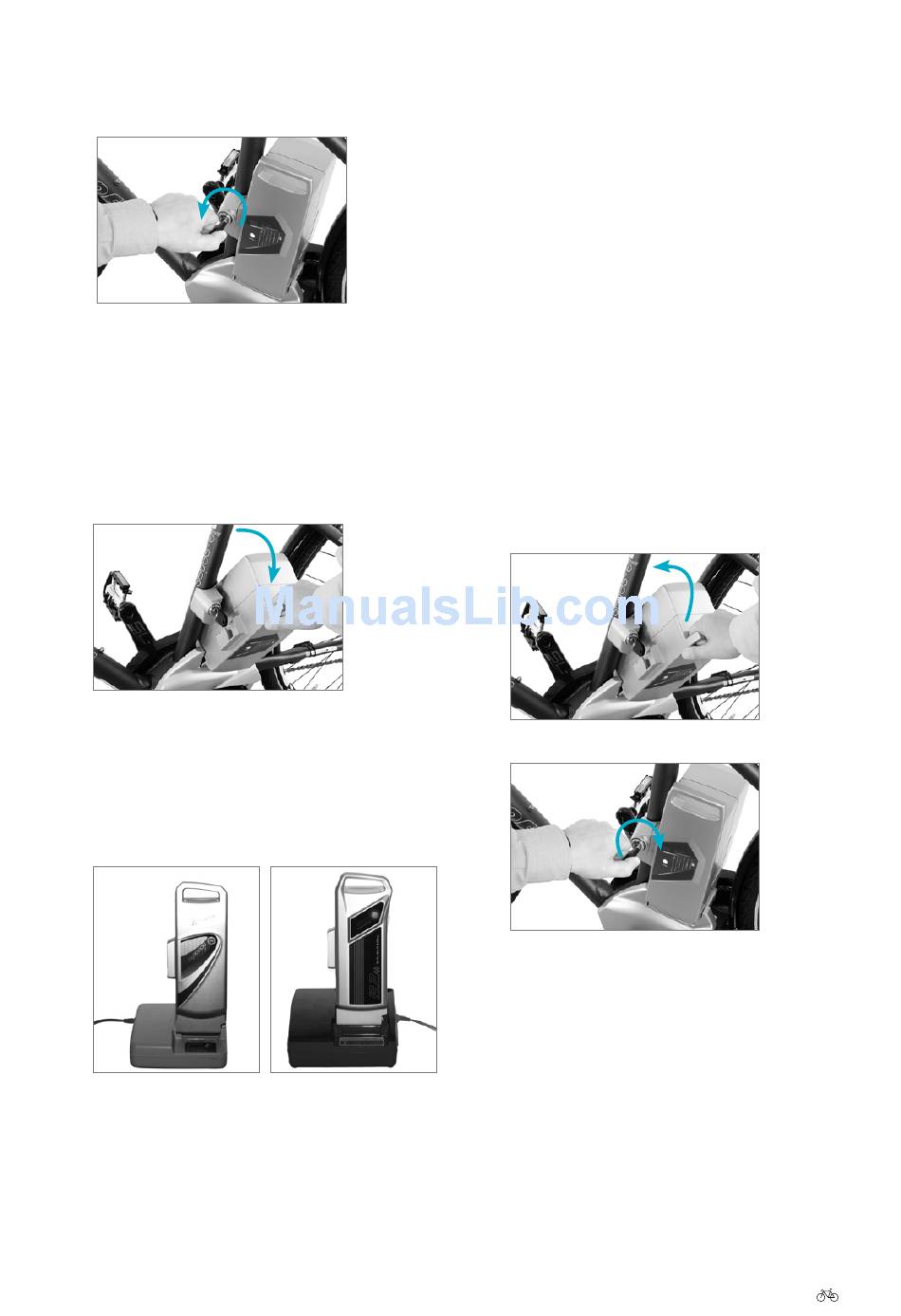

Unlocking the battery
› 2. You must remove the battery for charging. To
remove the battery, grip the handle, insert the key
into the lock and turn it anticlockwise. The battery
is now unlocked.
› 3. Tilt the battery sideways and lift it with both
hands out of the holder.
Tilt the battery sideways
› 4. Put the battery in the docking station of the
charger. The battery LEDs light up or flash during
charging. You must fully charge the battery before
using it for the first time.
Charging the 26 V
battery (LED display)
Charging the 36 V
battery (LCD display)
› 5. a. 26 V battery:
The charge state of the battery is indicated by
five LEDs. The battery LEDs light up or flash
during charging. Once all of the LEDs on the
battery have gone out, the charging process is
complete. Take the battery out of the charger.
b. 36 V battery:
The same applies as for the 26 V battery. How-
ever, if you have a 36 V battery with an LCD
display: After a few seconds, the battery charge
status appears in the display panel. The display
goes out once the battery is fully charged. You
can now take out the battery.
› 6. Reinsert the battery into the holder on the Pe-
delec from the left-hand side. Tilt the battery out-
wards at an angle of roughly 45° as you do so, as
you did when you took it out of the holder. Move
the battery into the upright position until the lock-
ing mechanism engages. If the key is still in the
lock, you will need to turn it clockwise and pull it
out to allow the battery to lock in place.
Installing the battery
Locking the battery
› 7. Make sure that the battery is securely posi-
tioned and that the key is no longer in the lock.
› 8. a. LED control panel /
Hybrid control panel:
1. Press the Power button on the control
panel briefly. Wait for two seconds before
turning the pedals. The drive system re-
quires this time to adjust the power sen-
sor correctly. The power-assist modes light
up briefly. Then they all go out except for
the medium power-assist mode (MID).
User Manual | Pedelec with centre motor 9
