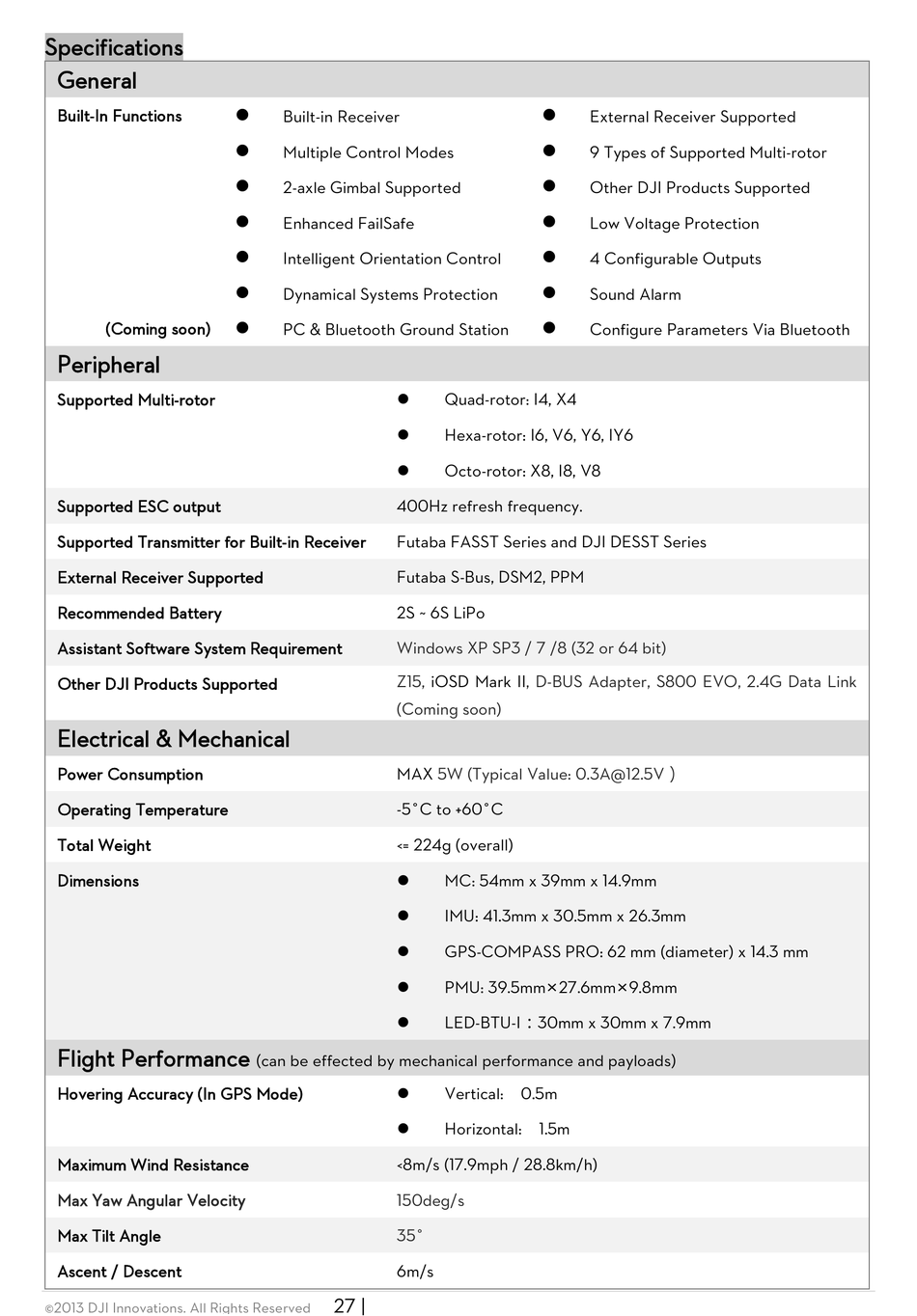

Specifications

General
Built-In Functions
(Coming soon)
Peripheral
Supported Multi-rotor
Supported ESC output
Supported Transmitter for Built-in Receiver
External Receiver Supported
Recommended Battery
Assistant Software System Requirement
Other DJI Products Supported
Electrical & Mechanical
Power Consumption
Operating Temperature
Total Weight
Dimensions
Flight Performance
Hovering Accuracy (In GPS Mode)
Maximum Wind Resistance
Max Yaw Angular Velocity
Max Tilt Angle
Ascent / Descent
©2013 DJI Innovations. All Rights Reserved

Built-in Receiver

Multiple Control Modes

2-axle Gimbal Supported

Enhanced FailSafe

Intelligent Orientation Control

Dynamical Systems Protection

PC & Bluetooth Ground Station



400Hz refresh frequency.
Futaba FASST Series and DJI DESST Series
Futaba S-Bus, DSM2, PPM
2S ~ 6S LiPo
Windows XP SP3 / 7 /8 (32 or 64 bit)
Z15,
(Coming soon)
MAX
-5°C to +60°C
<= 224g (overall)





(can be effected by mechanical performance and payloads)


<8m/s (17.9mph / 28.8km/h)
150deg/s
35°
6m/s
27 |

External Receiver Supported

9 Types of Supported Multi-rotor

Other DJI Products Supported

Low Voltage Protection

4 Configurable Outputs

Sound Alarm

Configure Parameters Via Bluetooth
Quad-rotor: I4, X4
Hexa-rotor: I6, V6, Y6, IY6
Octo-rotor: X8, I8, V8
iOSD Mark II, D-BUS Adapter, S800 EVO, 2.4G Data Link
5W (Typical Value: 0.3A@12.5V）
MC: 54mm x 39mm x 14.9mm
IMU: 41.3mm x 30.5mm x 26.3mm
GPS-COMPASS PRO: 62 mm (diameter) x 14.3 mm
PMU: 39.5mm×27.6mm×9.8mm
LED-BTU-I：30mm x 30mm x 7.9mm
Vertical: ± 0.5m
Horizontal: ± 1.5m
