(3) GPS-COMPASS PRO
GPS-COMPASS PRO module has a built-in GPS and compass. The compass is used for geomagnetic field
measurement. It should be mounted according to the required location and orientation. Compass calibration is
required before use. DO NOT use and store the compass in the ferromagnetic material environment.
Mounting Procedure:
a) Use the epoxy resin AB glue to assemble the GPS bracket first. The longest one is recommended.
b) Mount the bracket on the aircraft first, and then fix the GPS-COMPASS PRO on the plate of the bracket
(using the 3M sticky pads provided).

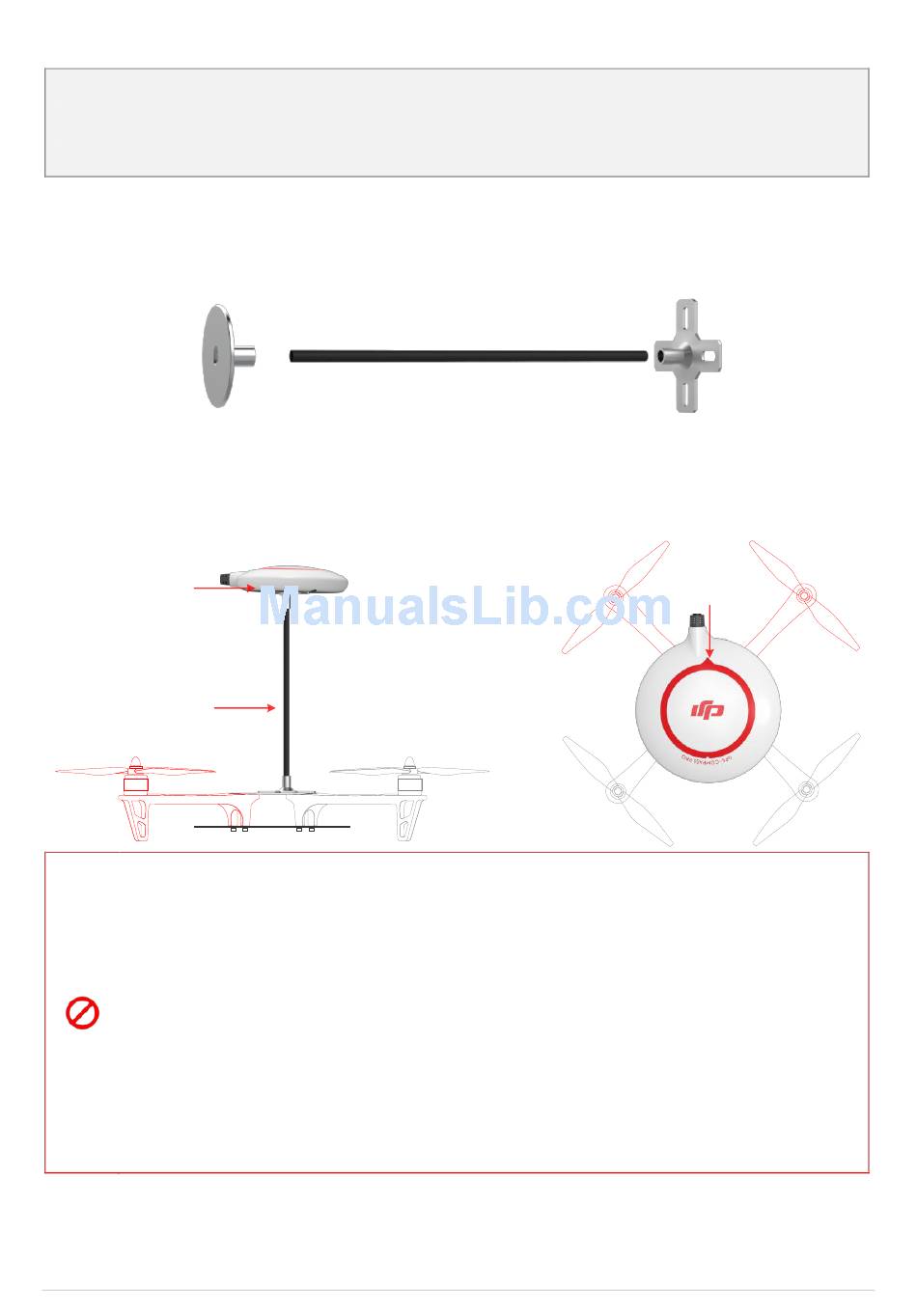

Mount Requirements:
Keep it parallel
to the aircraft
Use the GPS bracket, and
keep it away from other
electronic equipment
Usage Requirements
(1) The DJI logo should be facing the sky, with the orientation arrow pointing directly to the nose
direction; otherwise it may lead to
(2) Fly the aircraft in an open space without buildings or trees; otherwise it may have an effect on
the GPS.
(3) The compass is sensitive to magnetic interference, should be far away from electronic devices,
otherwise it may lead to
(4) Please always keep the compass module away from magnet fields. Otherwise it may damage
the compass module and lead the aircraft to work abnormally or even be out of control.
©2013 DJI Innovations. All Rights Reserved
take off failure.
abnormal flying.
10 |
The arrow is
pointing to the
nose direction.
