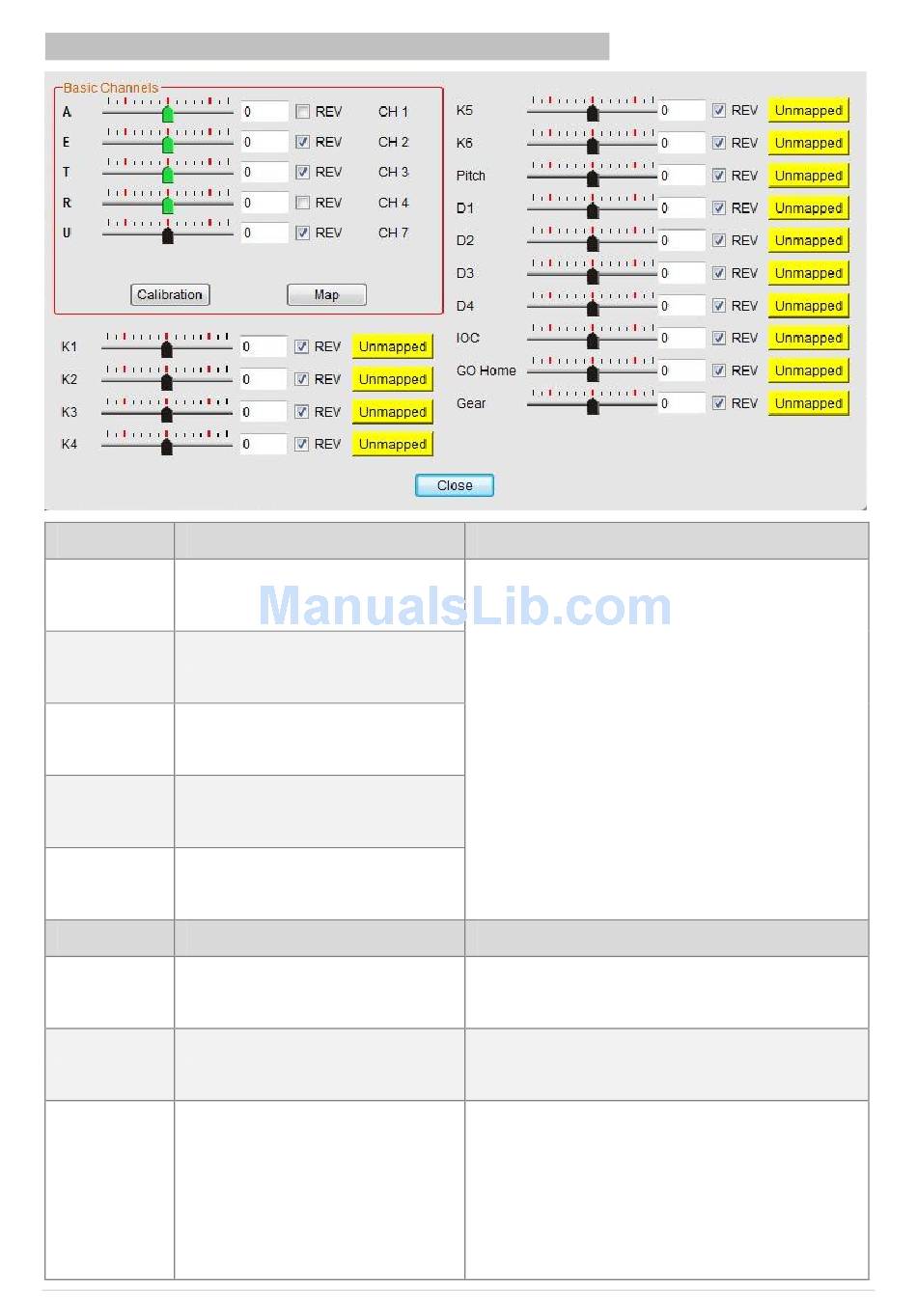

Channel Mapping Instructions for PC Assistant Software

Basic Channel Default Settings
A Roll Control of Controller Unit using
Channel 1 of Receiver
E Pitch Control of Controller Unit
using Channel 2 of Receiver
T Throttle Control of Controller Unit
using Channel 3 of Receiver
R Yaw Control of Controller Unit using
Channel 4 of Receiver
U Control Mode Switch of Controller
Unit using Channel 7 of Receiver
Others Default Settings
K1~K6 Remote
Controller Unit, unmapped.
Pitch Gimbal Pitch Control of Controller
Unit, unmapped.
D1~D4 Direct Channels (The corresponding
ports are F1~F4 on the Controller
Unit) of Controller Unit, unmapped.
©2013 DJI Innovations. All Rights Reserved
Gains Adjustment of
29 |
Usage Description
Click the "Map" button, then you can re-do mapping
for A/E/T/R/U. Note: During calibrating, make sure
to operate by strictly following the prompts;
otherwise may lead to calibration failure.
During Assistant Software usage, please click the
"Calibration" button, to calibrate the Transmitter
sticks travel.
Usage Description
Click "Unmapped" button, to map K1~K6 to the
Receiver channel.
Click "Unmapped" button, to map Pitch to Receiver
channel. For gimbal servo control.
Click "Unmapped" button, to map D1~D4 to the
Receiver channel. If you enable the Gimbal function
in Assistant Software, then the F3/F2 are used for
gimbal control. Even D3/D2 are mapped to Receiver
channels, the output signal from the corresponding
