dji A2 Flight Control System User Manual page 8

External Receivers

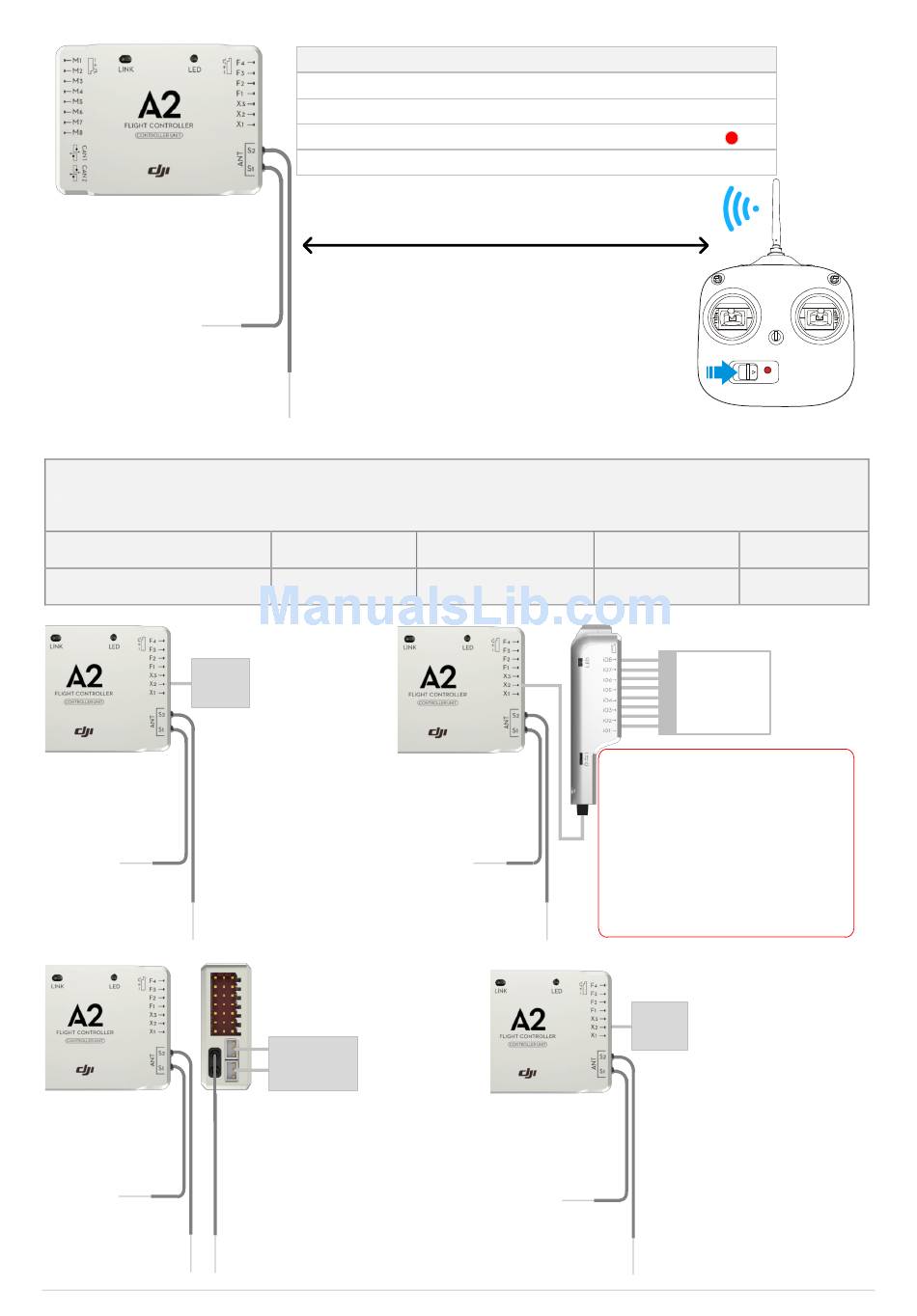

If using an external Receiver, please follow the diagram for connection, set the Receiver referring to your
Receiver manual, and select the correct type in assistant software->Basic->R/C-> Receiver Type.
Receiver Type
Assistant Software Option
S-BUS
Receiver
©2013 DJI Innovations. All Rights Reserved
1. Turn on the transmitter, it begins to send signals after 1.5secs.
2.Power on the flight control system.
3.Press the LINK button, hold for 2secs, wait until the LED blinks Red
4.Release the LINK button, the LED turns Green on after successfully linking.
0.5m<Distance<1cm
S-BUS Receiver With D-BUS Adapter
D-BUS D-BUS
DSM2 Satellite
Receiver
8 |
Link Procedures
DSM2 Receiver
DSM2
· When you use a traditional receiver,
DJI D-BUS ADAPTER is required. Put
the switch to the "i" stop, and
power on the system, the LED should
be red on; otherwise, keep the switch
at "i" stop and then power cycle the
system.
· At the "i"stop, the D-BUS ADAPTER
is converting the PWM signal from
traditional receiver to S-BUS signal.
PPM
Receiver
.
PPM Receiver
PPM
8
7
6
Traditional
5
4 Receiver
3
2
1
Important
