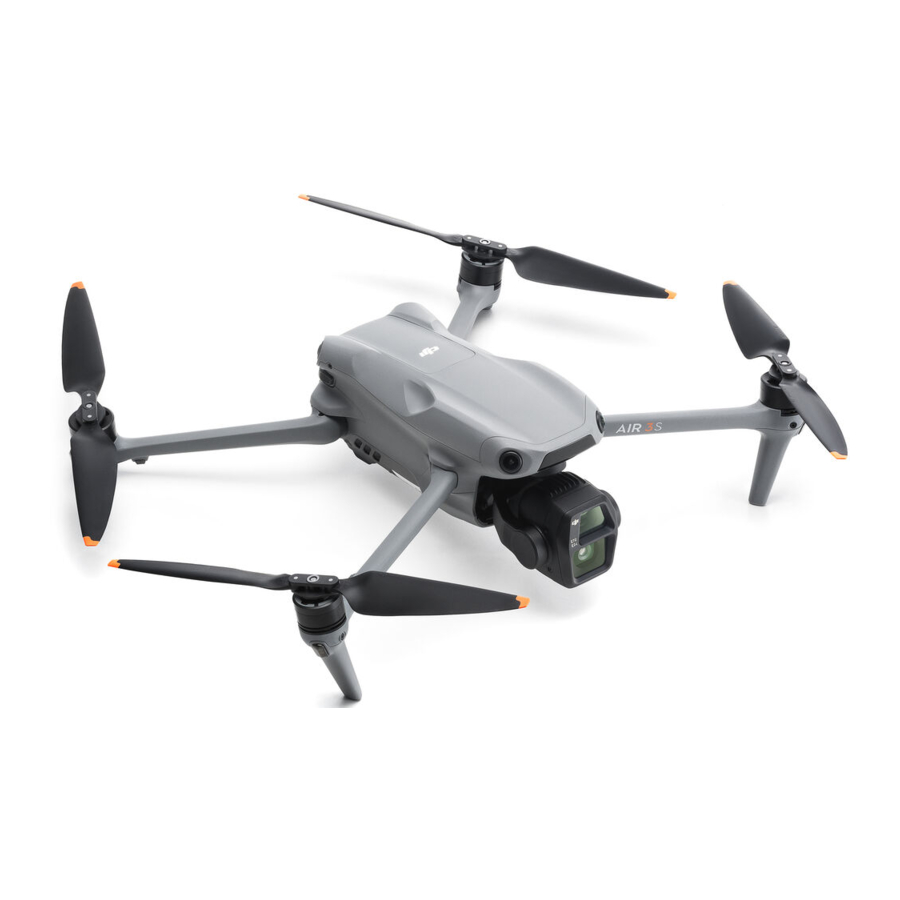

dji AIR 3S (CZ3SCL) Manual

Safety at a Glance

warning By using this product, you signify that you have read, understand, and accept the terms and conditions of this guideline and all instructions at https://www.dji.com/air-3s. EXCEPT AS EXPRESSLY PROVIDED IN AFTER-SALES SERVICE POLICIES AVAILABLE AT HTTPS://WWW.DJI.COM/SERVICE/POLICY, THE PRODUCT AND ALL MATERIALS AND CONTENT AVAILABLE THROUGH THE PRODUCT ARE PROVIDED "AS IS" AND ON "AS AVAILABLE BASIS" WITHOUT WARRANTY OR CONDITION OF ANY KIND. This product is not intended for children.

Flight Environment

  1. DO NOT use the aircraft in severe weather conditions including wind exceeding 12 m/s, snow, rain, fog, hail, or lightning.
  2. DO NOT take off from an altitude more than 6000 m (19,685 ft) above sea level.
  3. DO NOT fly the aircraft in environments where the temperature is below -10°C (14°F) or above 40°C (104°F).
  4. DO NOT take off from moving objects, such as cars and boats.
  5. DO NOT fly close to reflective surfaces such as water or snow. Otherwise, the vision system may be limited.
  6. When the GNSS signal is weak, fly the aircraft in environments with good lighting and visibility. The vision system may not work properly in poor lighting conditions.
  7. DO NOT fly the aircraft near areas with magnetic or radio interference, including high-voltage lines, large scale power transmission stations, radar stations, mobile base stations, and broadcasting towers.
  8. Fly the aircraft in open areas away from crowds. When flying at a high altitude, pay attention to environmental changes such as cloud cover, air currents, and low temperatures to avoid impacting the battery and power performance, which may cause an accident.

Flight Operation

  1. Stay away from rotating propellers and motors.
  2. When flying at a high altitude, make sure to keep a safe distance from other aircraft and from the obstacles, and fly carefully to avoid collisions.

NOTICE

  1. Make sure DJI Fly and the aircraft firmware have been updated to the latest version.
  2. Fly the aircraft back as soon as possible when the battery level is low or there are high wind speeds.

Intelligent Flight Battery

  1. burn hazard DO NOT allow liquid to come into contact with the battery. DO NOT leave the battery covered in moisture or out in the rain. DO NOT drop the battery into water. Otherwise, an explosion or fire may occur.
  2. DO NOT use non-DJI batteries. It is recommended to use a DJI charging device.
  3. burn hazard This product should only be used in temperatures from -10° to 40°C (14° to 104°F). A high temperature can lead to a fire or explosion. A low temperature will reduce the performance of a battery.
  4. DO NOT use swollen, leaking, or damaged batteries. The electrolytes in the battery are highly corrosive. Keep away from leaking batteries. If any electrolytes come into contact with your skin or eyes, immediately wash the affected area with water and seek medical support.
  5. DO NOT disassemble or pierce the battery in any way.
  6. Keep the batteries out of the reach of children.
  7. DO NOT use a battery if it is involved in a crash or heavy impact.
  8. Put out a battery fire using water, sand, a fire blanket, or a dry powder or carbon dioxide fire extinguisher according to the actual situation.
  9. DO NOT leave the batteries near heat sources such as inside a vehicle on hot days.
  10. DO NOT store the product for an extended period of time after fully discharging the battery. Otherwise, the battery may over-discharge, which may cause irreparable damage.

Specifications

Aircraft (Model: CZ3SCL)
O4
Operating Frequency [1] 2.4000-2.4835 GHz, 5.170-5.250 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), 20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), 30 dBm (SRRC), <14 dBm (CE)
Wi-Fi
Protocol 802.11 a/b/g/n/ac
Operating Frequency [1] 2.4000-2.4835 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz: <20 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth
Protocol Bluetooth 5.2
Operating Frequency 2.4000-2.4835 GHz
Transmitter Power (EIRP) <10 dBm
DJI RC-N3 Remote Controller (Model: RC151)
O4
Operating Frequency [1] 2.4000-2.4835 GHz, 5.170-5.250 GHz, 5.725-5.850 GHz
Transmitter Power (EIRP) 2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), 14 dBm (CE), <30 dBm (SRRC)

[1] The supported operating frequency and the available frequency range may vary in different countries and regions. Refer to the local laws and regulations for more information.
